Pinpoint Test X: One Turn Signal Lamp Is Always On - LR Turn Lamp

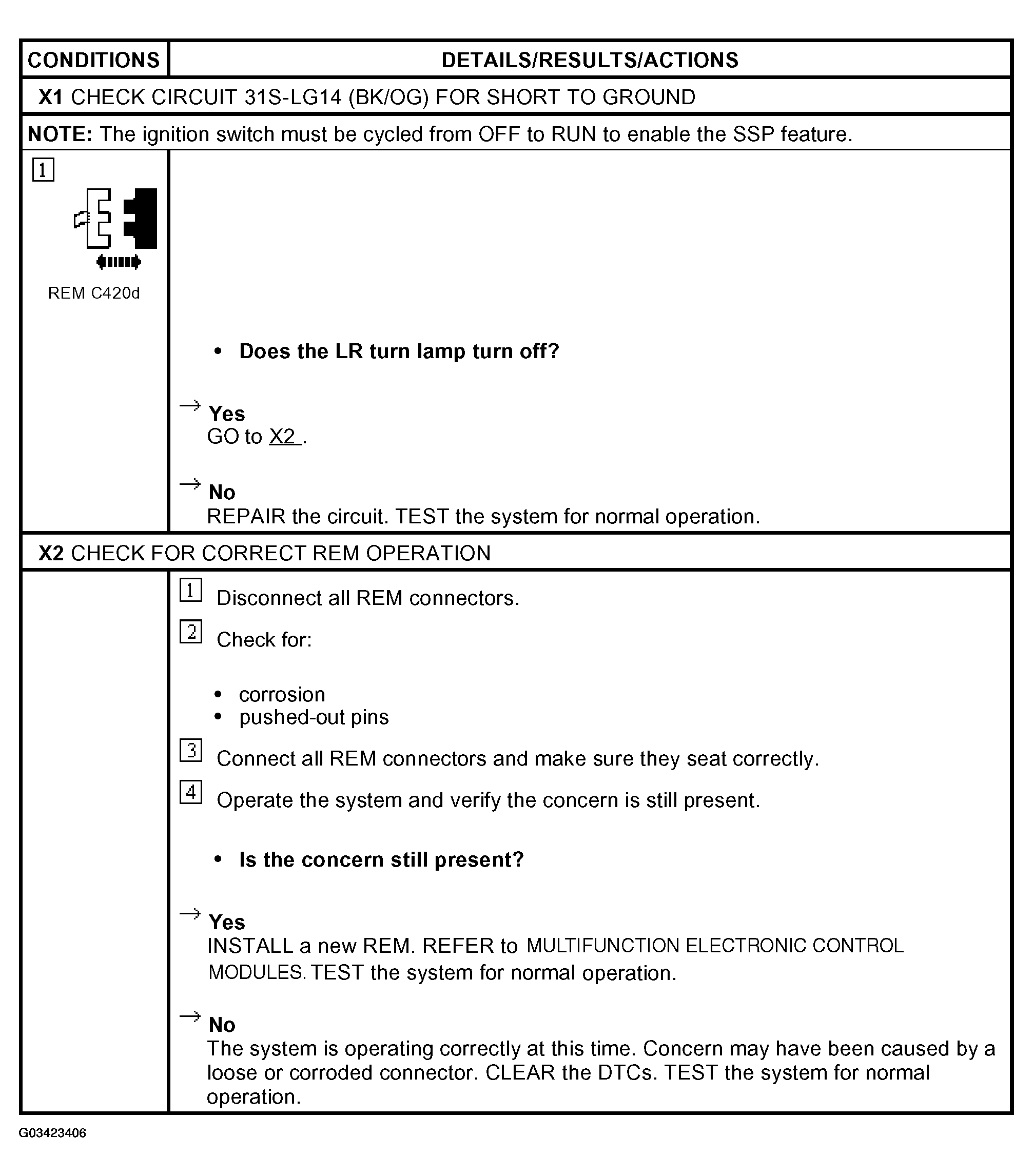

Fig 1: Pinpoint Test X: One Turn Signal Lamp Is Always On - LR Turn Lamp

G03423406

Courtesy of FORD MOTOR CO.
