Pinpoint Test W: One Turn Signal Lamp Is Never On - LR Turn Lamp

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

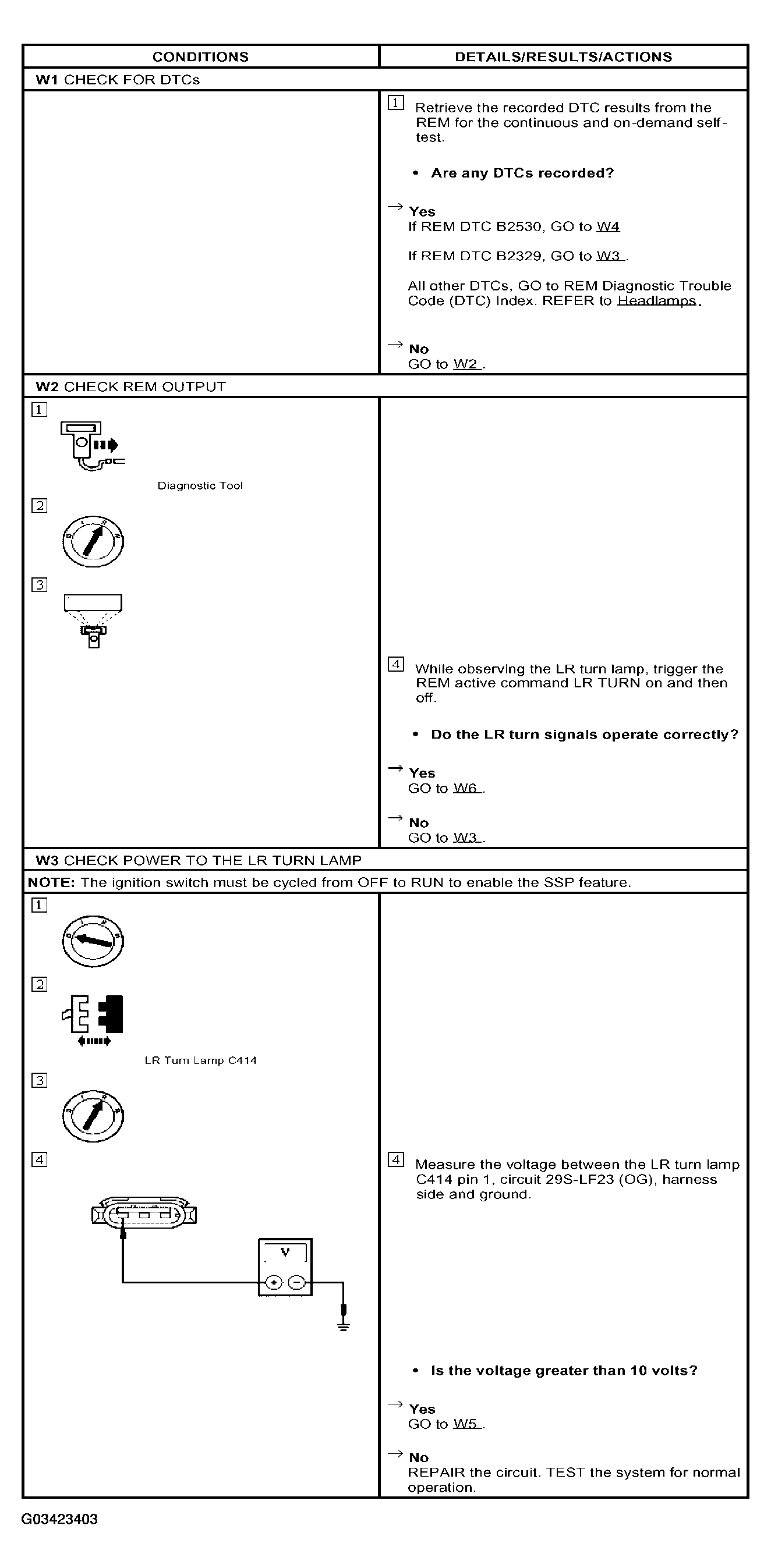

Fig 1: Pinpoint Test W: One Turn Signal Lamp Is Never On - LR Turn Lamp (W1-W3)

Courtesy of FORD MOTOR CO.

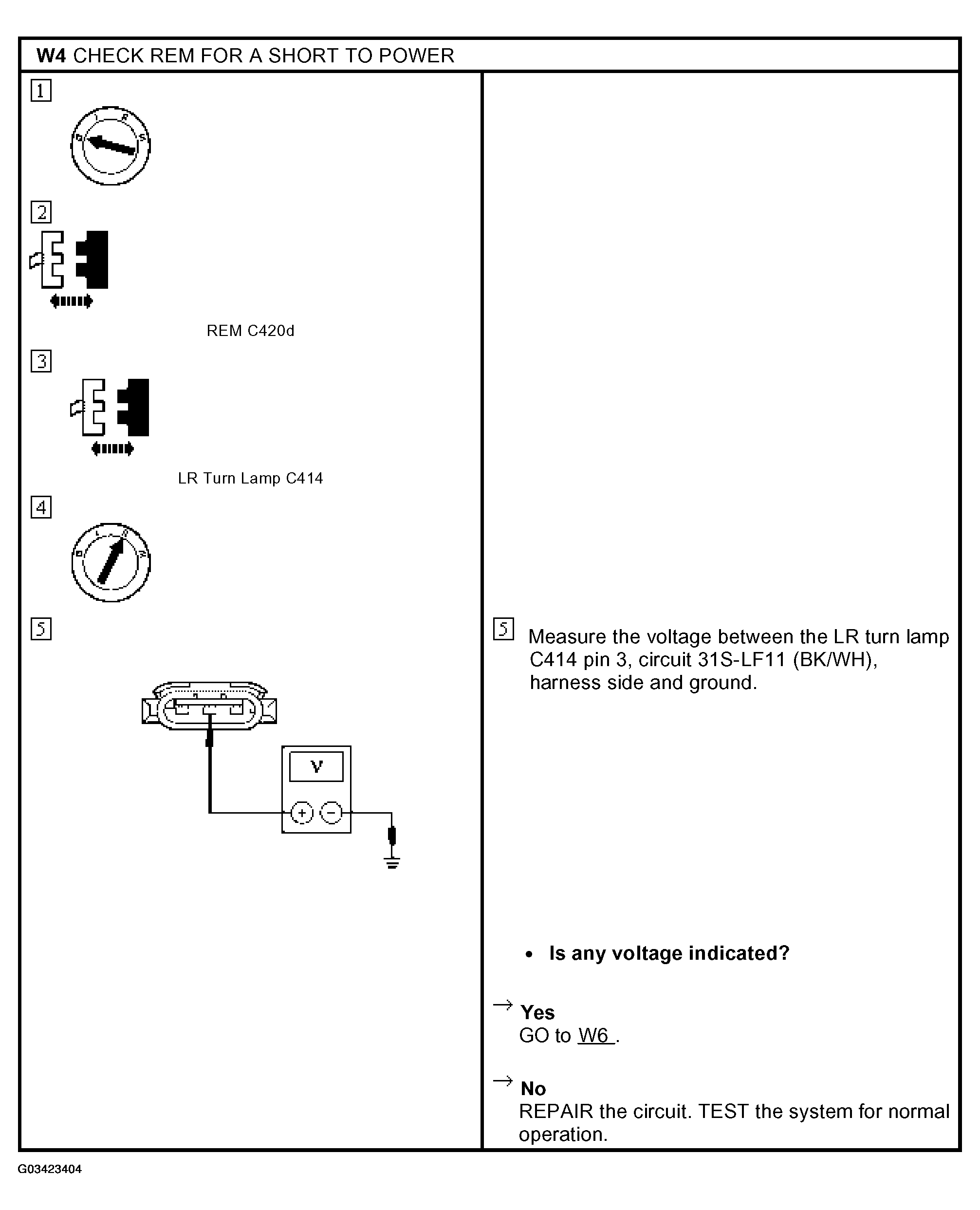

Fig 2: Pinpoint Test W: One Turn Signal Lamp Is Never On - LR Turn Lamp (W4)

Courtesy of FORD MOTOR CO.

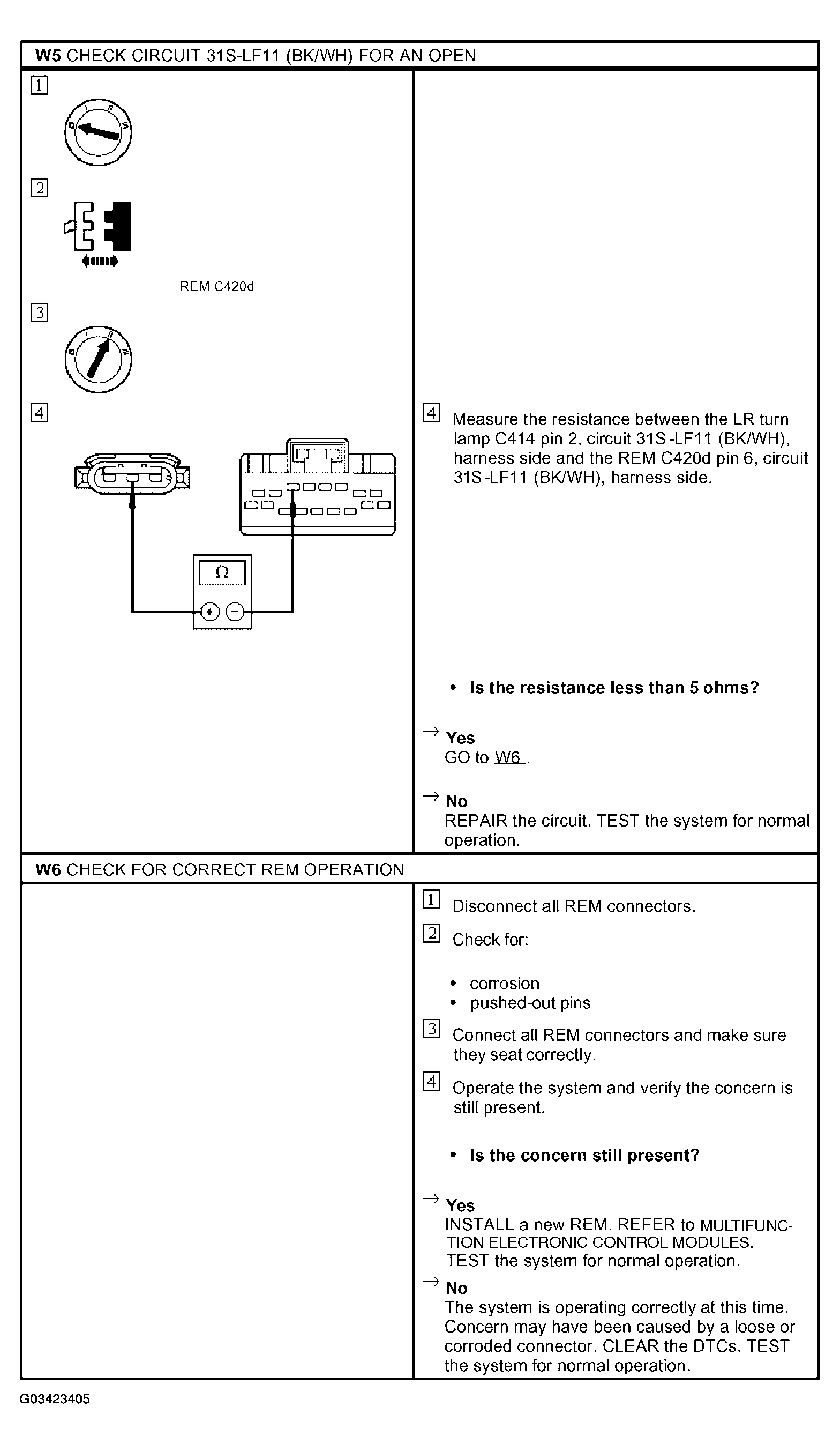

Fig 3: Pinpoint Test W: One Turn Signal Lamp Is Never On - LR Turn Lamp (W5-W6)

Courtesy of FORD MOTOR CO.
