Pinpoint Test R: The Stoplamps Are On Continuously - All Stoplamps

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

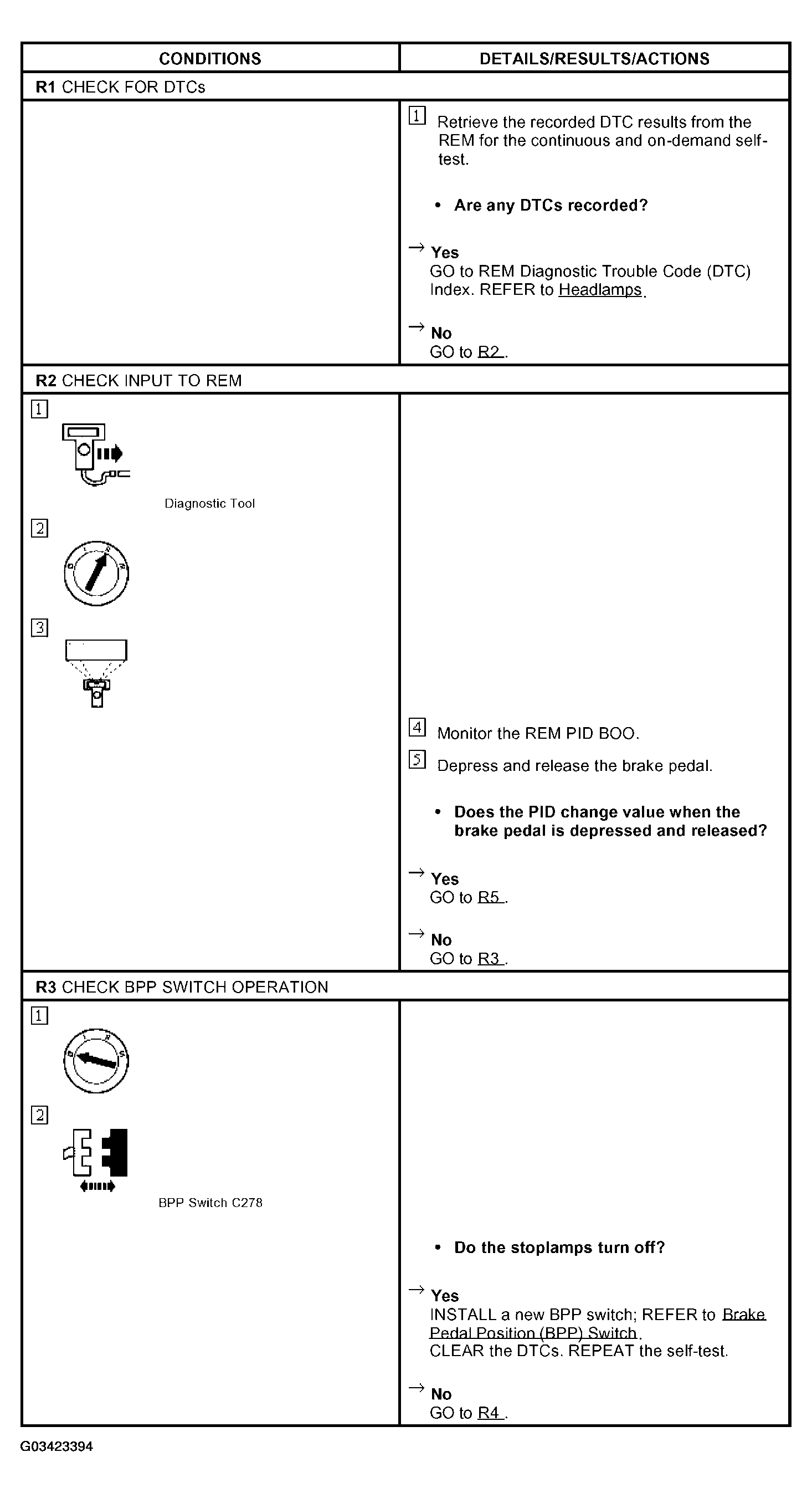

Fig 1: Pinpoint Test R: Stoplamps Are On Continuously - All Stoplamps (R1-R3)

Courtesy of FORD MOTOR CO.

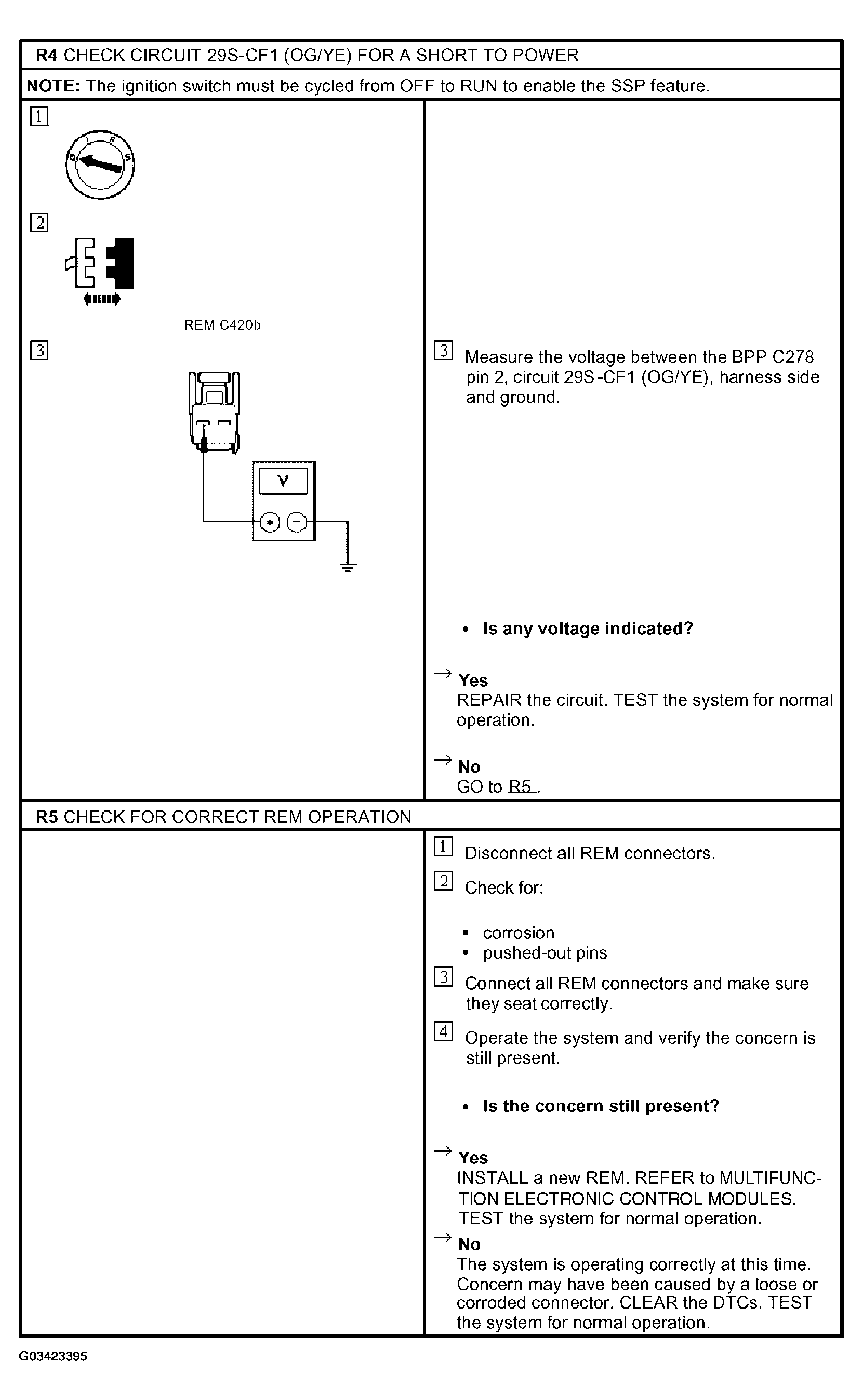

Fig 2: Pinpoint Test R: Stoplamps Are On Continuously - All Stoplamps (R4-R5)

Courtesy of FORD MOTOR CO.
