Pinpoint Test L: The Stoplamps Are Inoperative

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

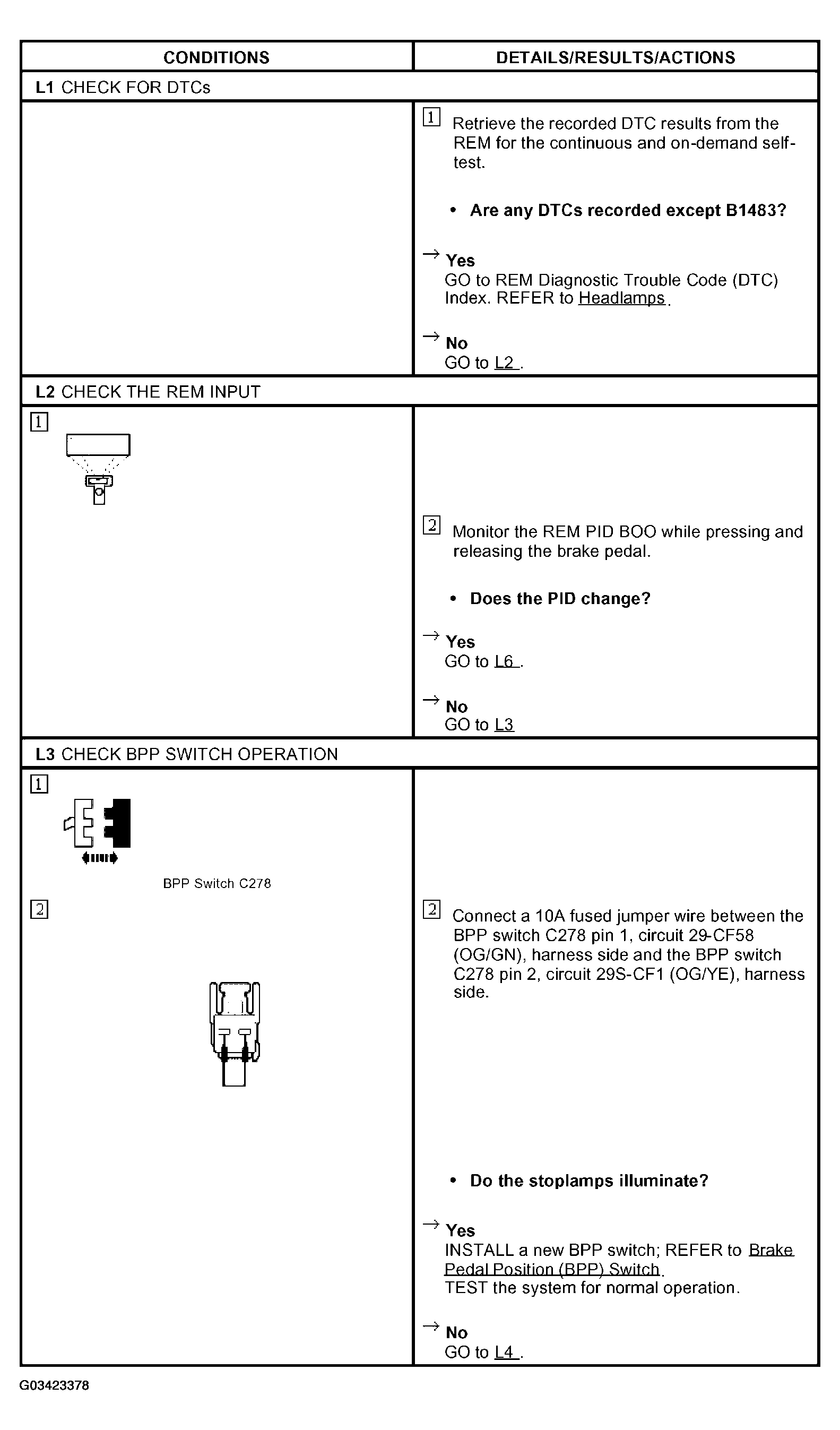

Fig 1: Pinpoint Test L: Stoplamps Are Inoperative (L1-L3)

Courtesy of FORD MOTOR CO.

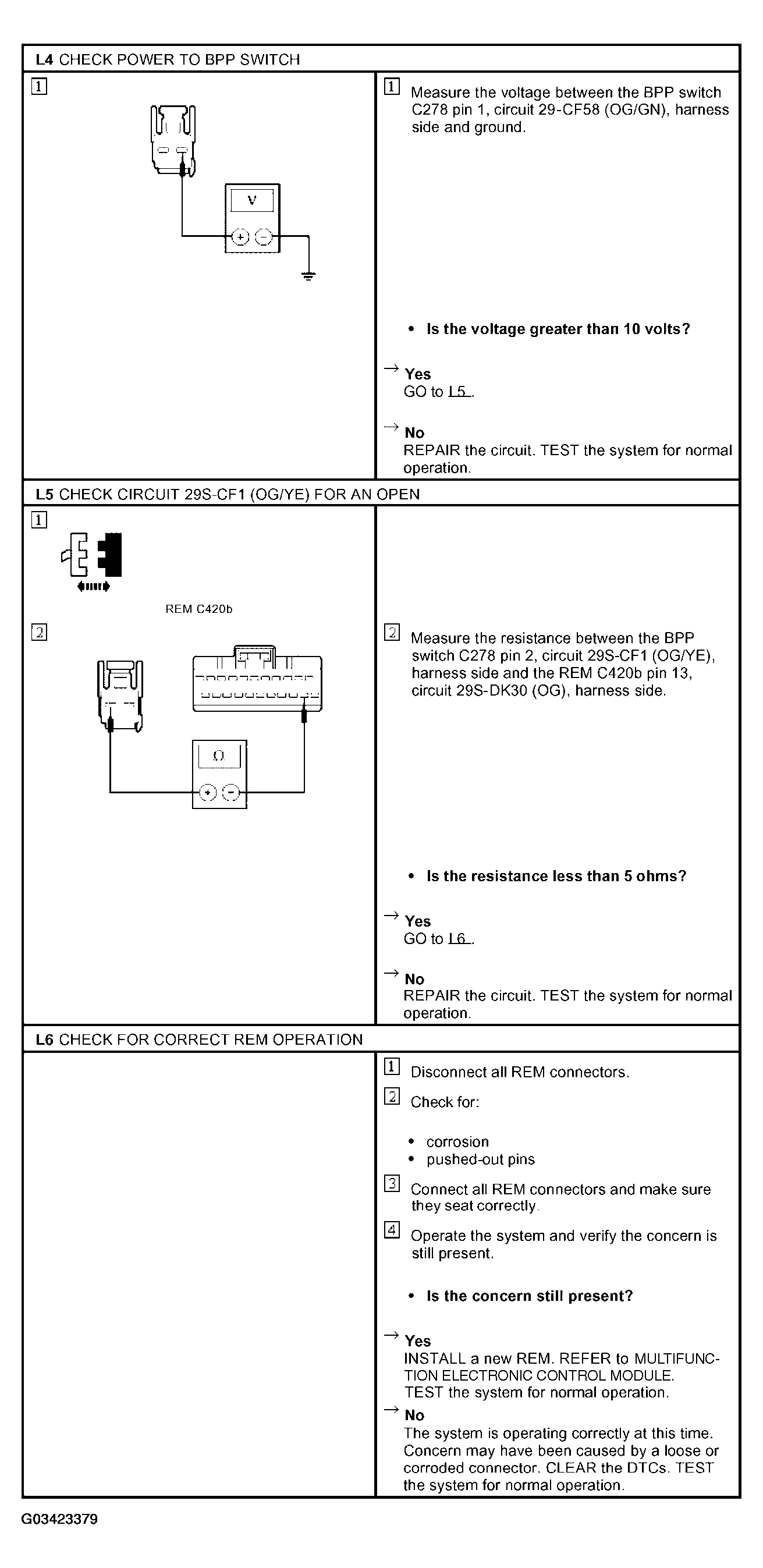

Fig 2: Pinpoint Test L: Stoplamps Are Inoperative (L4-L6)

Courtesy of FORD MOTOR CO.
