Pinpoint Test K: The Auto Lamps Are On Continuously

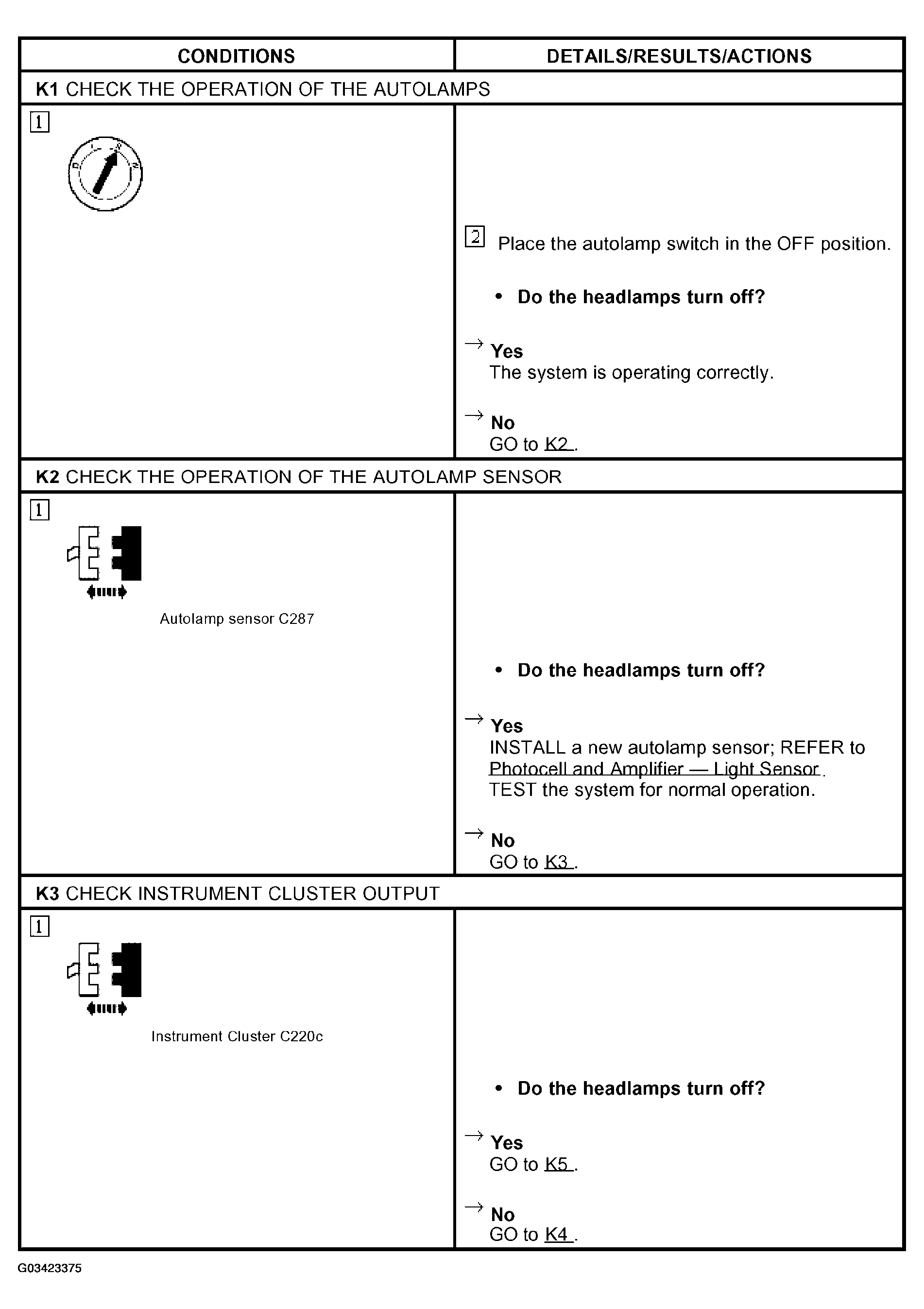

Fig 1: Pinpoint Test K: Auto Lamps Are On Continuously (K1-K3)

Courtesy of FORD MOTOR CO.

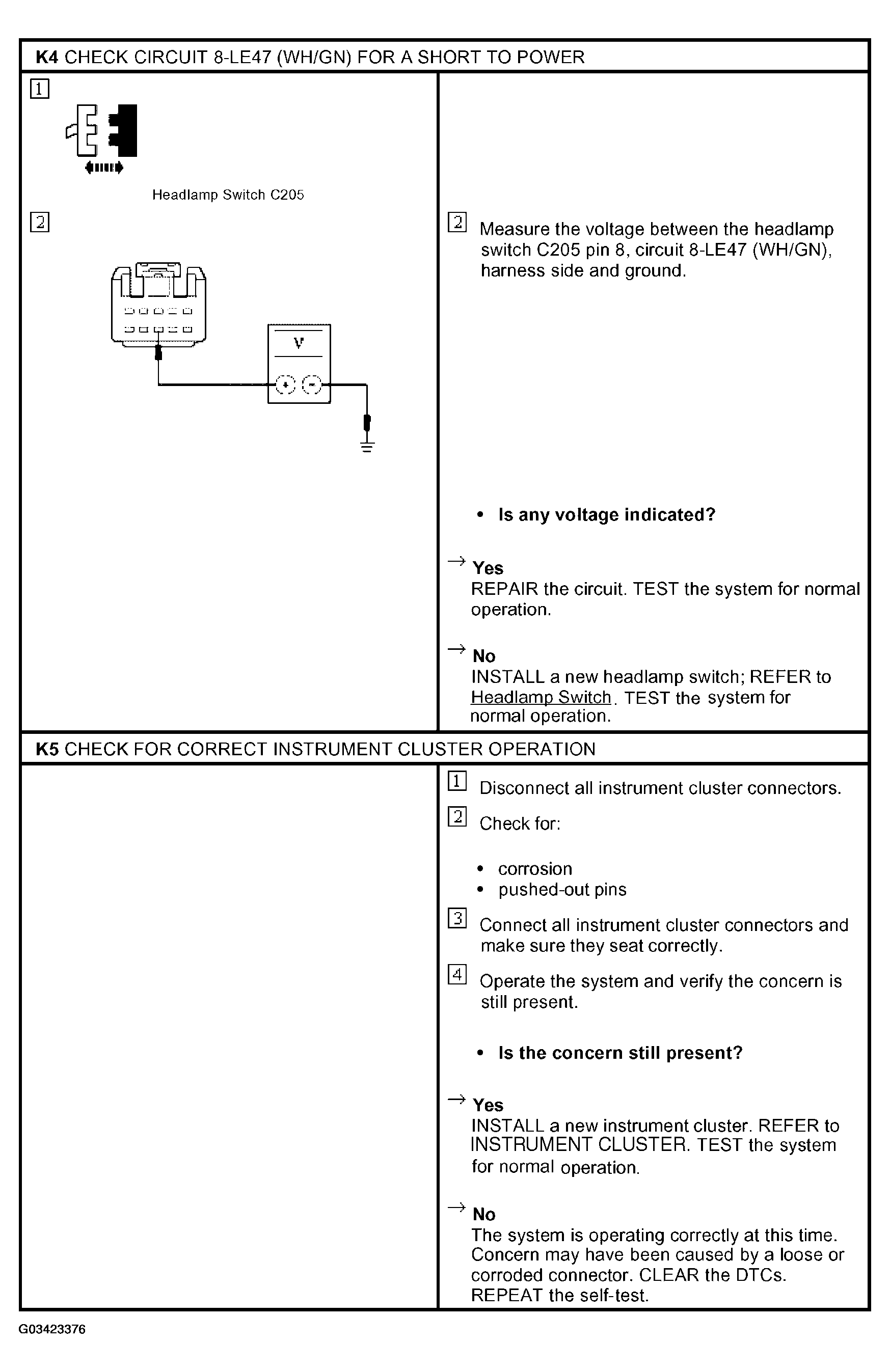

Fig 2: Pinpoint Test K: Auto Lamps Are On Continuously (K4-K5)

Courtesy of FORD MOTOR CO.
