Pinpoint Test J: The Autolamps Are Inoperative

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

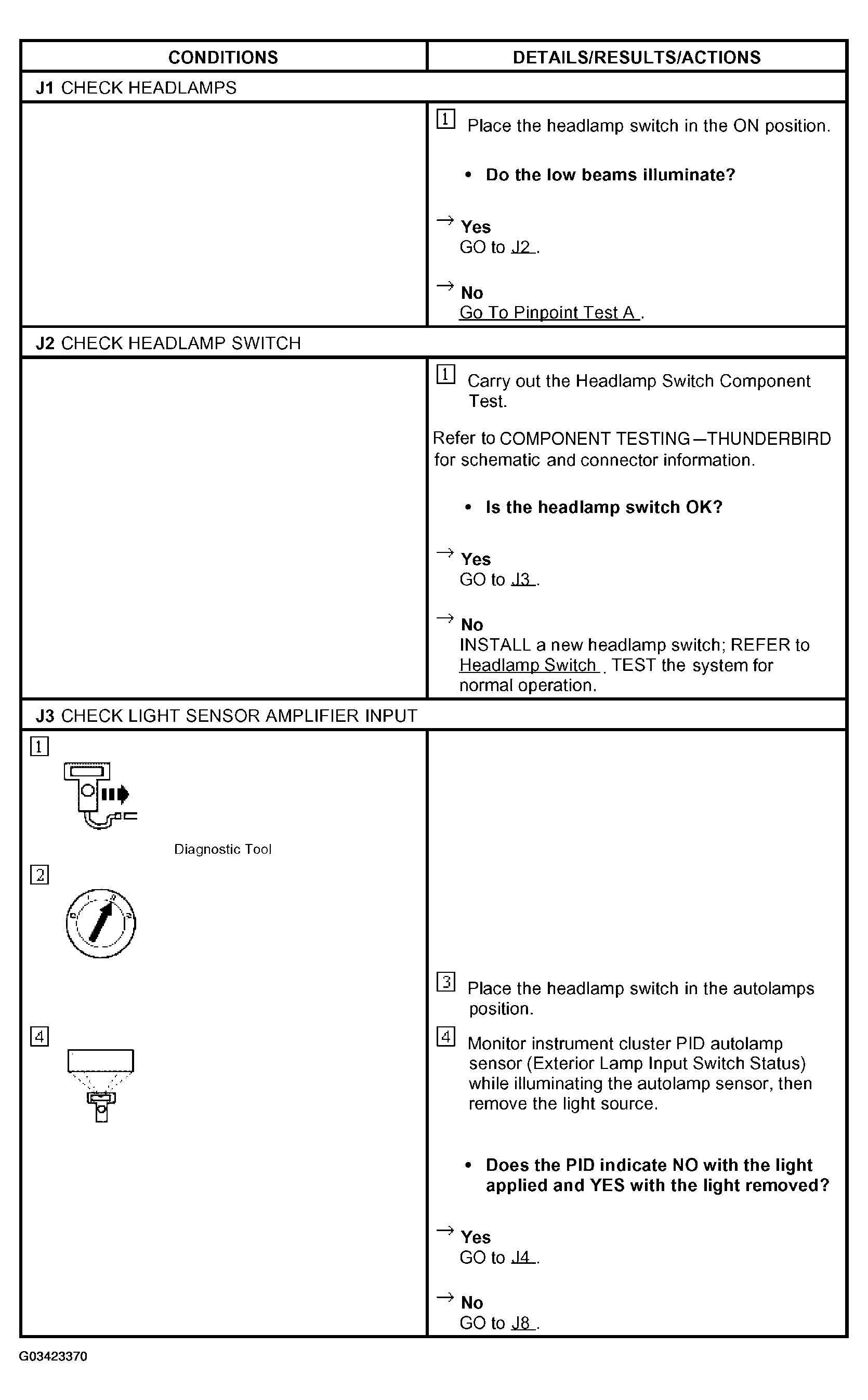

Fig 1: Pinpoint Test J: Autolamps Are Inoperative (J1-J3)

Courtesy of FORD MOTOR CO.

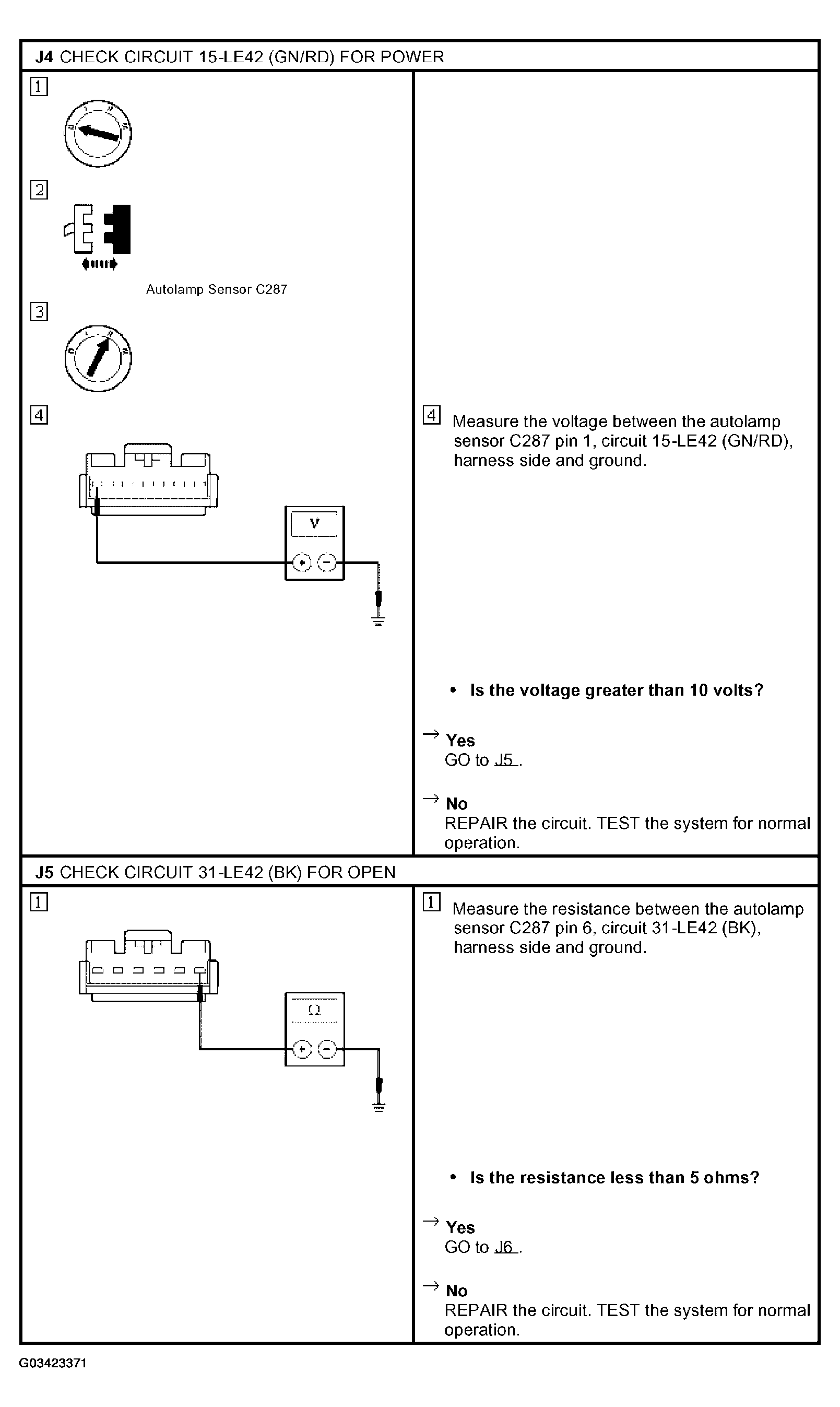

Fig 2: Pinpoint Test J: Autolamps Are Inoperative (J4-J5)

Courtesy of FORD MOTOR CO.

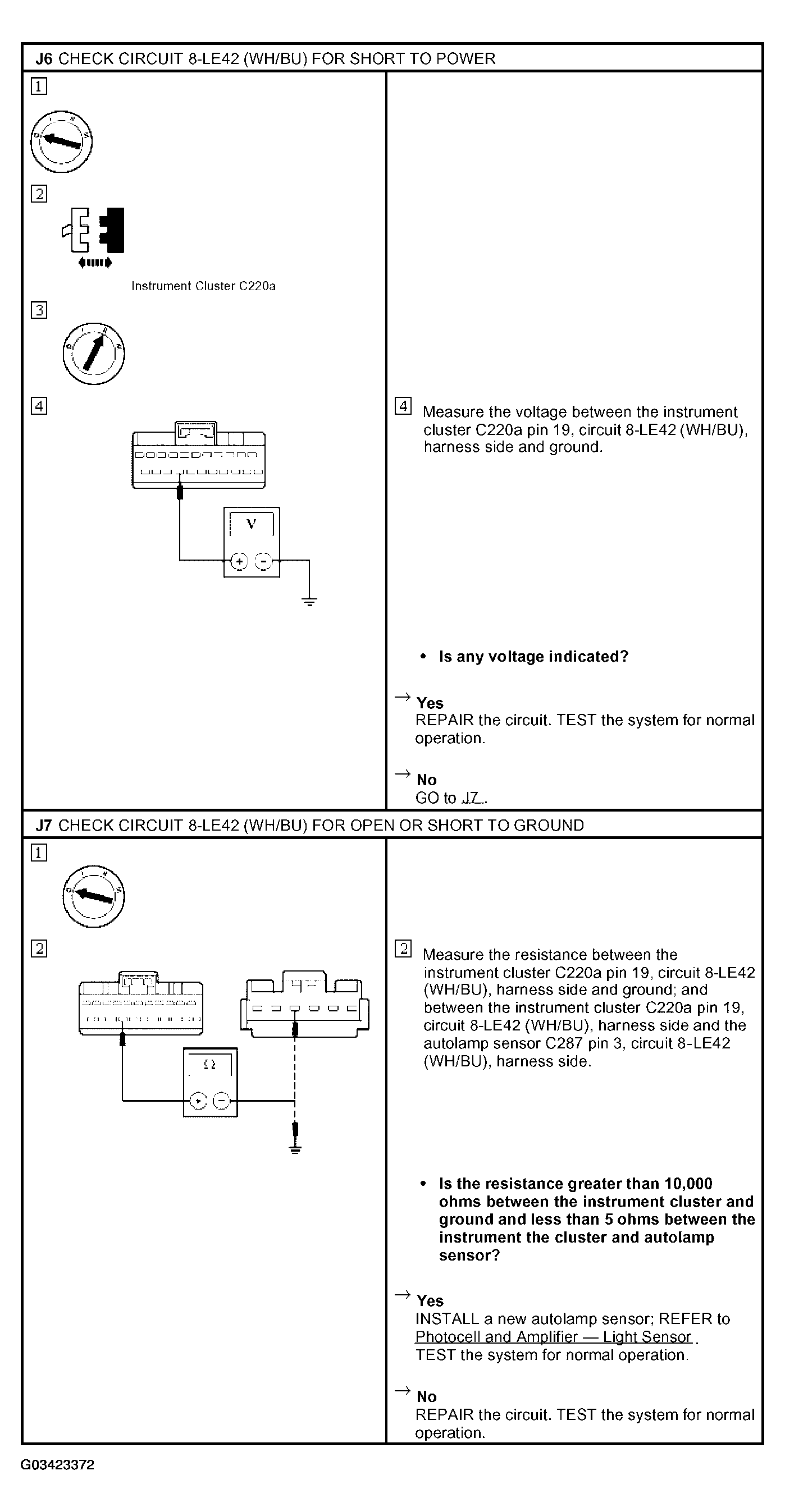

Fig 3: Pinpoint Test J: Autolamps Are Inoperative (J6-J7)

Courtesy of FORD MOTOR CO.

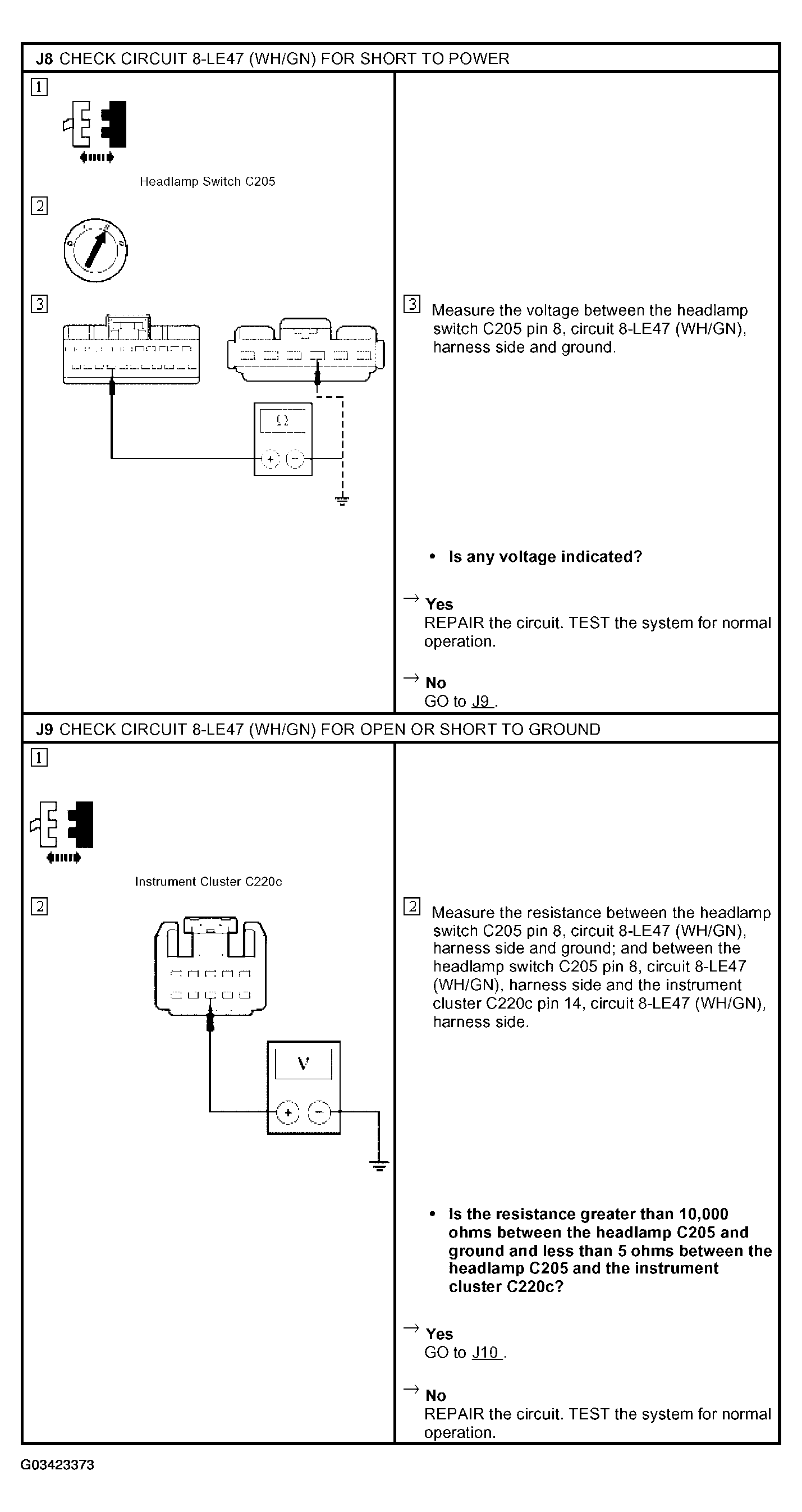

Fig 4: Pinpoint Test J: Autolamps Are Inoperative (J8-J9)

Courtesy of FORD MOTOR CO.

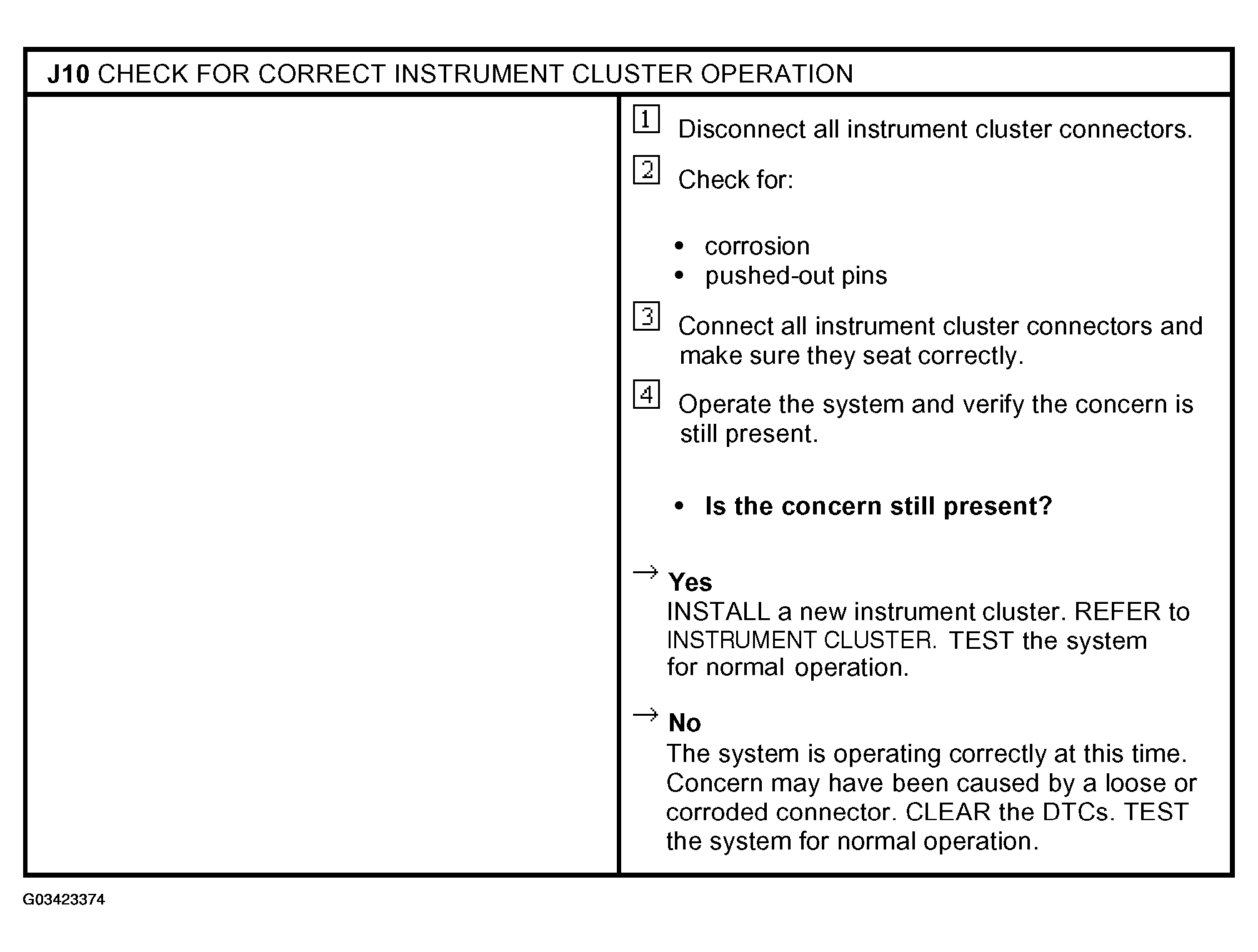

Fig 5: Pinpoint Test J: Autolamps Are Inoperative (J10)

Courtesy of FORD MOTOR CO.
