Pinpoint Test I: The Power Supply Relay Is Inoperative - SSP4

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.
NOTE: Refer to PRINCIPLES OF OPERATION  and SSP RELAY INDEX  for complete details of SSP4 powered features.

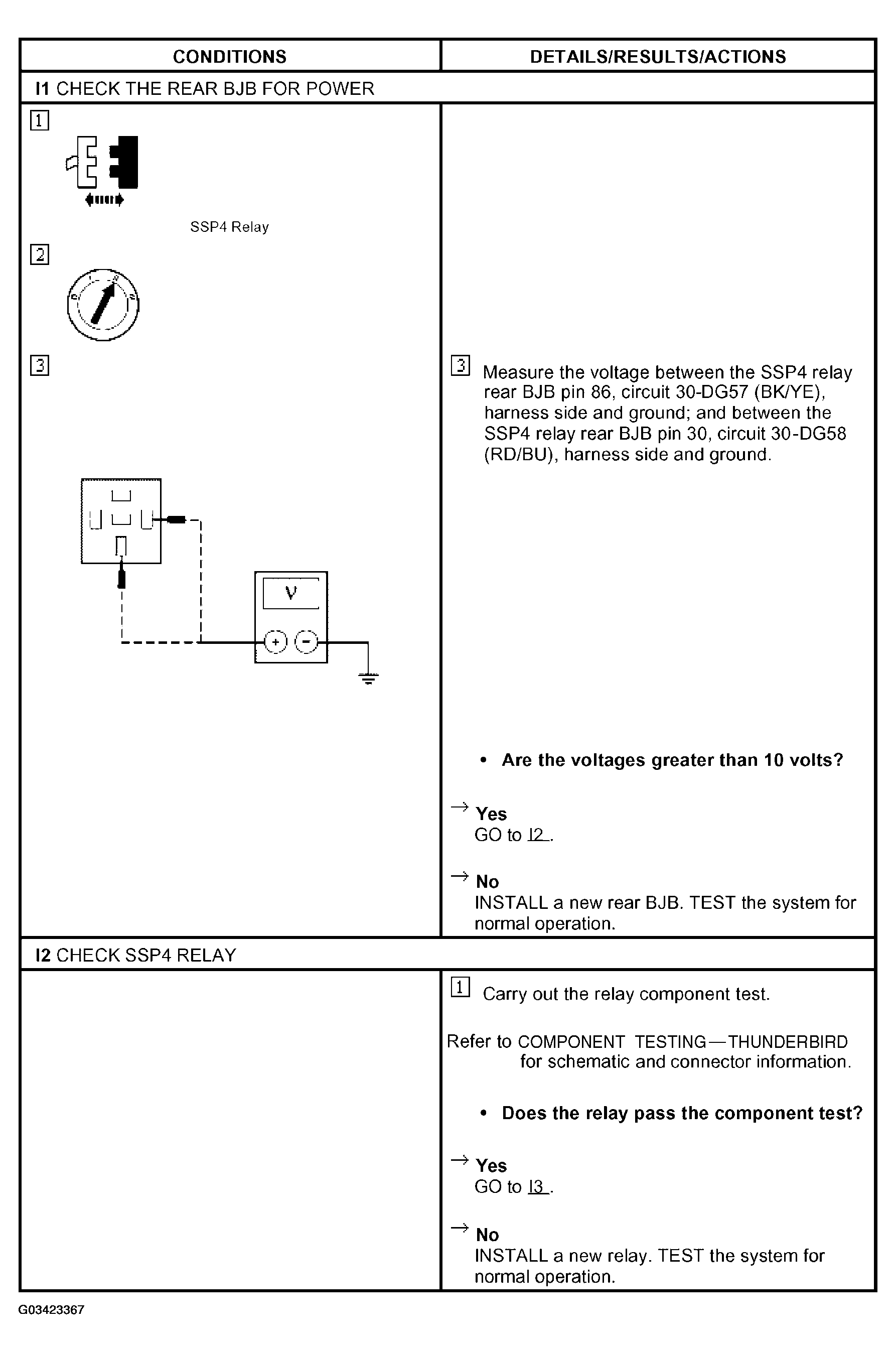

Fig 1: Pinpoint Test I: Power Supply Relay Is Inoperative - SSP4 (I1-I2)
G03423367Courtesy of FORD MOTOR CO.

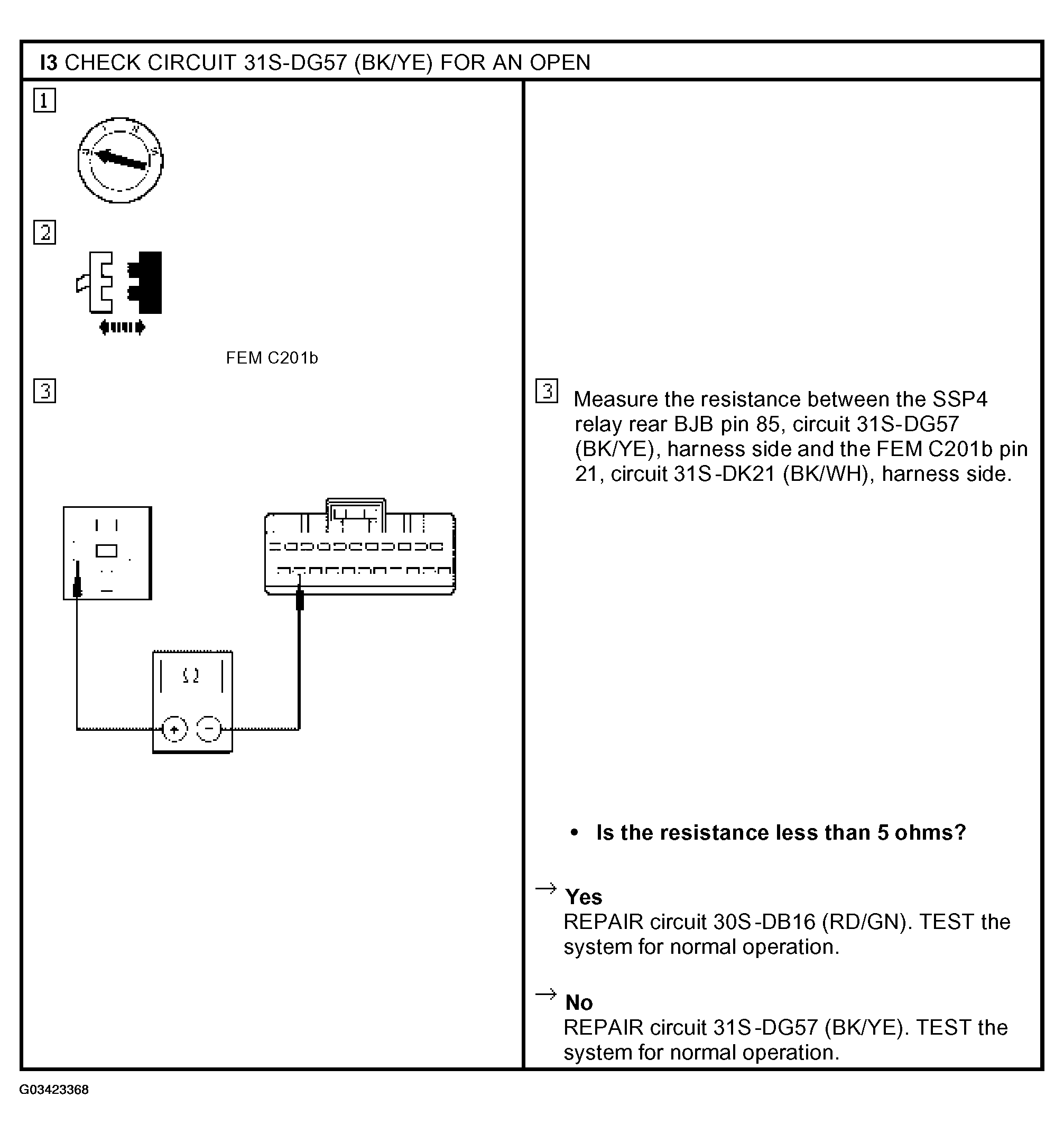

Fig 2: Pinpoint Test I: Power Supply Relay Is Inoperative - SSP4 (I3)
G03423368Courtesy of FORD MOTOR CO.
