Pinpoint Test H: The Power Supply Relay Is Inoperative - SSP3

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

NOTE: Refer to PRINCIPLES OF OPERATION  and SSP RELAY INDEX  for complete details of SSP3 powered features.

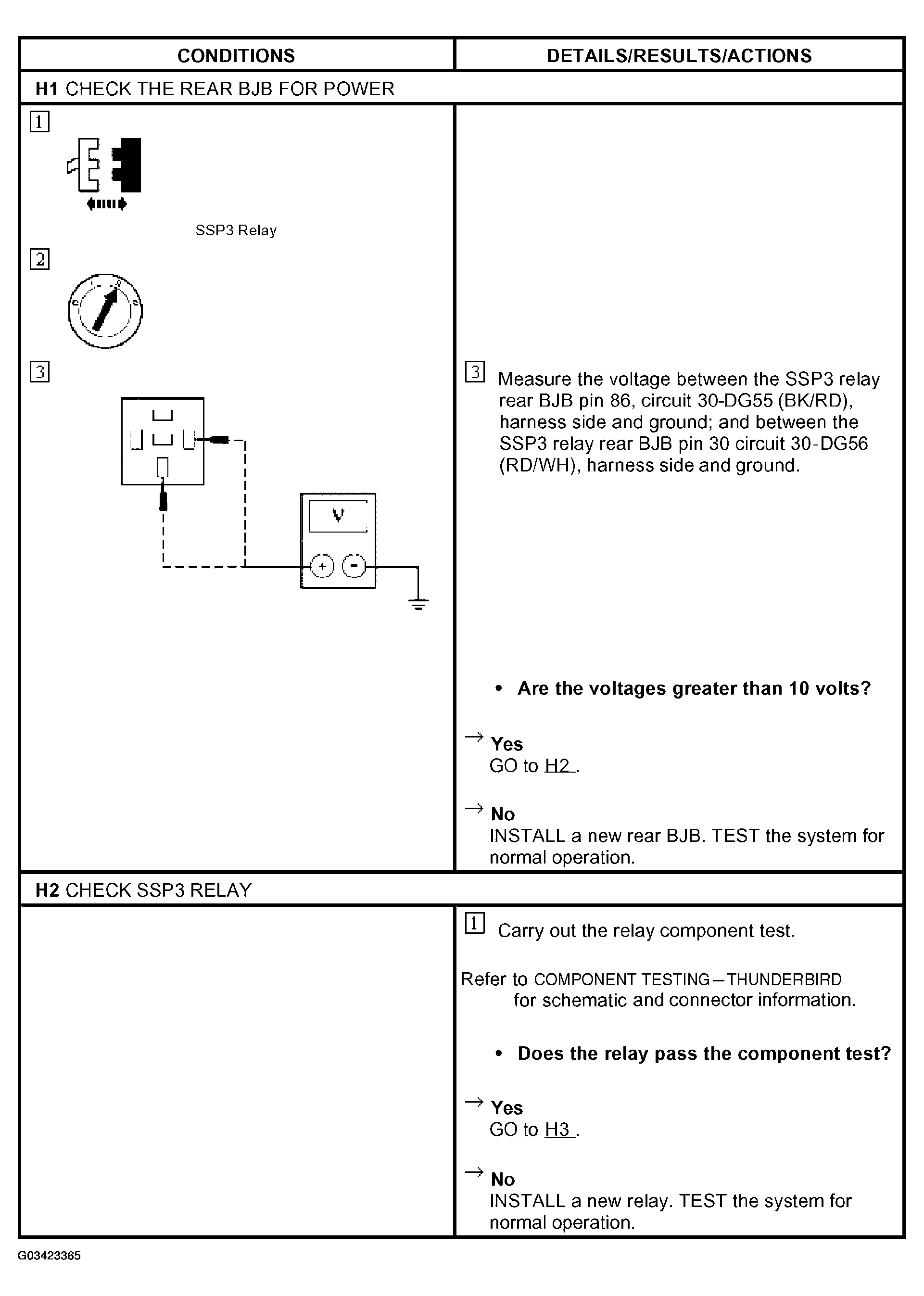

Fig 1: Pinpoint Test H: Power Supply Relay Is Inoperative - SSP3 (H1-H2)

Courtesy of FORD MOTOR CO.

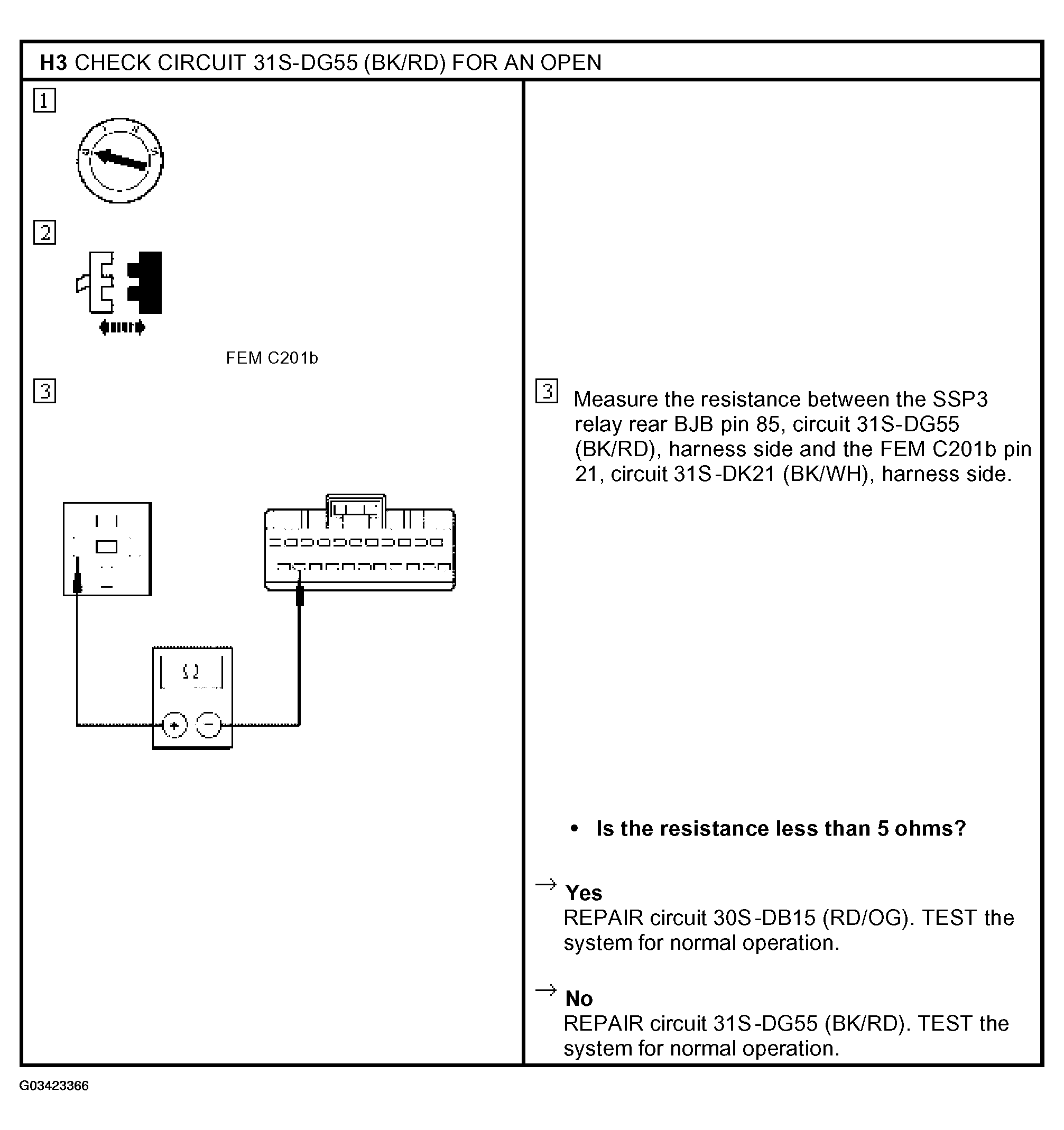

Fig 2: Pinpoint Test H: Power Supply Relay Is Inoperative - SSP3 (H3)

Courtesy of FORD MOTOR CO.
