Pinpoint Test G: The Power Supply Relay Is Inoperative - SSP2

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

NOTE: Refer to PRINCIPLES OF OPERATION  and SSP RELAY INDEX  for complete details of SSP2 powered features.

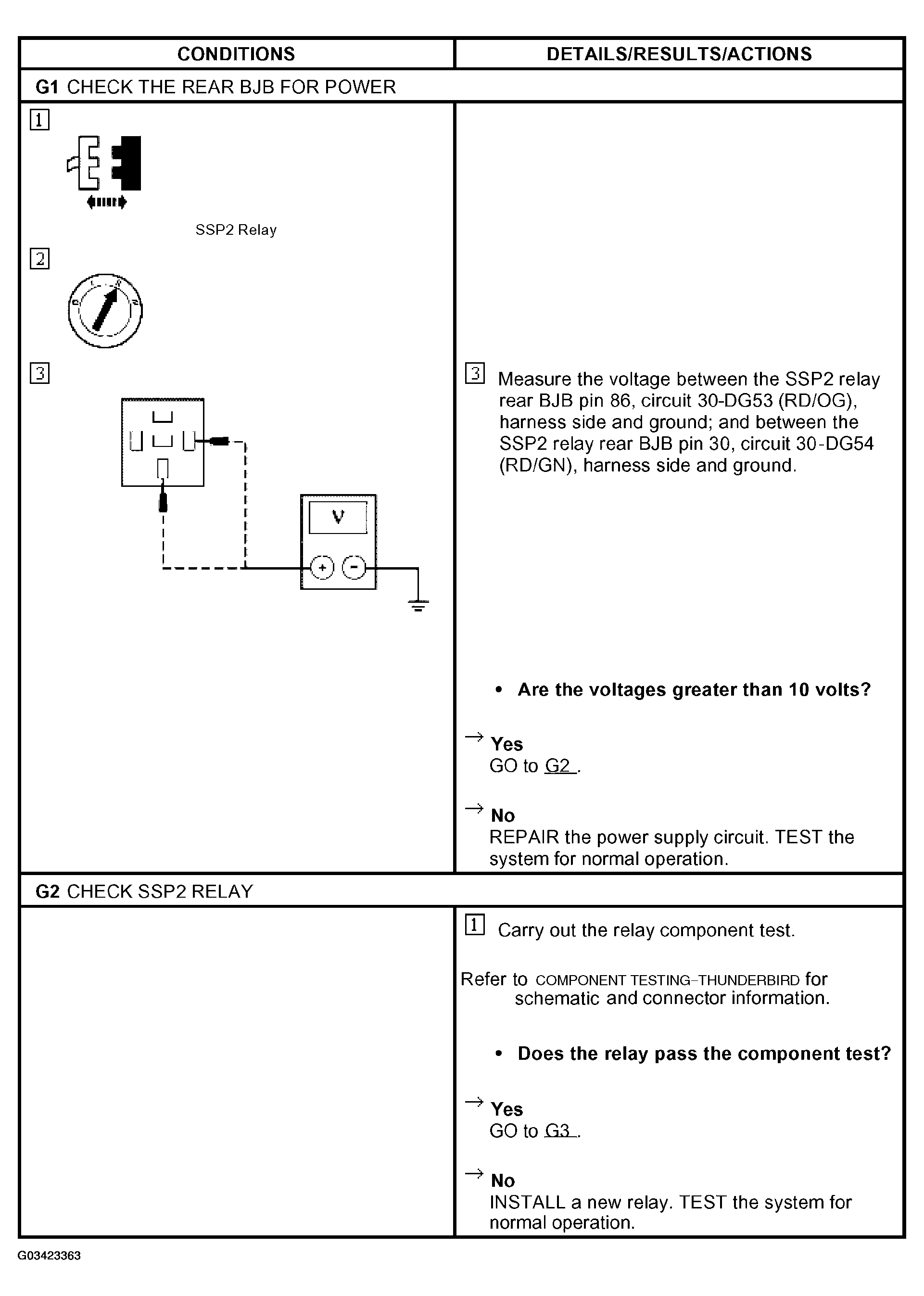

Fig 1: Pinpoint Test G: Power Supply Relay Is Inoperative - SSP2 (G1-G2)

Courtesy of FORD MOTOR CO.

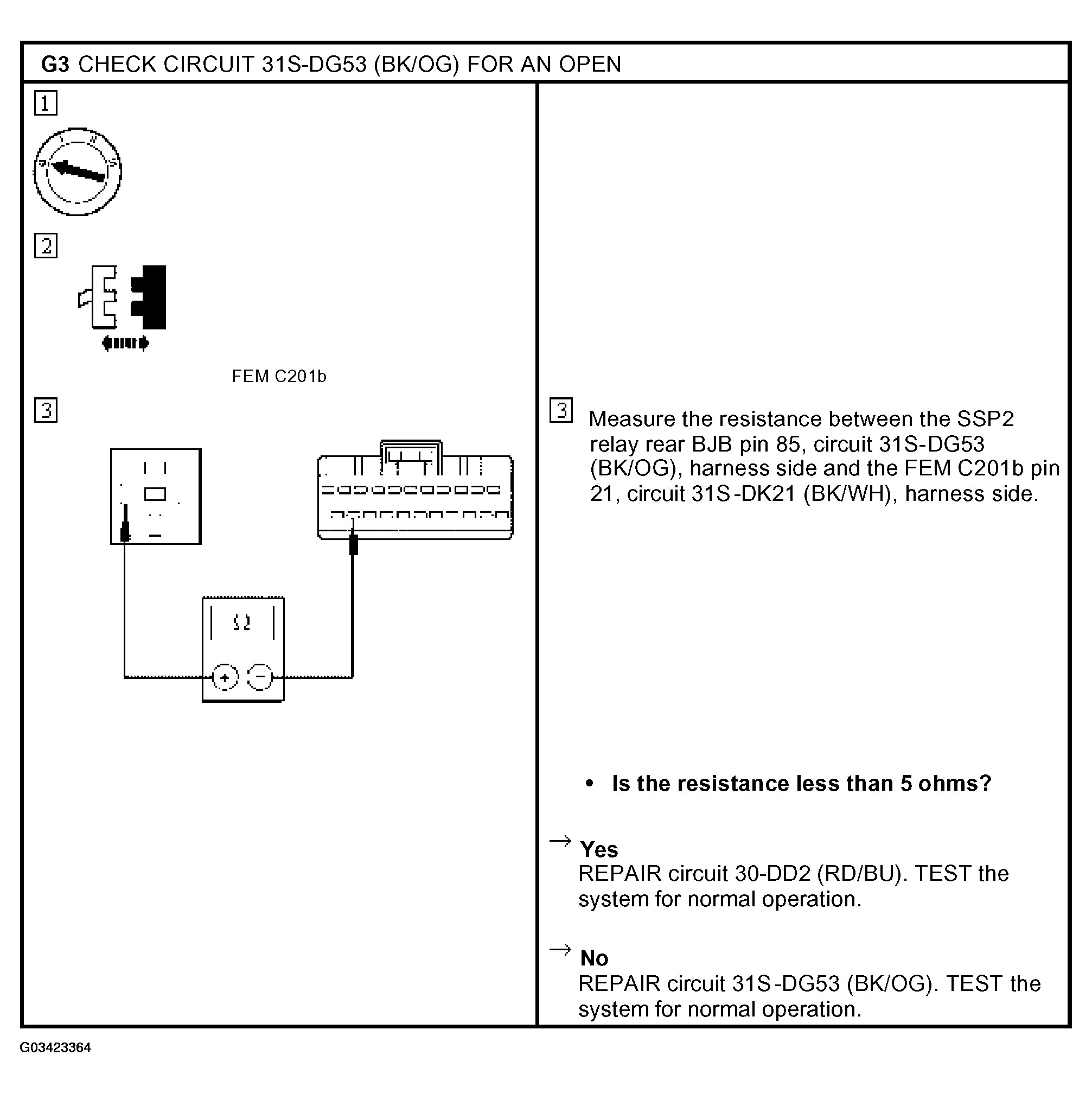

Fig 2: Pinpoint Test G: Power Supply Relay Is Inoperative - SSP2 (G3)

Courtesy of FORD MOTOR CO.
