Pinpoint Test F: The Power Supply Relay Is Inoperative - SSP1

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

NOTE: Refer to PRINCIPLES OF OPERATION  and SSP RELAY INDEX  for complete details of SSP1 powered features.

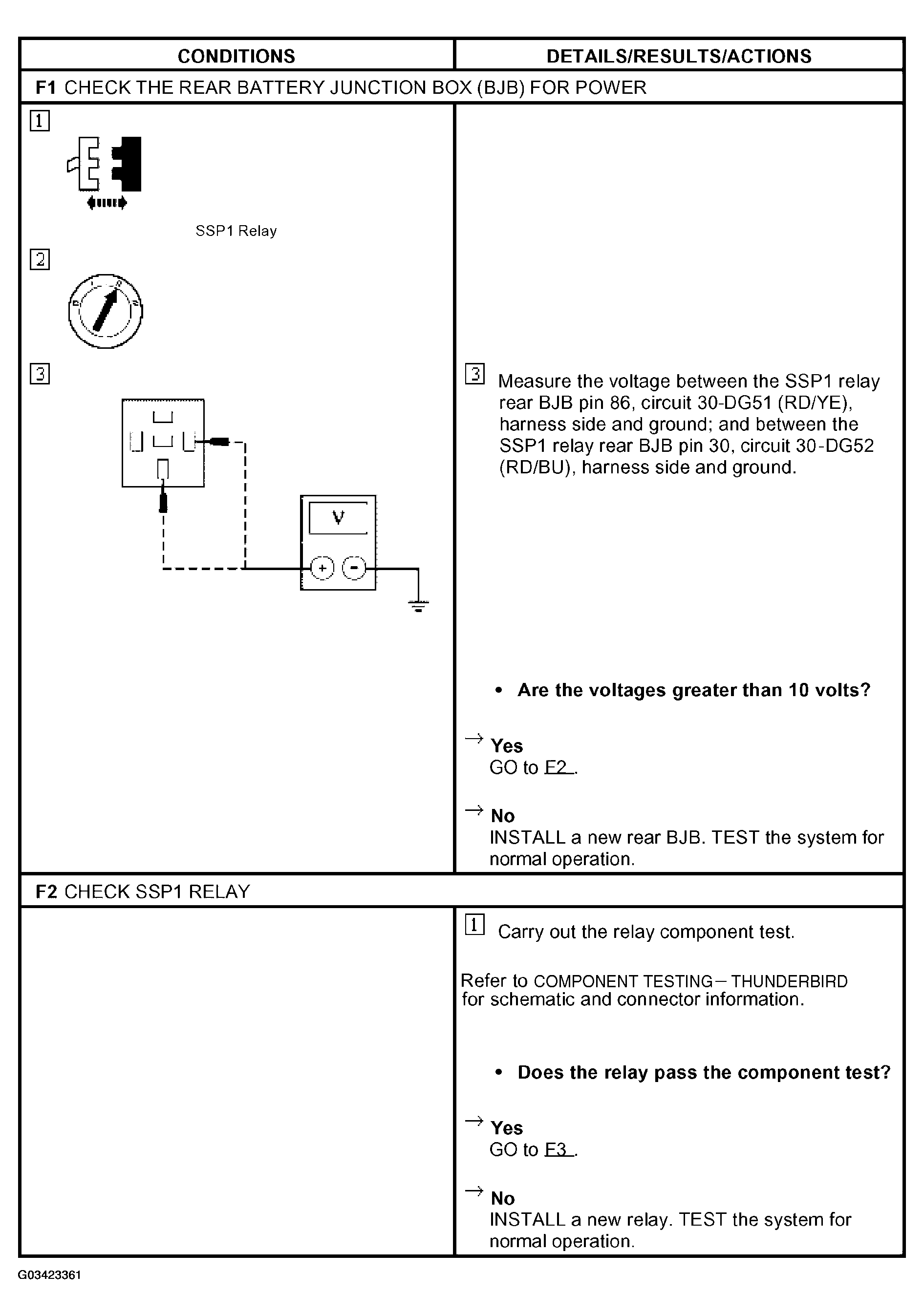

Fig 1: Pinpoint Test F: Power Supply Relay Is Inoperative - SSP1 (F1-F2)

Courtesy of FORD MOTOR CO.

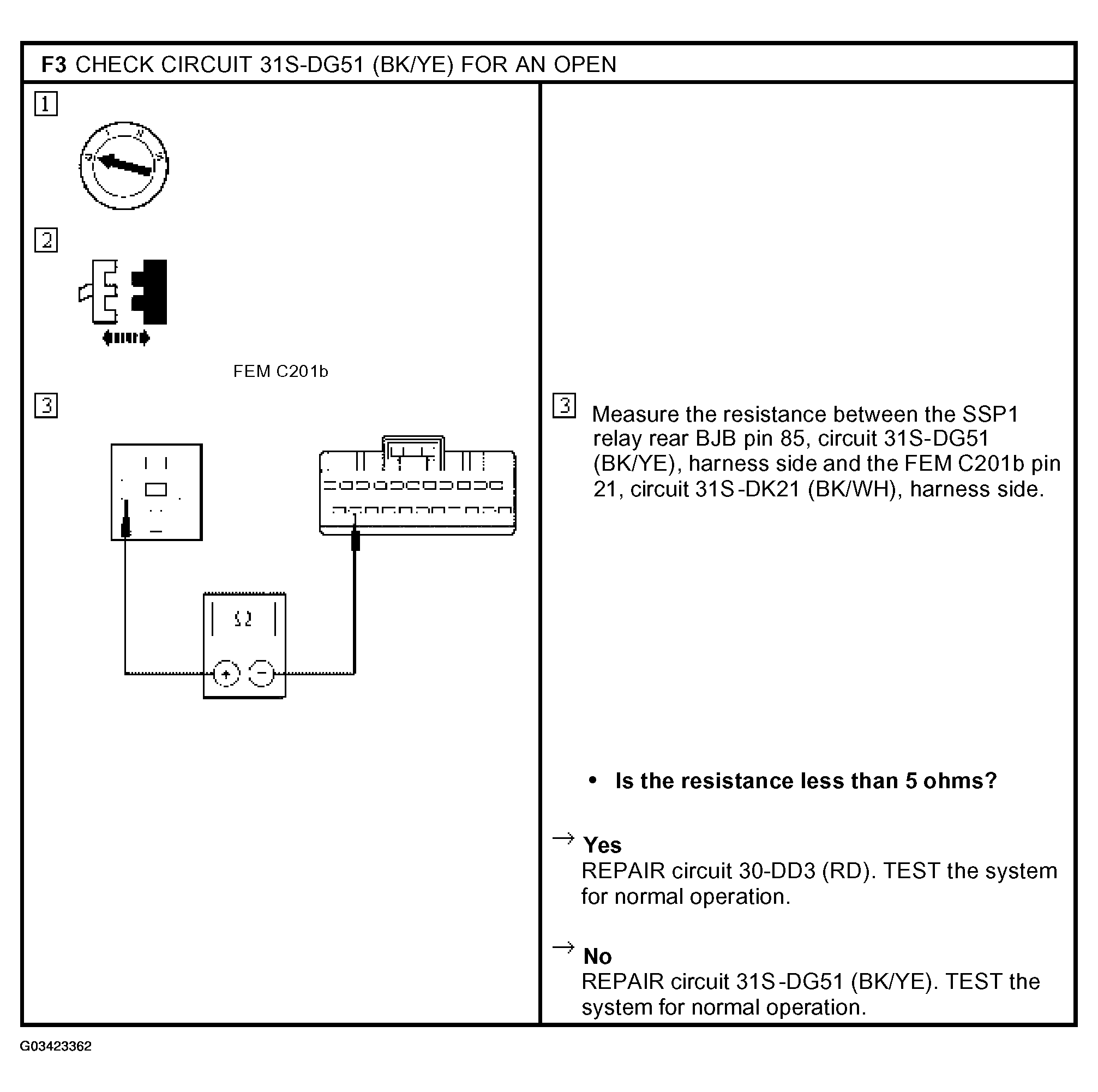

Fig 2: Pinpoint Test F: Power Supply Relay Is Inoperative - SSP1 (F3)

Courtesy of FORD MOTOR CO.
