Pinpoint Test E: The Power Supply Relay Is Inoperative - All SSP Features

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

NOTE: Refer to PRINCIPLES OF OPERATION  and SSP RELAY INDEX  for complete detail of SSP powered features.

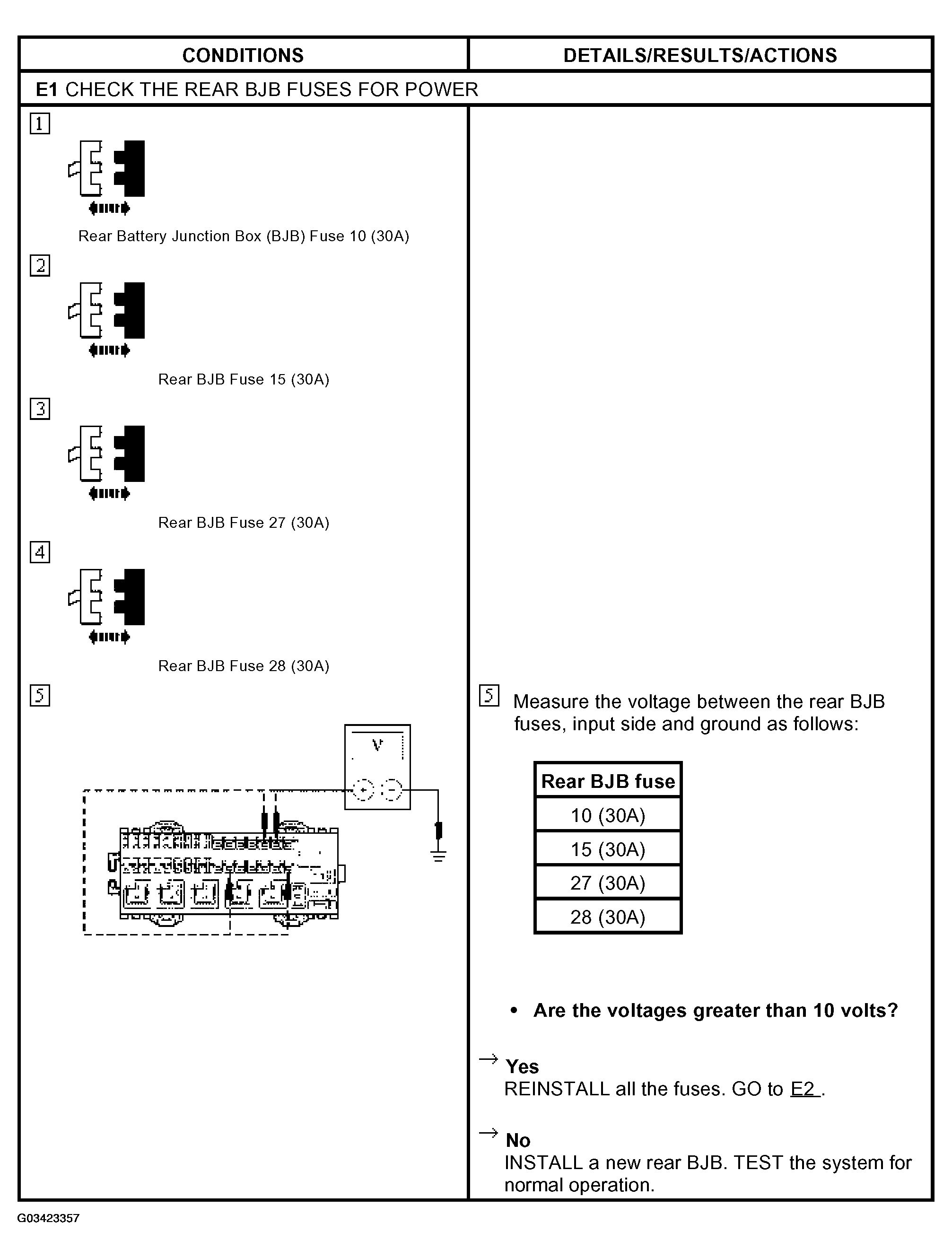

Fig 1: Pinpoint Test E: Power Supply Relay Is Inoperative - All SSP Features (E1)

Courtesy of FORD MOTOR CO.

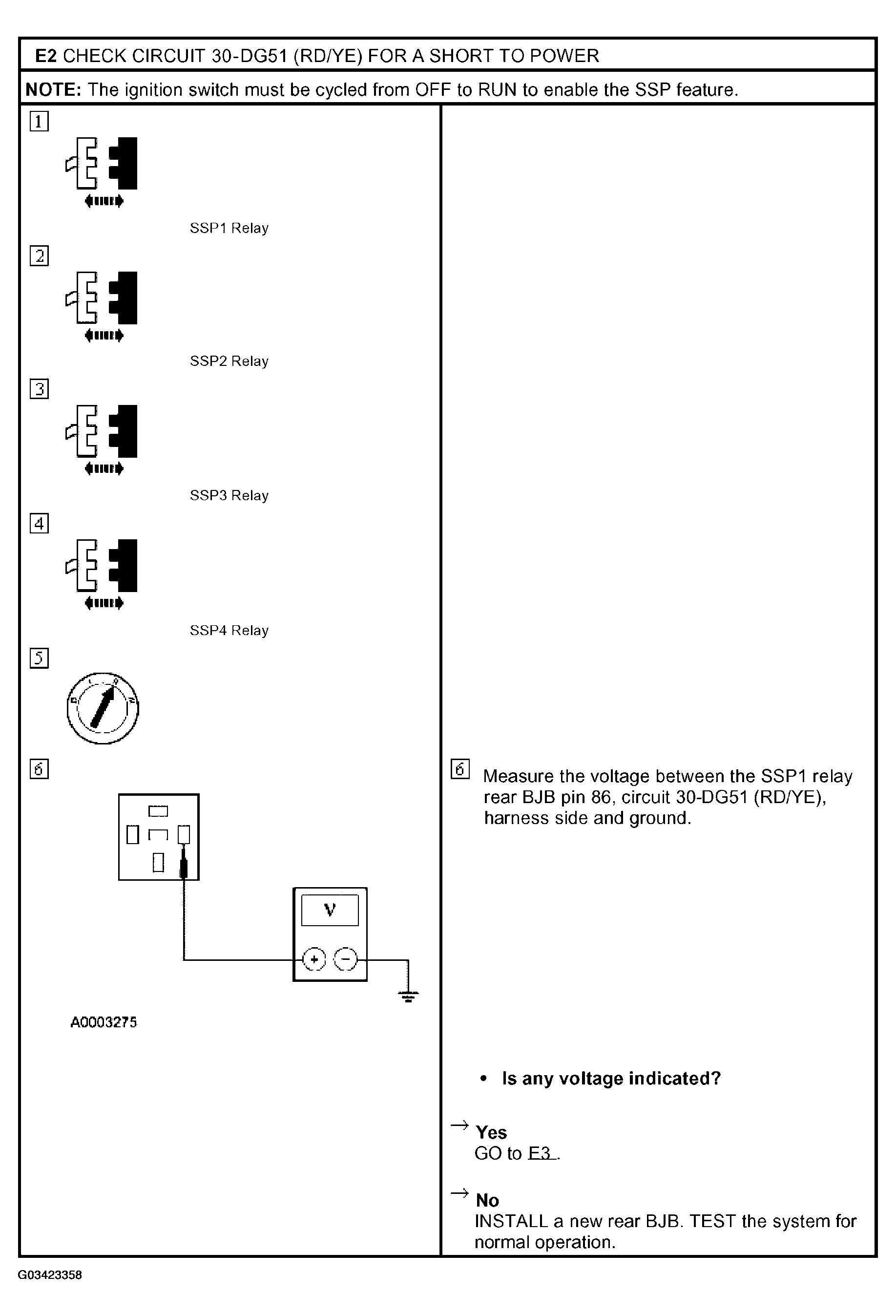

Fig 2: Pinpoint Test E: Power Supply Relay Is Inoperative - All SSP Features (E2)

Courtesy of FORD MOTOR CO.

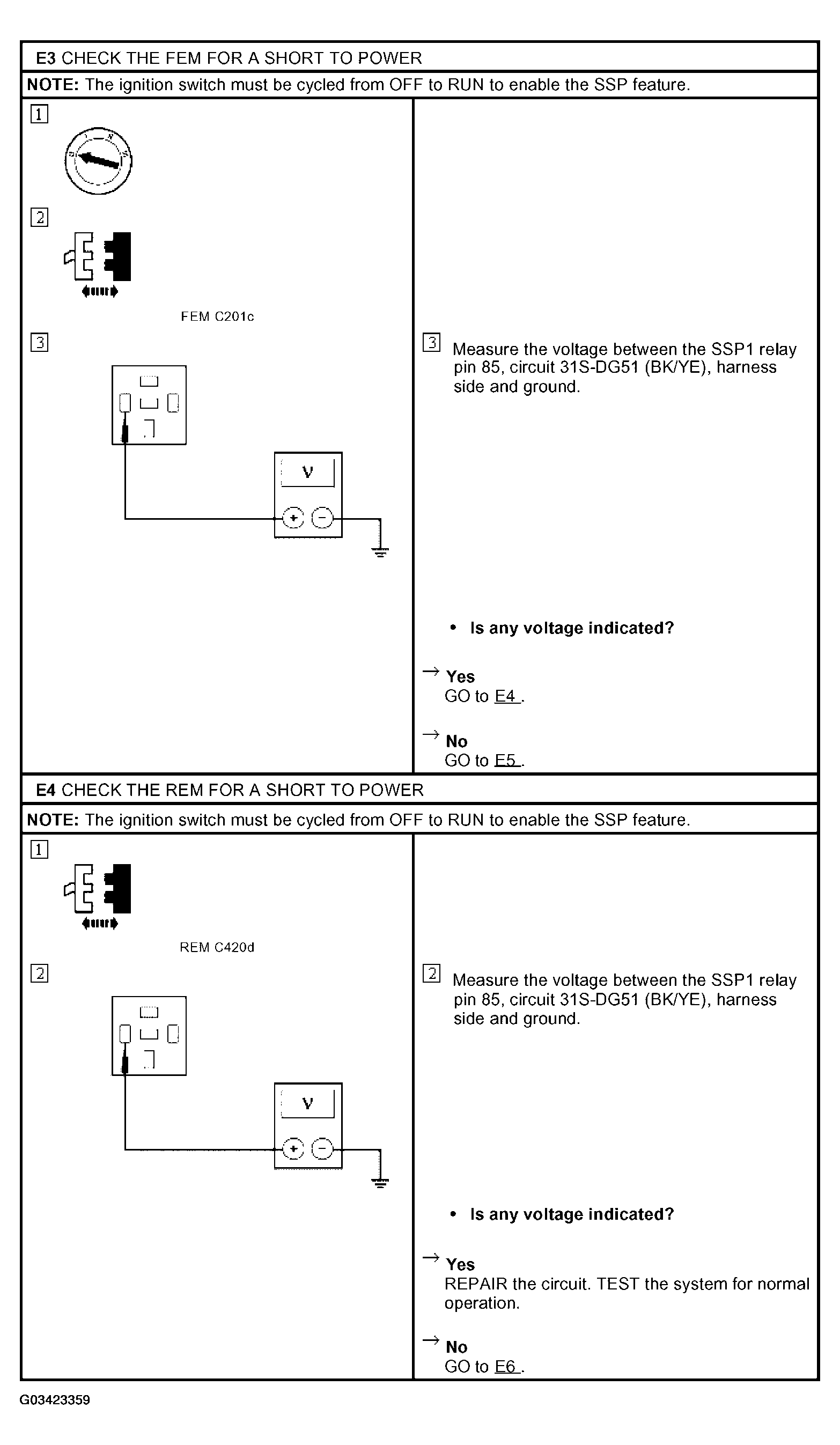

Fig 3: Pinpoint Test E: Power Supply Relay Is Inoperative - All SSP Features (E3-E4)

Courtesy of FORD MOTOR CO.

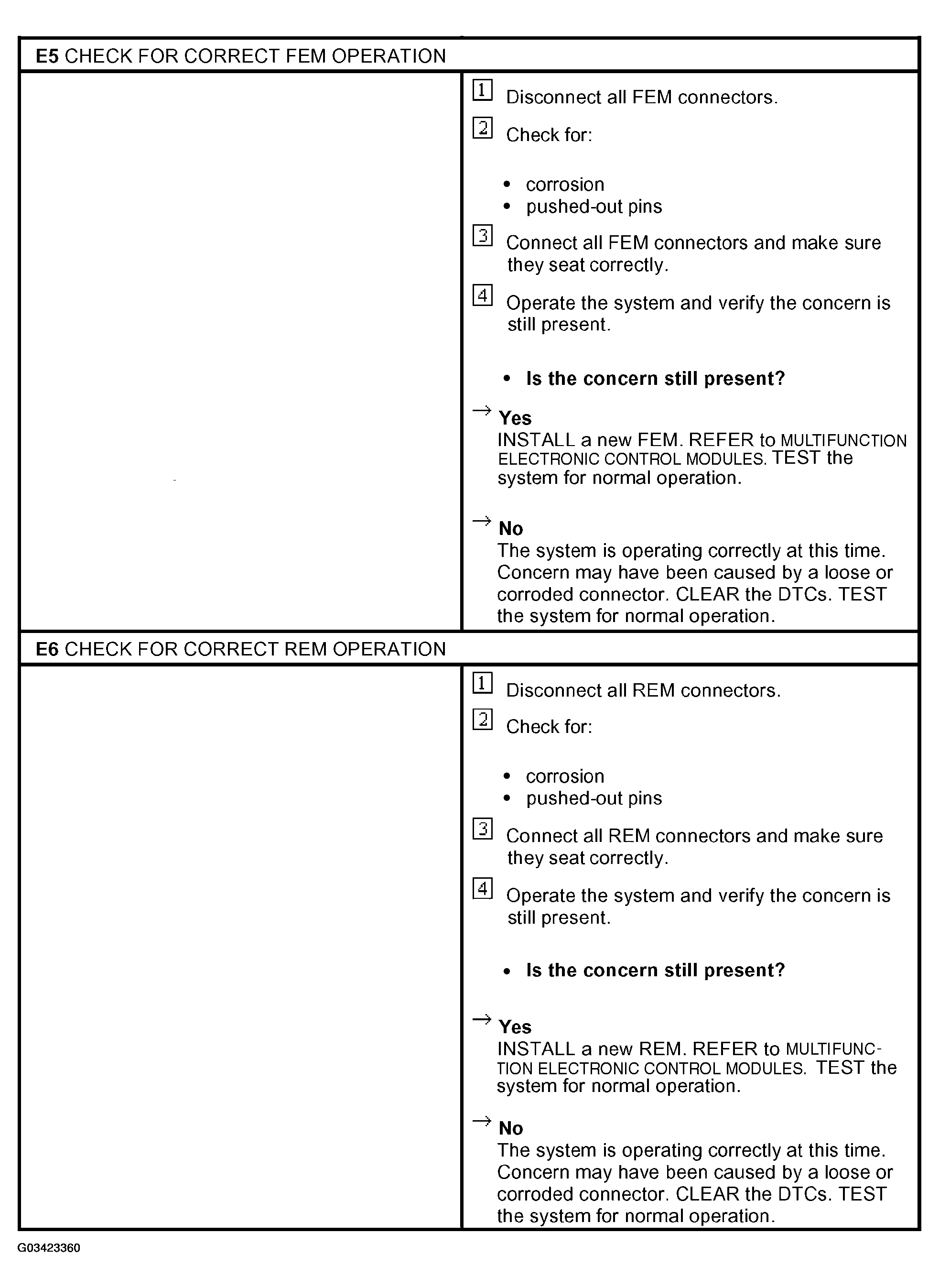

Fig 4: Pinpoint Test E: Power Supply Relay Is Inoperative - All SSP Features (E5-E6)

Courtesy of FORD MOTOR CO.
