Pinpoint Test C: The Headlamps Are On Continuously - Both Low Beams

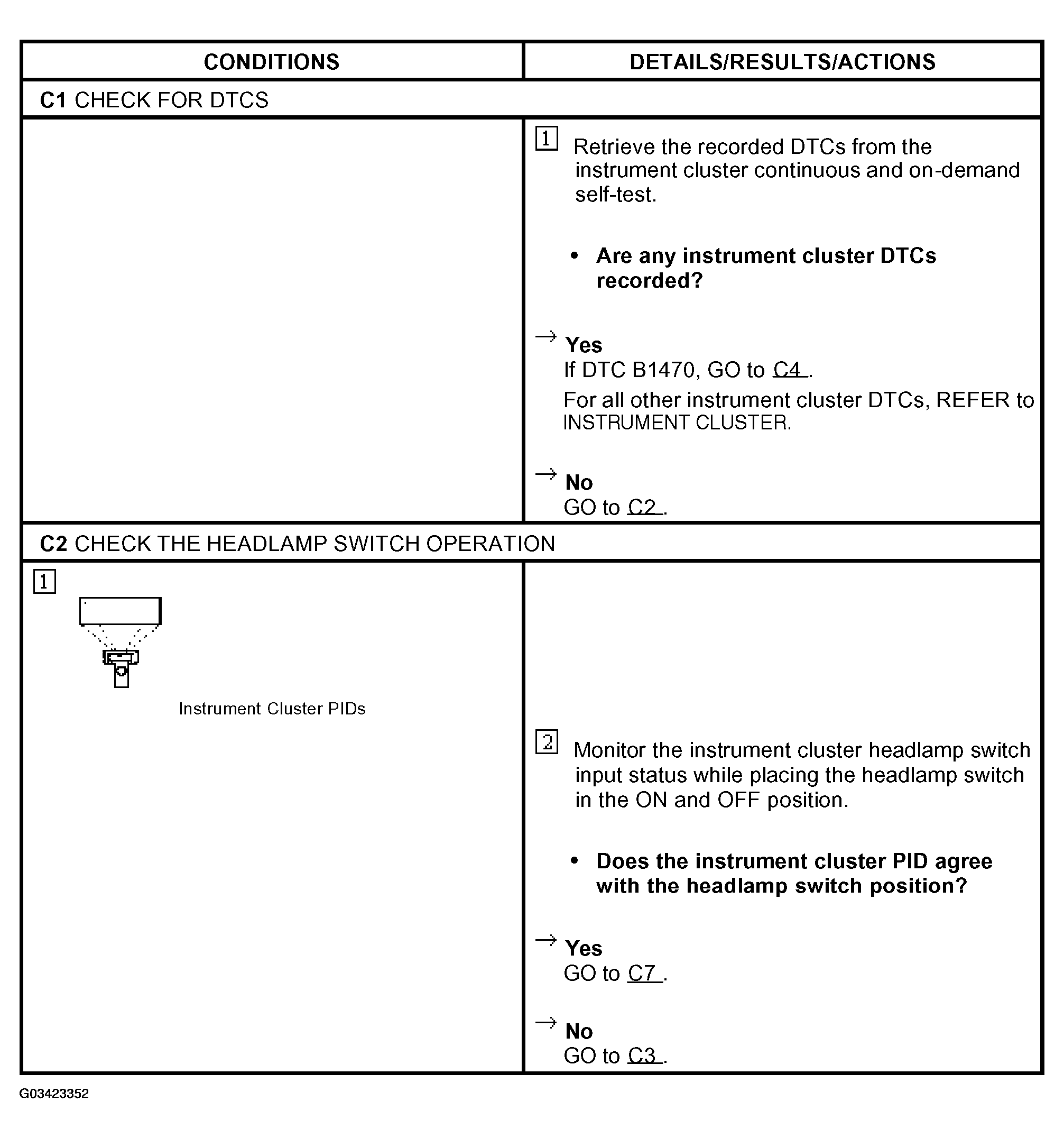

Fig 1: Pinpoint Test C: Headlamps Are On Continuously - Both Low Beams (C1-C2)

Courtesy of FORD MOTOR CO.

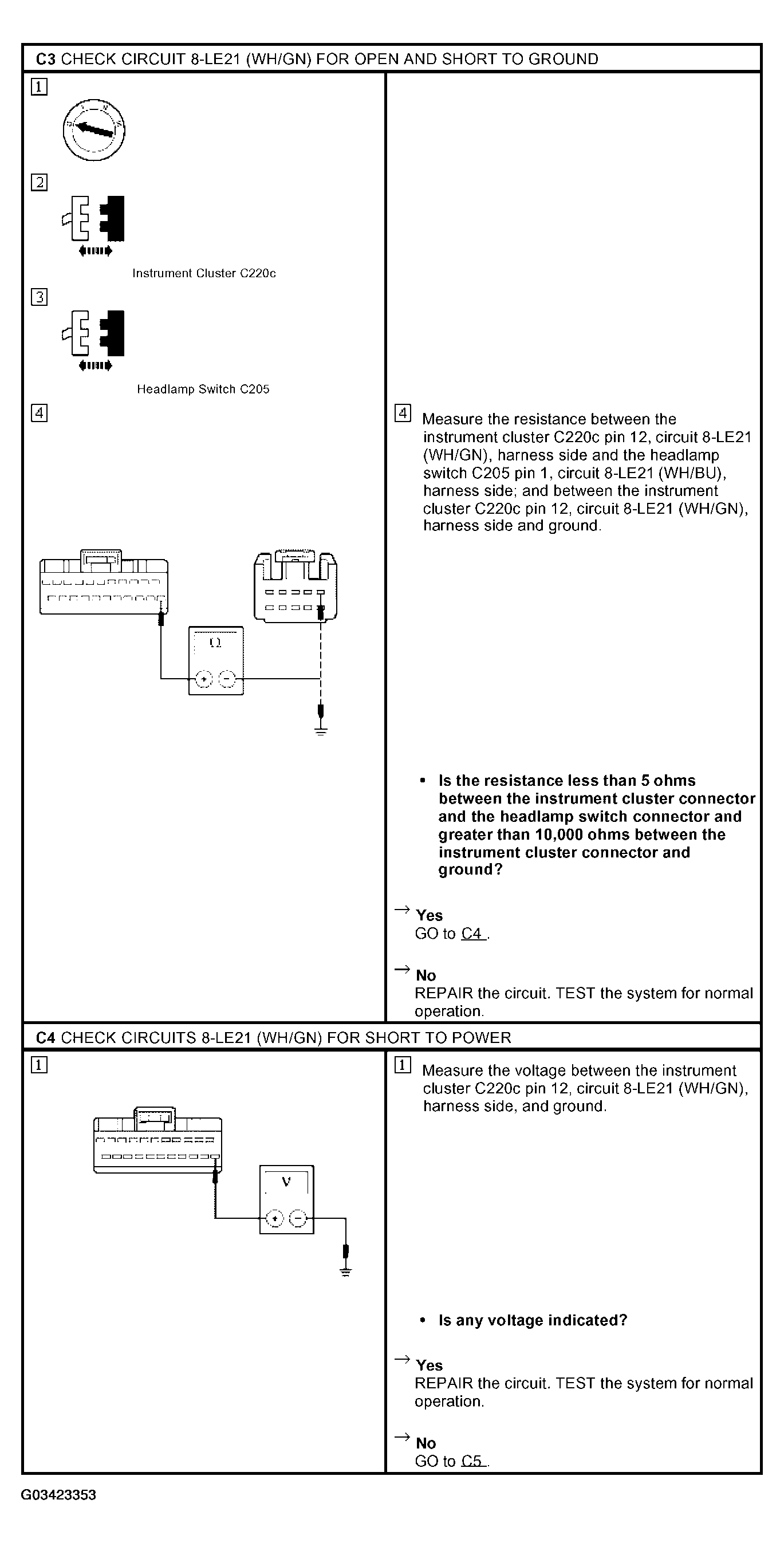

Fig 2: Pinpoint Test C: Headlamps Are On Continuously - Both Low Beams (C3-C4)

Courtesy of FORD MOTOR CO.

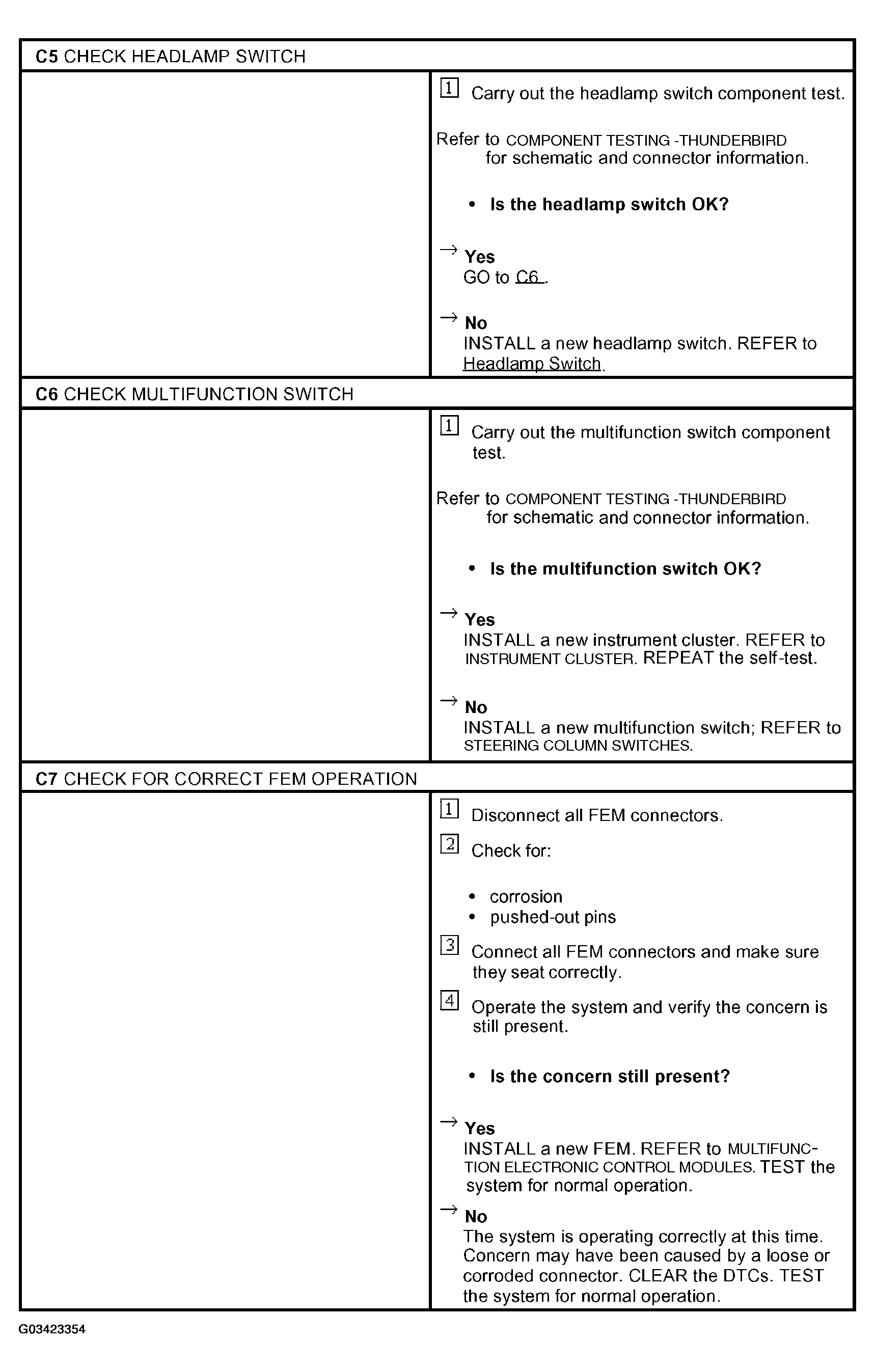

Fig 3: Pinpoint Test C: Headlamps Are On Continuously - Both Low Beams (C5-C7)

Courtesy of FORD MOTOR CO.
