Pinpoint Test B: The High Beams Are Inoperative - One Or Both High Beam Headlamp(s) Are Inoperative

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

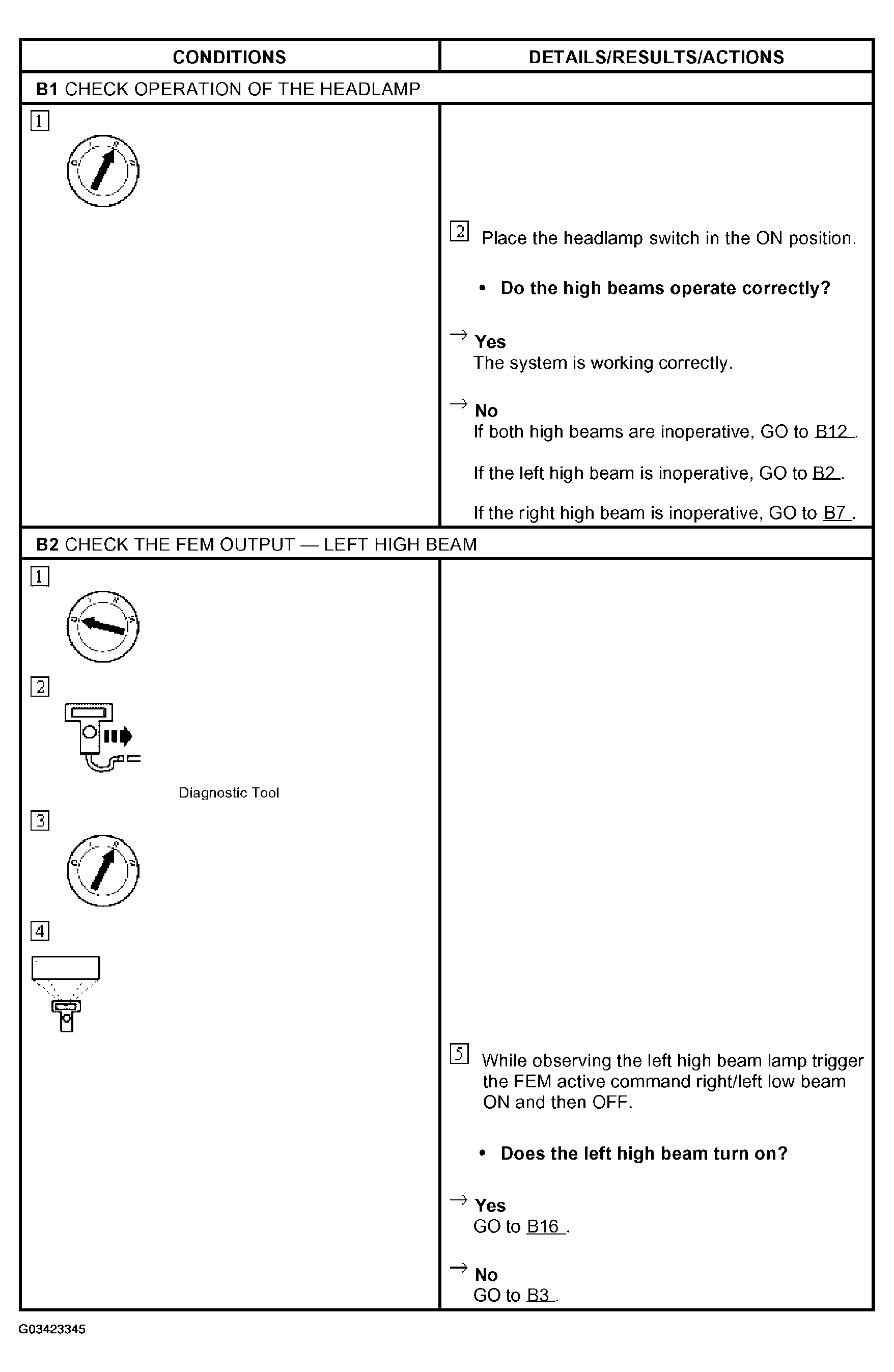

Fig 1: Pinpoint Test B: High Beams Are Inoperative - One Or Both High Beam Headlamp(s) Are Inoperative (B1-B2)

Courtesy of FORD MOTOR CO.

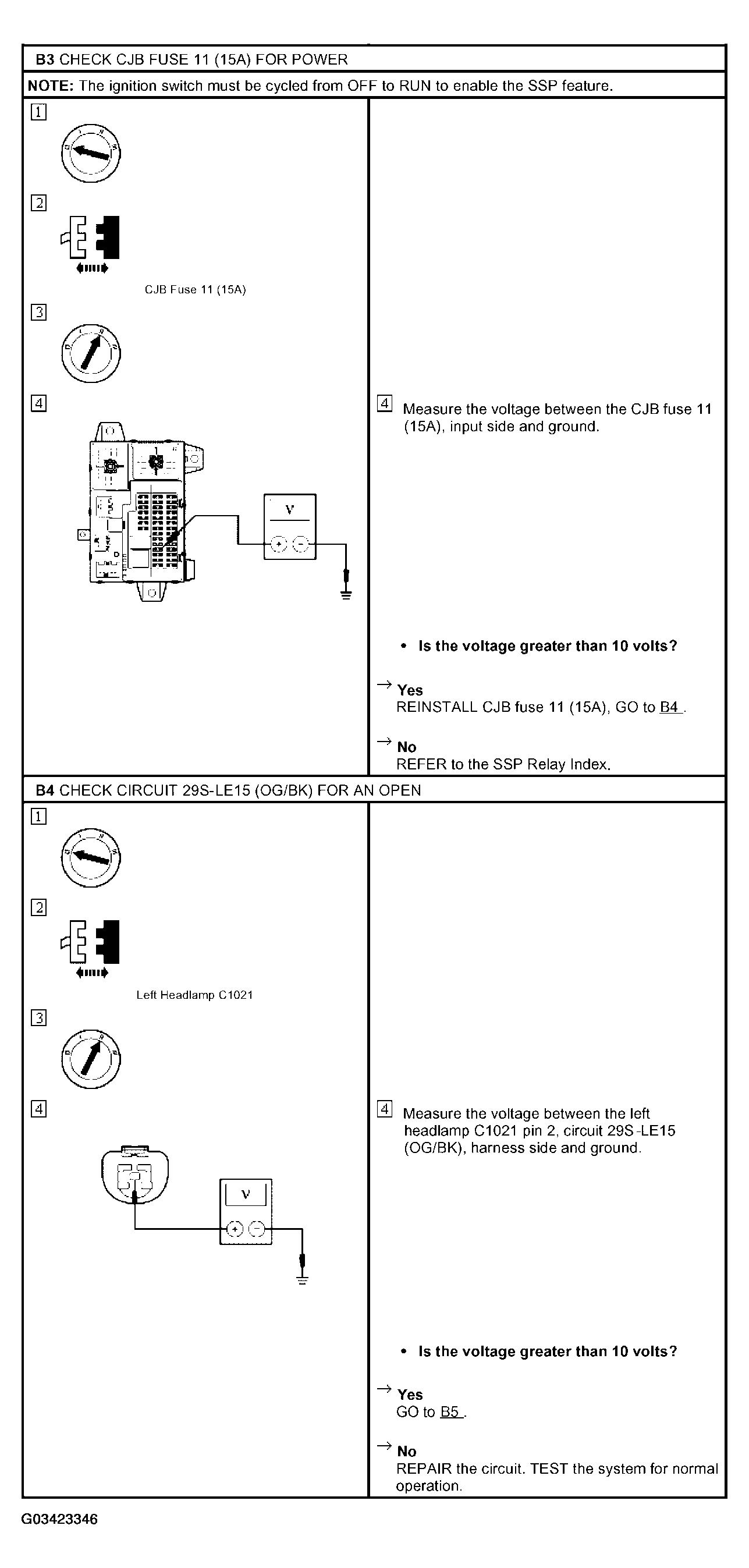

Fig 2: Pinpoint Test B: High Beams Are Inoperative - One Or Both High Beam Headlamp(s) Are Inoperative (B3-B4)

Courtesy of FORD MOTOR CO.

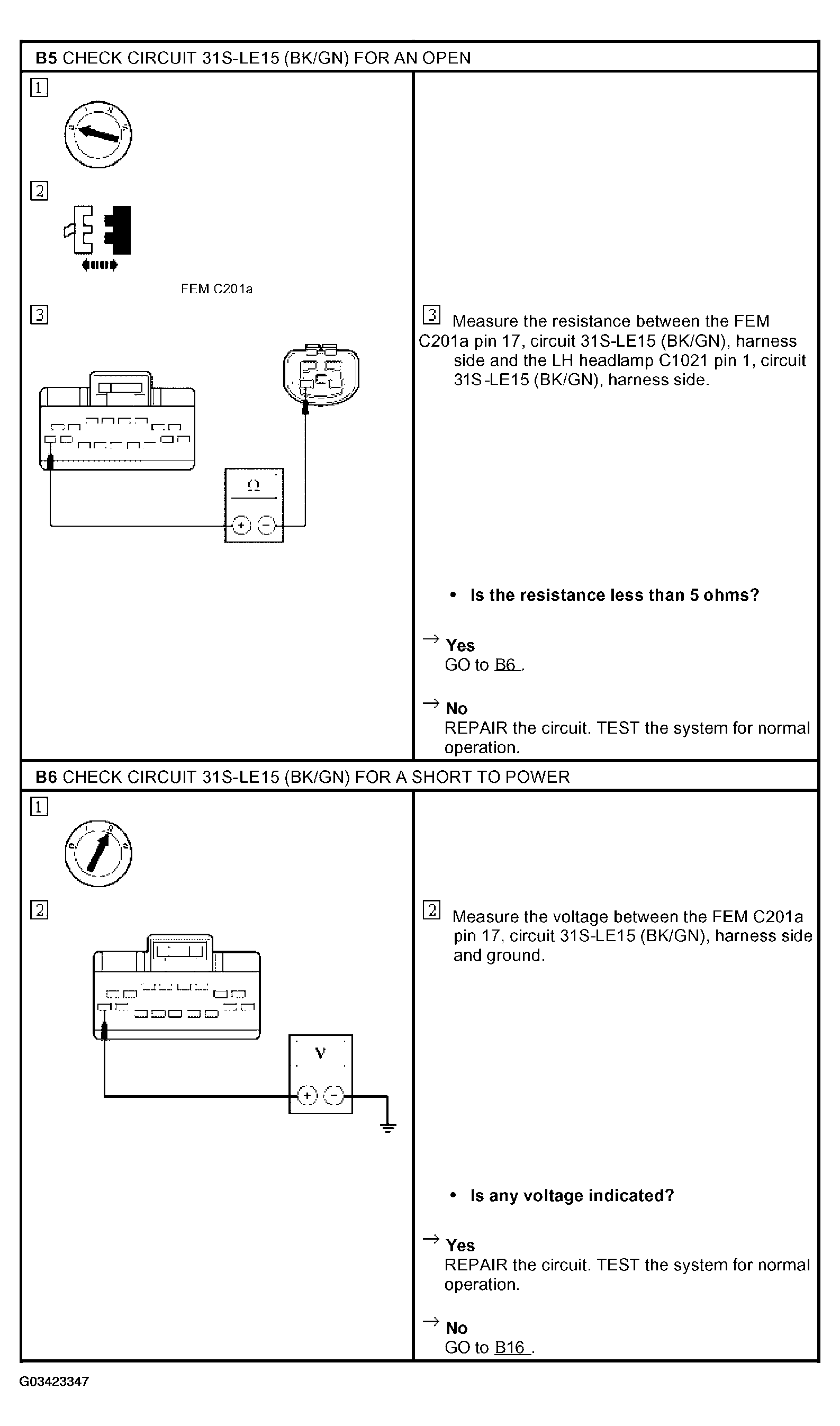

Fig 3: Pinpoint Test B: High Beams Are Inoperative - One Or Both High Beam Headlamp(s) Are Inoperative (B5-B6)

Courtesy of FORD MOTOR CO.

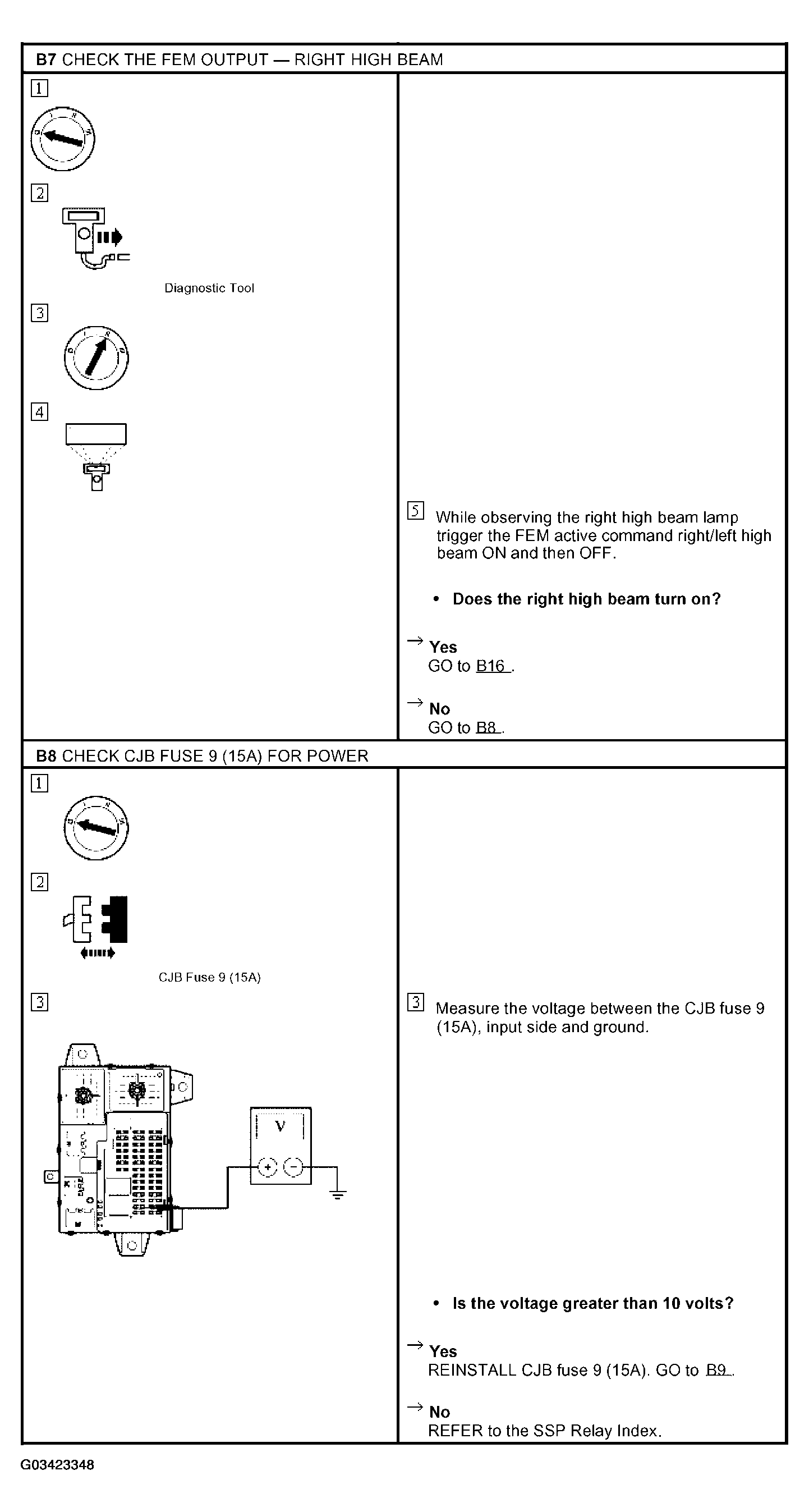

Fig 4: Pinpoint Test B: High Beams Are Inoperative - One Or Both High Beam Headlamp(s) Are Inoperative (B7-B8)

Courtesy of FORD MOTOR CO.

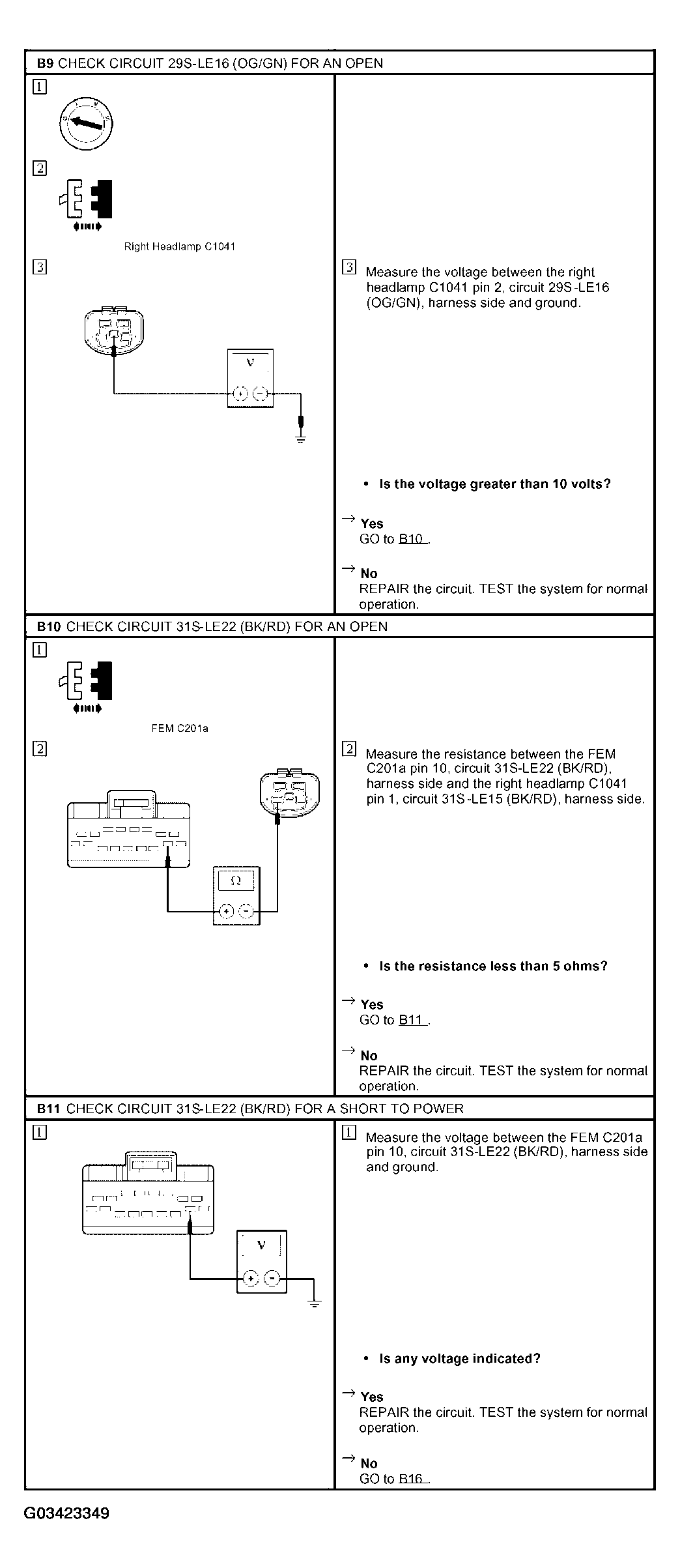

Fig 5: Pinpoint Test B: High Beams Are Inoperative - One Or Both High Beam Headlamp(s) Are Inoperative (B9-B11)

Courtesy of FORD MOTOR CO.

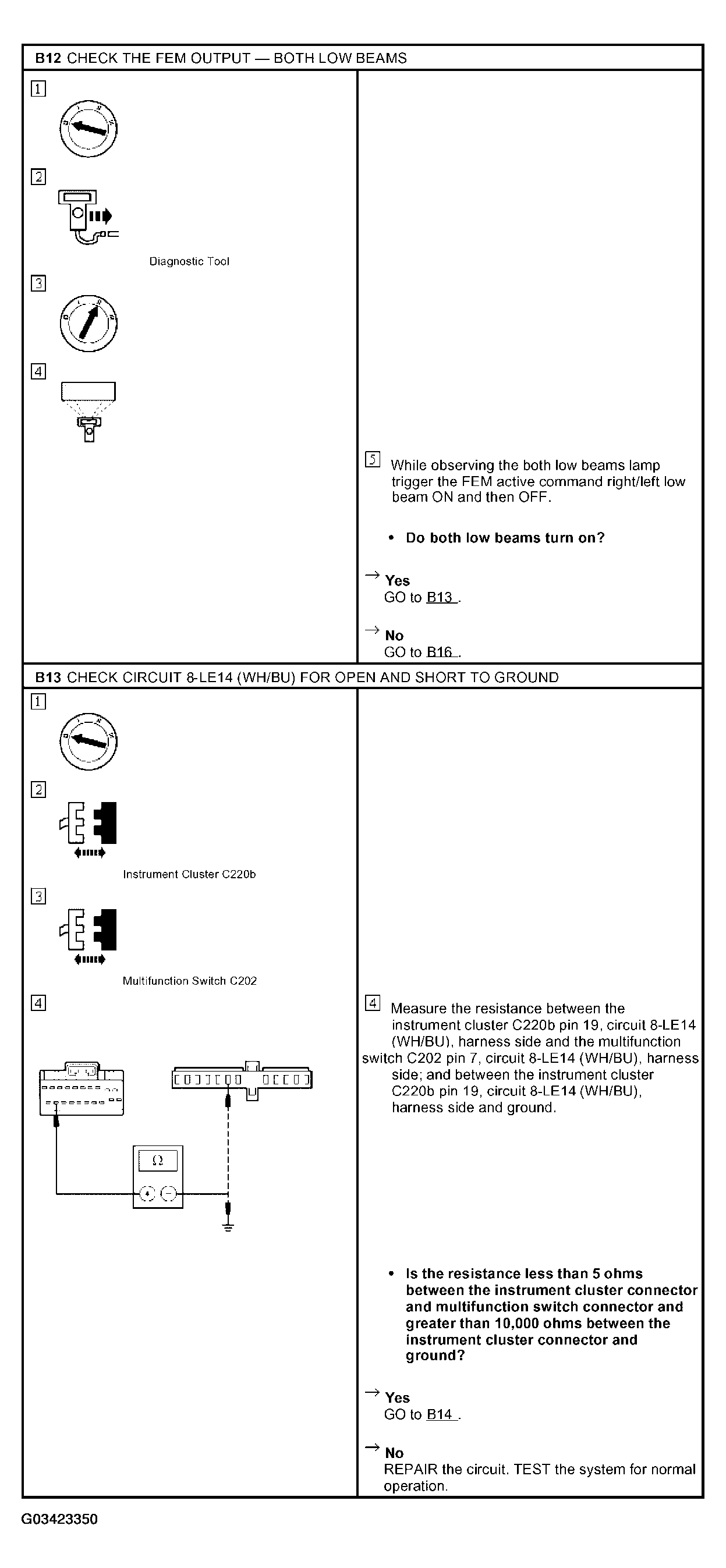

Fig 6: Pinpoint Test B: High Beams Are Inoperative - One Or Both High Beam Headlamp(s) Are Inoperative (B12-B13)

Courtesy of FORD MOTOR CO.

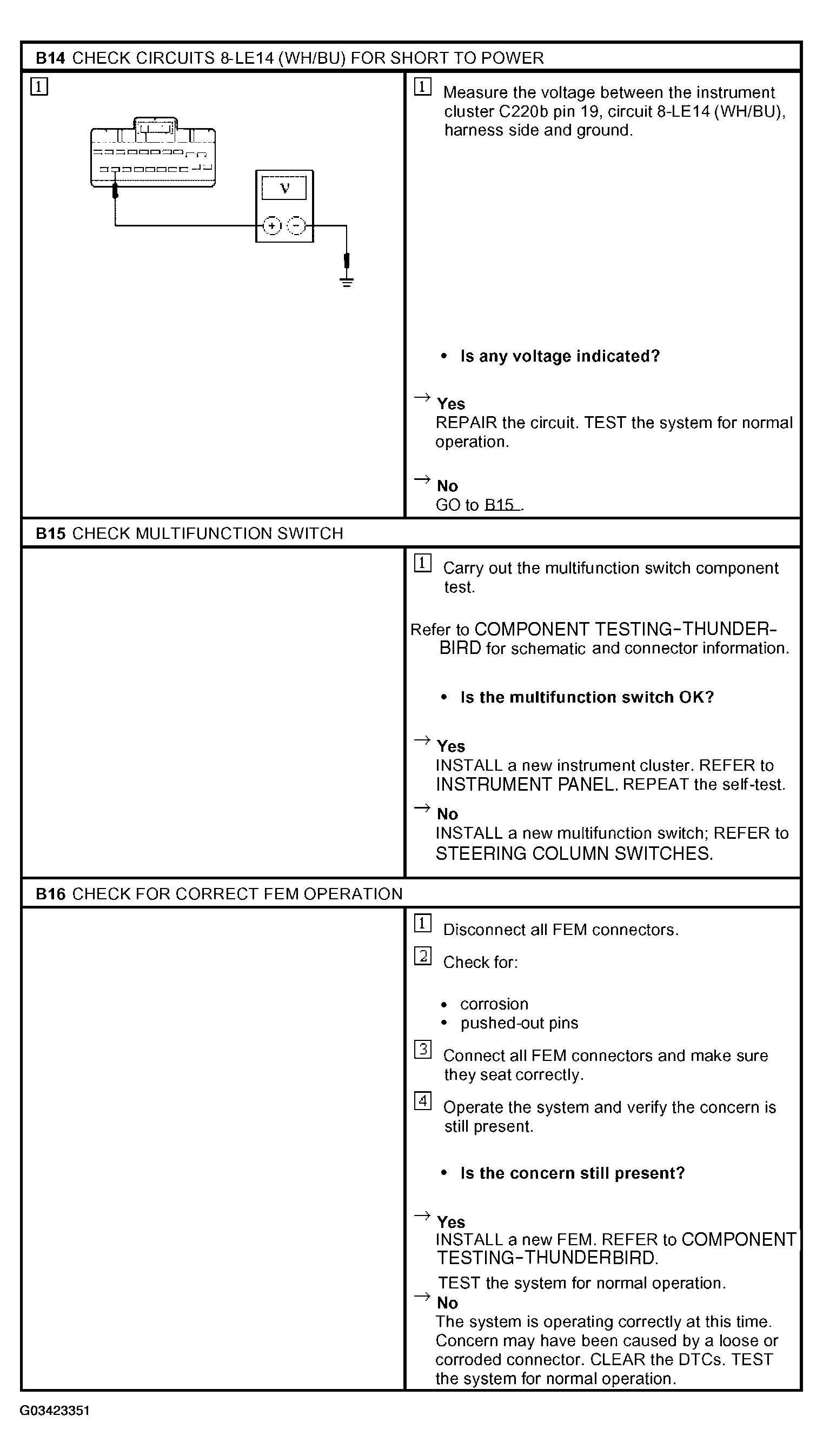

Fig 7: Pinpoint Test B: High Beams Are Inoperative - One Or Both High Beam Headlamp(s) Are Inoperative (B14-B16)

Courtesy of FORD MOTOR CO.
