Pinpoint Test AN: The Individual Reversing Lamp Is Inoperative - RH Reversing Lamp

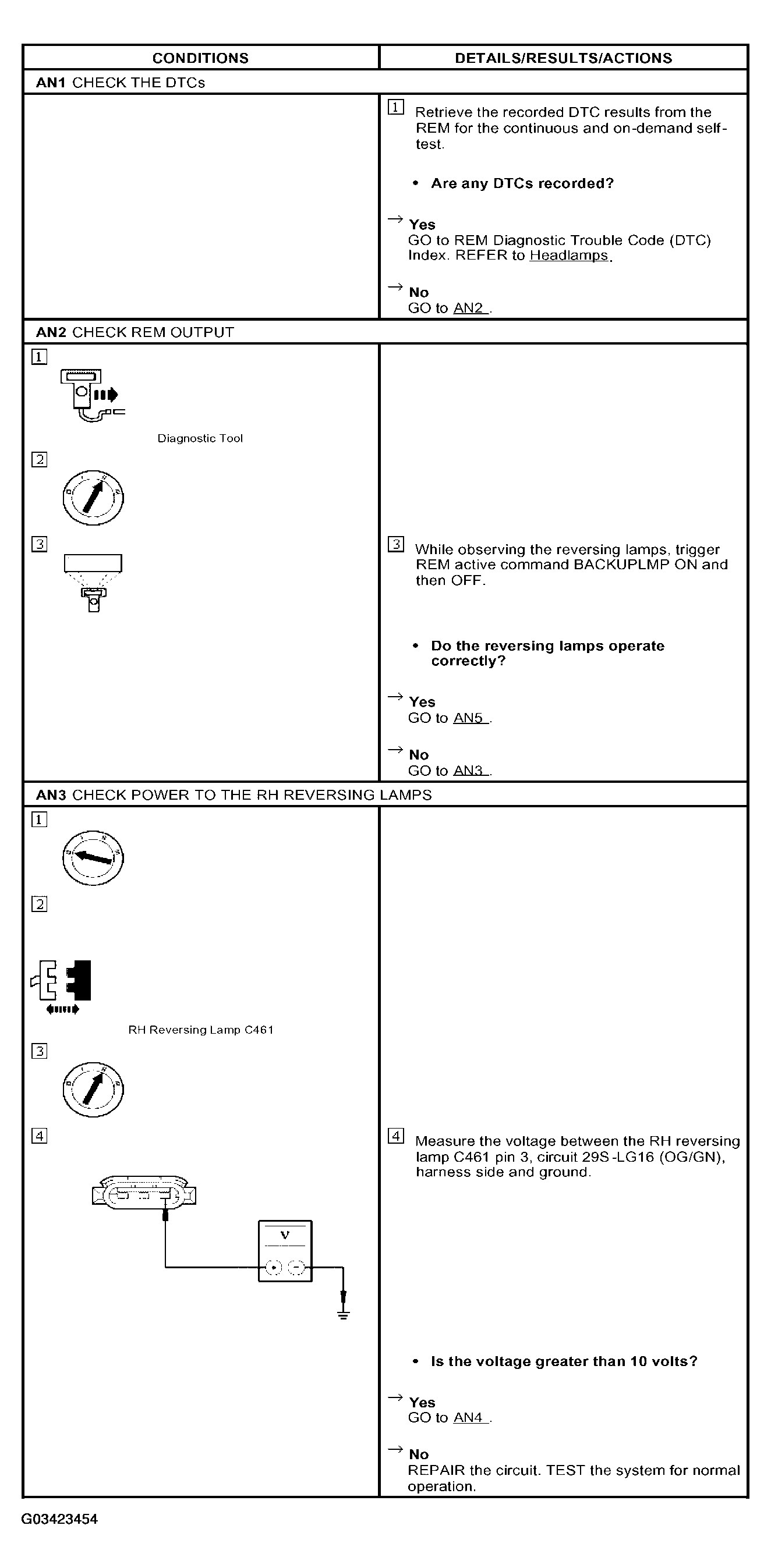

Fig 1: Pinpoint Test AN: Individual Reversing Lamp Is Inoperative - RH Reversing Lamp (AN1-AN3)
G03423454Courtesy of FORD MOTOR CO.

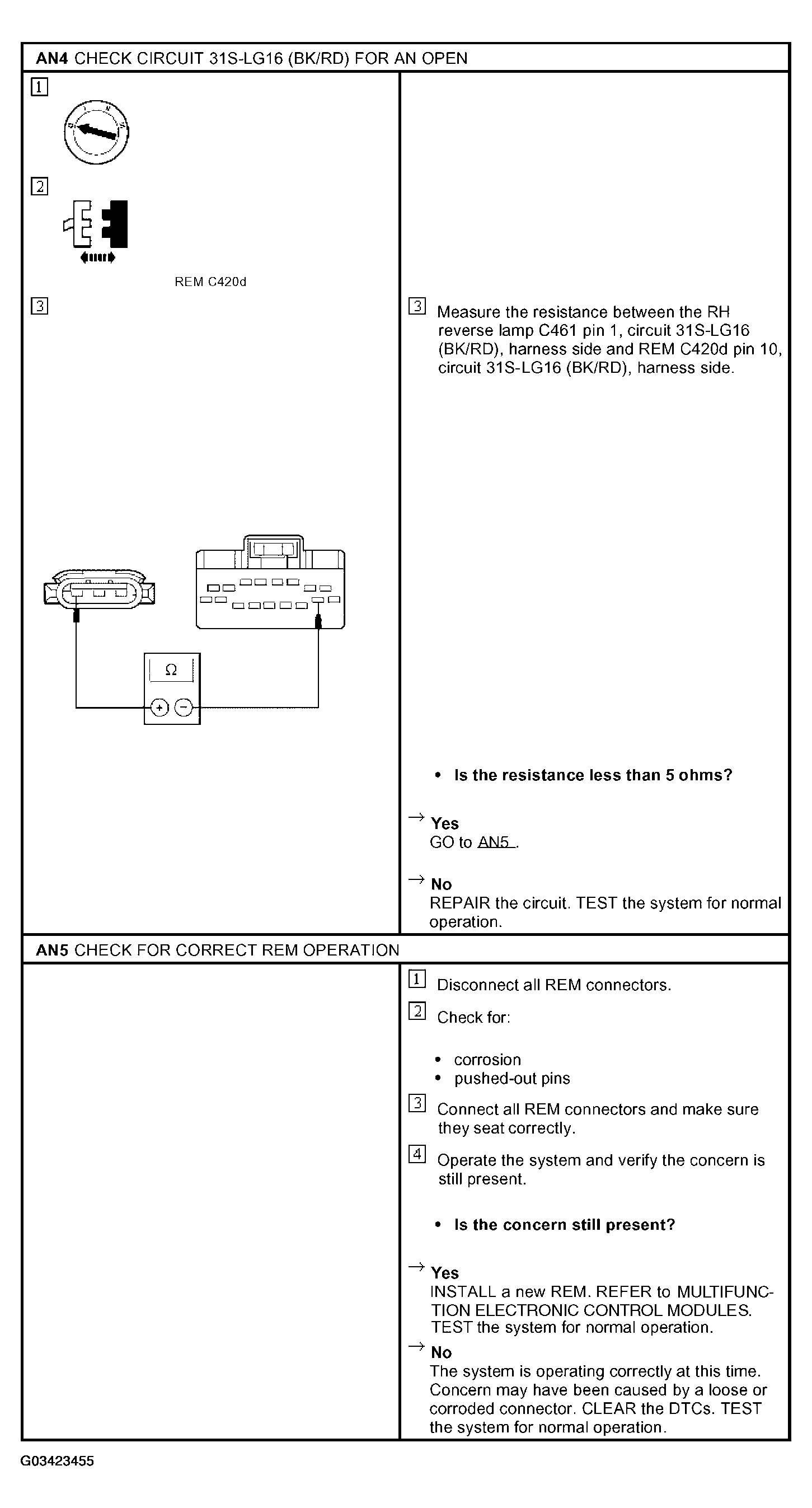

Fig 2: Pinpoint Test AN: Individual Reversing Lamp Is Inoperative - RH Reversing Lamp (AN4-AN5)
G03423455Courtesy of FORD MOTOR CO.
