Pinpoint Test AM: The Individual Reversing Lamp Is Inoperative - LH Reversing Lamp

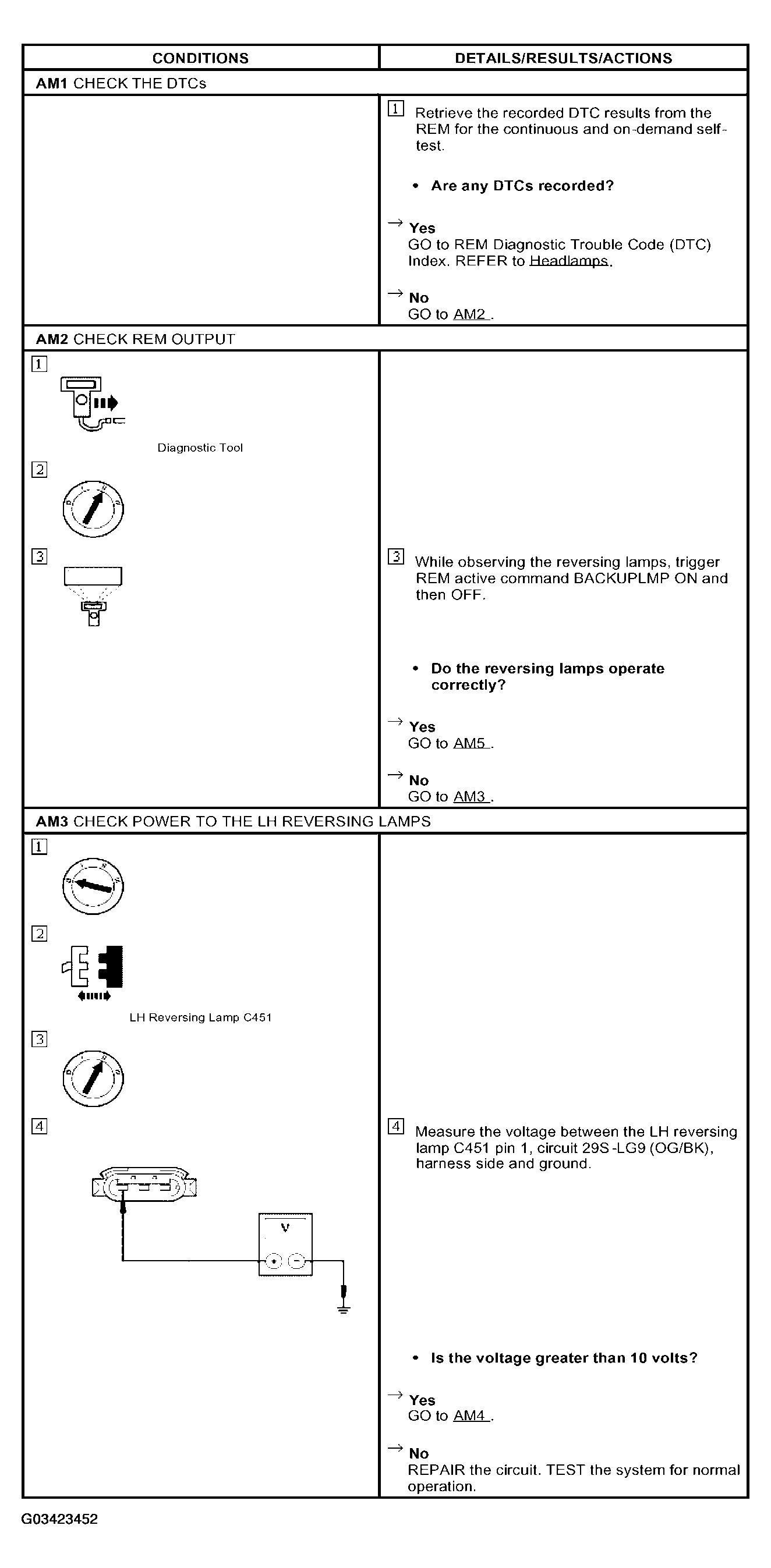

Fig 1: Pinpoint Test AM: Individual Reversing Lamp Is Inoperative - LH Reversing Lamp (AM1-AM3)
G03423452Courtesy of FORD MOTOR CO.

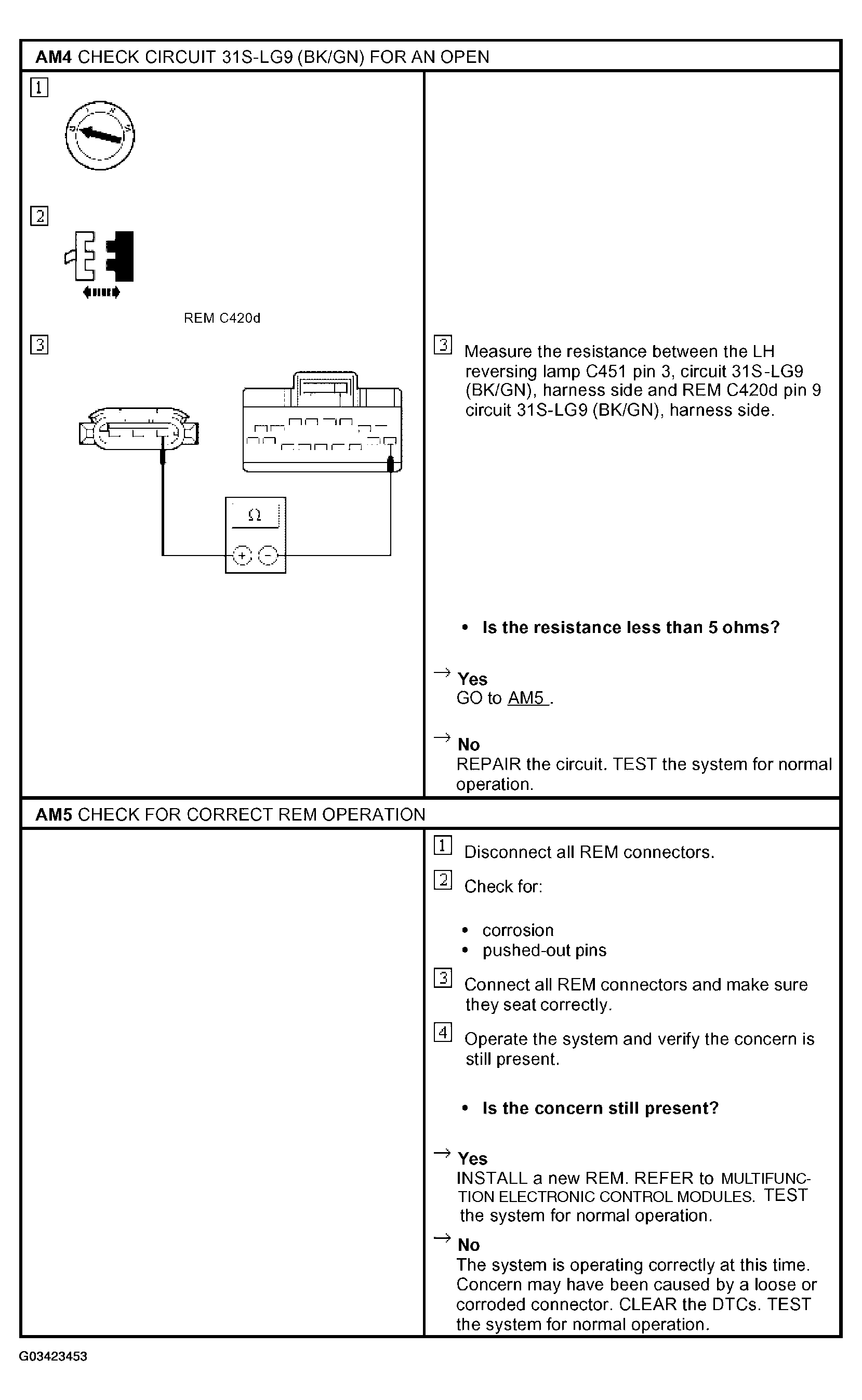

Fig 2: Pinpoint Test AM: Individual Reversing Lamp Is Inoperative - LH Reversing Lamp (AM4-AM5)
G03423453Courtesy of FORD MOTOR CO.
