Pinpoint Test AL: The Reversing Lamps Are Inoperative

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

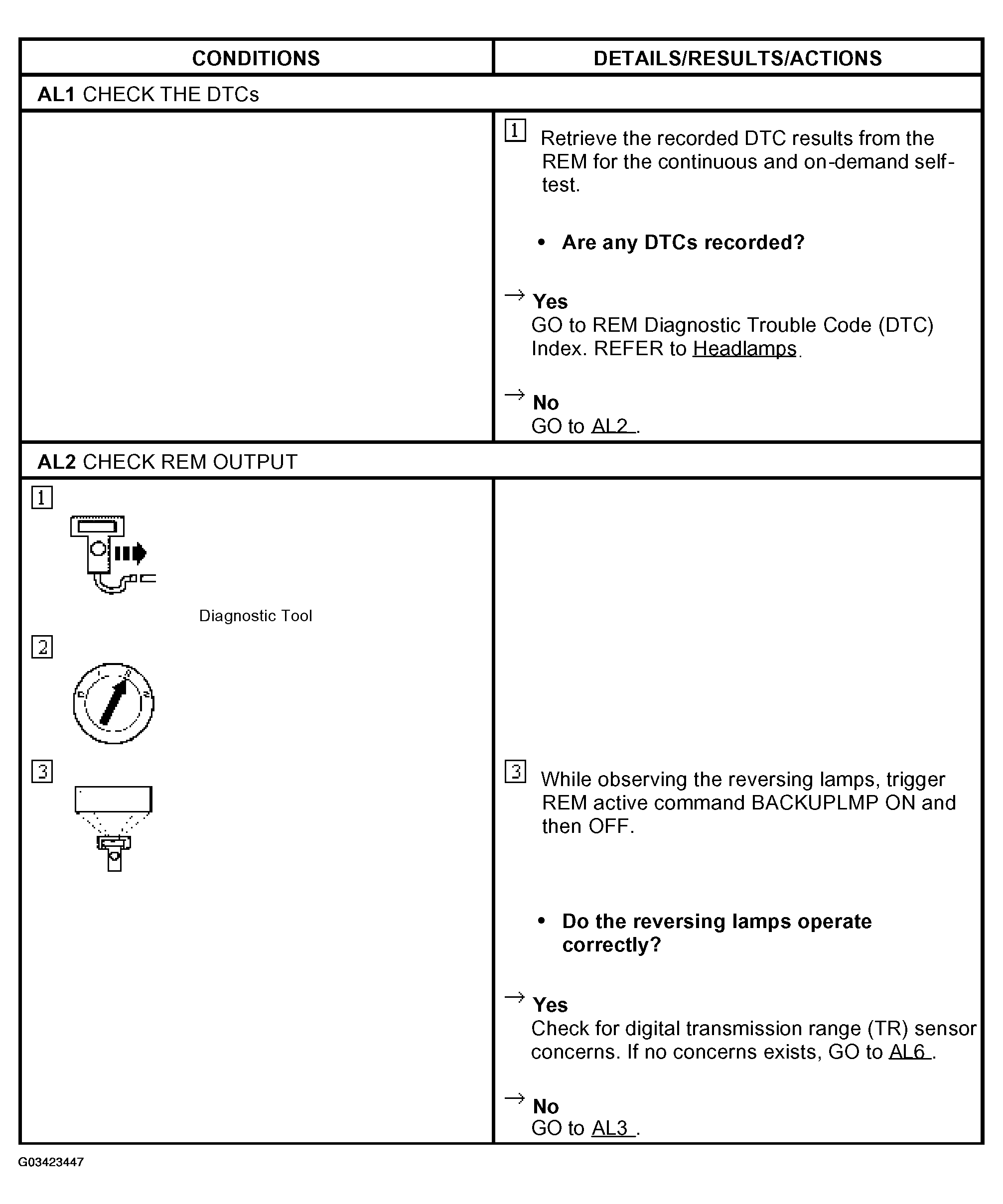

Fig 1: Pinpoint Test AL: Reversing Lamps Are Inoperative (AL1-AL2)

Courtesy of FORD MOTOR CO.

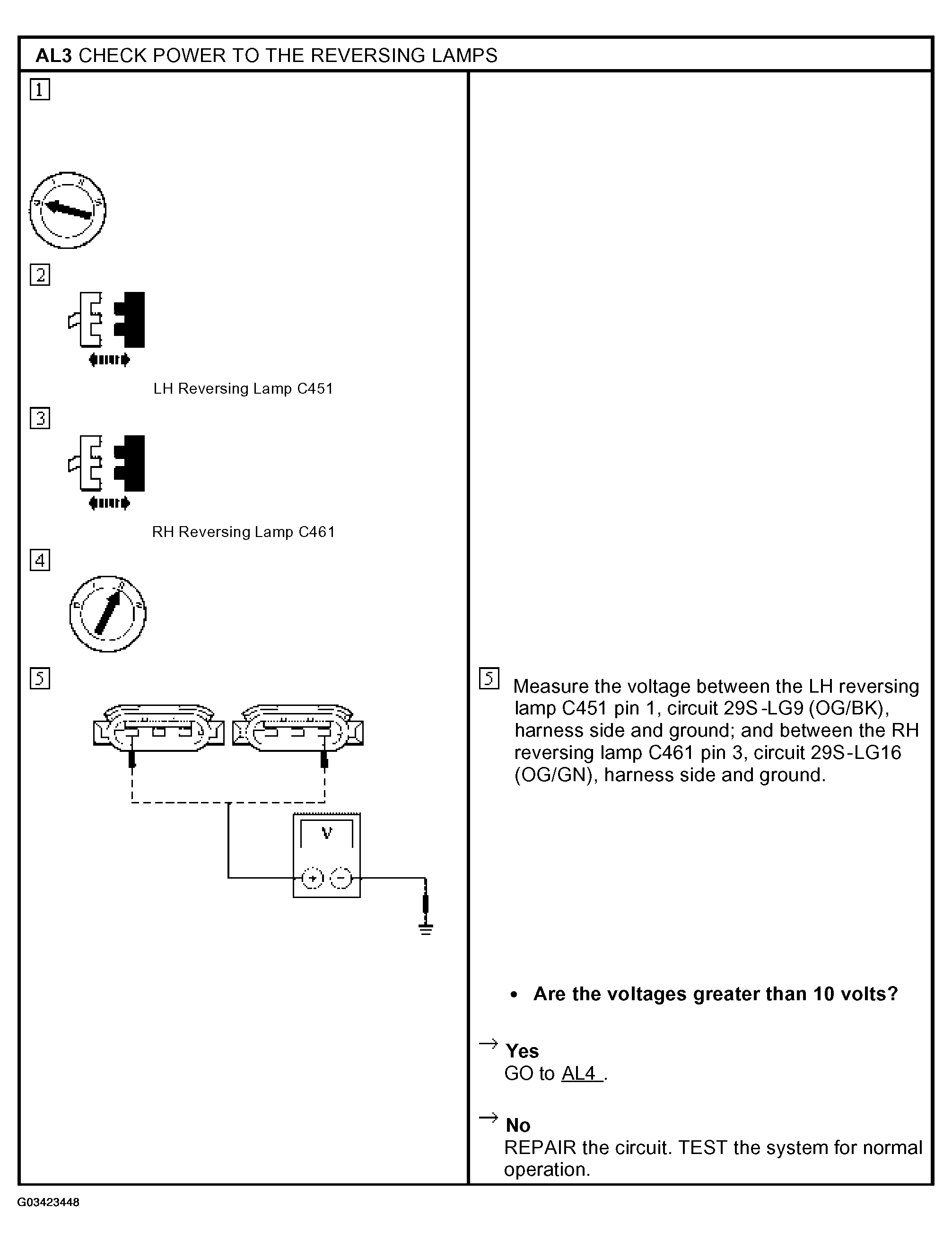

Fig 2: Pinpoint Test AL: Reversing Lamps Are Inoperative (AL3)

Courtesy of FORD MOTOR CO.

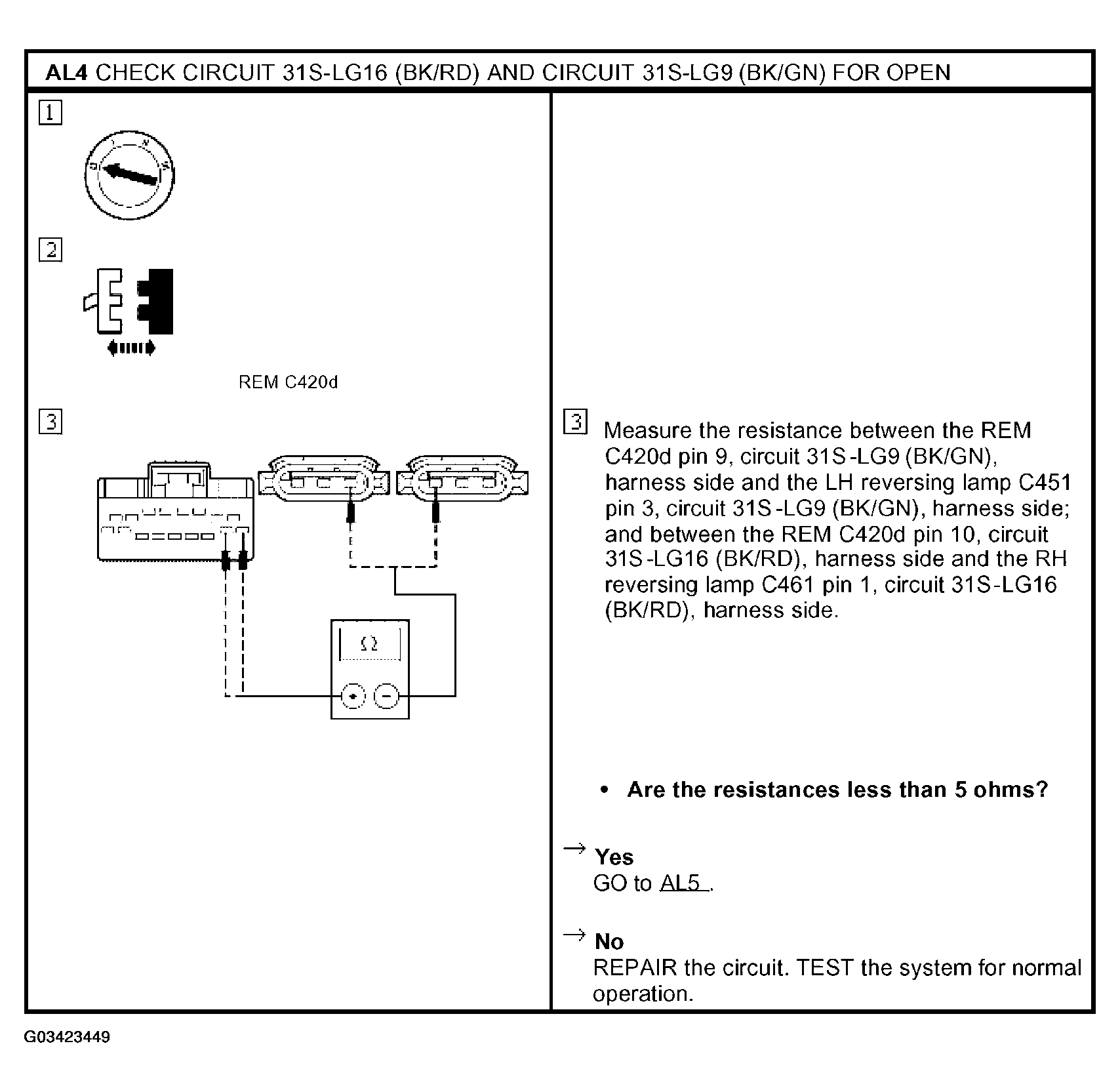

Fig 3: Pinpoint Test AL: Reversing Lamps Are Inoperative (AL4)

Courtesy of FORD MOTOR CO.

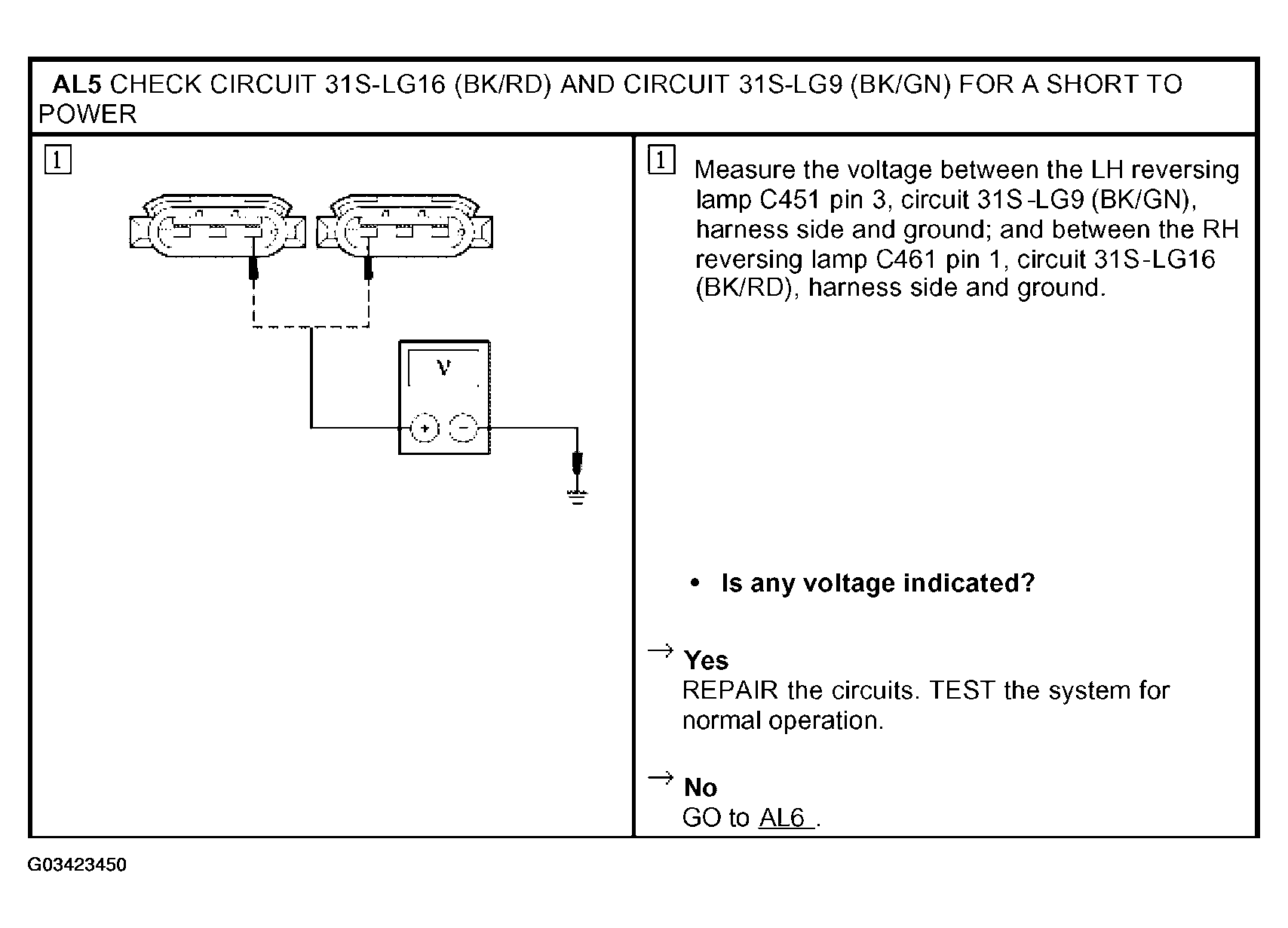

Fig 4: Pinpoint Test AL: Reversing Lamps Are Inoperative (AL5)

Courtesy of FORD MOTOR CO.

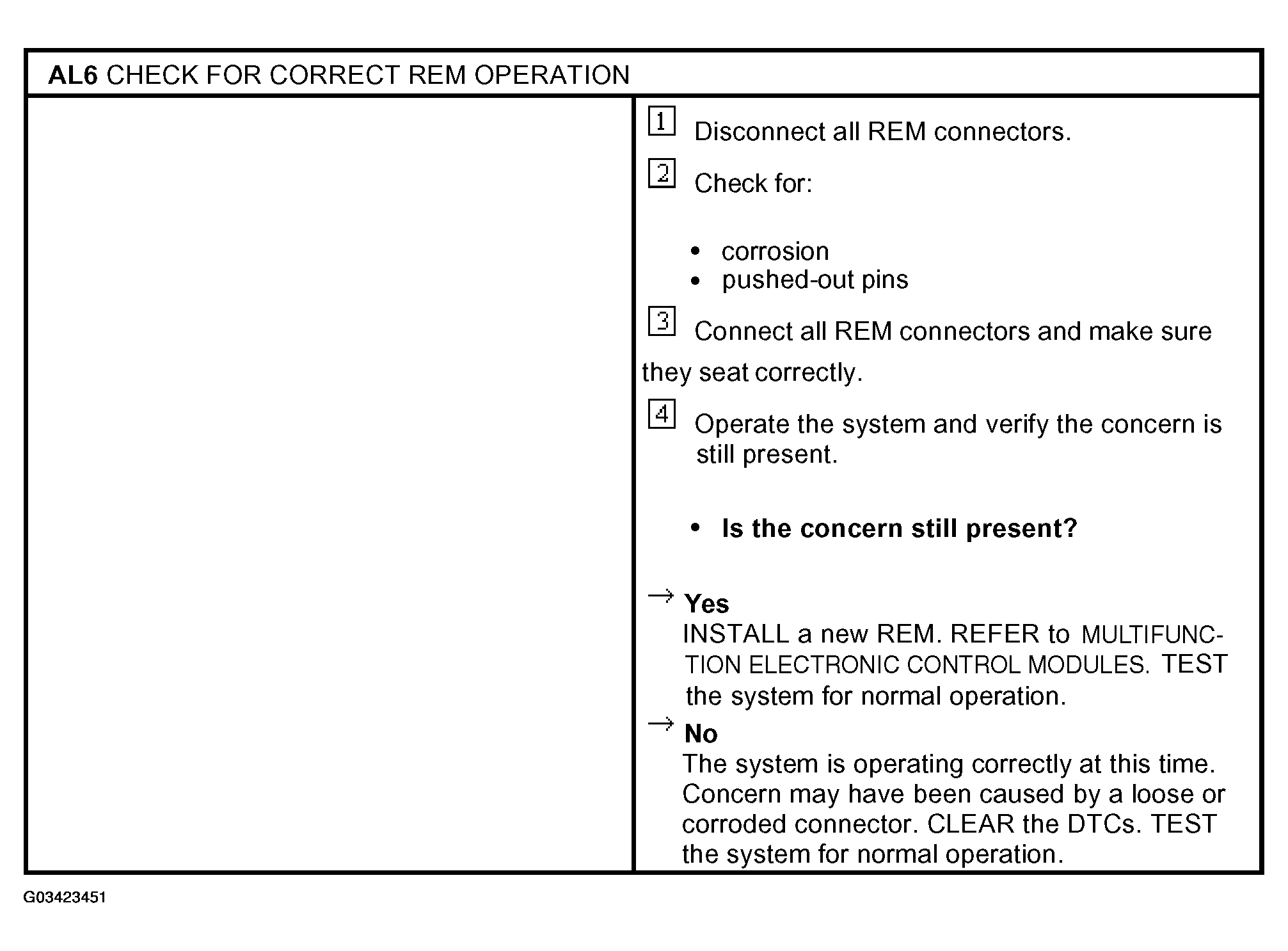

Fig 5: Pinpoint Test AL: Reversing Lamps Are Inoperative (AL6)

Courtesy of FORD MOTOR CO.
