Pinpoint Test AA: The Hazard Flasher Lamps Are Never/Always On

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

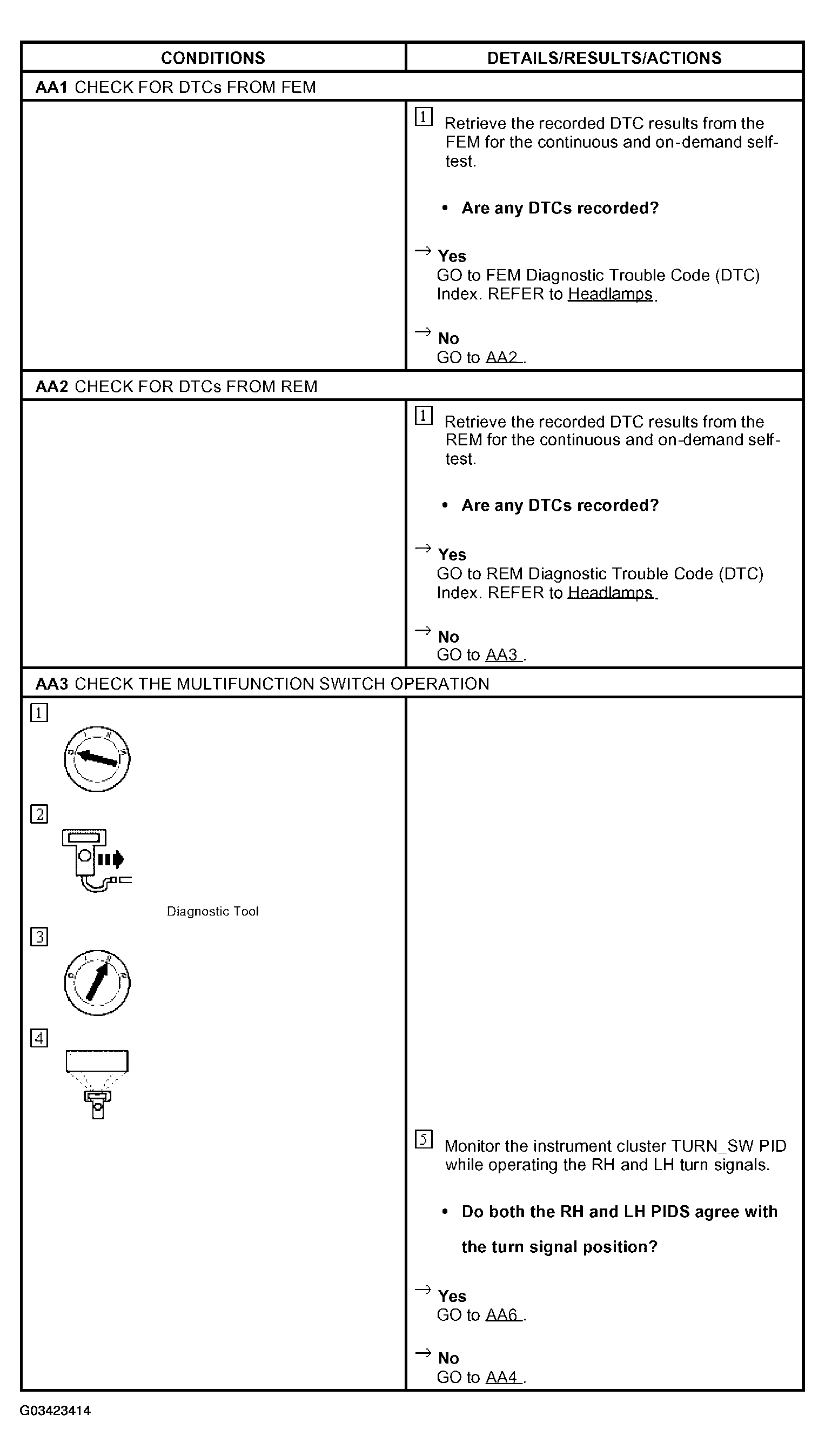

Fig 1: Pinpoint Test AA: Hazard Flasher Lamps Are Never/Always On (AA1-AA3)

Courtesy of FORD MOTOR CO.

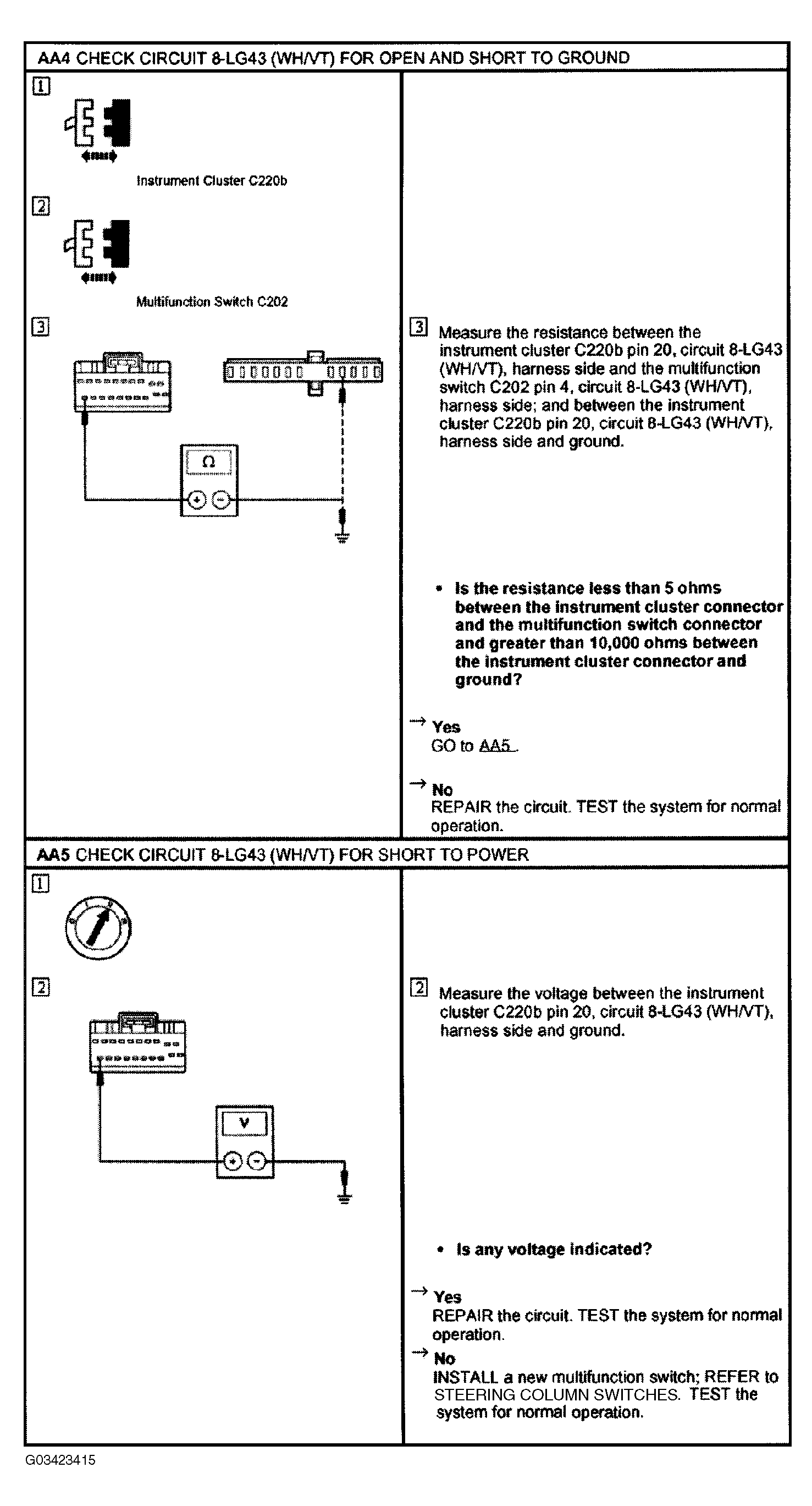

Fig 2: Pinpoint Test AA: Hazard Flasher Lamps Are Never/Always On (AA4-AA5)

Courtesy of FORD MOTOR CO.

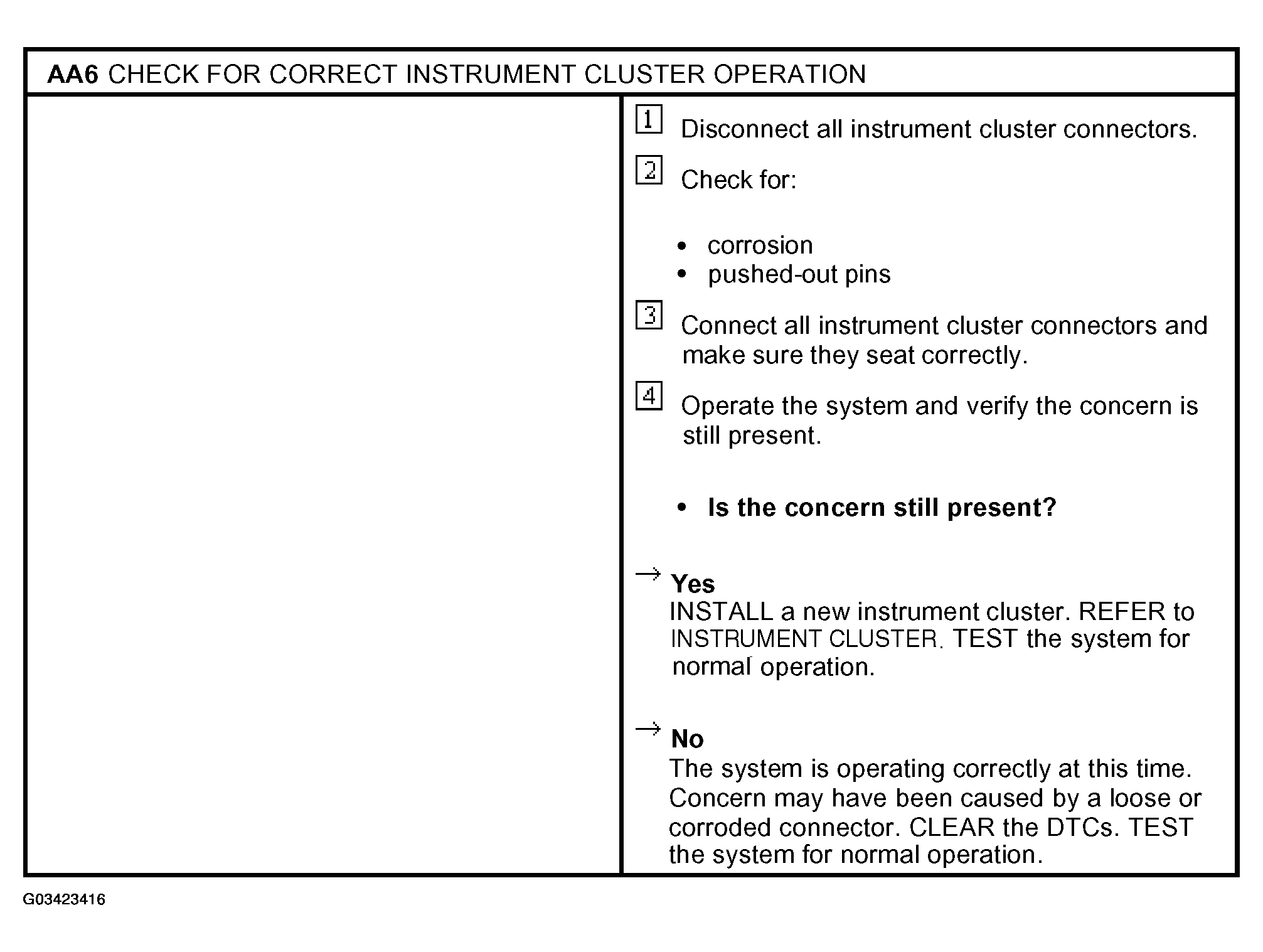

Fig 3: Pinpoint Test AA: Hazard Flasher Lamps Are Never/Always On (AA6)

Courtesy of FORD MOTOR CO.
