Pinpoint Test A: The Low Beams Are Inoperative - One Or Both Low Beam Headlamp(s) Are Inoperative

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

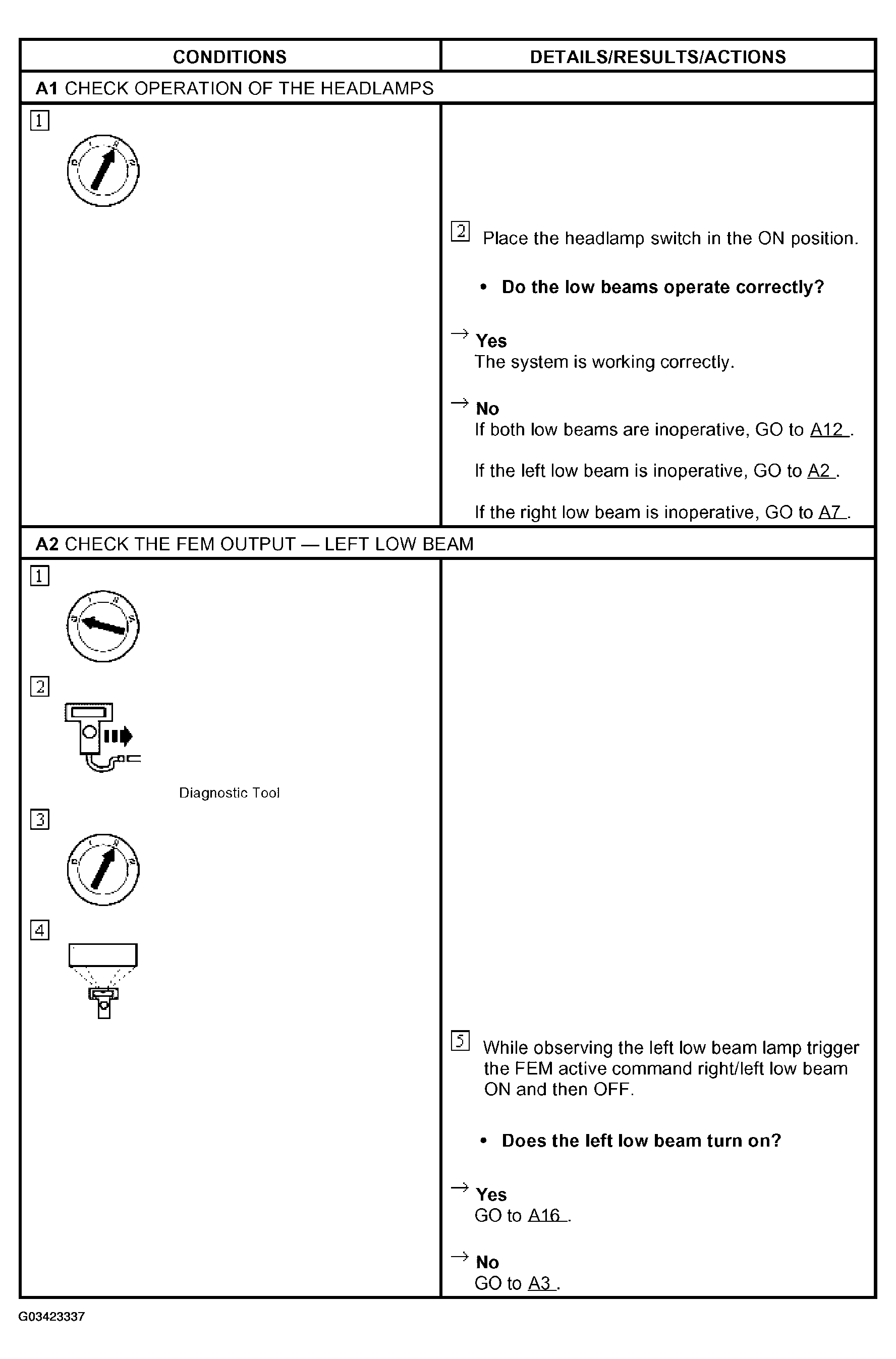

Fig 1: Pinpoint Test A: Low Beams Are Inoperative - One Or Both Low Beam Headlamp(s) Are Inoperative (A1-A2)

Courtesy of FORD MOTOR CO.

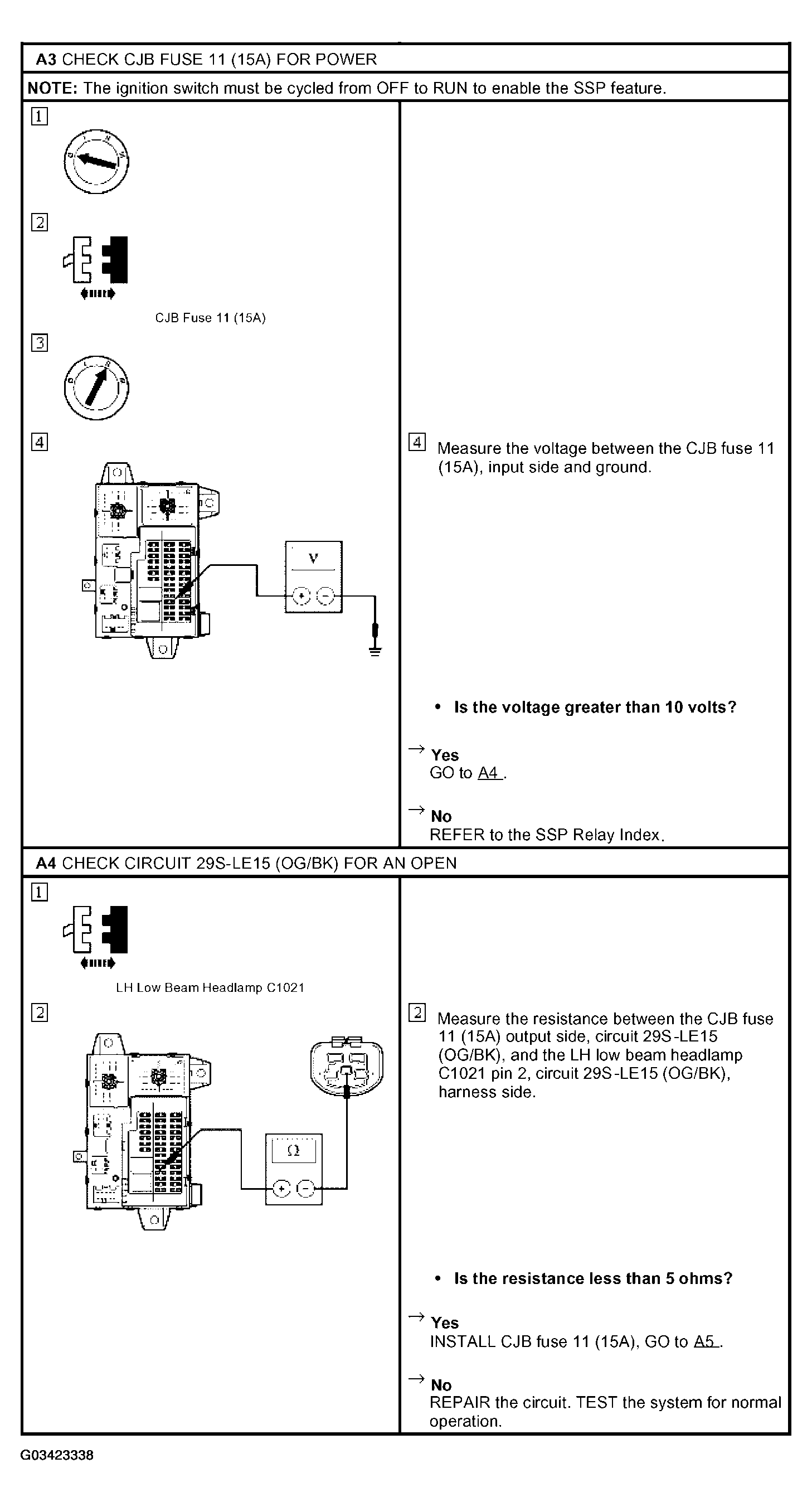

Fig 2: Pinpoint Test A: Low Beams Are Inoperative - One Or Both Low Beam Headlamp(s) Are Inoperative (A3-A4)

Courtesy of FORD MOTOR CO.

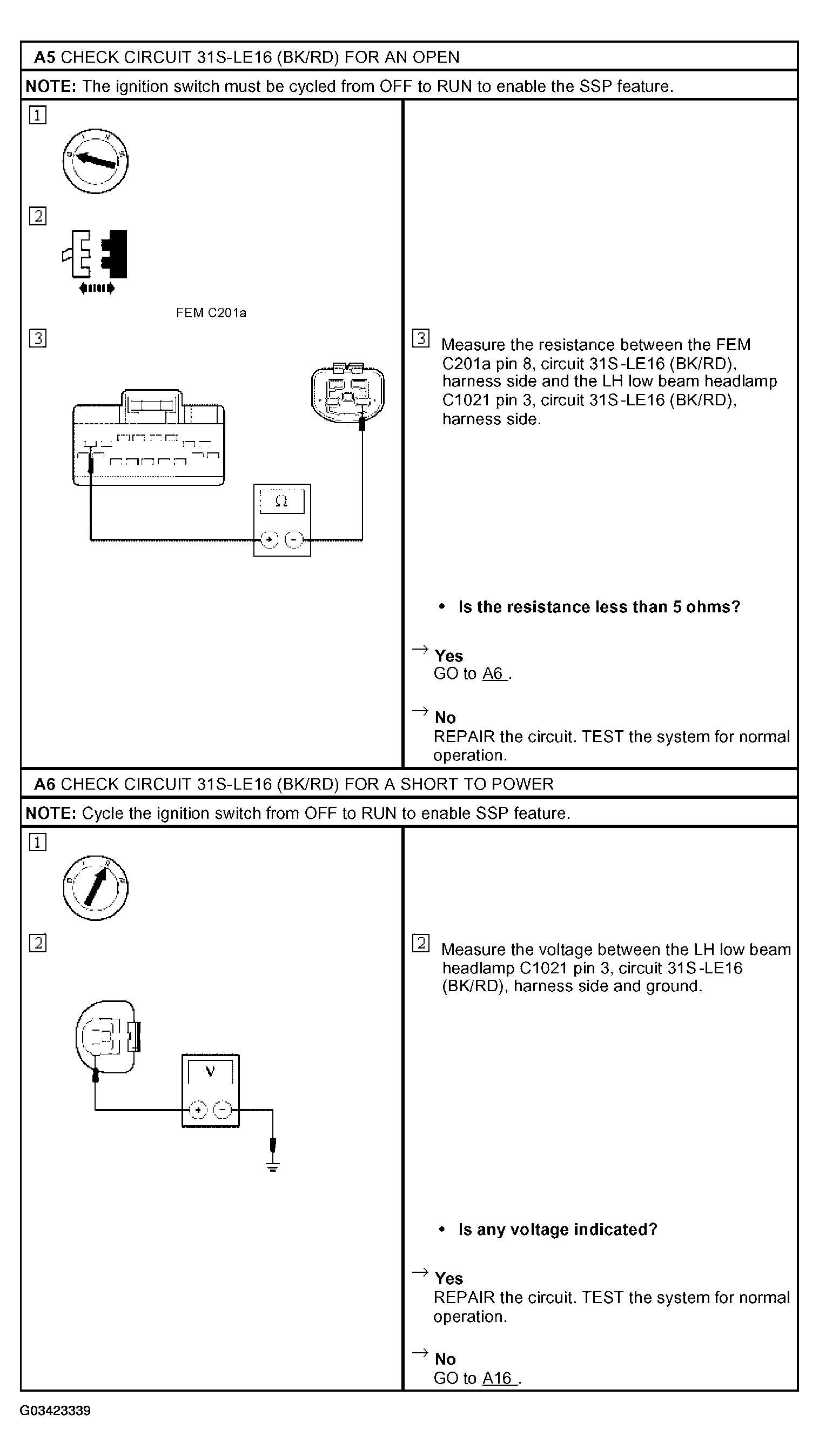

Fig 3: Pinpoint Test A: Low Beams Are Inoperative - One Or Both Low Beam Headlamp(s) Are Inoperative (A5-A6)

Courtesy of FORD MOTOR CO.

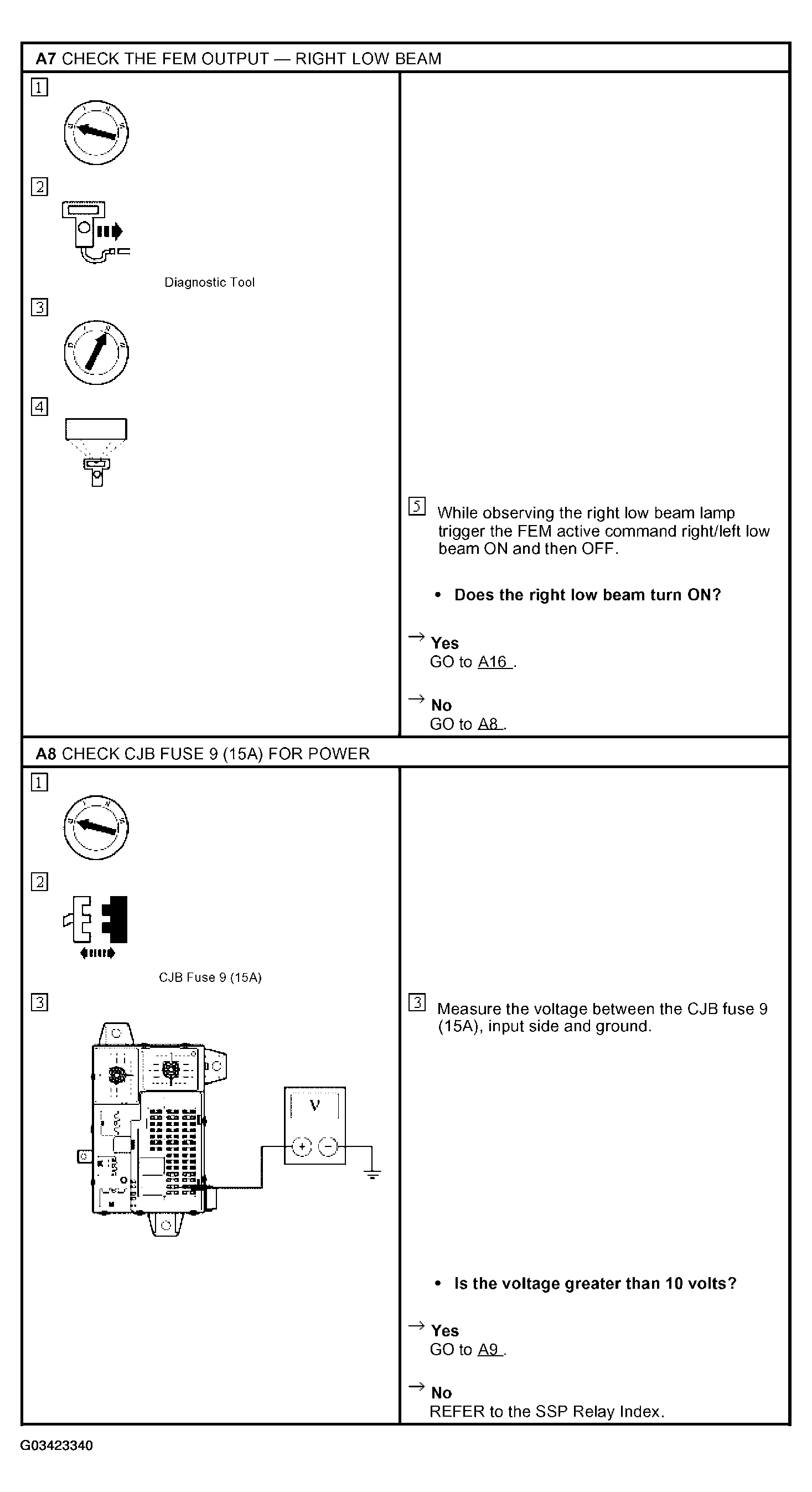

Fig 4: Pinpoint Test A: Low Beams Are Inoperative - One Or Both Low Beam Headlamp(s) Are Inoperative (A7-A8)

Courtesy of FORD MOTOR CO.

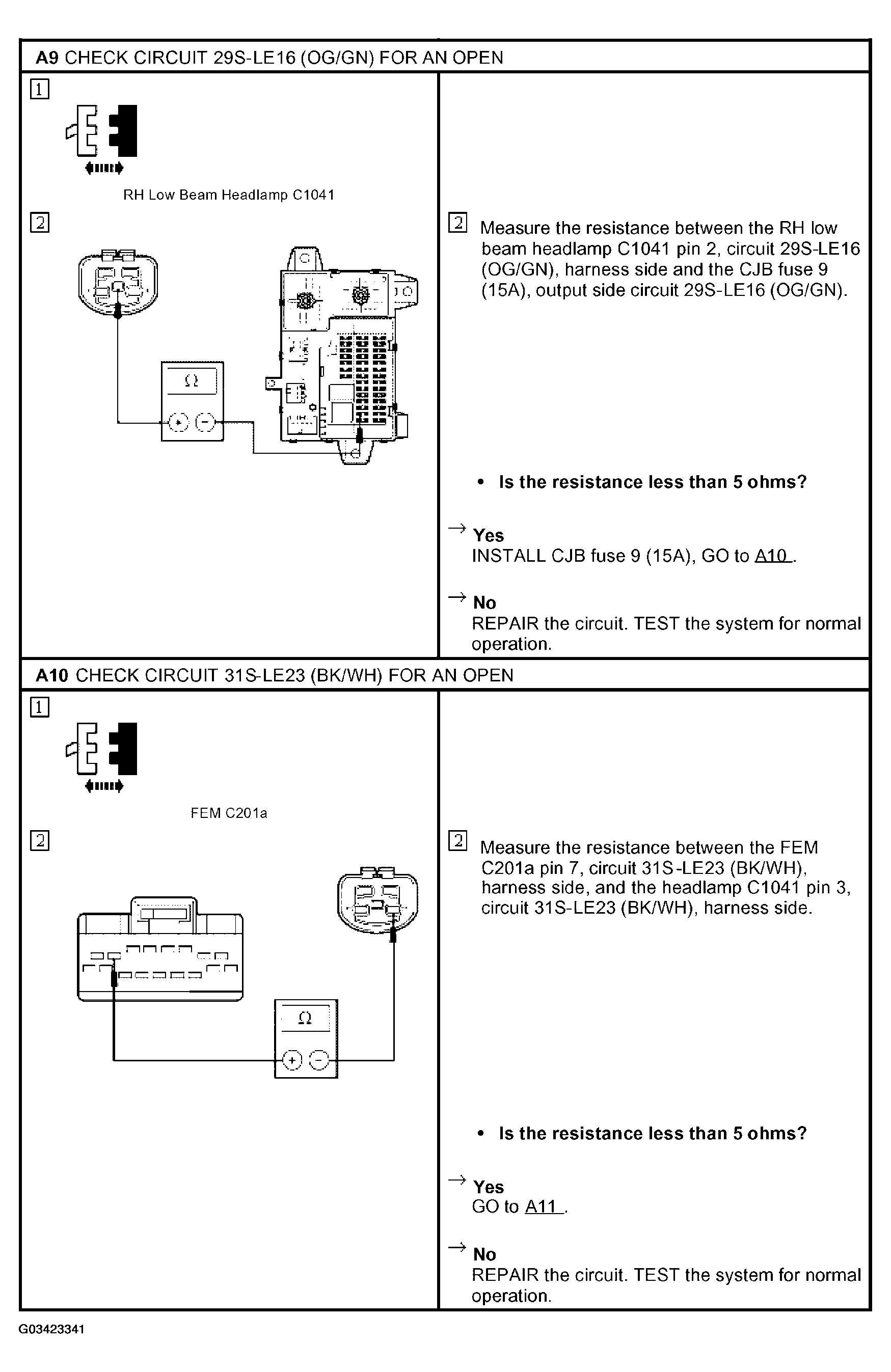

Fig 5: Pinpoint Test A: Low Beams Are Inoperative - One Or Both Low Beam Headlamp(s) Are Inoperative (A9-A10)

Courtesy of FORD MOTOR CO.

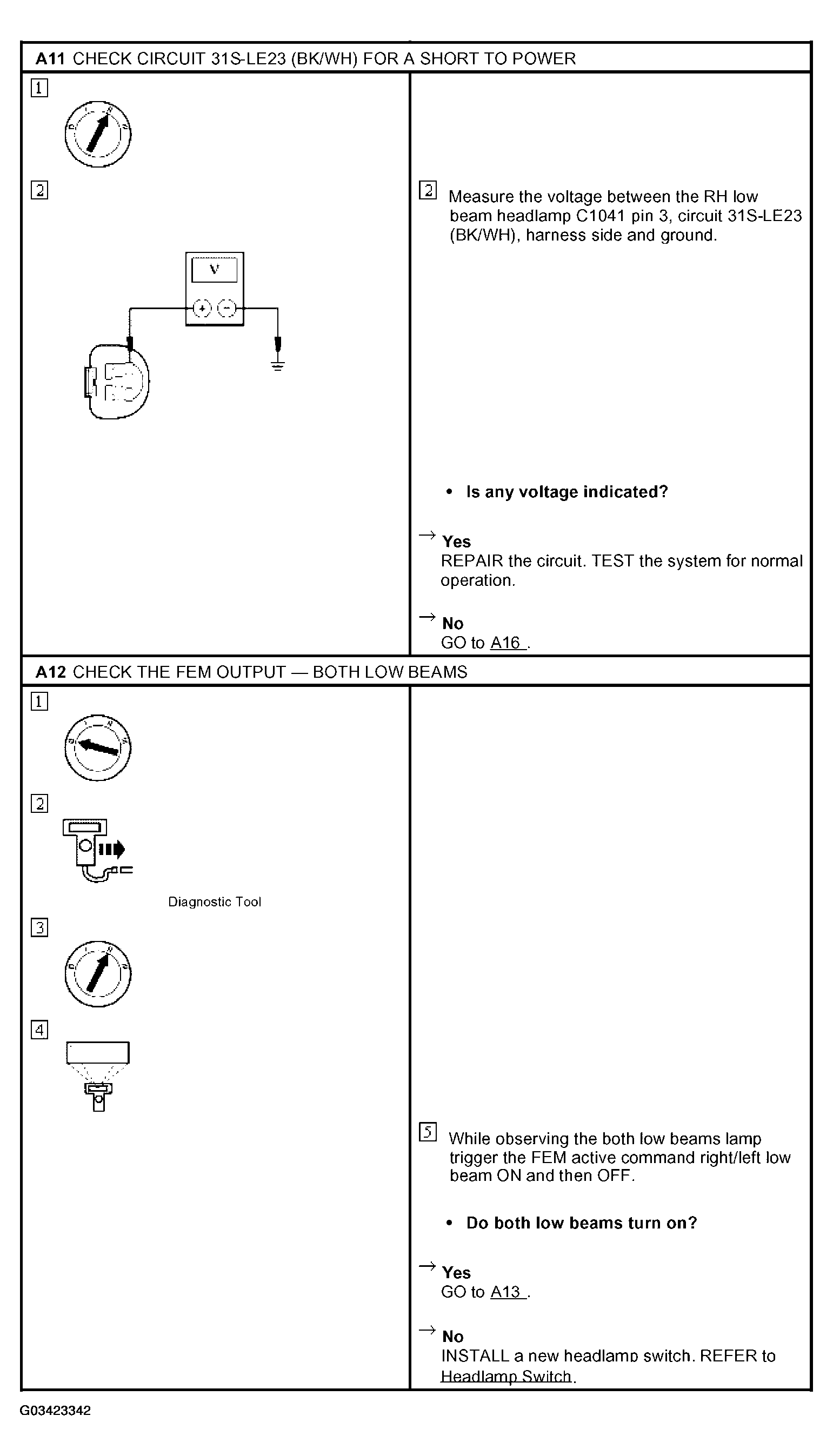

Fig 6: Pinpoint Test A: Low Beams Are Inoperative - One Or Both Low Beam Headlamp(s) Are Inoperative (A11-A12)

Courtesy of FORD MOTOR CO.

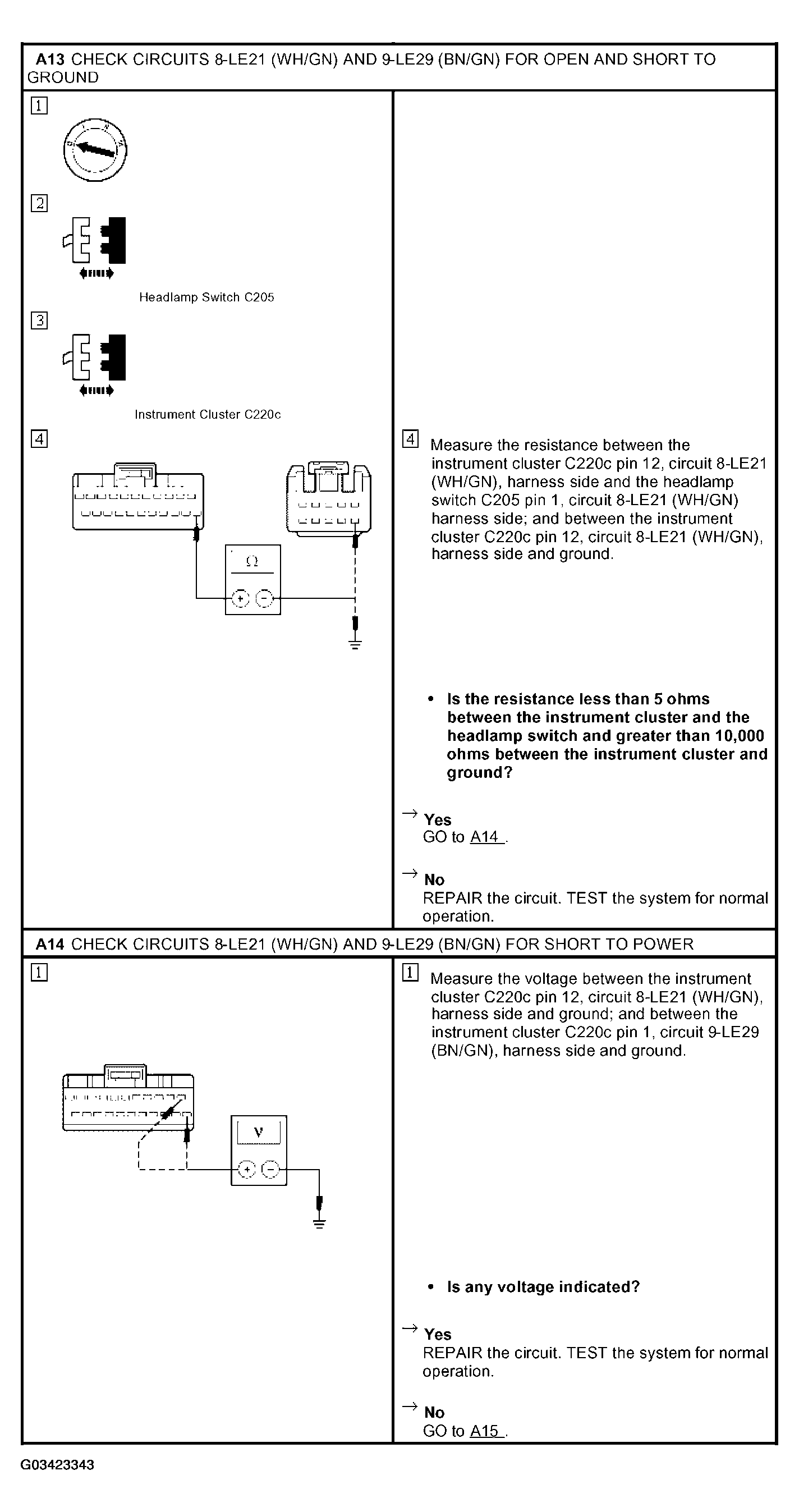

Fig 7: Pinpoint Test A: Low Beams Are Inoperative - One Or Both Low Beam Headlamp(s) Are Inoperative (A13-A14)

Courtesy of FORD MOTOR CO.

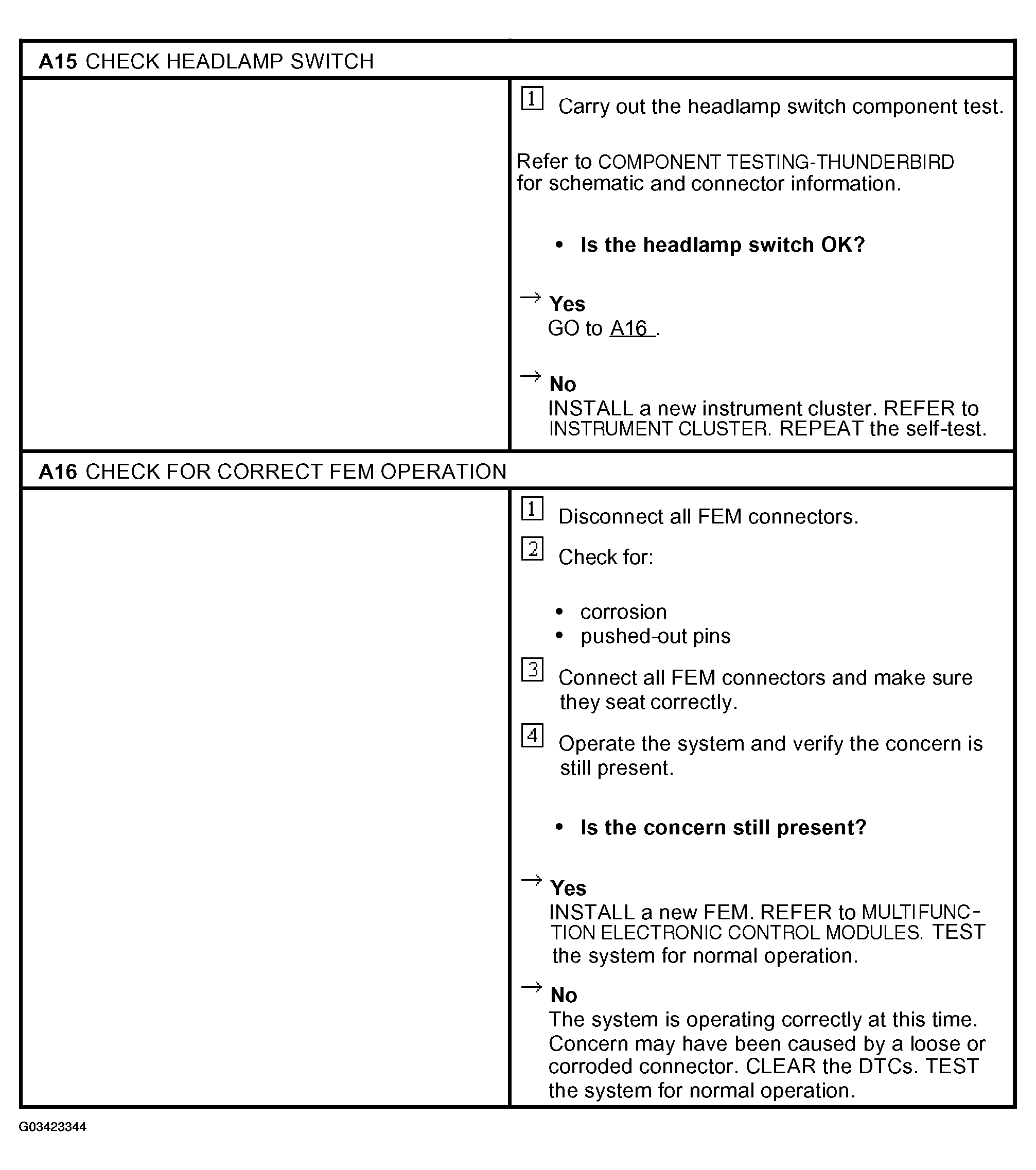

Fig 8: Pinpoint Test A: Low Beams Are Inoperative - One Or Both Low Beam Headlamp(s) Are Inoperative (A15-A16)

Courtesy of FORD MOTOR CO.
