Multifunction Switch, Wiper/Washer Portion

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

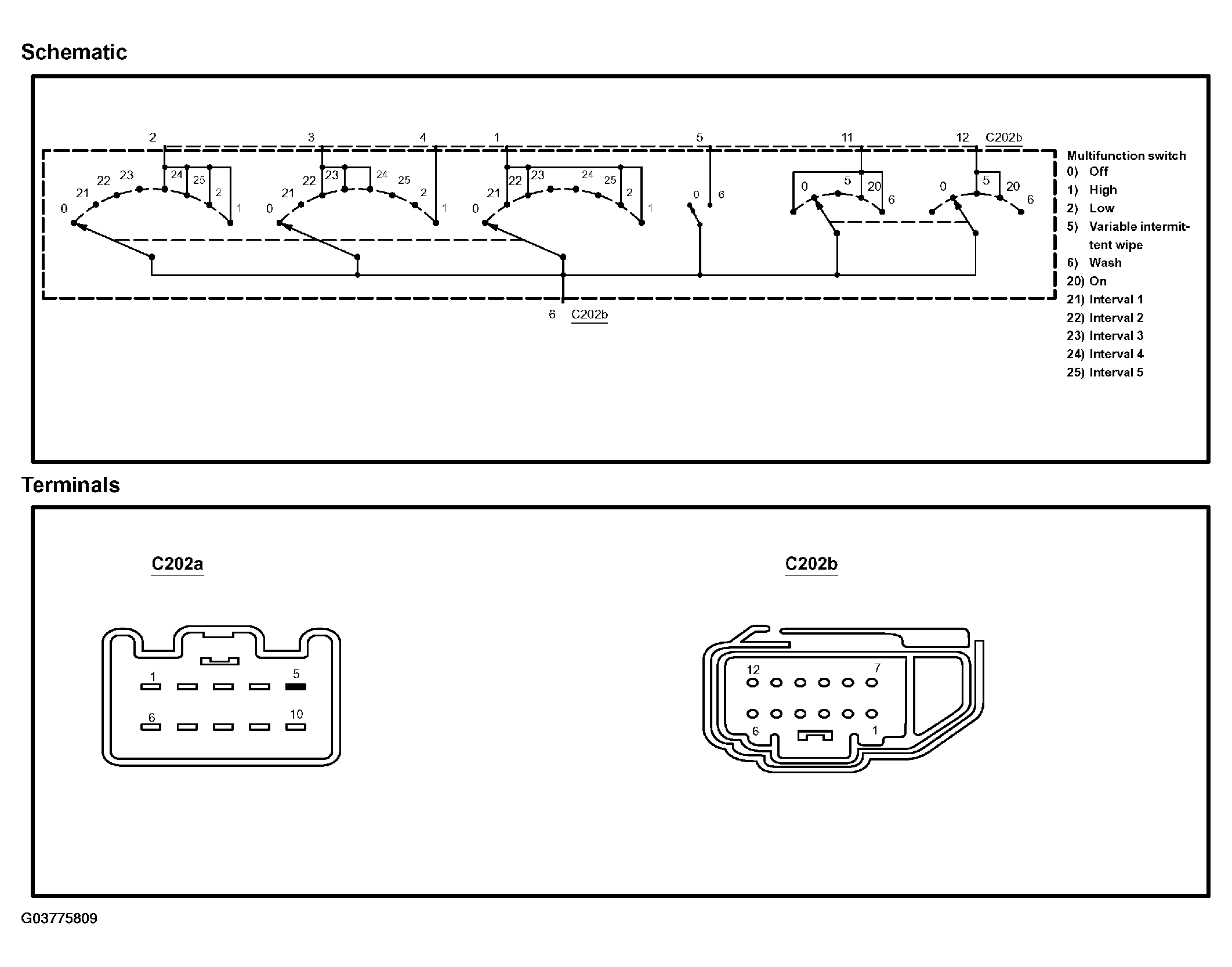

Fig 1: Identifying Multifunction Switch Schematic & Terminals

Courtesy of FORD MOTOR CO.

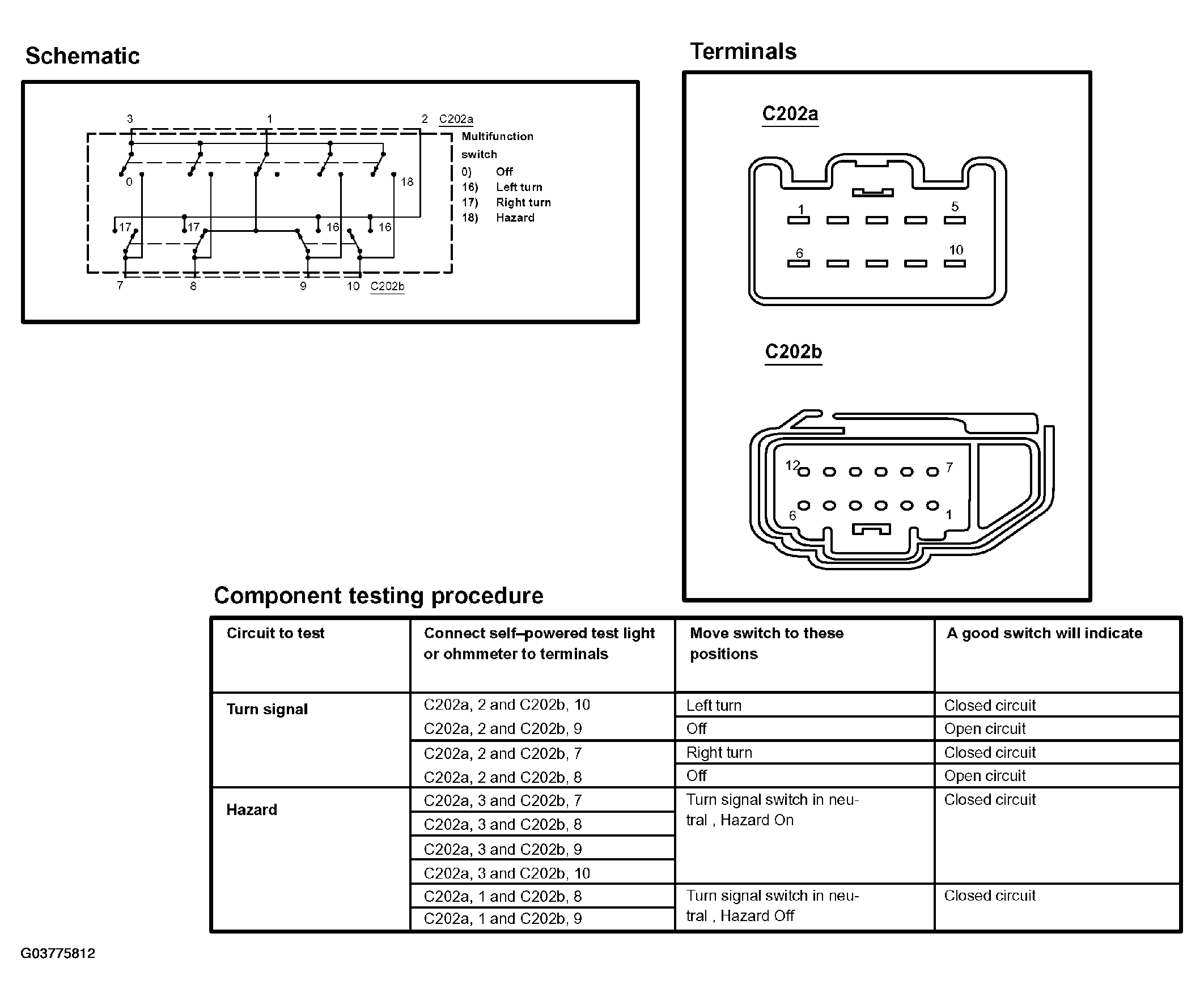

Fig 2: Multifunction Switch Component Testing Procedure (1 Of 3)

Courtesy of FORD MOTOR CO.

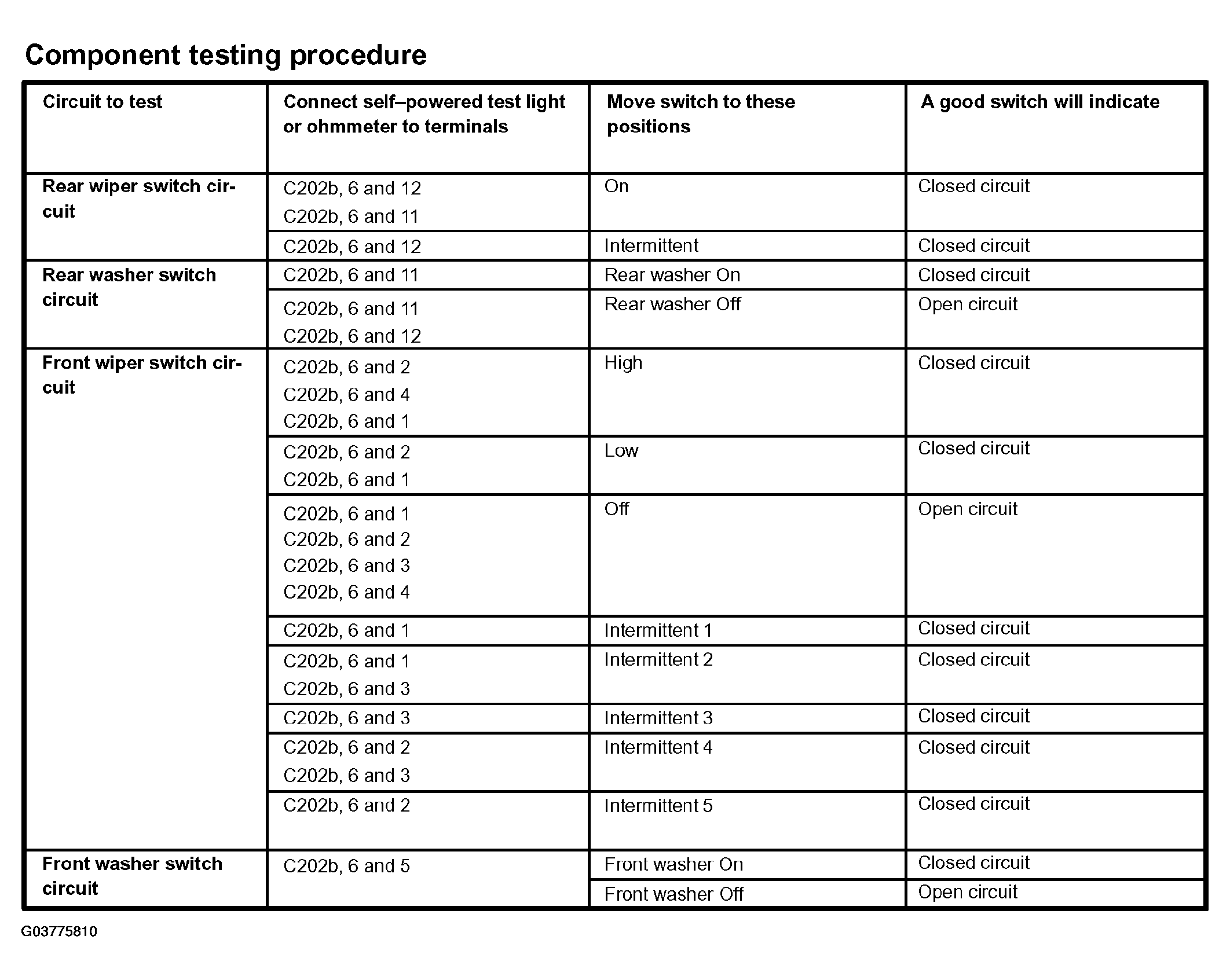

Fig 3: Multifunction Switch Component Testing Procedure (2 Of 3)

Courtesy of FORD MOTOR CO.

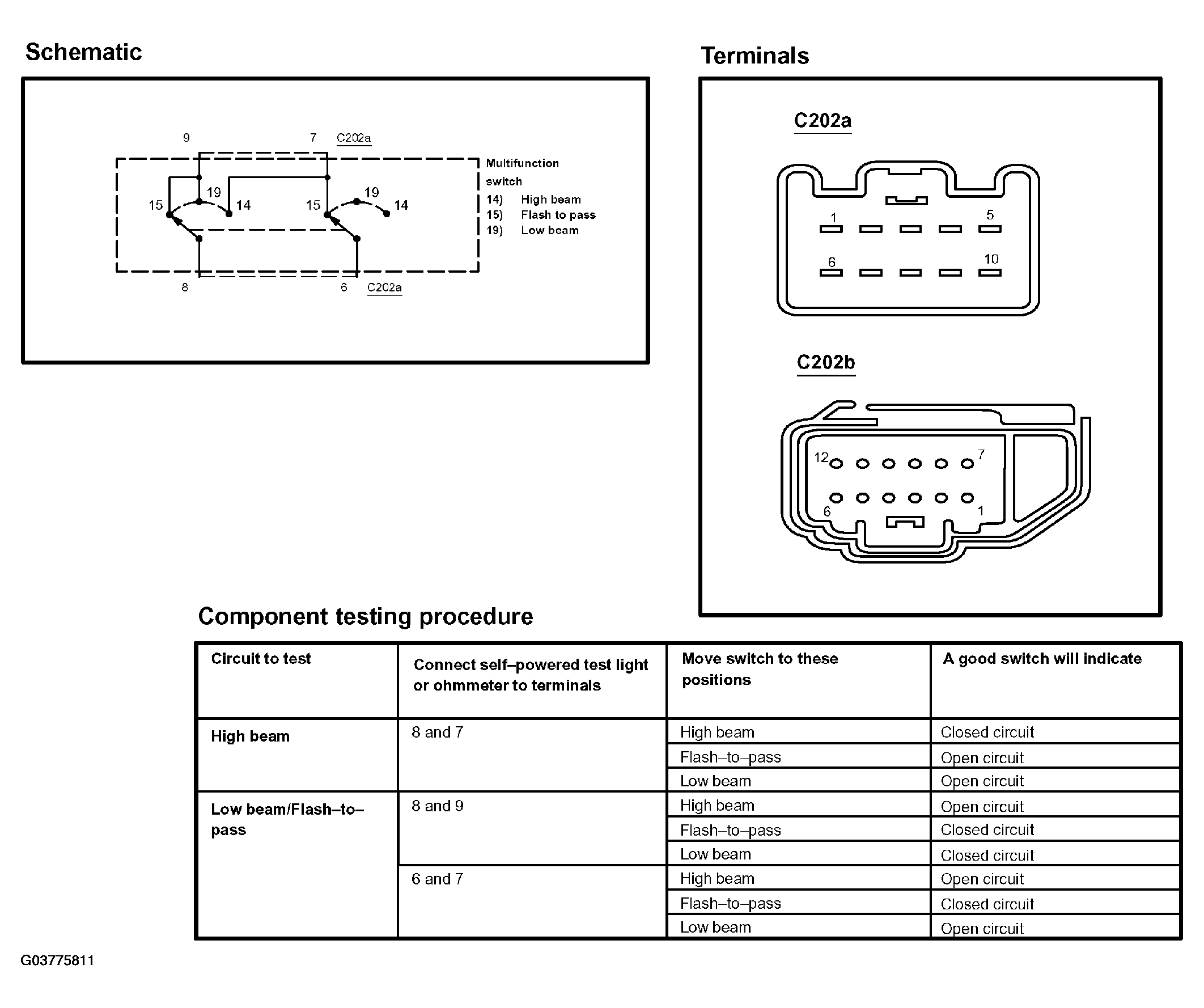

Fig 4: Multifunction Switch Component Testing Procedure (3 Of 3)

Courtesy of FORD MOTOR CO.
