Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the bumper cover. For additional information, refer to Section BATTERY, MOUNTING AND CABLES .
Remove the hood latch. For additional information, refer to Section HANDLES, LOCKS, LATCHES AND ENTRY SYSTEMS .
Remove the six bolts and position the fenders aside.

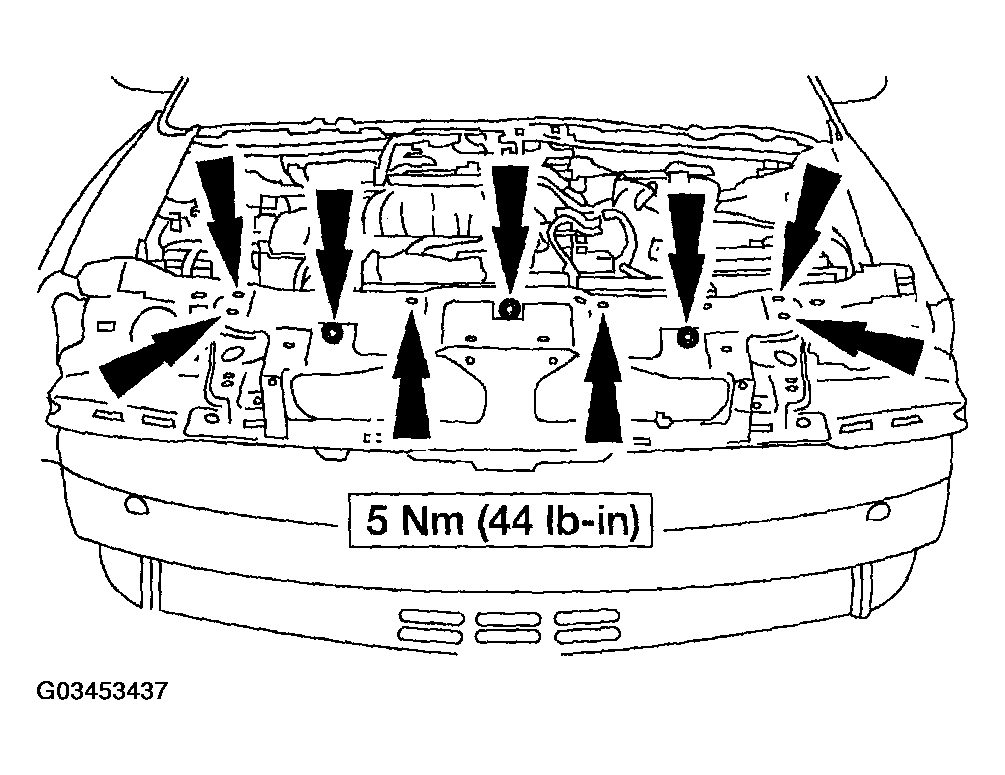

Fig 1: Removing Bolts
Courtesy of FORD MOTOR CO.
Remove the bolts and the crash sensor.
- Disconnect the electrical connector.

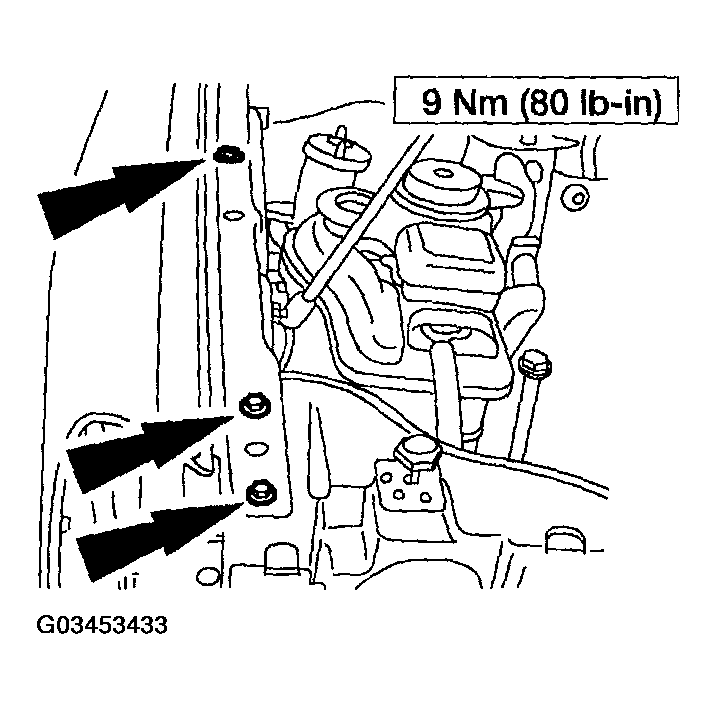

Fig 2: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the bolts and the hood latch support bracket.

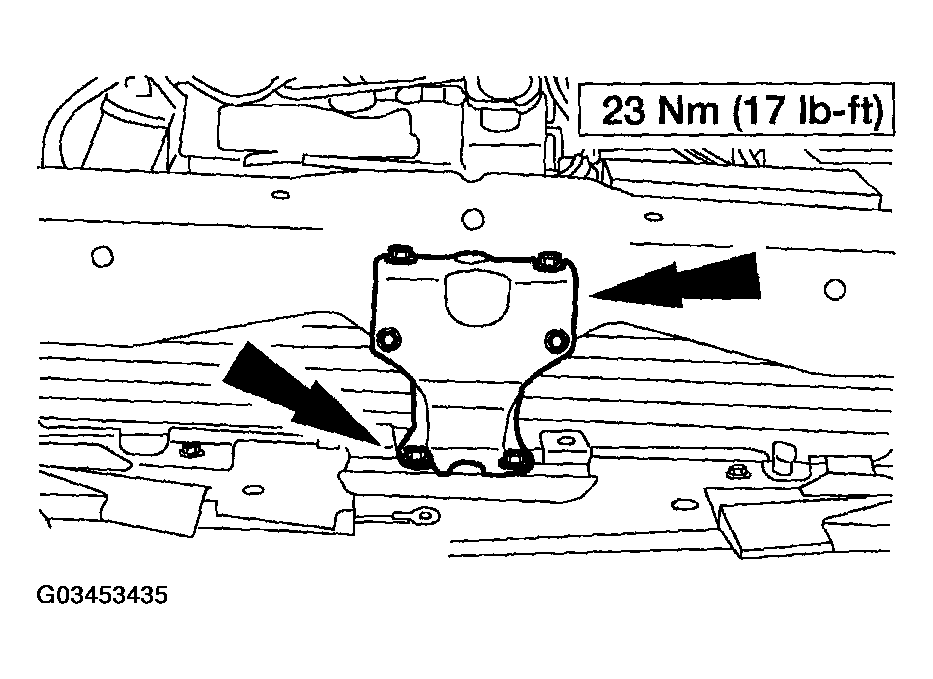

Fig 3: Removing Bolts And Hood Latch Support Bracket
Courtesy of FORD MOTOR CO.
Remove the two grille opening panel reinforcement pin-type retainers.

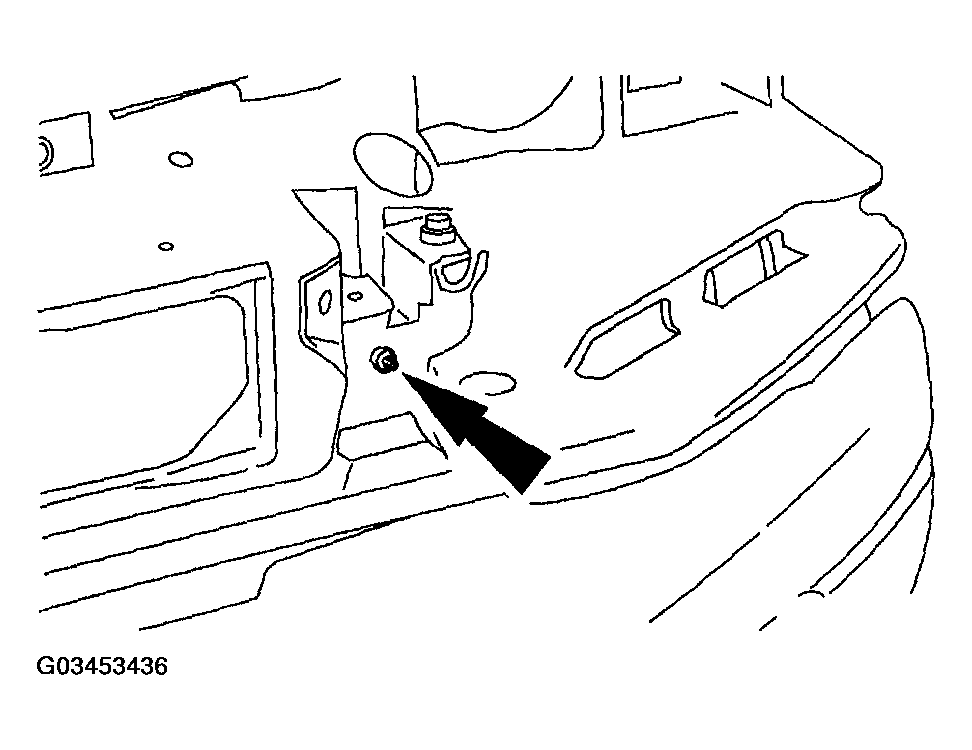

Fig 4: Removing Grille Opening Panel
Courtesy of FORD MOTOR CO.
Remove the bolts and the grille opening panel reinforcement.

Fig 5: Removing Bolts And Grille Opening Panel
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
