Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cowl grille. For additional information, refer to COWL PANEL GRILLE .
Remove the front bumper cover. For additional information, refer to Section BUMPERS .

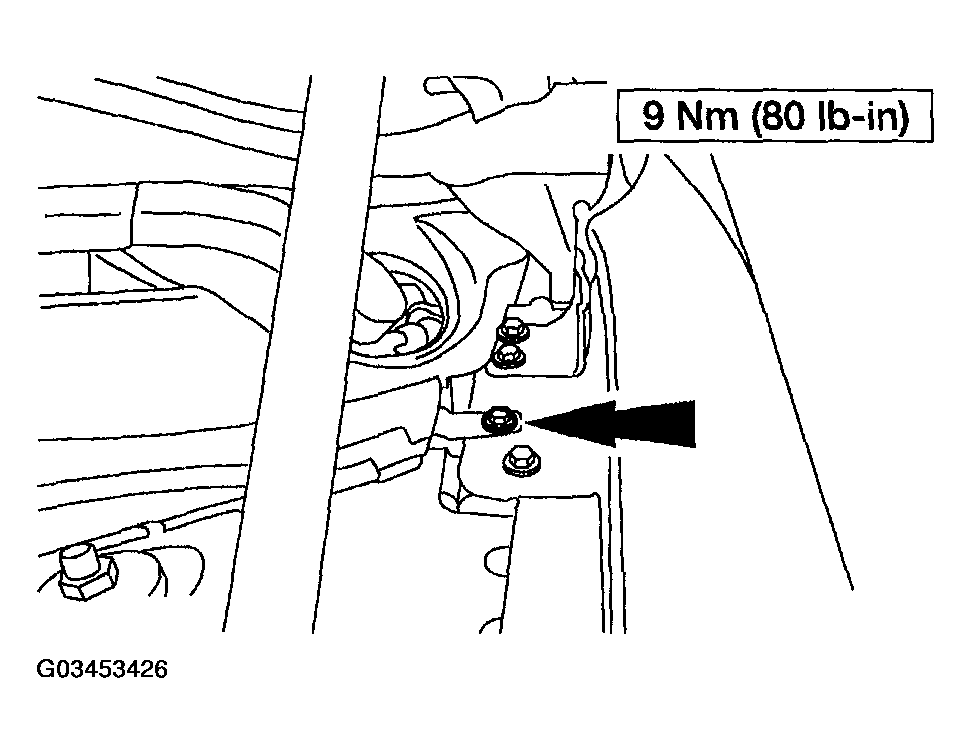

Remove the cowl grille extension bolt.

Fig 1: Identifying Cowl Grille Extension Bolt
Courtesy of FORD MOTOR CO.

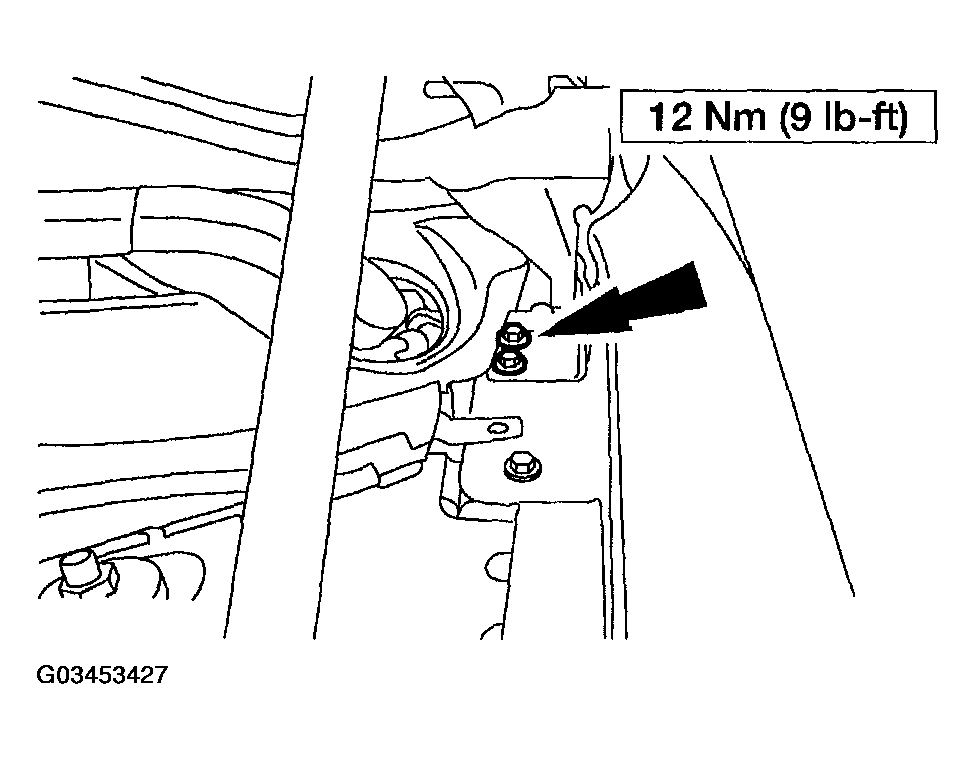

Remove the hood hinge to body bolts and position the hood hinge aside.

Fig 2: Identifying Hood Hinge Body Bolts
Courtesy of FORD MOTOR CO.
Remove the pin-type retainers and the front rocker panel moulding.

Fig 3: Identifying Pin-Type Retainers
Courtesy of FORD MOTOR CO.

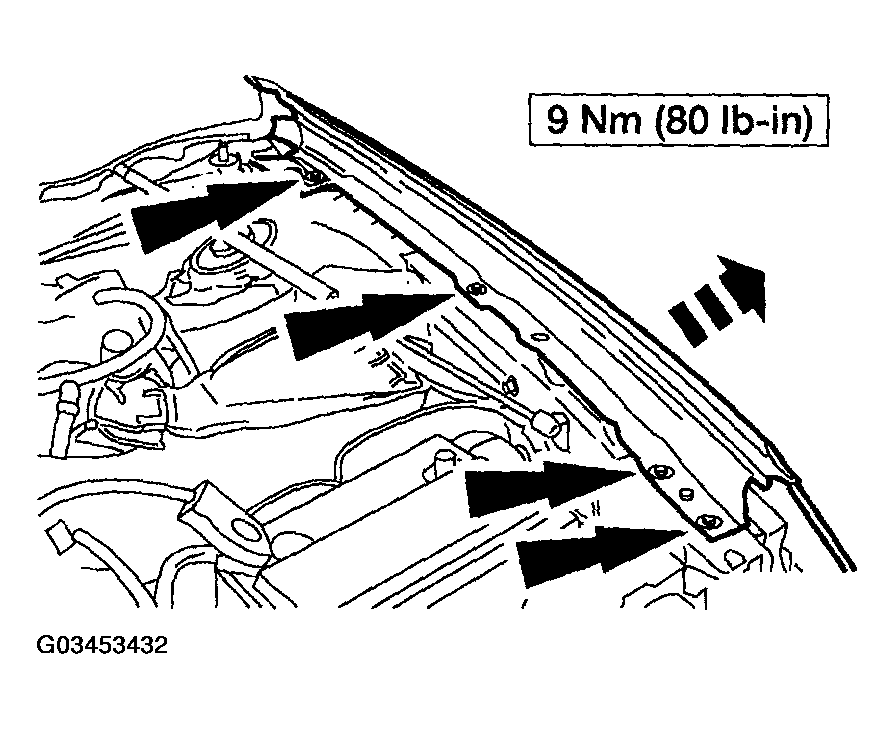

Remove the fender bolts.

Fig 4: Installing Fender Bolts
Courtesy of FORD MOTOR CO.

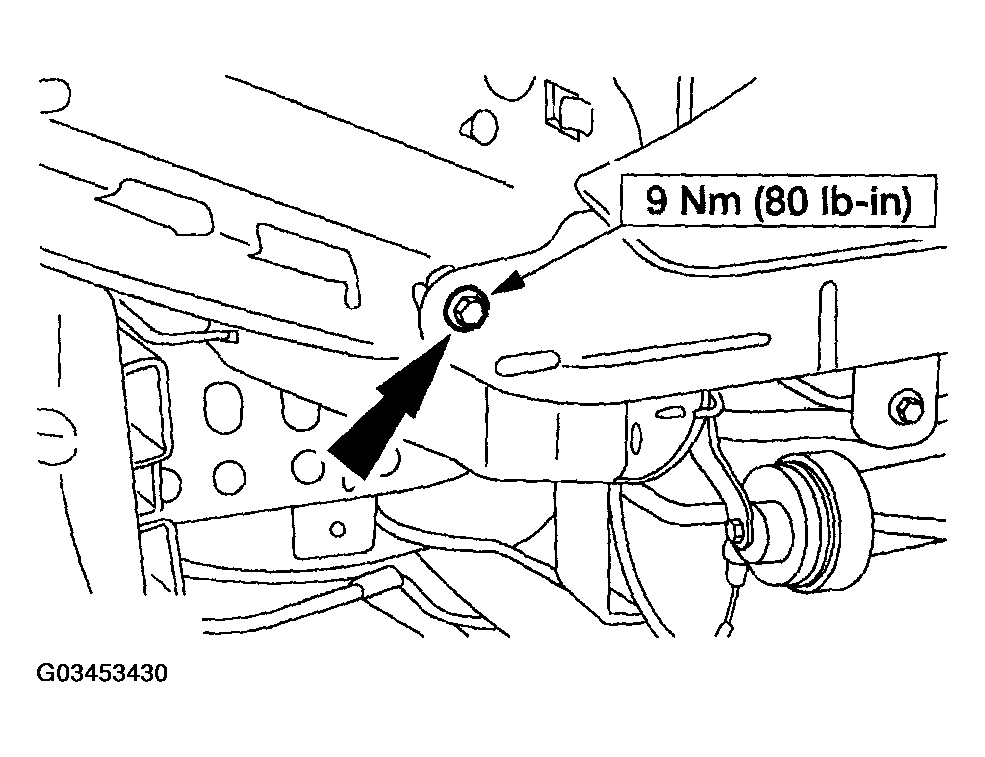

Remove the fender bolt.

Fig 5: Tightening Fender Bolt
Courtesy of FORD MOTOR CO.

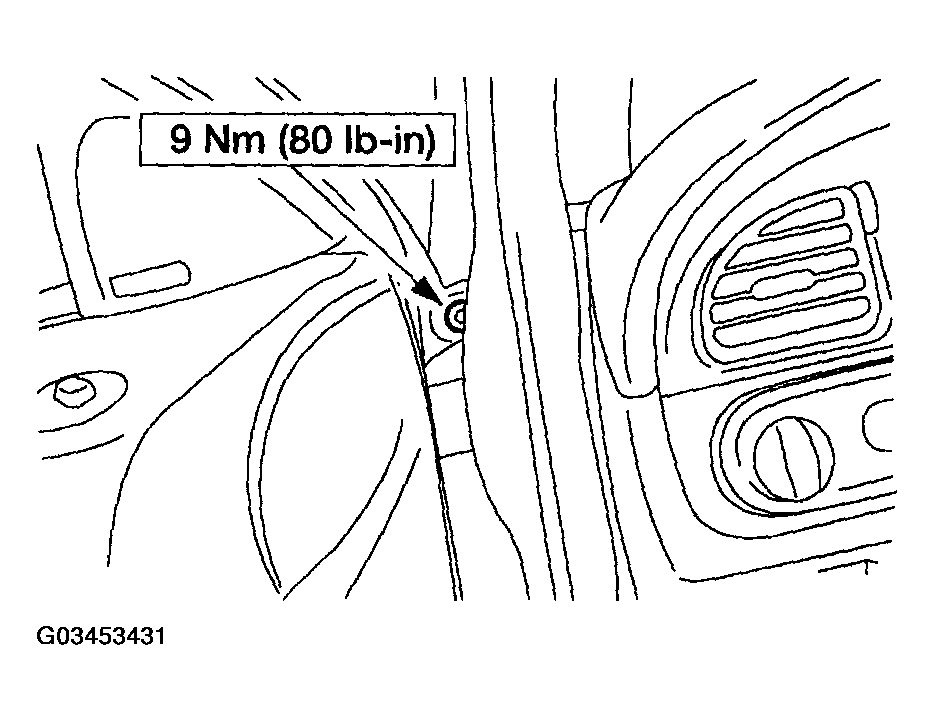

Through the front door opening, remove the fender bolt.

Fig 6: Removing Fender Bolt
Courtesy of FORD MOTOR CO.

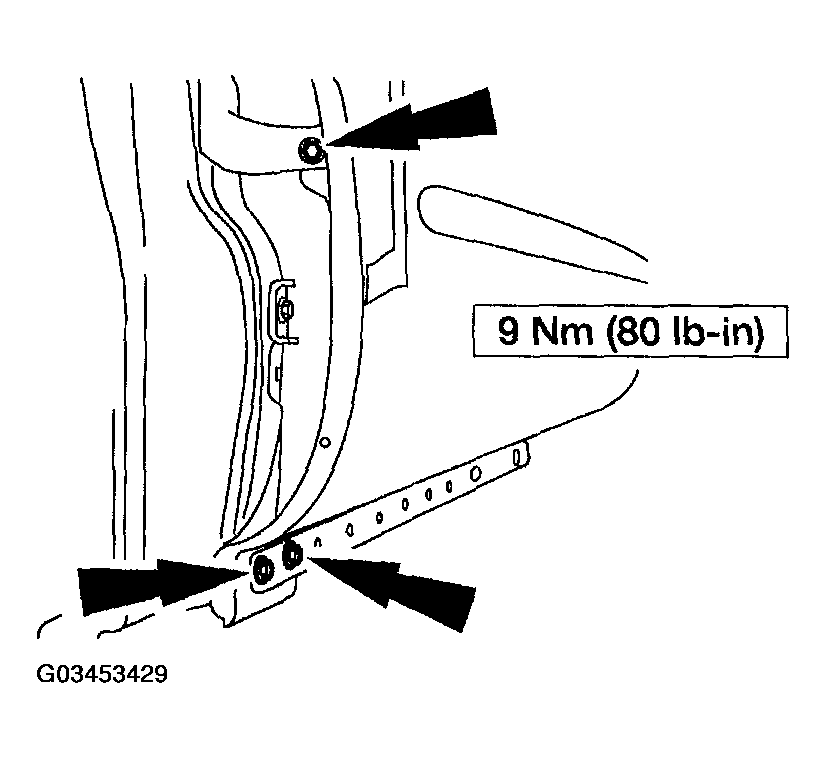

Remove the fender bolts and the fender.

Fig 7: Removing Fender Bolts And Fender
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
