Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wiper pivot arms. For additional information, refer to Section WIPERS AND WASHERS .
Remove the cowl grille clips.

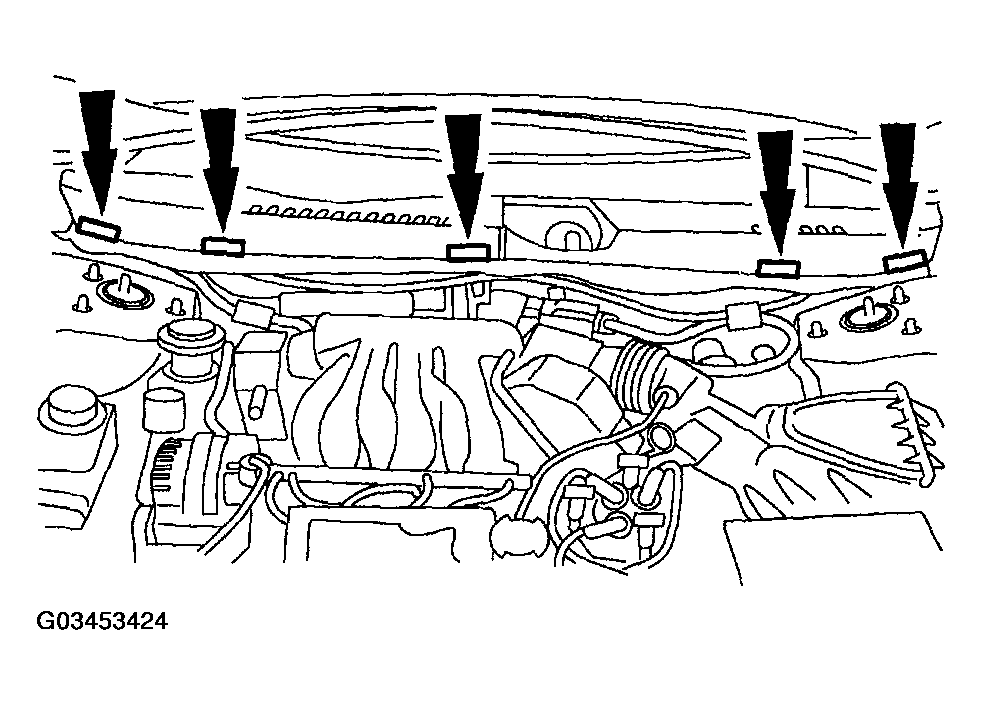

Fig 1: Removing Cowl Grille Clips
Courtesy of FORD MOTOR CO.

NOTE: Remove the RH cowl grille first.

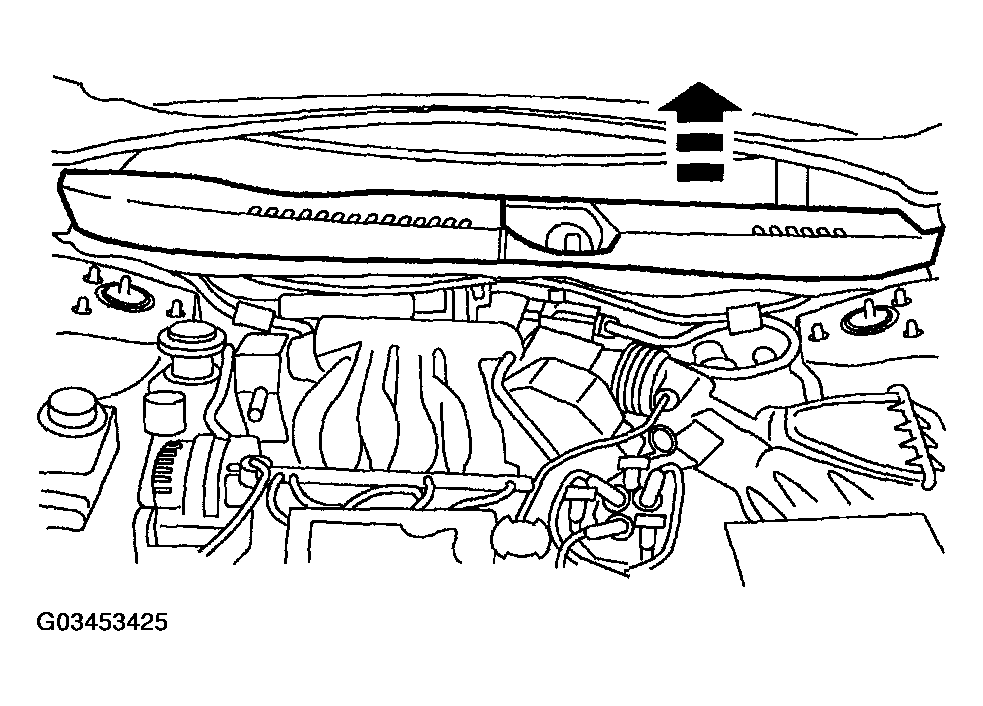

Fig 2: Removing RH Cowl Grille First

Courtesy of FORD MOTOR CO.

Remove the cowl grilles.
To install, reverse the removal procedure.
