Hood Alignment

WARNING: This page is about a different car, the 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not confuse a misaligned hood with a hood latch adjustment.
  1. Raise and support the hood.
  2. Mark the current position of the hood hinges.
  3. Loosen the hood hinge bolts (two each side) enough to allow movement.

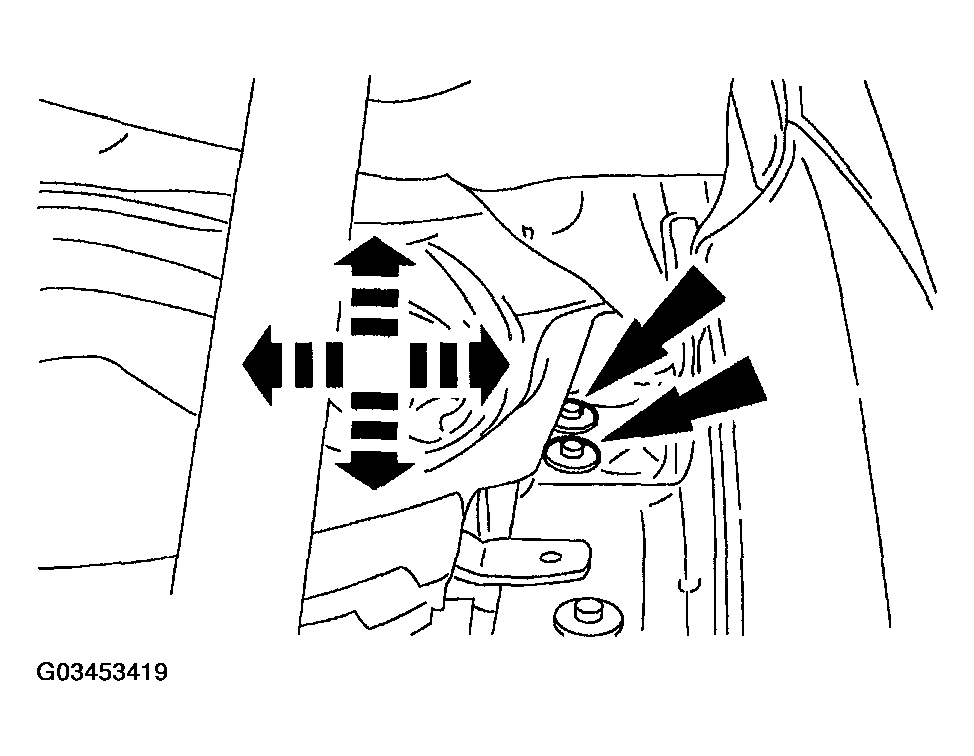

    Fig 1: Identifying Bolt
    G03453419Courtesy of FORD MOTOR CO.
  4. Adjust the hood as needed to correct the misalignment.
  5. Tighten the hood hinge bolts.

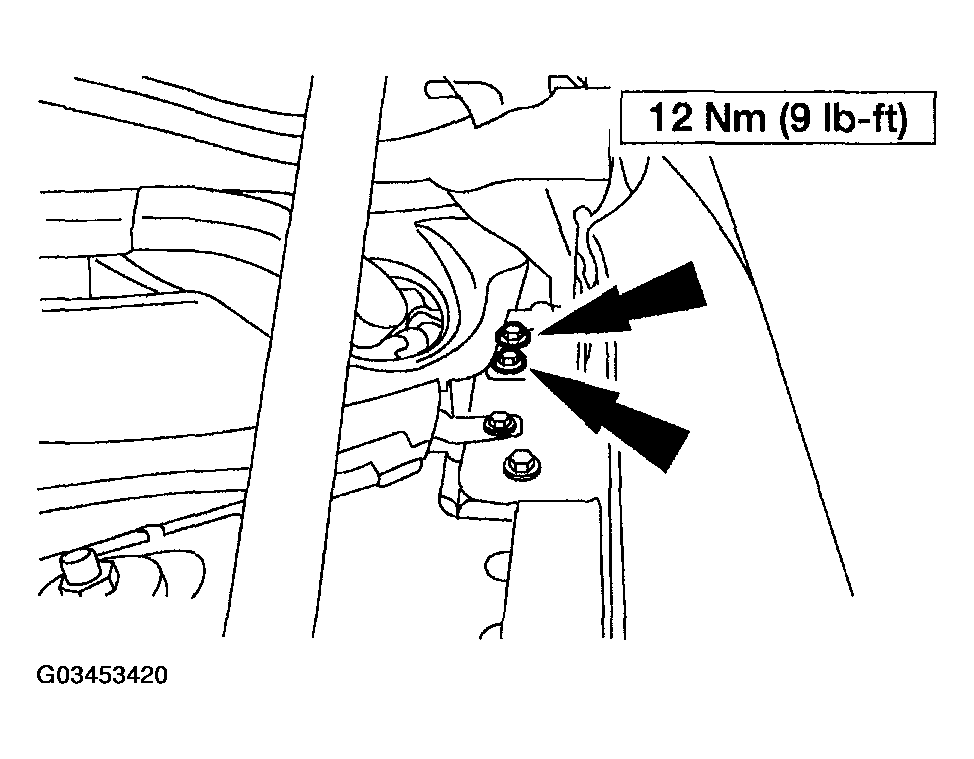

    Fig 2: Tightening Hood Hinge Bolts
    G03453420Courtesy of FORD MOTOR CO.
