Pinpoint Test L: Clutch Vibration

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

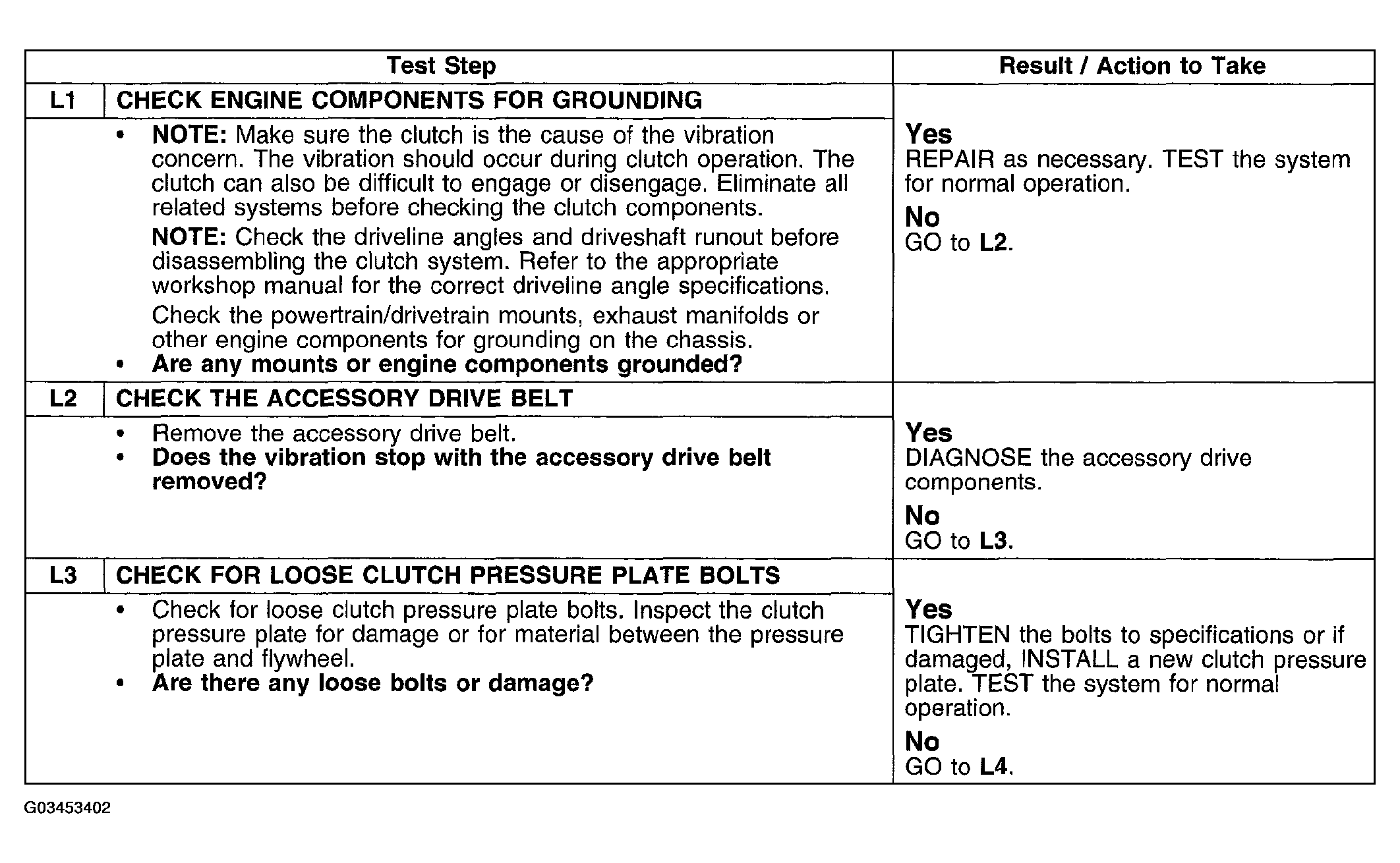

Fig 1: Pinpoint Test L: Clutch Vibration (Step L1 To L3)
G03453402Courtesy of FORD MOTOR CO.

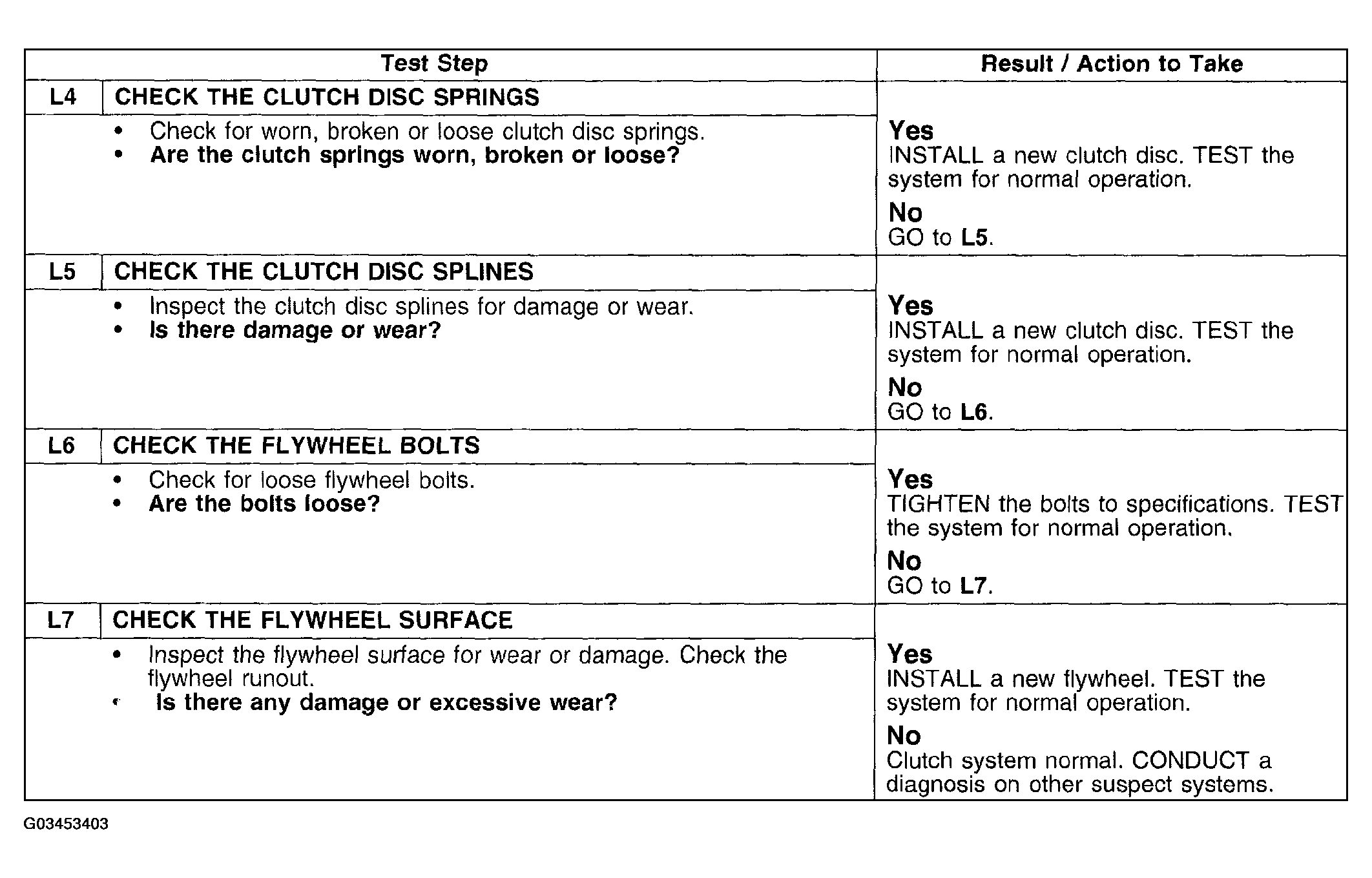

Fig 2: Pinpoint Test L: Clutch Vibration (Step L4 To L7)
G03453403Courtesy of FORD MOTOR CO.
