Pinpoint Test K: High Speed Shake Or Shimmy Diagnosis
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

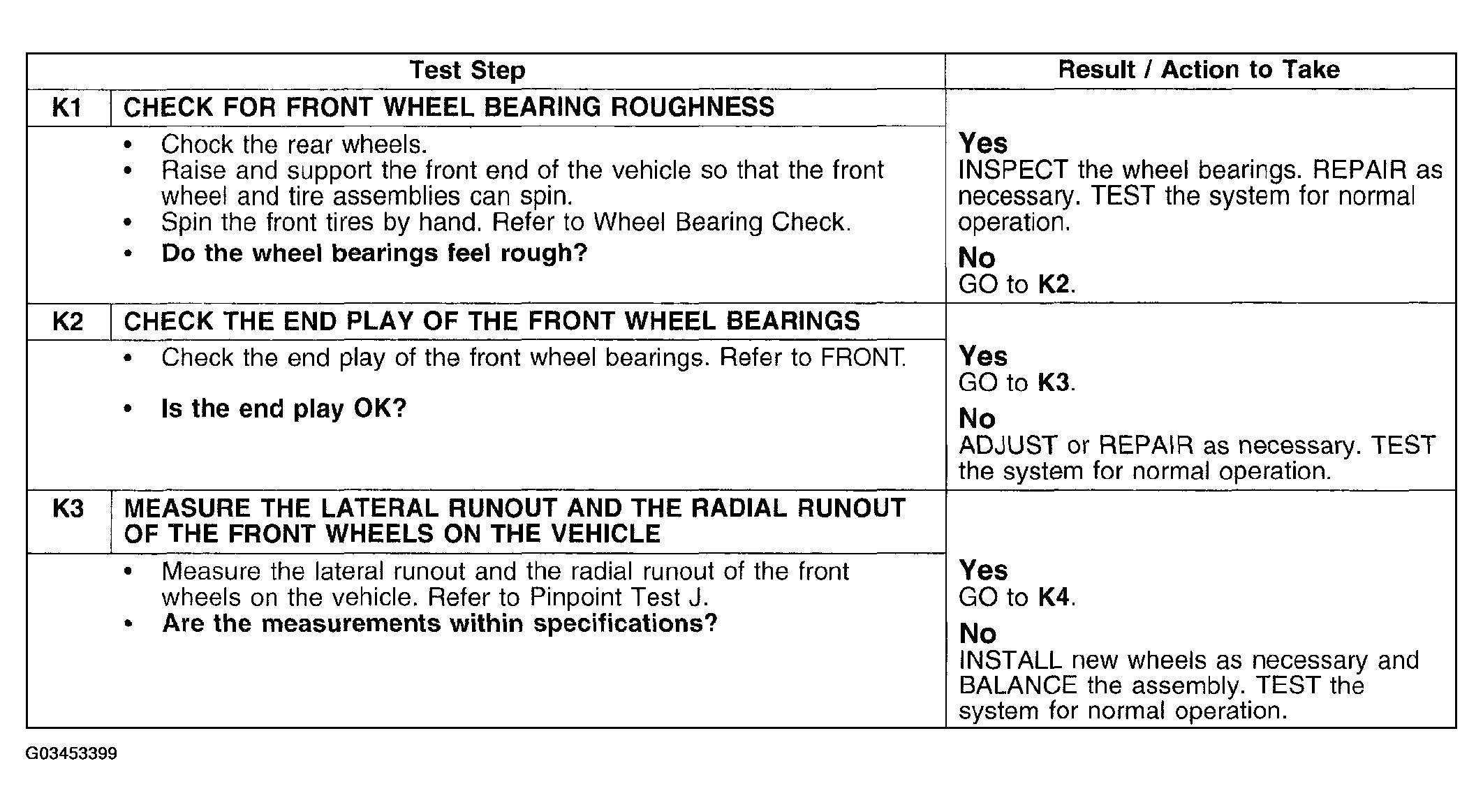

Fig 1: Pinpoint Test K: High Speed Shake Or Shimmy Diagnosis (Step K1 To K3)
Courtesy of FORD MOTOR CO.

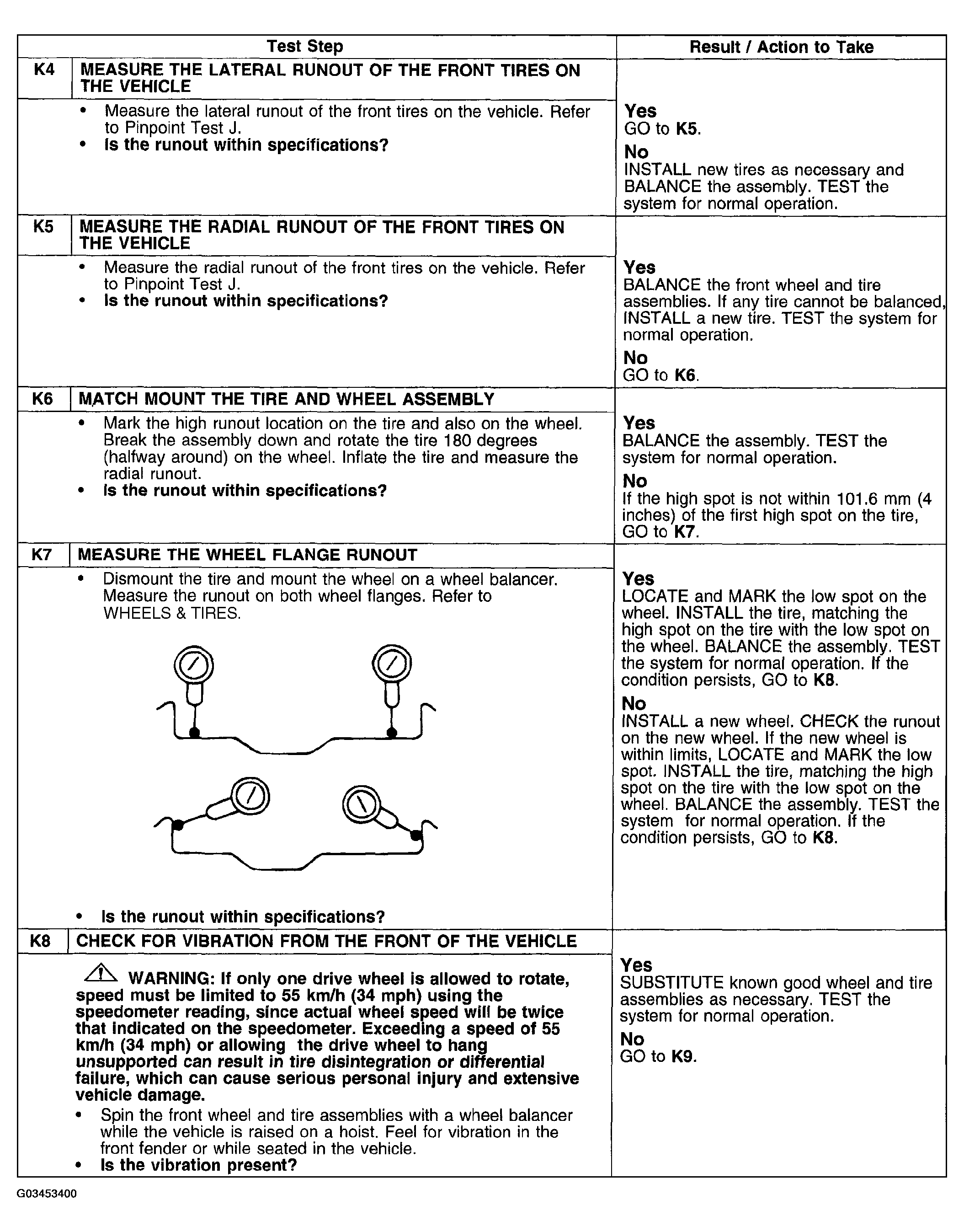

Fig 2: Pinpoint Test K: High Speed Shake Or Shimmy Diagnosis (Step K4 To K8)
Courtesy of FORD MOTOR CO.

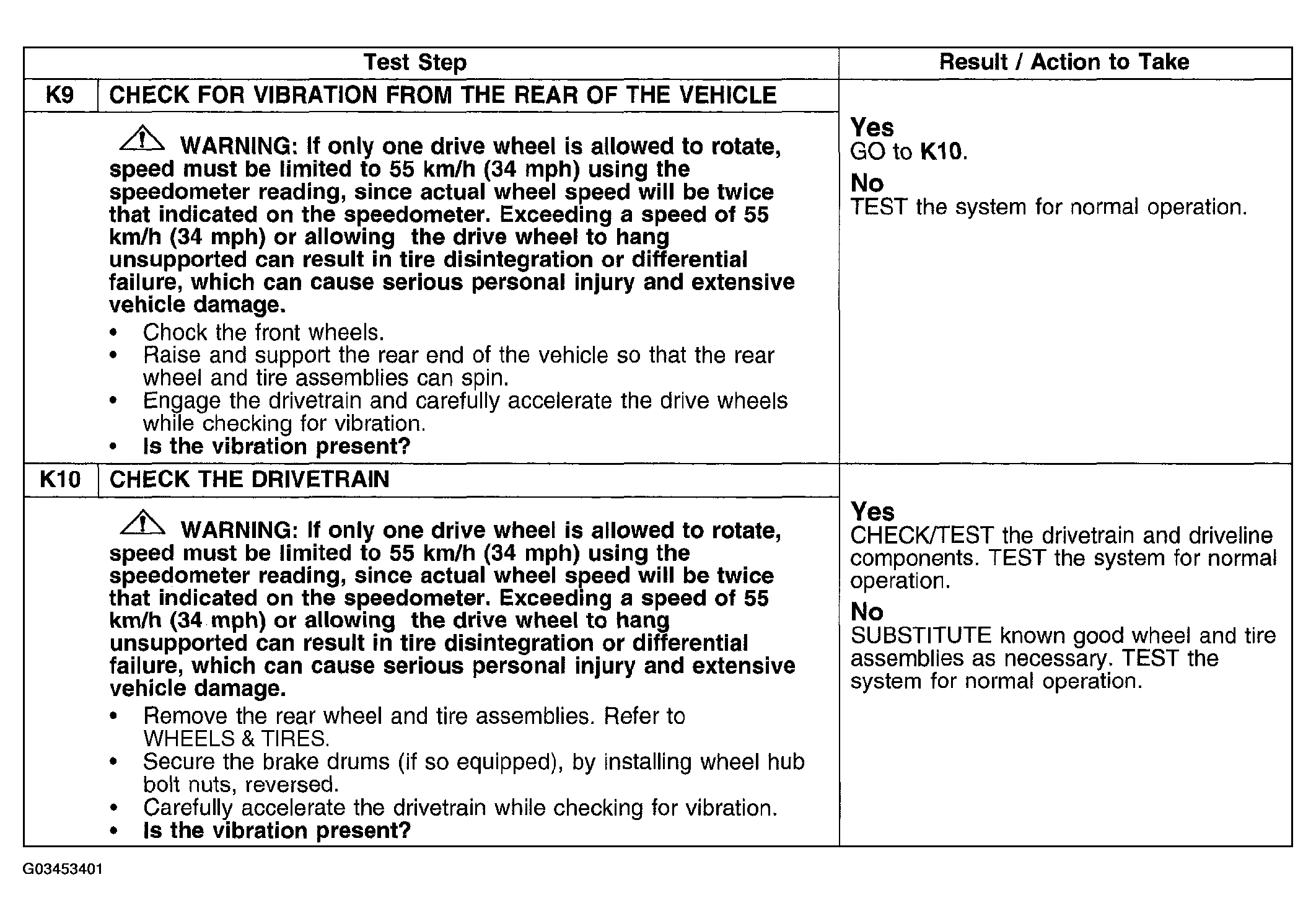

Fig 3: Pinpoint Test K: High Speed Shake Or Shimmy Diagnosis (Step K9 To K10)
