WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

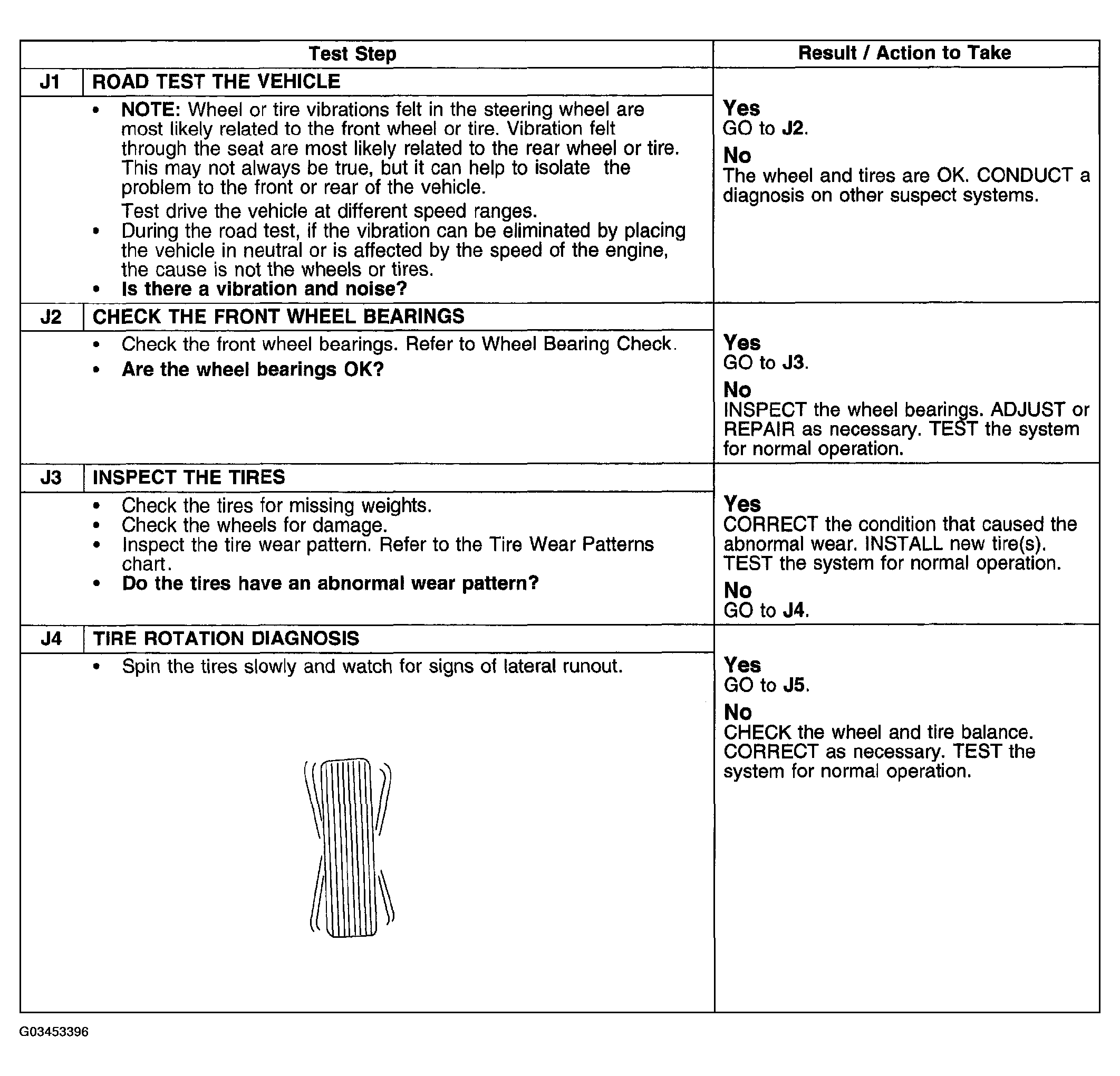

Fig 1: Pinpoint Test J: Wheel And Tire (Step J1 To J4)
Courtesy of FORD MOTOR CO.

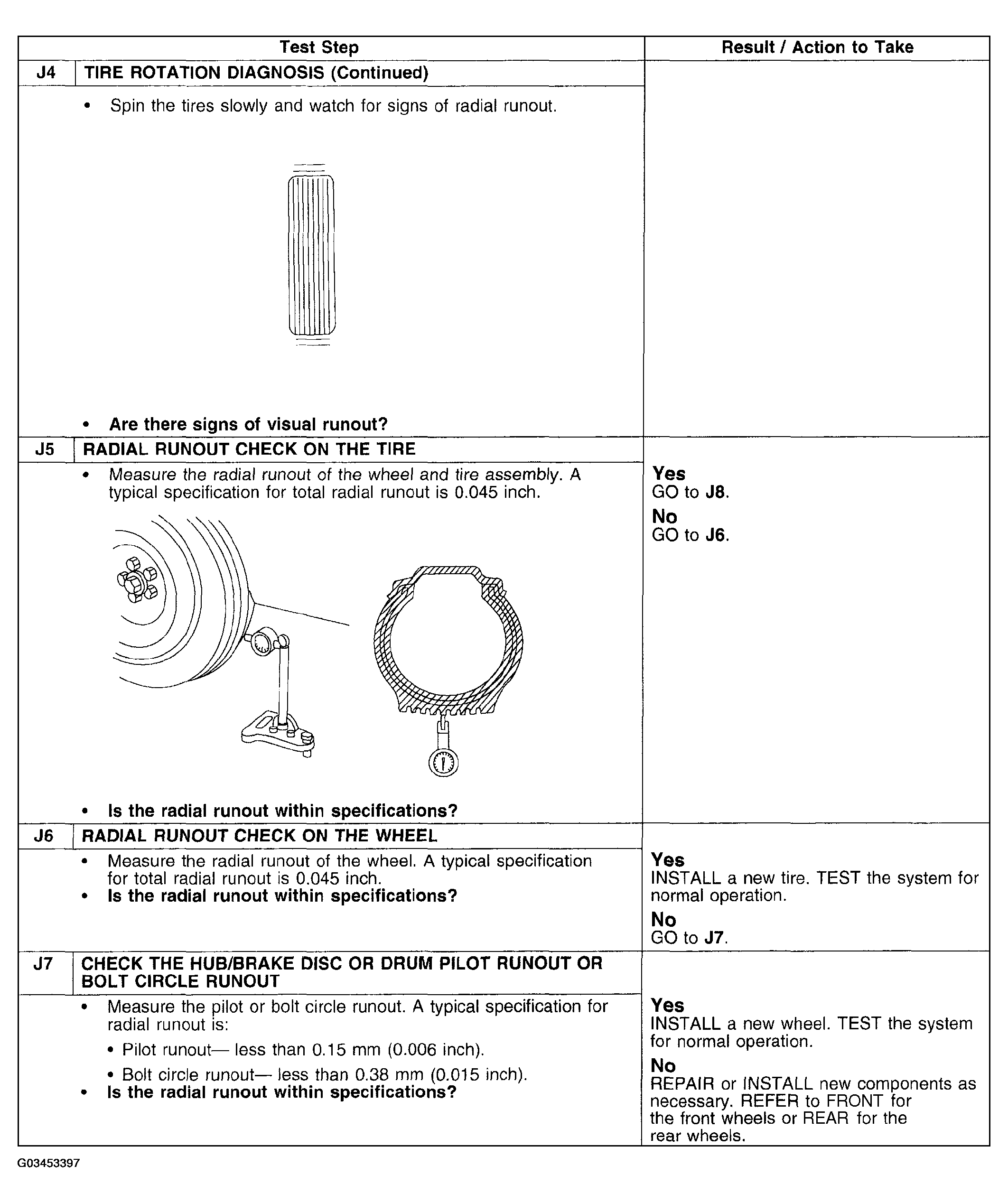

Fig 2: Pinpoint Test J: Wheel And Tire (Step J4 To J7)
Courtesy of FORD MOTOR CO.

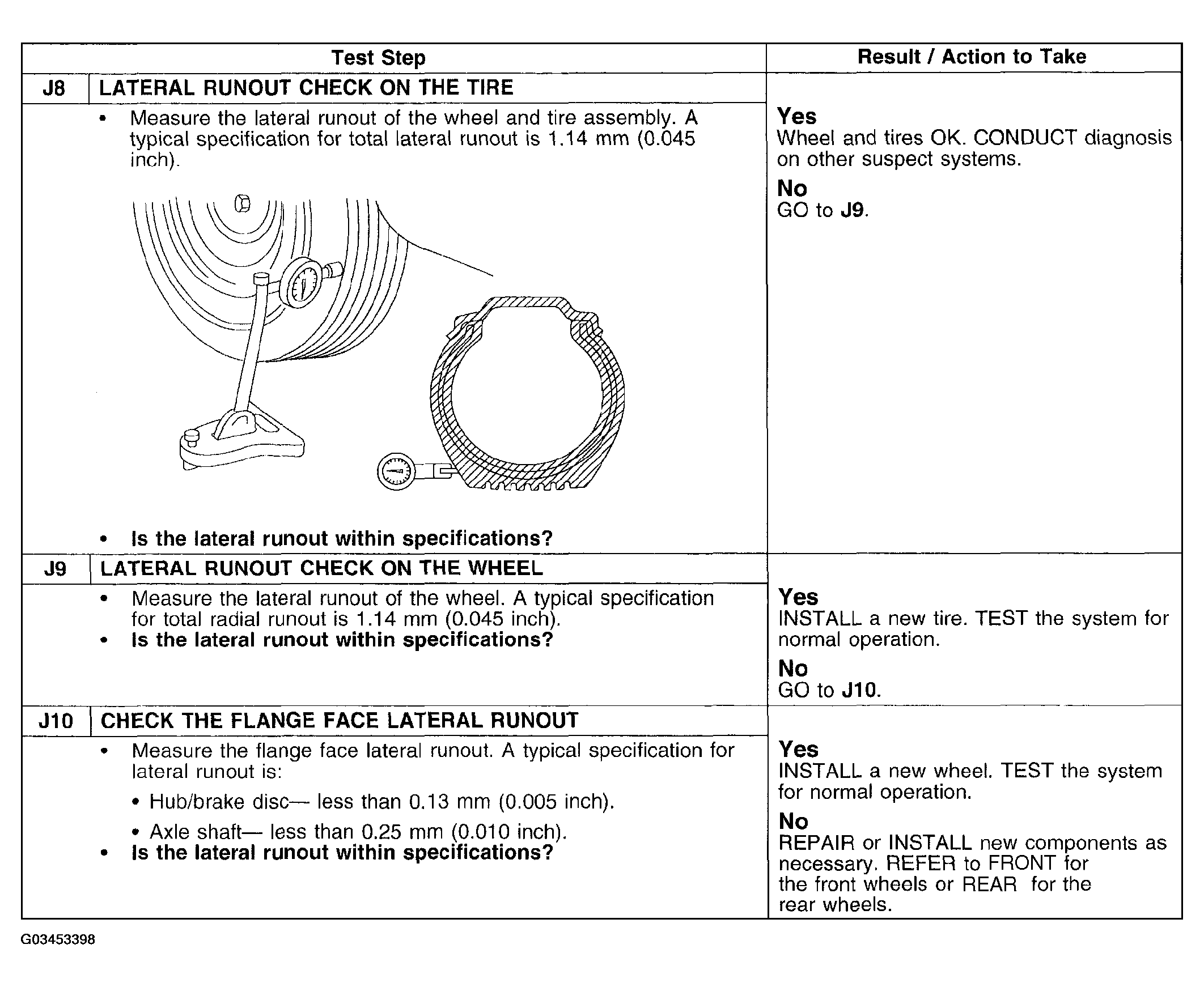

Fig 3: Pinpoint Test J: Wheel And Tire (Step J8 To J10)
