Removal And Installation: Fender: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Support the hood using a prop rod.
Disconnect the hood lift (16C826).

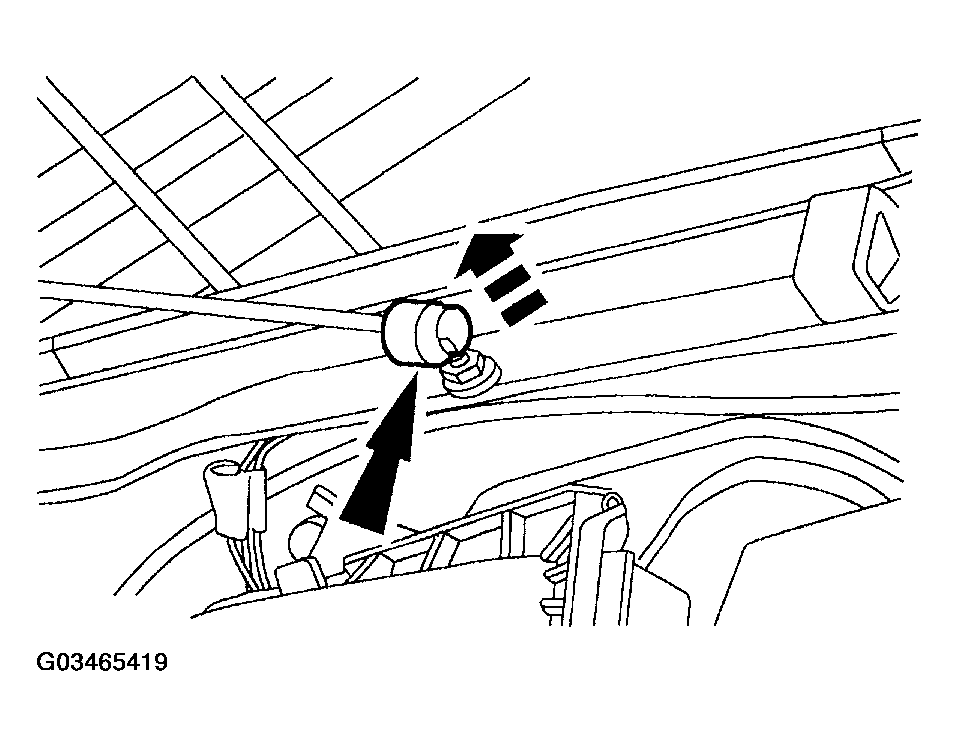

Fig 1: Disconnecting Hood Lift (16C826)
Courtesy of FORD MOTOR CO.
Remove the headlights and turn signals; Refer to EXTERIOR LIGHTING .
Remove the screws at the lower edge of the front fender (16006) securing the splash shield.

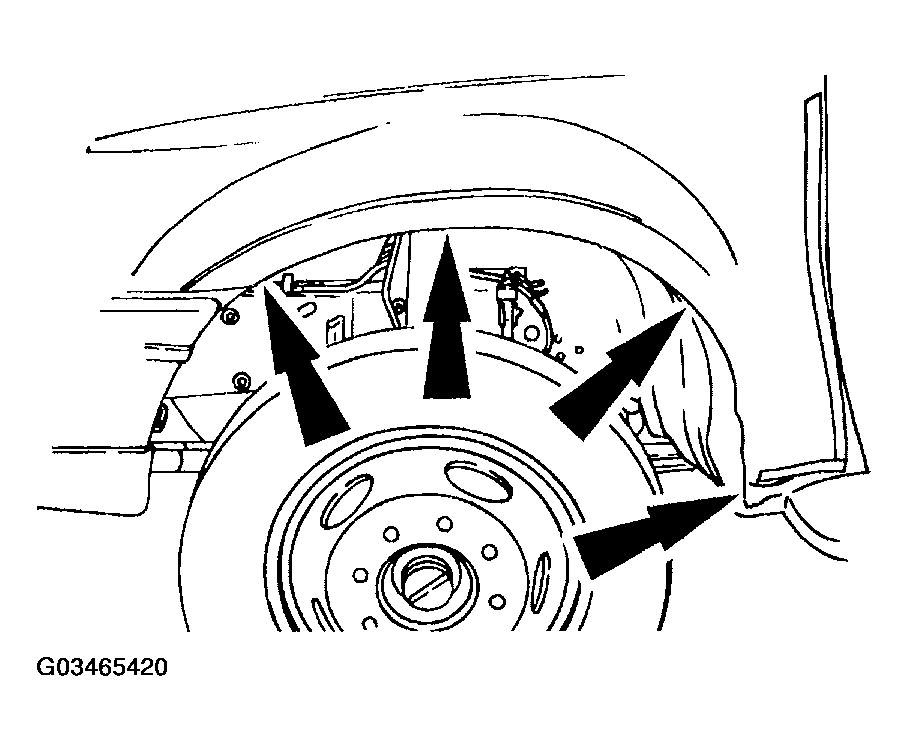

Fig 2: Removing Screws At Lower Edge Of Front Fender Securing Splash Shield
Courtesy of FORD MOTOR CO.
Remove the running board, if so equipped; Refer to EXTERIOR TRIM AND ORNAMENTATION .
Remove the pushpins at the rear lower edge of the front fender.
Remove the bolts securing the lower rear of the front fender.

Fig 3: Removing Bolts Securing Lower Rear Of Front Fender
Courtesy of FORD MOTOR CO.
Remove the fender-to-radiator grille opening support retaining bolts.

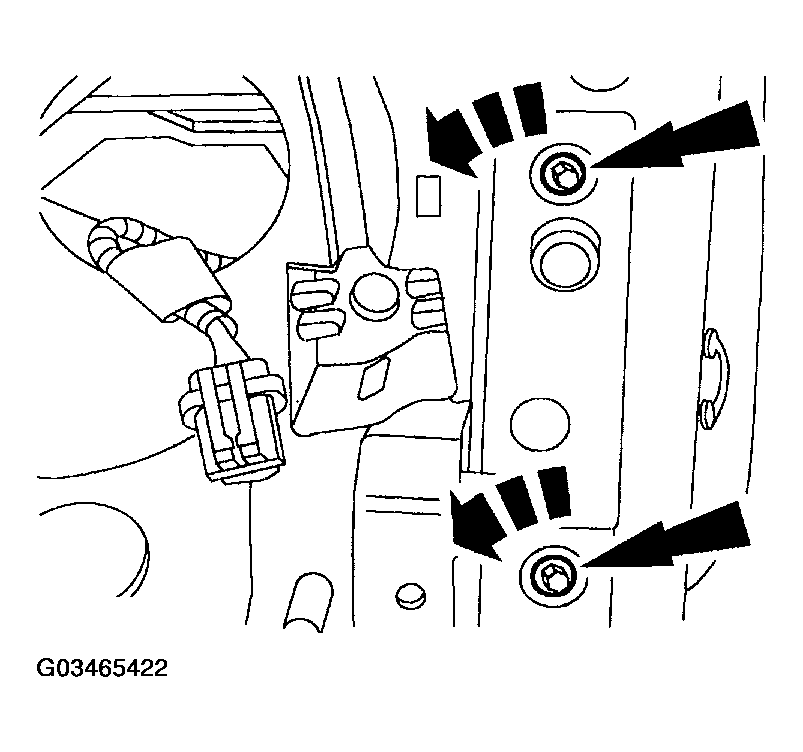

Fig 4: Removing Fender-To-Radiator Grille Opening Support Retaining Bolts
Courtesy of FORD MOTOR CO.
Remove the fender-to-radiator support retaining screws.

Fig 5: Removing Fender-To-Radiator Support Retaining Screws
Courtesy of FORD MOTOR CO.
Open the door, then remove the fender retaining bolts.

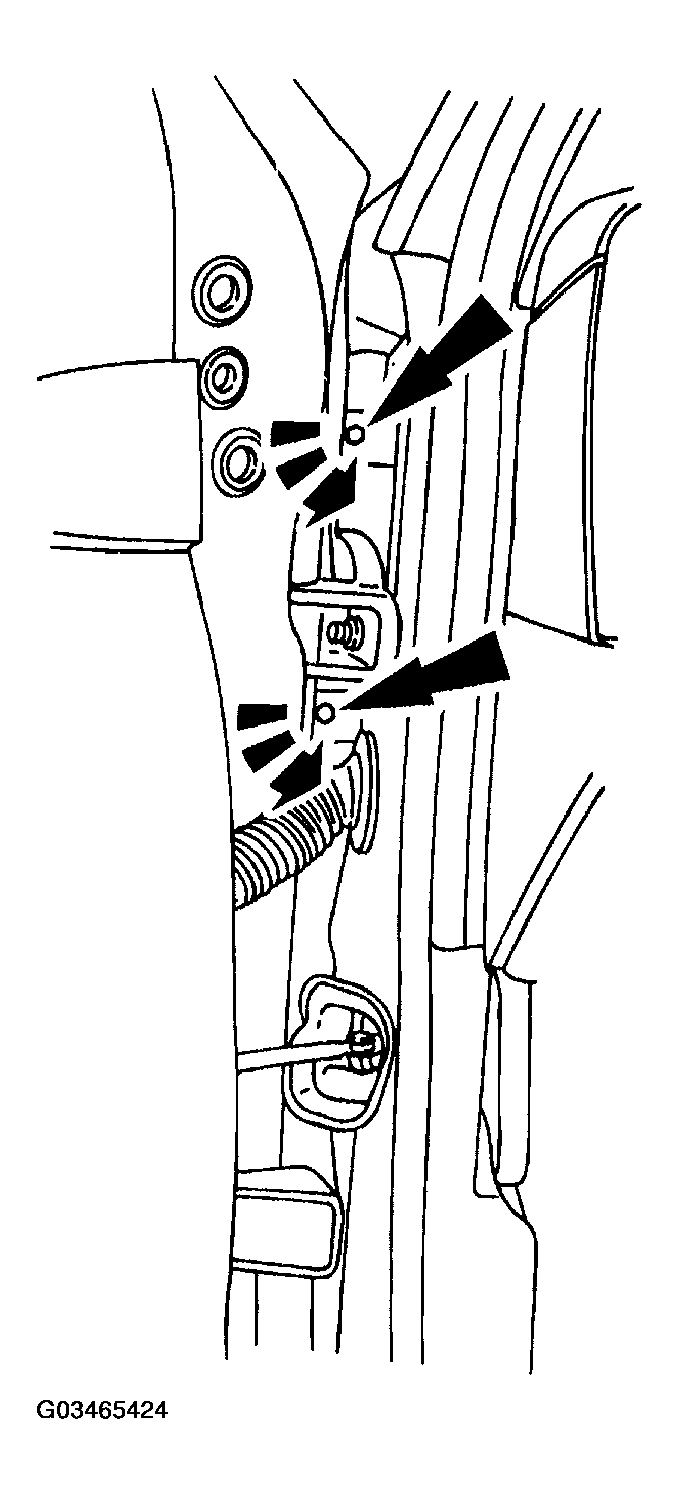

Fig 6: Removing Fender Retaining Bolts
Courtesy of FORD MOTOR CO.
Remove the upper fender retaining bolts.

Fig 7: Removing Upper Fender Retaining Bolts
Courtesy of FORD MOTOR CO.
Remove the hood support bolt.

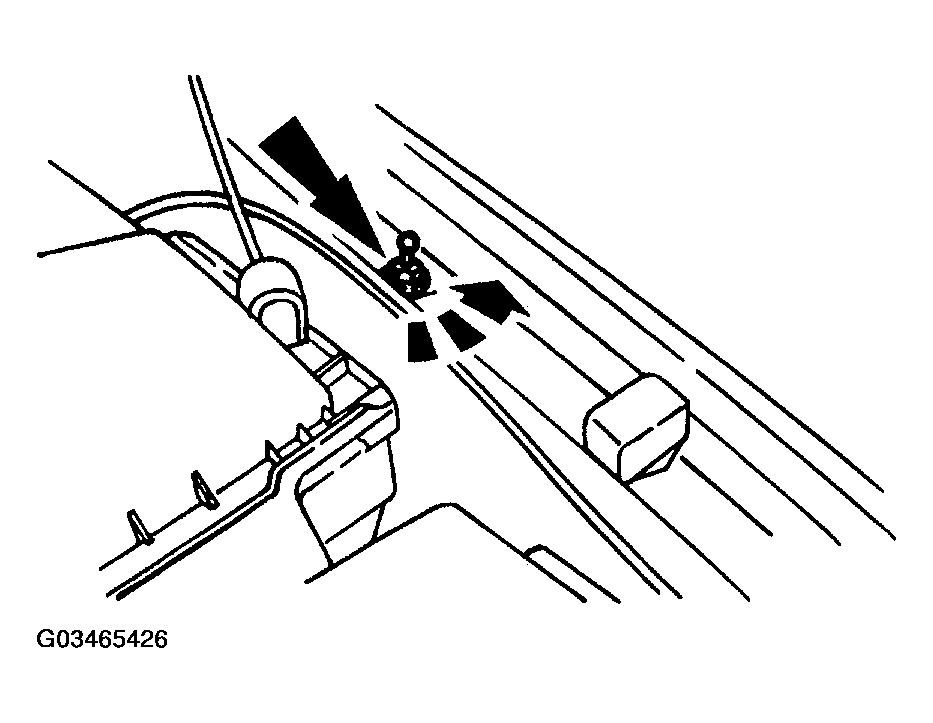

Fig 8: Removing Hood Support Bolt
Courtesy of FORD MOTOR CO.
Remove the front fender.
