Removal And Installation: Fender: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Follow the removal procedure in reverse order.

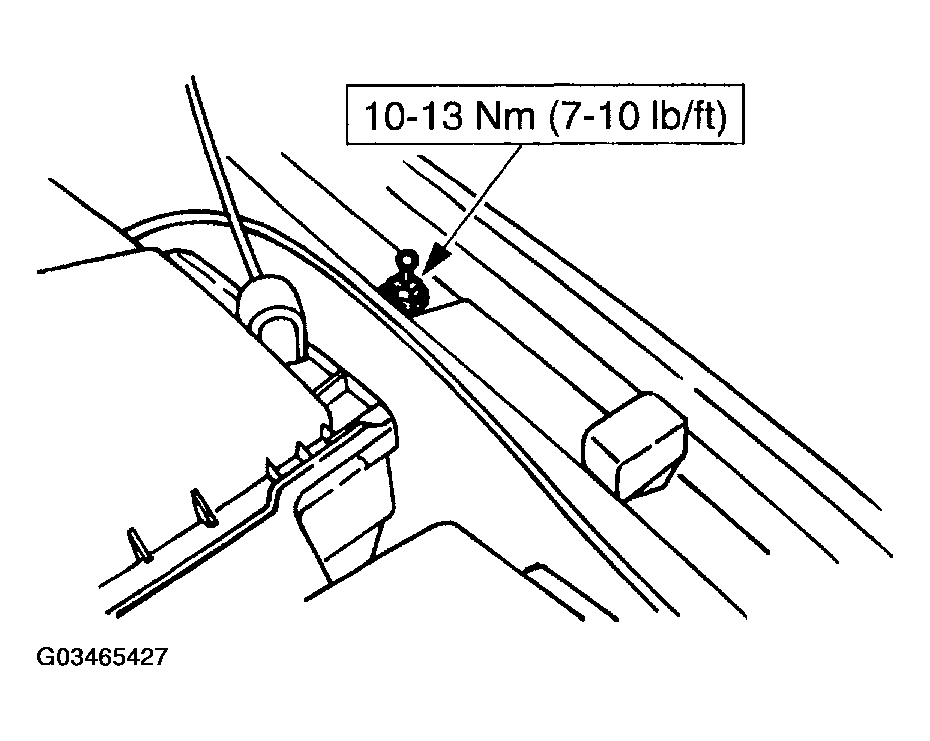

    Fig 1: Installing Hood Support Bolt
    G03465427Courtesy of FORD MOTOR CO.

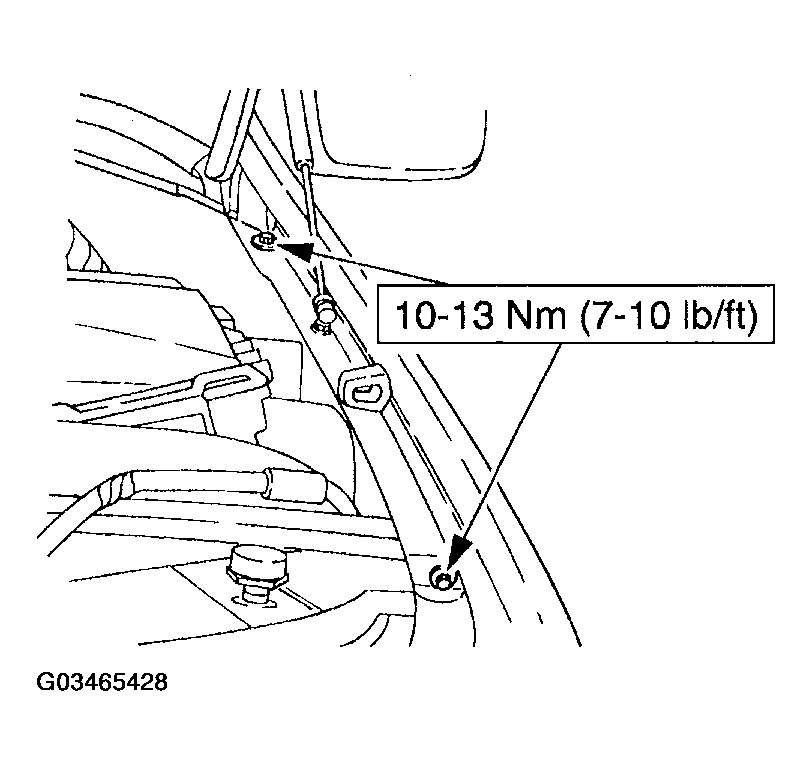

    Fig 2: Installing Upper Fender Retaining Bolts
    G03465428Courtesy of FORD MOTOR CO.
    Fig 3: Installing Bolts Securing Lower Rear Of Front Fender
    G03465429Courtesy of FORD MOTOR CO.

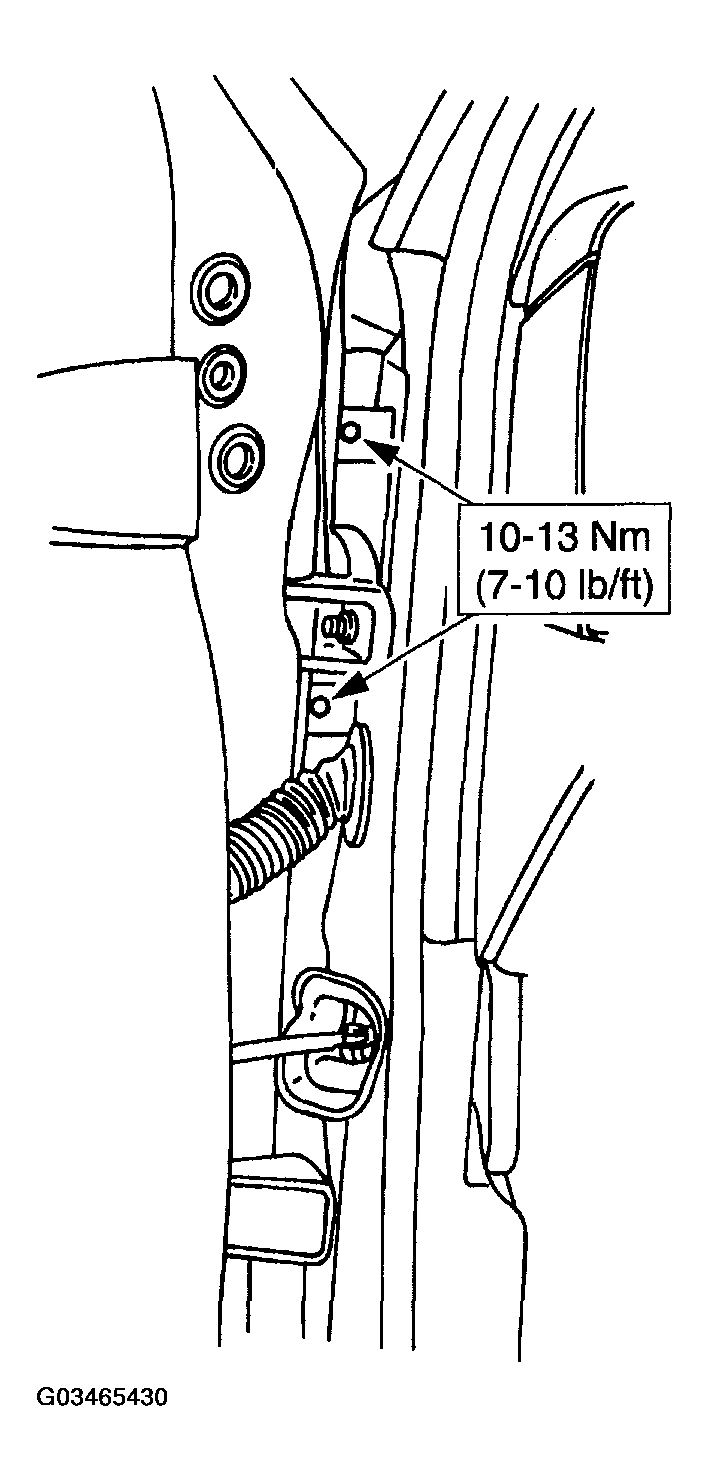

    Fig 4: Installing Fender Retaining Bolts
    G03465430Courtesy of FORD MOTOR CO.

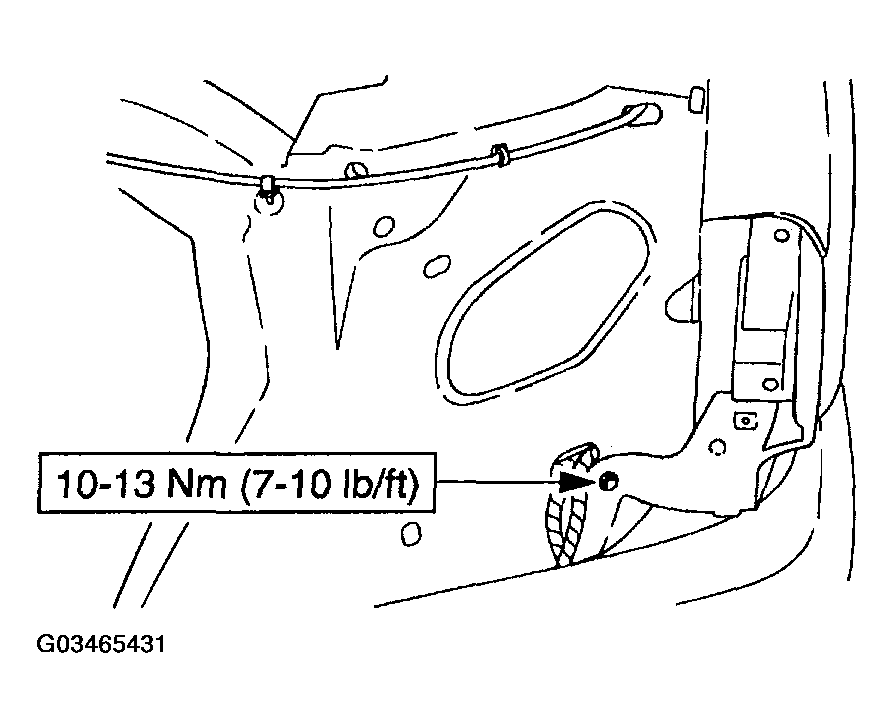

    Fig 5: Installing Fender-To-Radiator Support Retaining Screws
    G03465431Courtesy of FORD MOTOR CO.
