Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the windshield wiper arms. Refer to WIPERS AND WASHERS .
Remove the radio antenna mast.
- Lift upward on cover.
Fig 1: Removing Radio Antenna Mast
Courtesy of FORD MOTOR CO.
Remove the cowl top vent panel retaining screws.

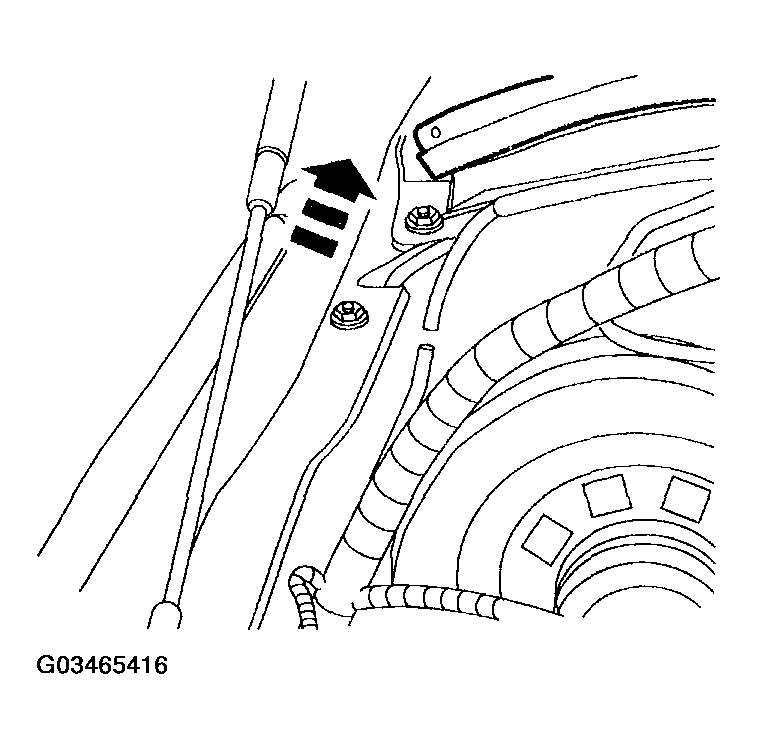

Fig 2: Removing Cowl Top Vent Panel Retaining Screws
Courtesy of FORD MOTOR CO.
Raise the hood (16612).
Disconnect the windshield washer hose.

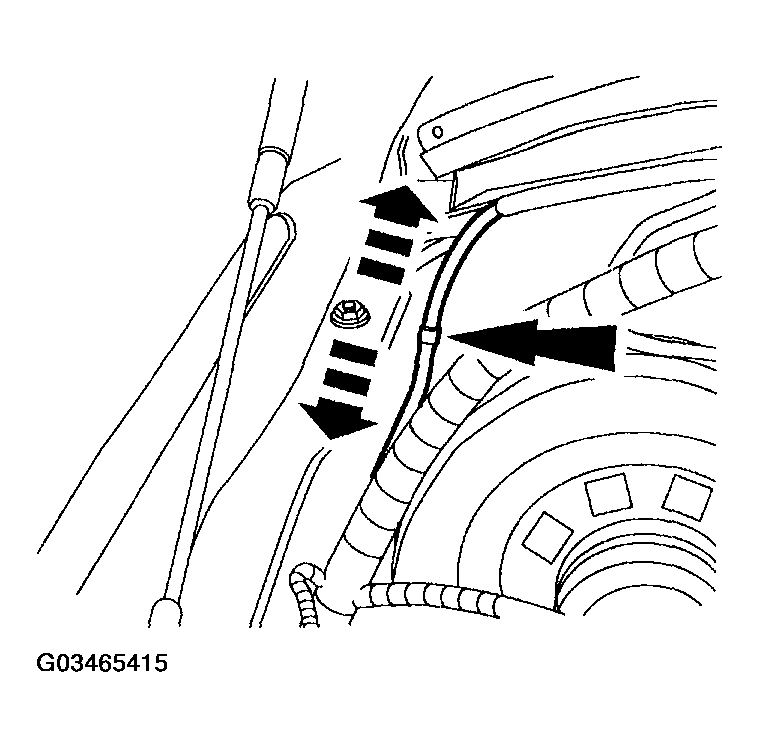

Fig 3: Disconnecting Windshield Washer Hose
Courtesy of FORD MOTOR CO.
Remove the cowl panel weatherstrip.

Fig 4: Removing Cowl Panel Weatherstrip
Courtesy of FORD MOTOR CO.
Remove and discard the cowl top vent panel pushpins.

Fig 5: Removing And Discard Cowl Top Vent Panel Pushpins
Courtesy of FORD MOTOR CO.

NOTE: Remove the cowl top vent panel from the center to avoid damage to the locating pins at each outer end of the cowl panels.

Fig 6: Raiseing Cowl Top Vent Panel

Courtesy of FORD MOTOR CO.

Raise the cowl top vent panel.
Remove the cowl top vent panel.
To install, reverse the removal procedure.
