Front End Body Panels

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

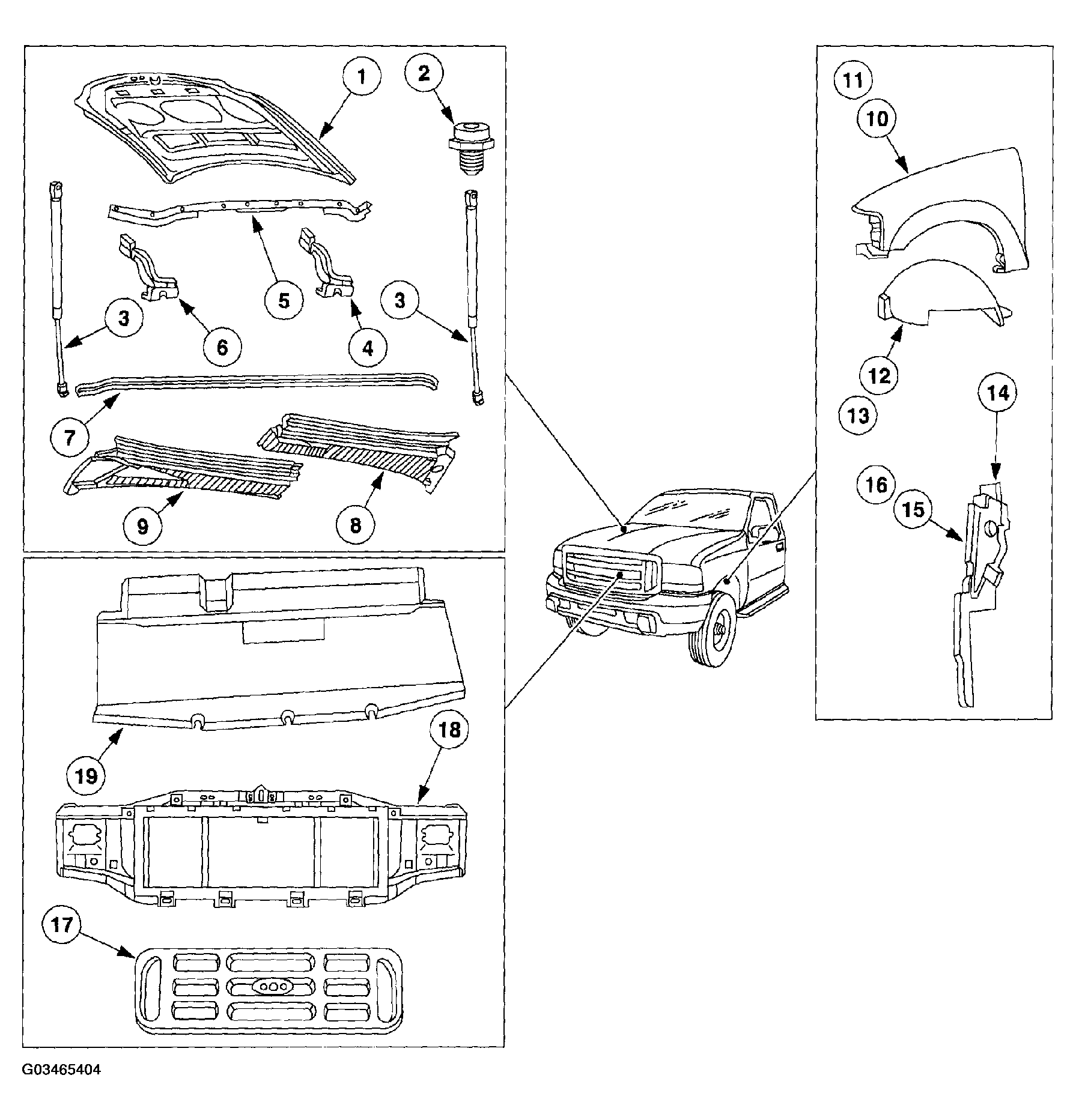

Fig 1: Identifying Front End Body Panels Component Description And Operation (1 Of 2)
G03465404Courtesy of FORD MOTOR CO.

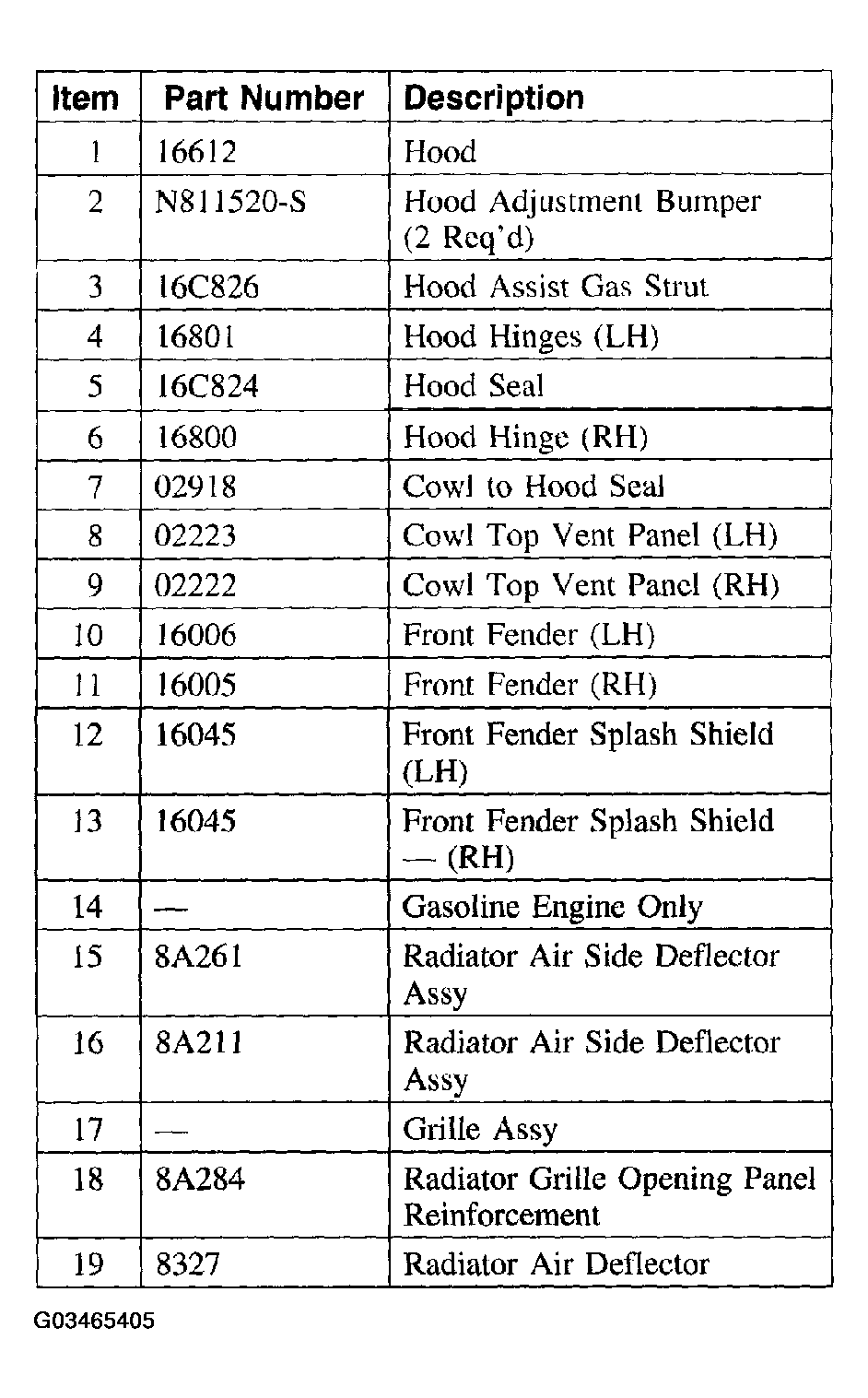

Fig 2: Identifying Front End Body Panels Component Description And Operation (2 Of 2)
G03465405Courtesy of FORD MOTOR CO.
