Air Conditioning (A/C) Clutch Air Gap Adjustment

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Check the A/C clutch air gap at three equally spaced places between the clutch hub and the A/C clutch pulley.

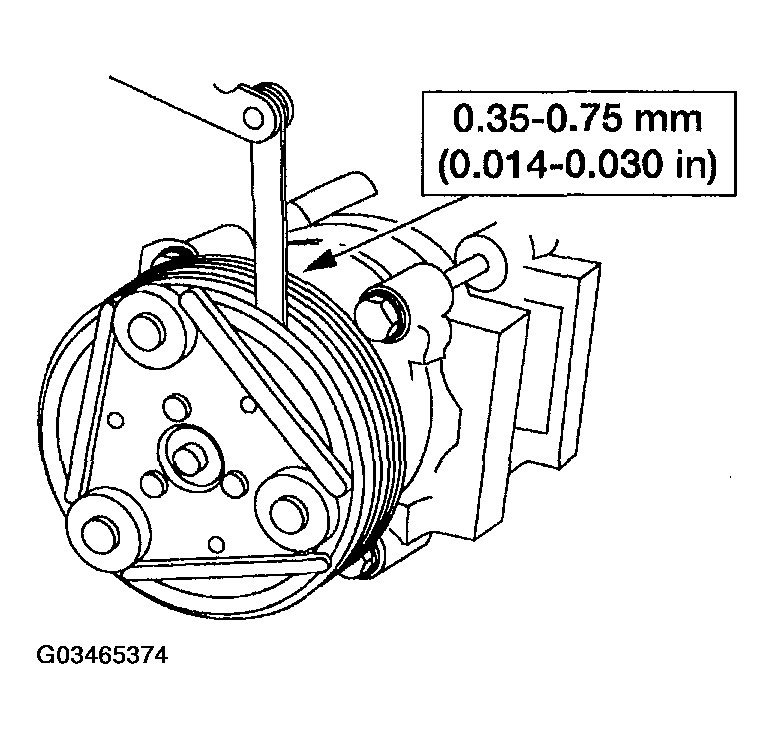

Fig 1: Checking A/C Clutch Air Gap At Three Equally Spaced Places Between Clutch Hub And A/C Clutch Pulley
Courtesy of FORD MOTOR CO.
Remove the A/C clutch. Add or remove spacers between the A/C clutch and the compressor shaft until clearance is within specification. Refer to AIR CONDITIONING .
