Pinpoint Test Z: The Front/Rear Auxiliary Blower Motor Switch Does Not Operate In Hi

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

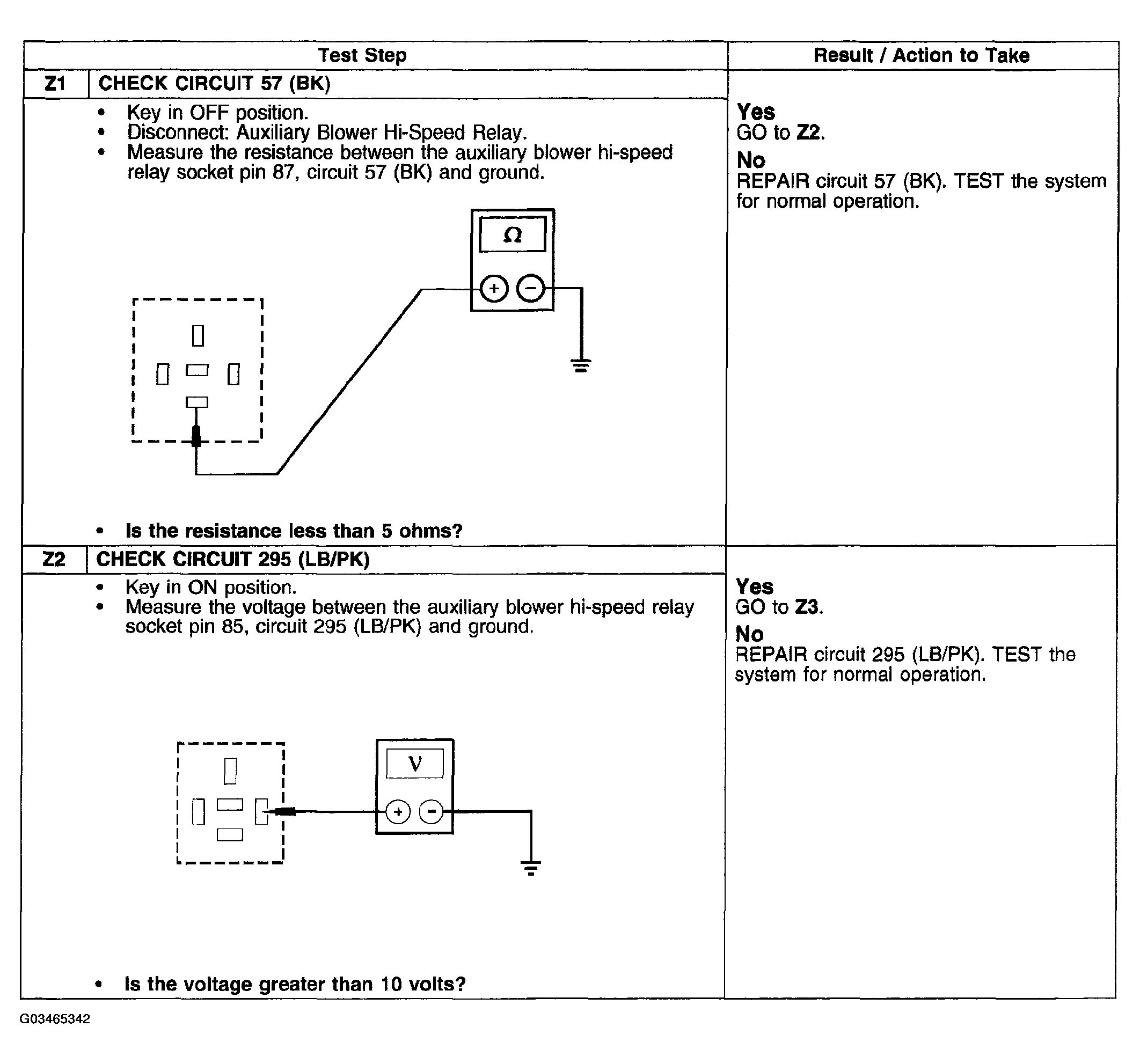

Fig 1: Pinpoint Test Z: Front/Rear Auxiliary Blower Motor Switch Does Not Operate In Hi (Z1 To Z2)
G03465342Courtesy of FORD MOTOR CO.

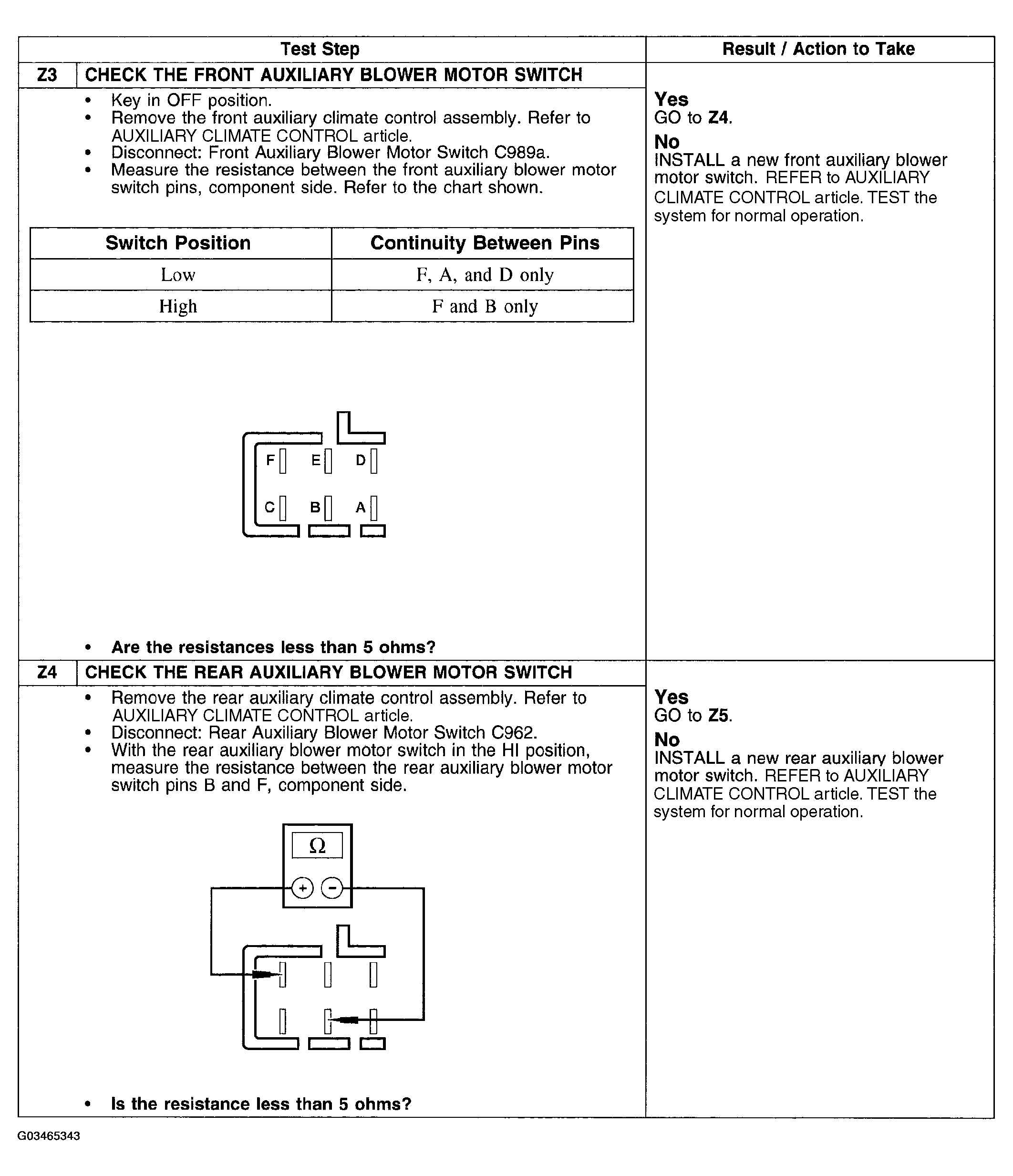

Fig 2: Pinpoint Test Z: Front/Rear Auxiliary Blower Motor Switch Does Not Operate In Hi (Z3 To Z4)
G03465343Courtesy of FORD MOTOR CO.

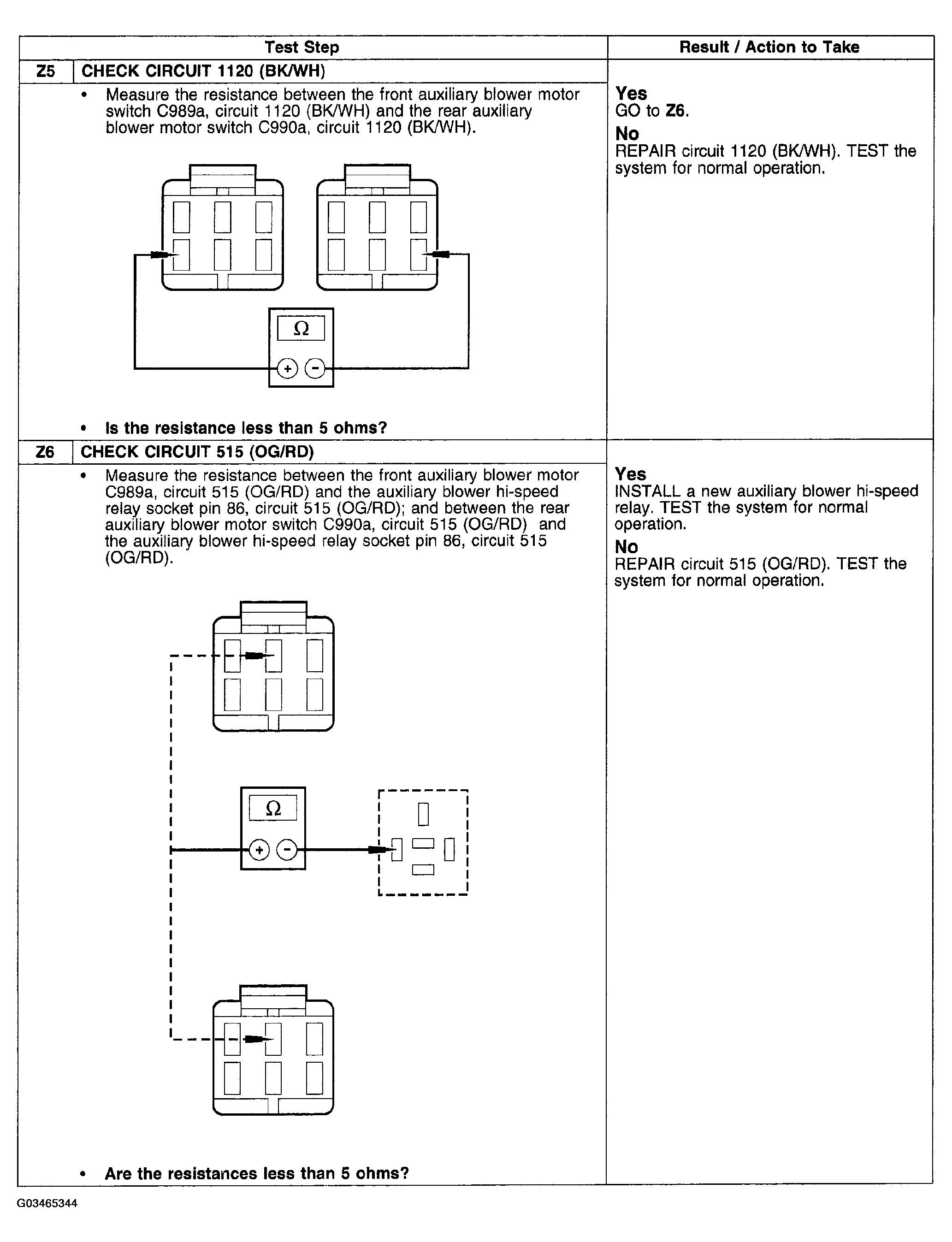

Fig 3: Pinpoint Test Z: Front/Rear Auxiliary Blower Motor Switch Does Not Operate In Hi (Z5 To Z6)
G03465344Courtesy of FORD MOTOR CO.
