Pinpoint Test Y: The Front/Rear Auxiliary Blower Motor Switch Operates Only In Hi

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

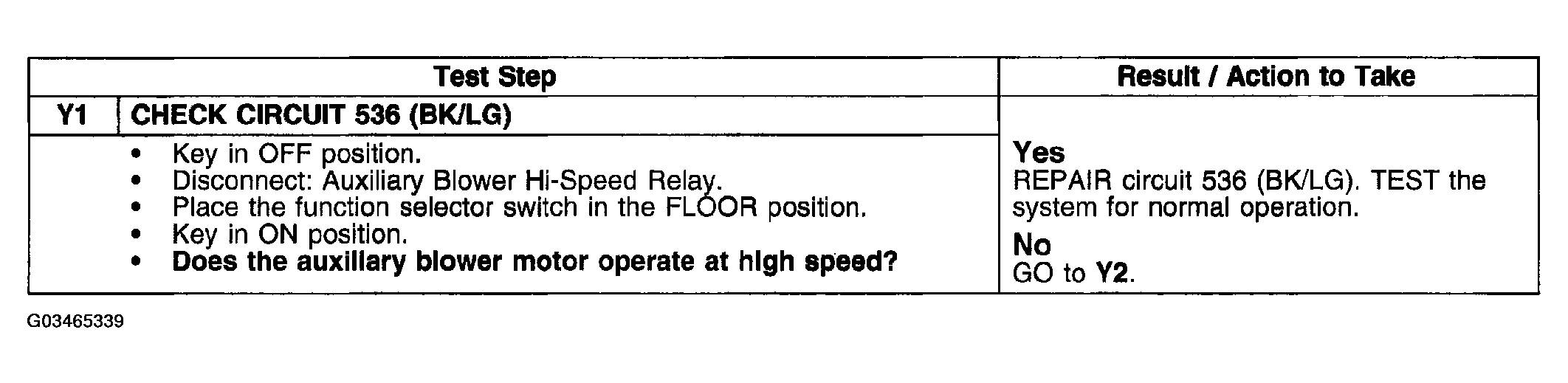

Fig 1: Pinpoint Test Y: Front/Rear Auxiliary Blower Motor Switch Operates Only In Hi (Y1)
G03465339Courtesy of FORD MOTOR CO.

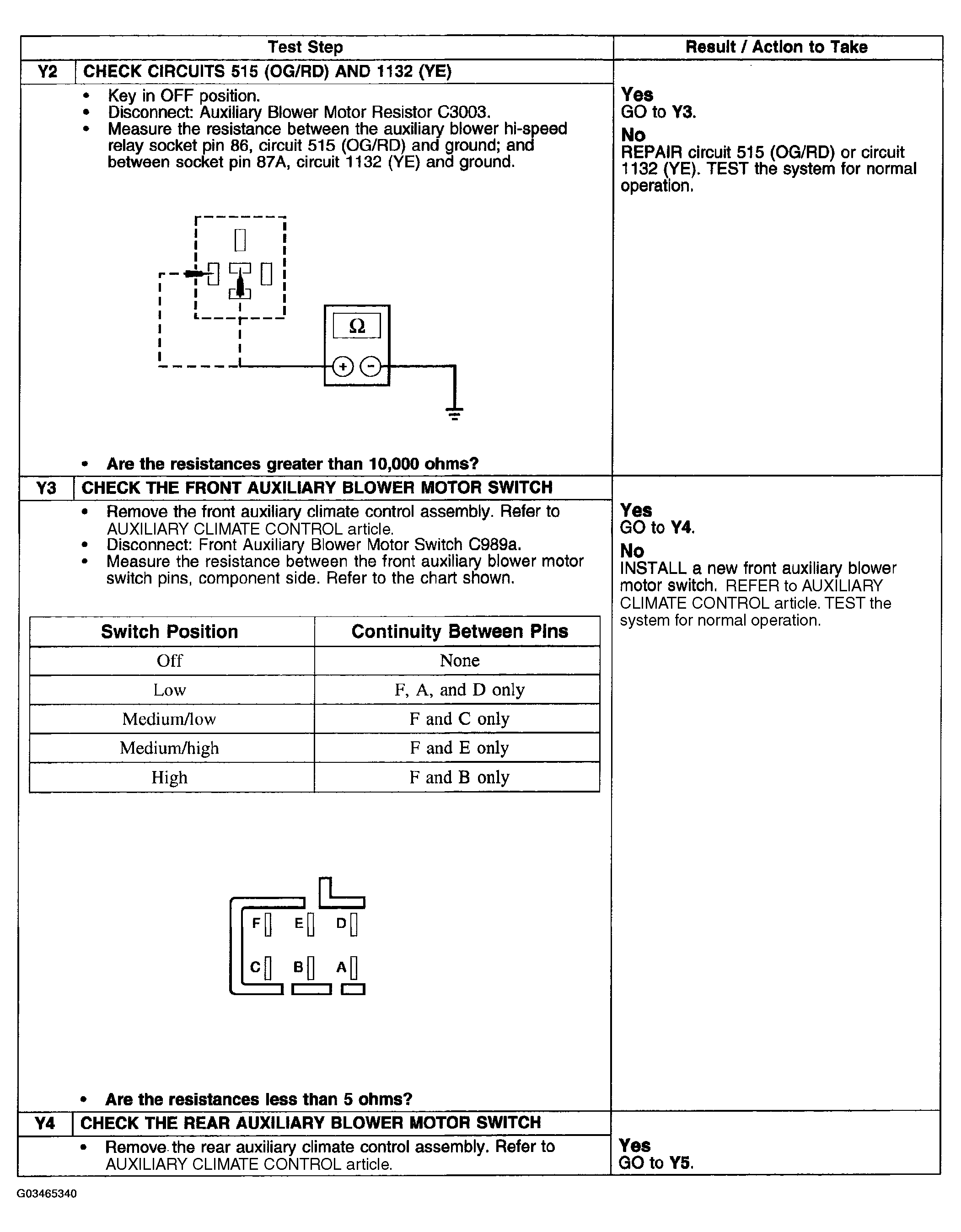

Fig 2: Pinpoint Test Y: Front/Rear Auxiliary Blower Motor Switch Operates Only In Hi (Y2 To Y4)
G03465340Courtesy of FORD MOTOR CO.

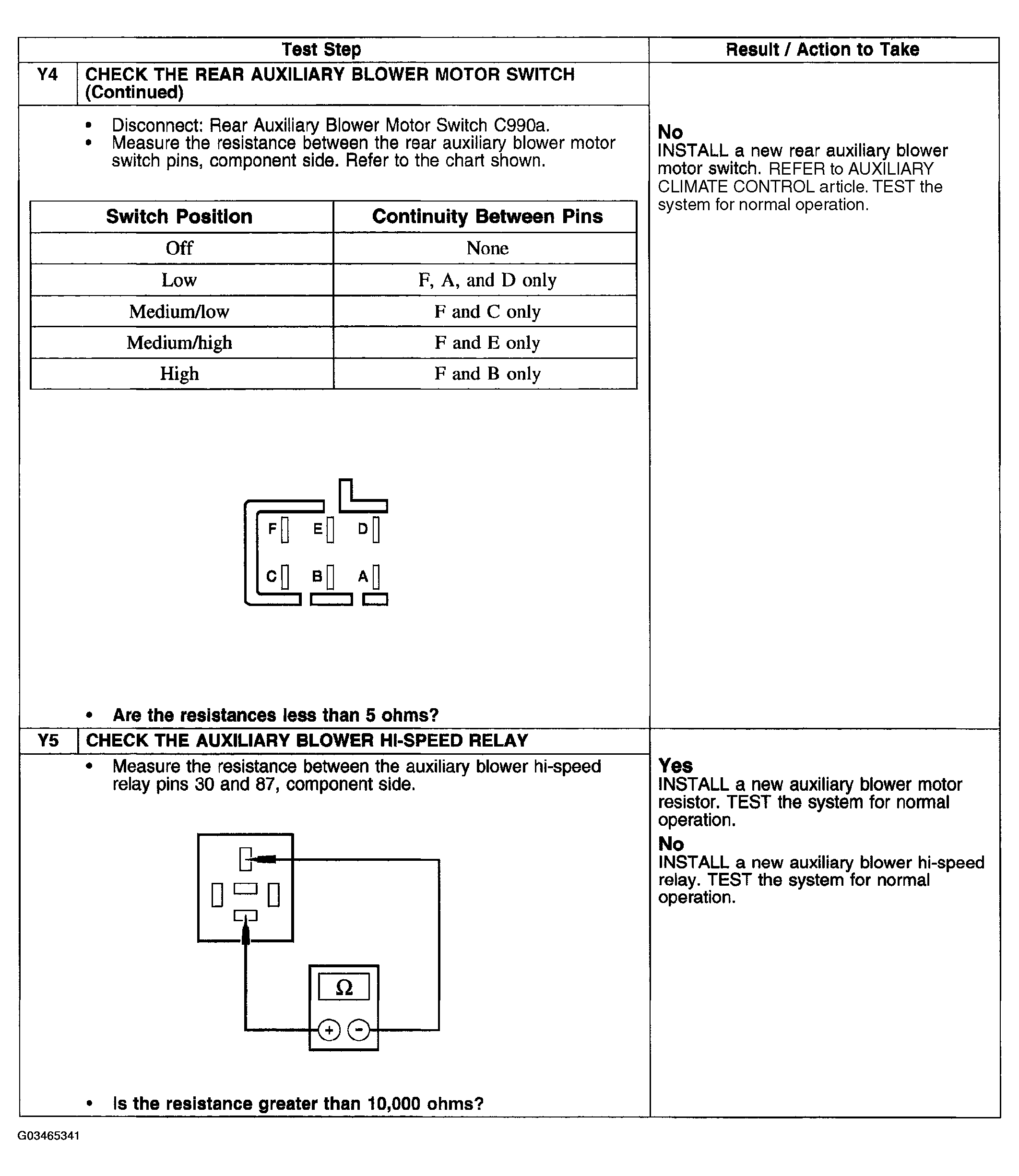

Fig 3: Pinpoint Test Y: Front/Rear Auxiliary Blower Motor Switch Operates Only In Hi (Y4 To Y5)
G03465341Courtesy of FORD MOTOR CO.
