Pinpoint Test X: The Panel/Floor And Cool/Warm Controls Do Not Operate On The Front/Rear Auxiliary Controls

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

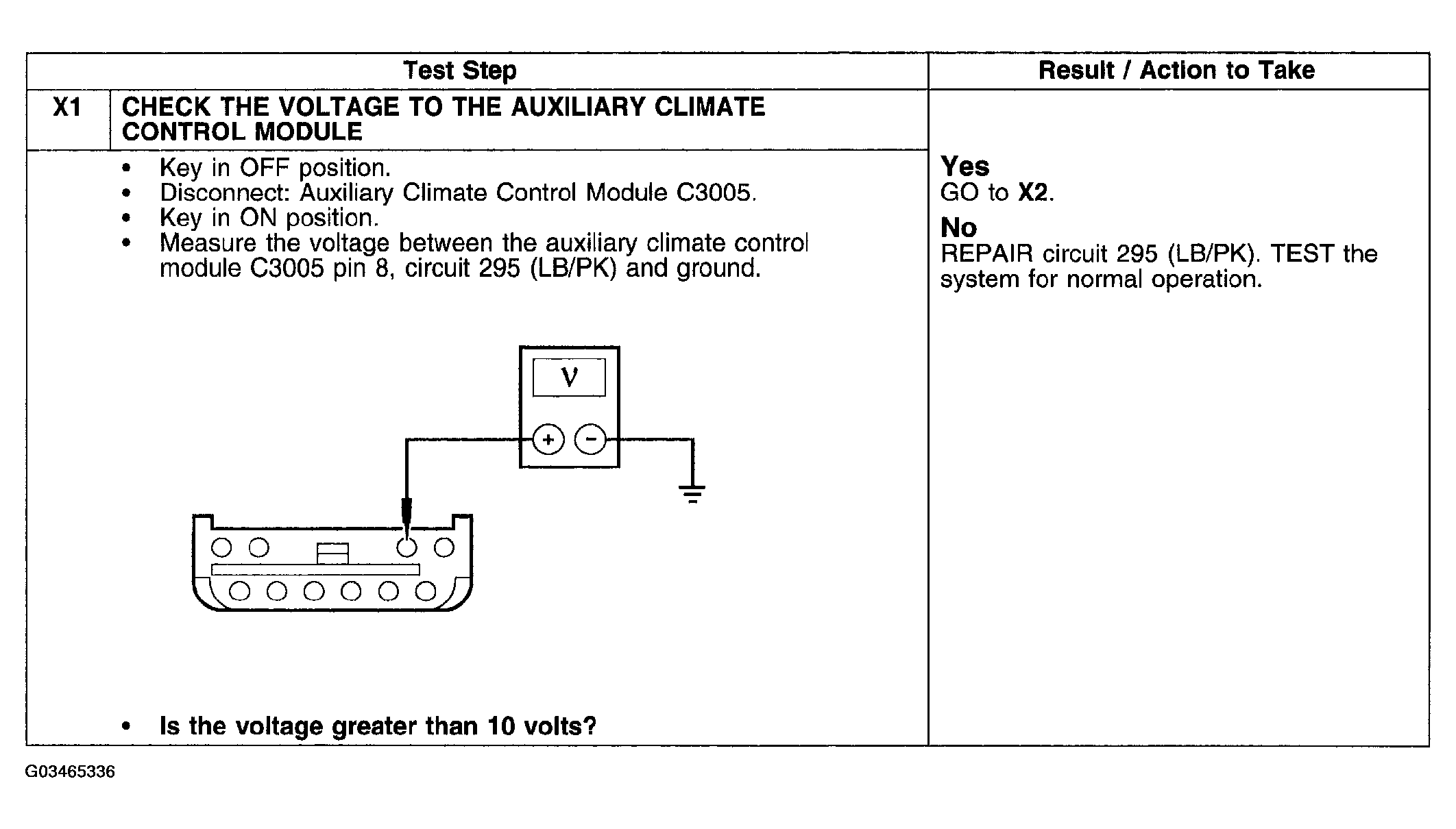

Fig 1: Pinpoint Test X: Panel/Floor And Cool/Warm Controls Do Not Operate On Front/Rear Auxiliary Controls (X1)

Courtesy of FORD MOTOR CO.

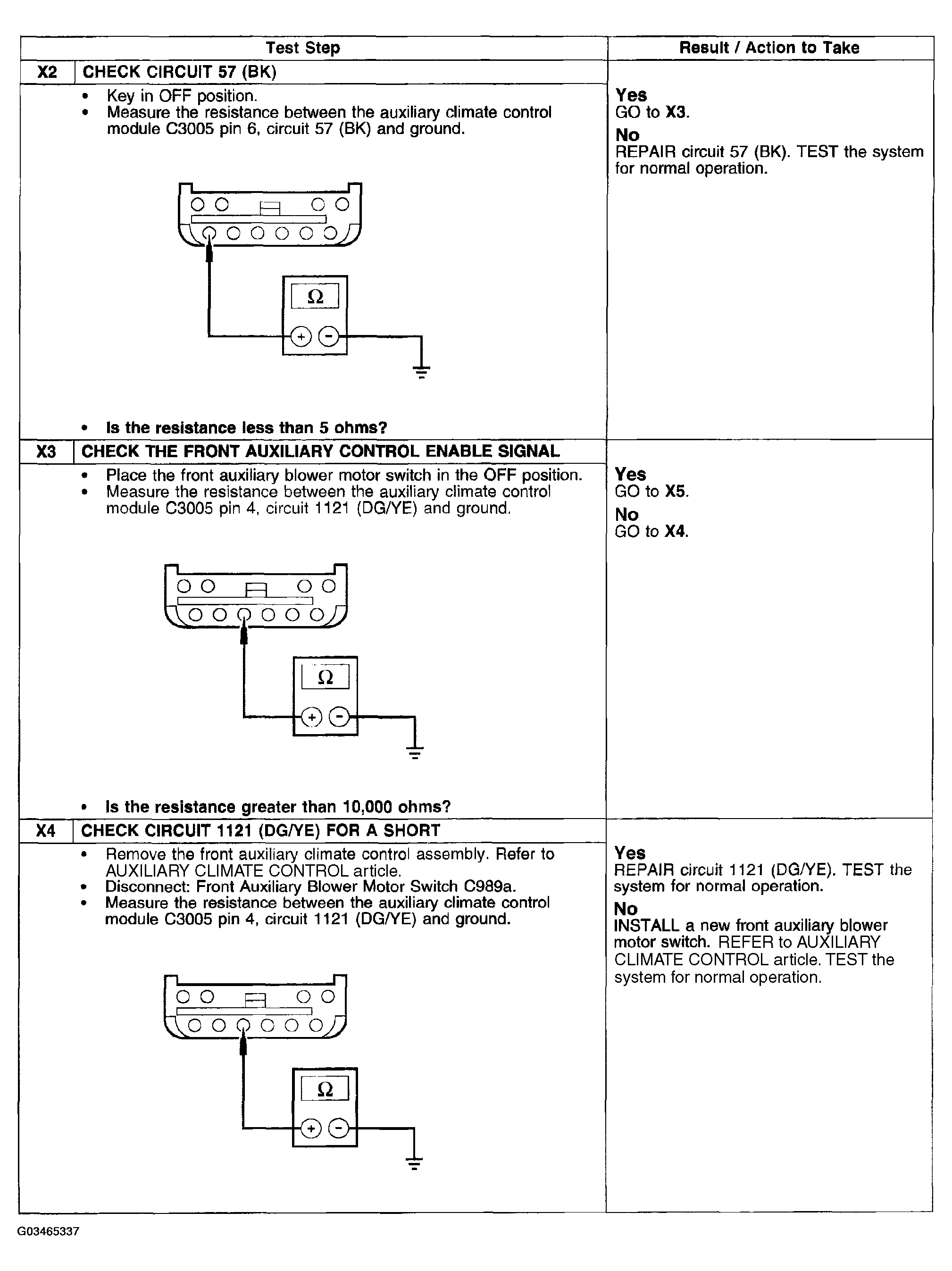

Fig 2: Pinpoint Test X: Panel/Floor And Cool/Warm Controls Do Not Operate On Front/Rear Auxiliary Controls (X2 To X4)

Courtesy of FORD MOTOR CO.

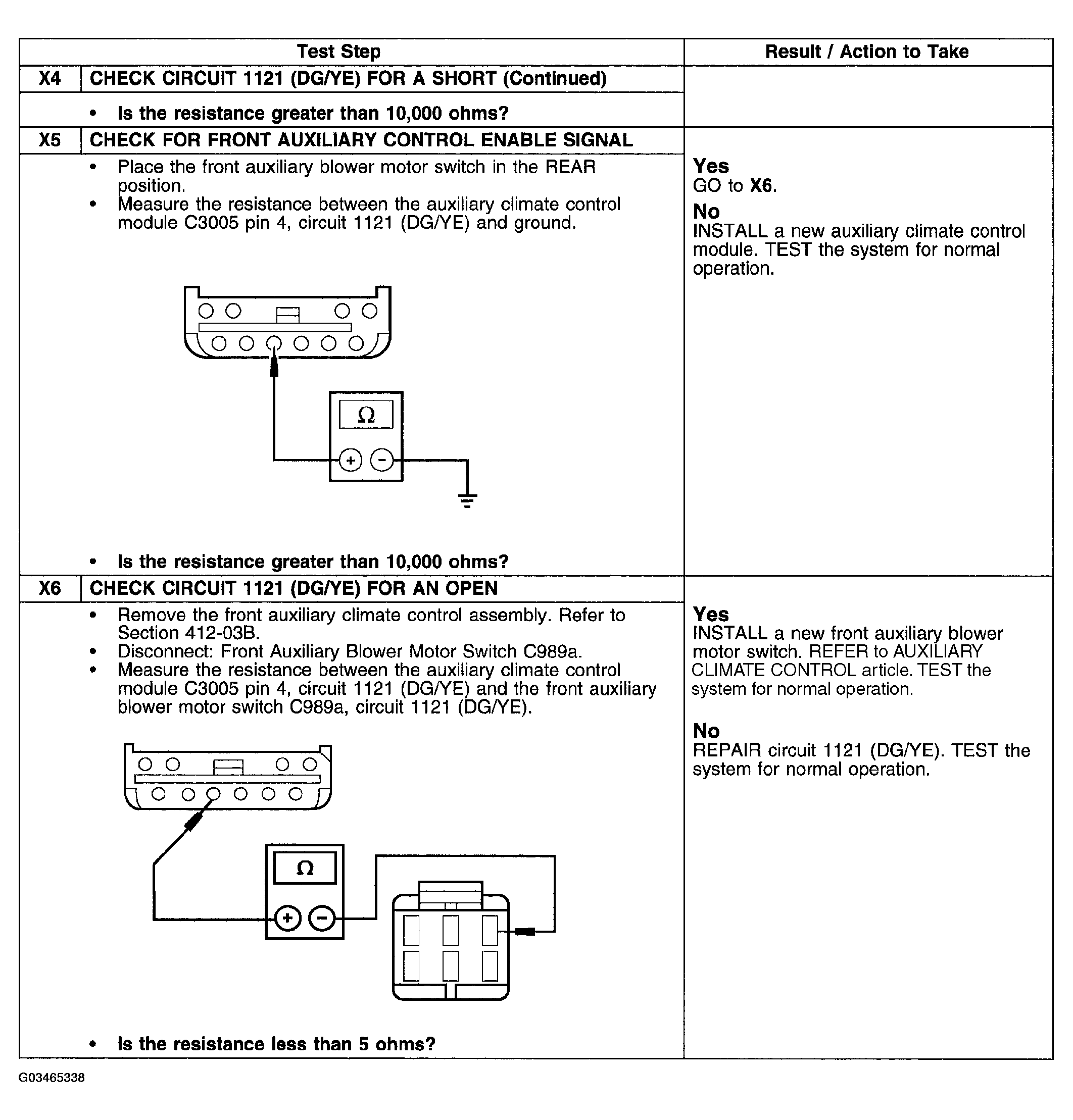

Fig 3: Pinpoint Test X: Panel/Floor And Cool/Warm Controls Do Not Operate On Front/Rear Auxiliary Controls (X4 To X6)

Courtesy of FORD MOTOR CO.
