Pinpoint Test W: The Temperature Control Does Not Operate Using The Front/Rear Auxiliary Climate Controls

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

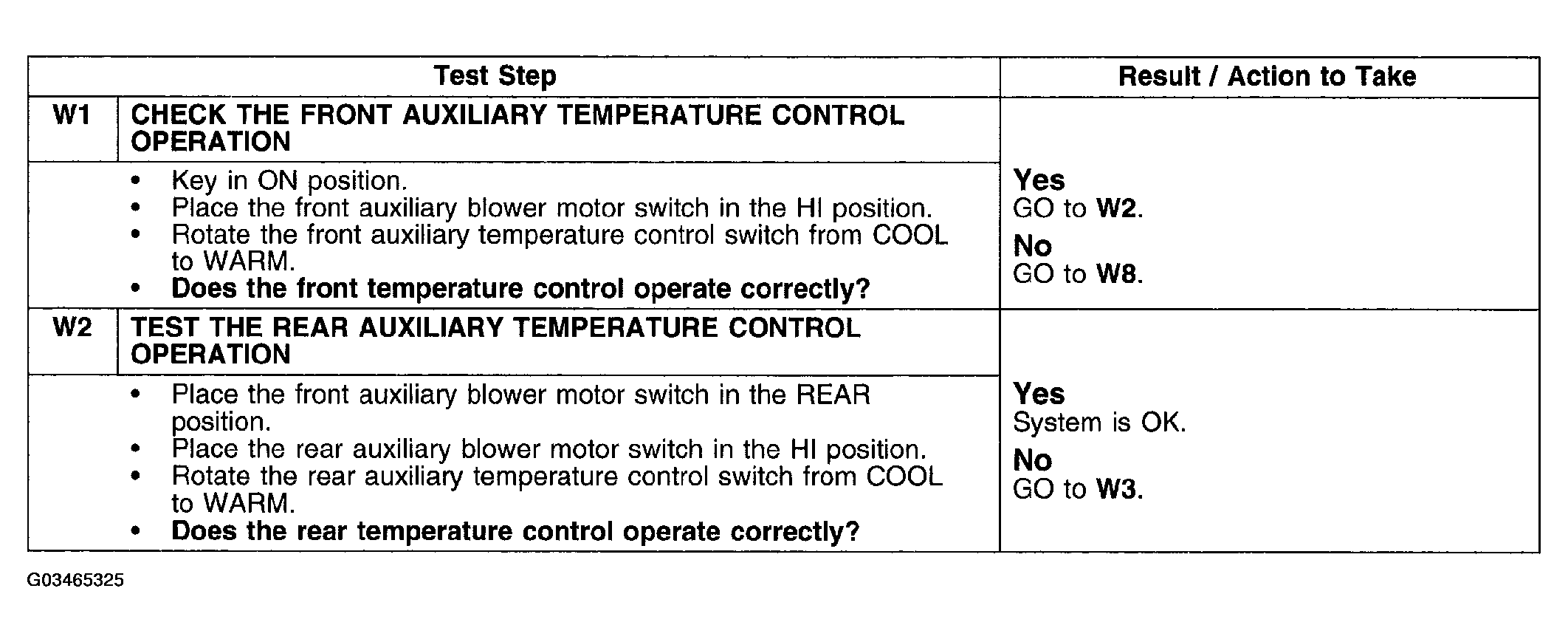

Fig 1: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (W1 To W2)

Courtesy of FORD MOTOR CO.

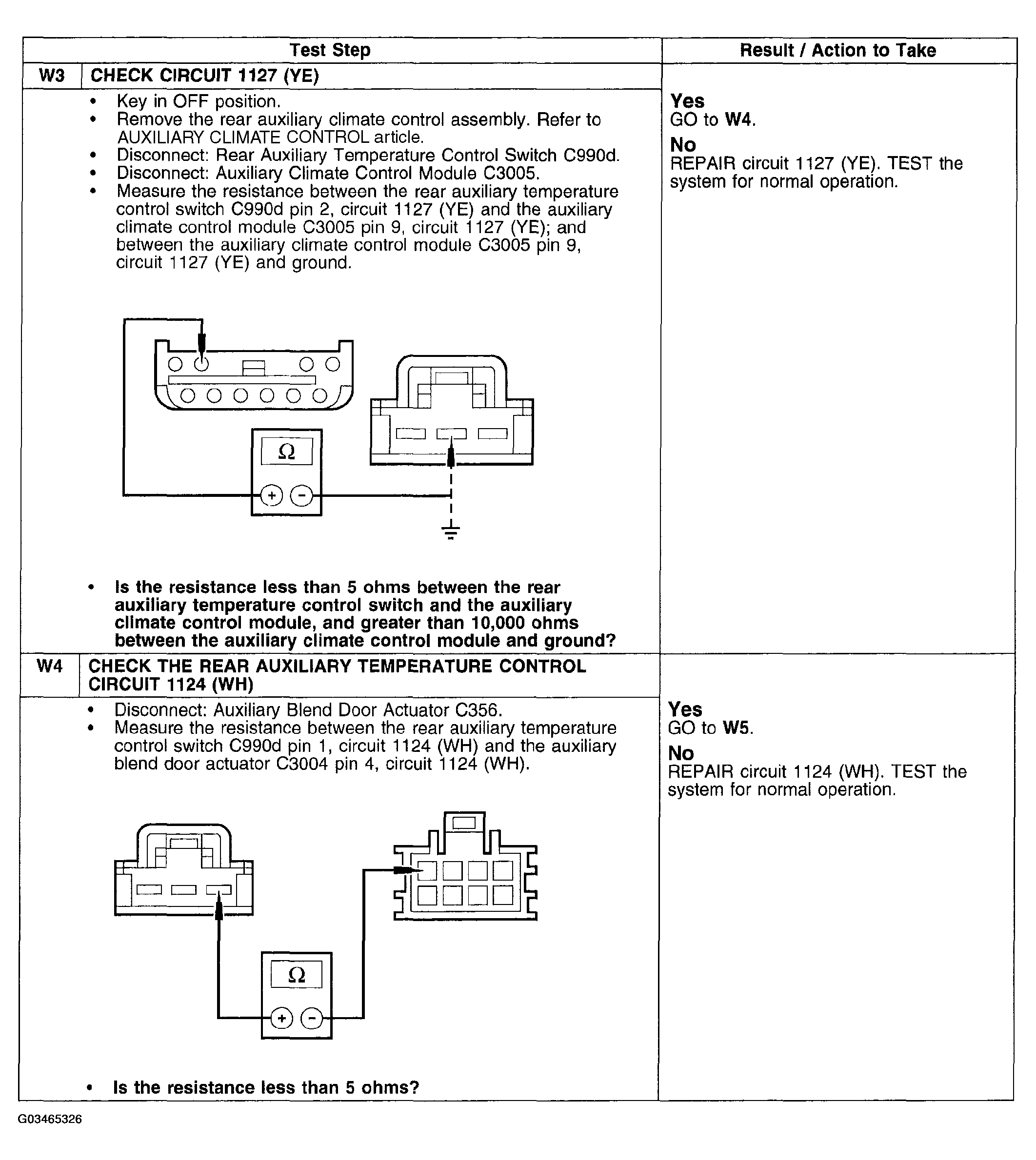

Fig 2: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (W3 To W4)

Courtesy of FORD MOTOR CO.

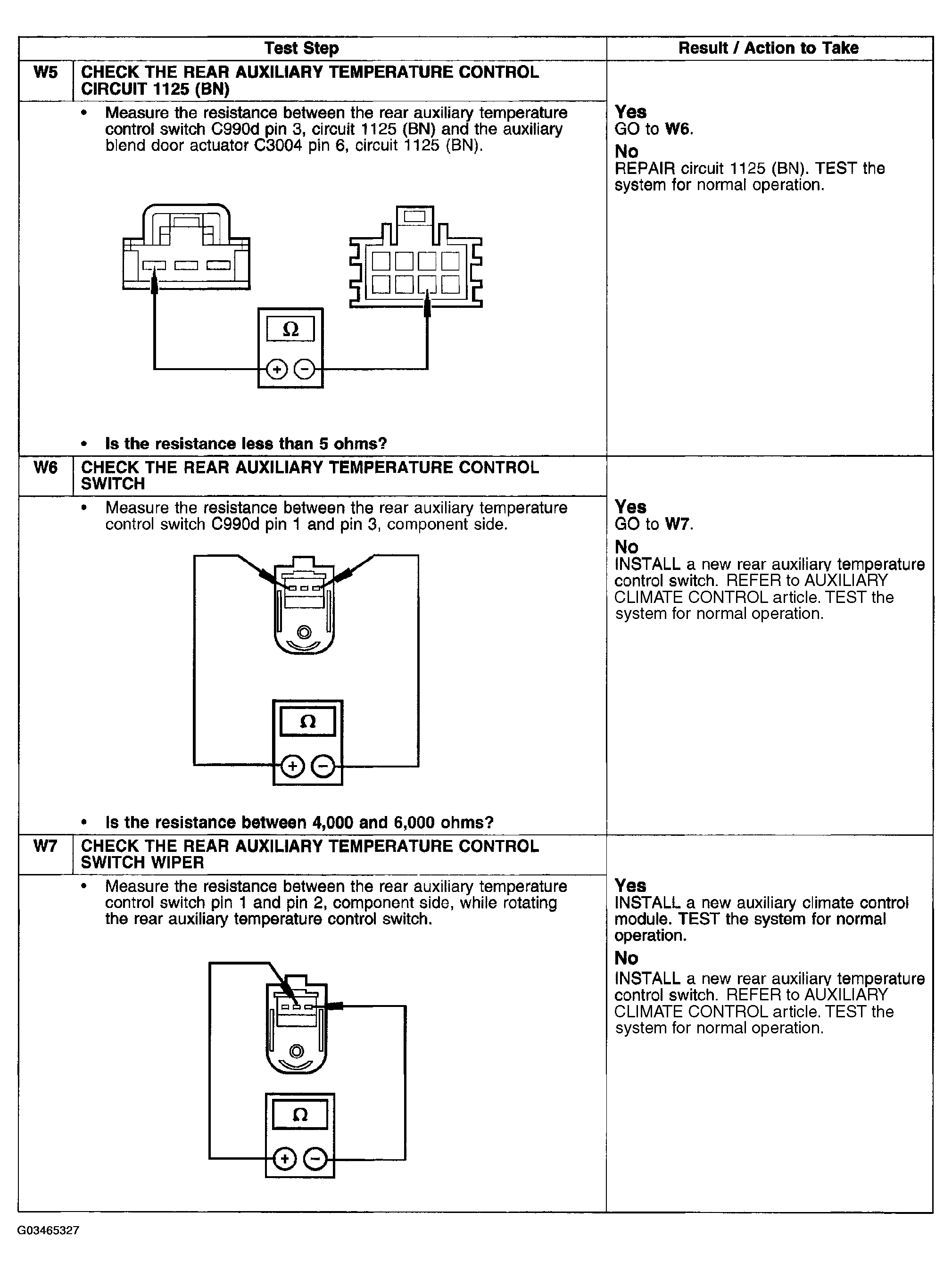

Fig 3: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (W5 To W7)

Courtesy of FORD MOTOR CO.

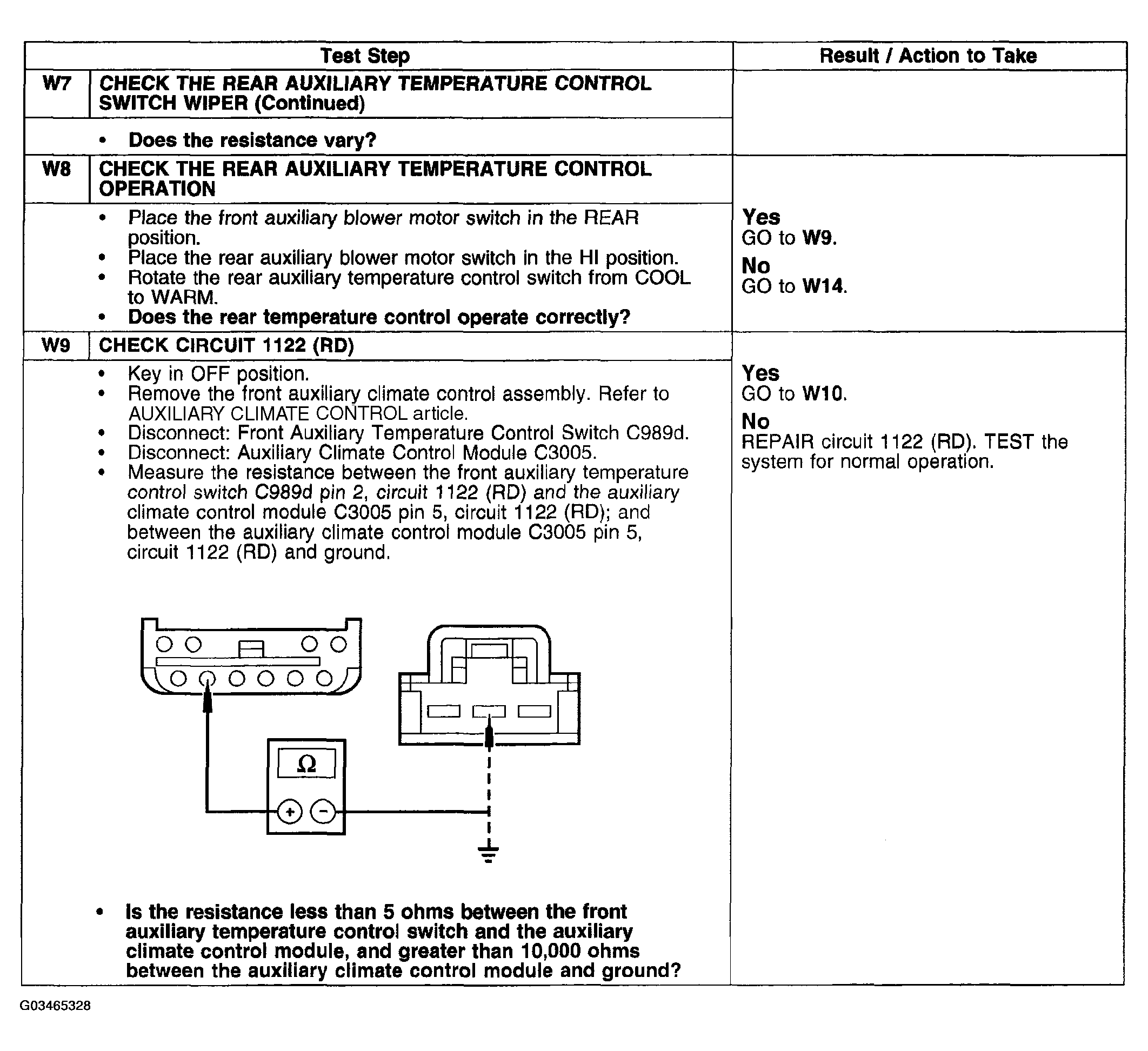

Fig 4: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (W7 To W9)

Courtesy of FORD MOTOR CO.

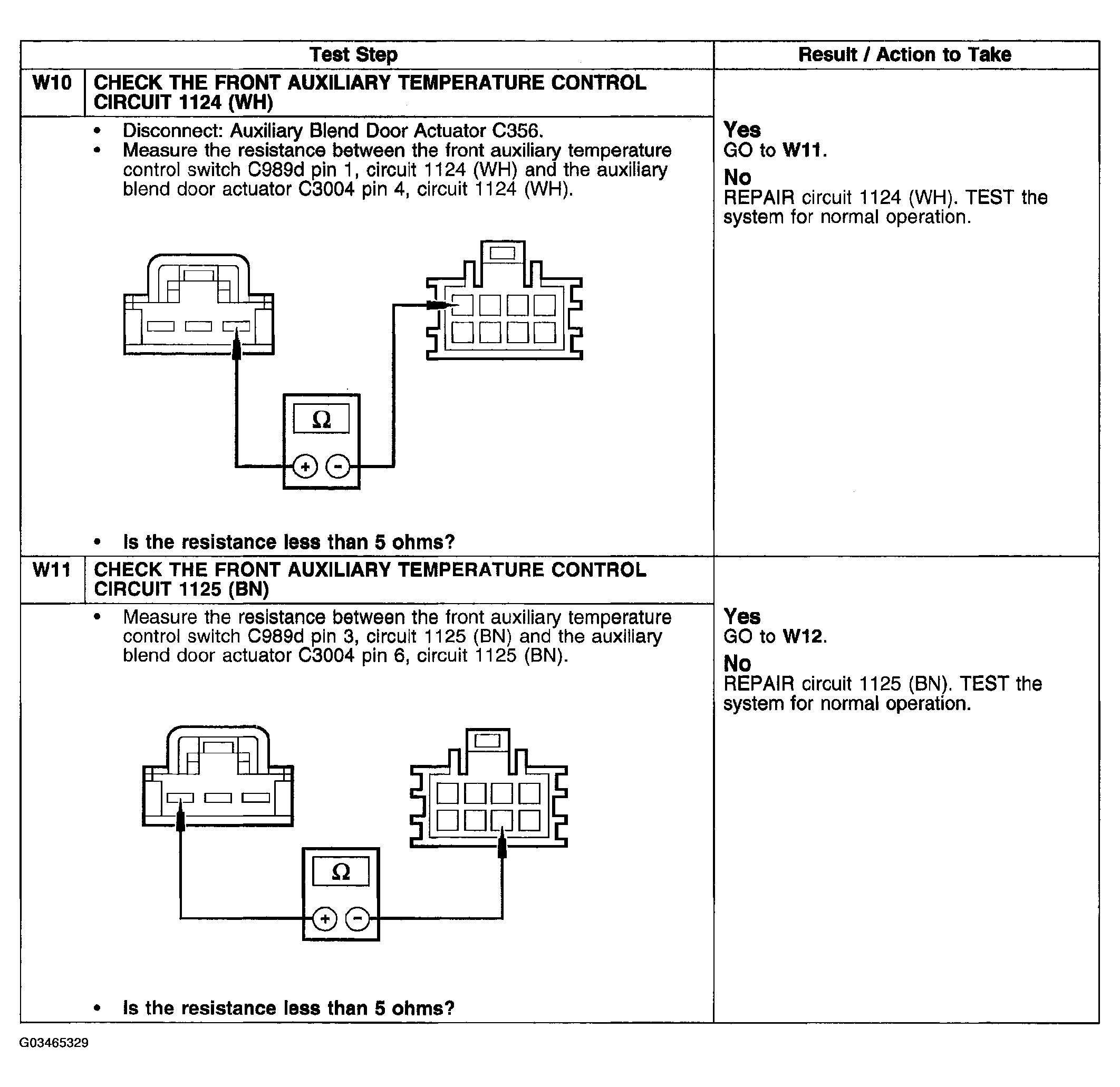

Fig 5: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (W10 To W11)

Courtesy of FORD MOTOR CO.

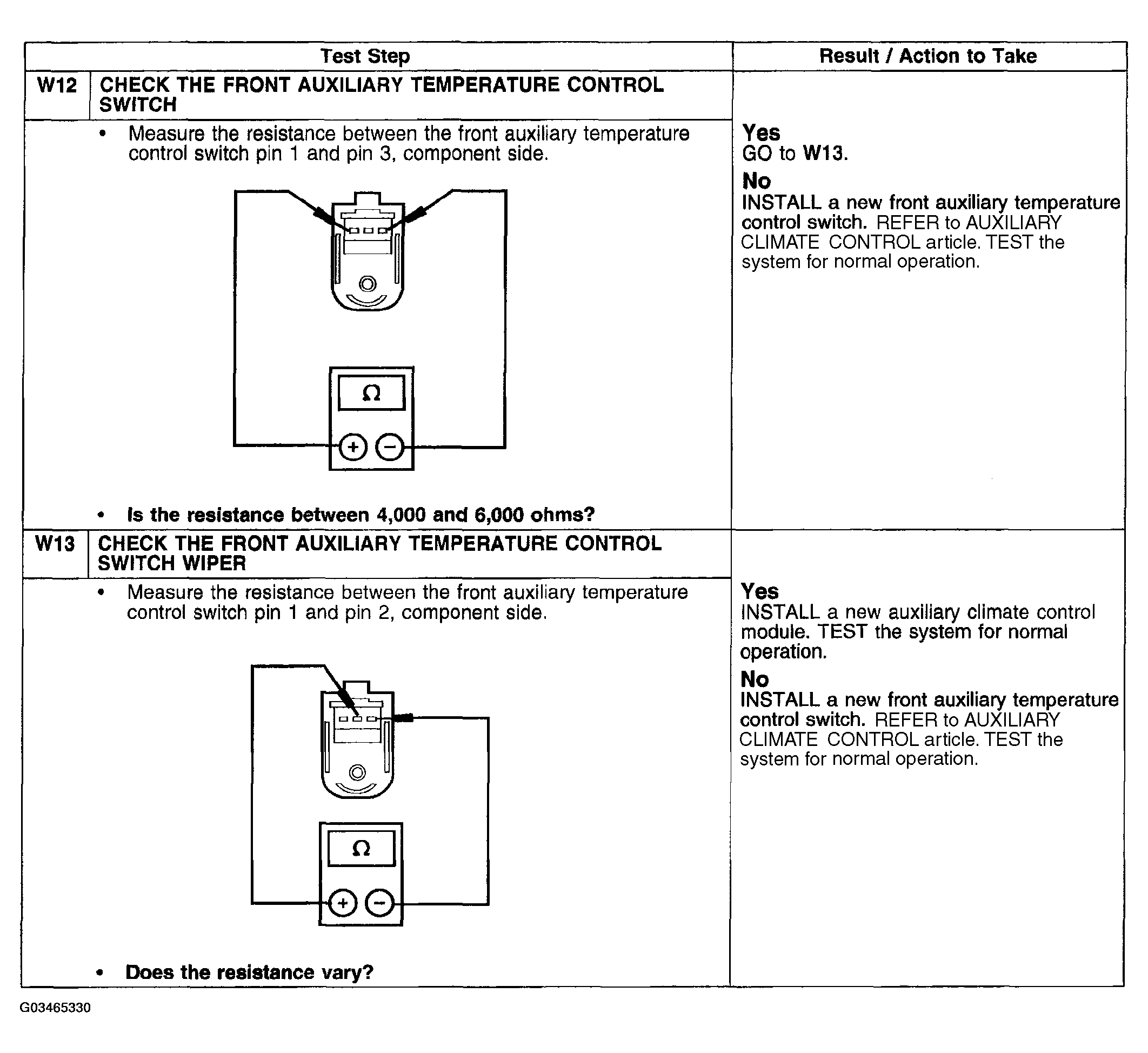

Fig 6: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (W12 To W13)

Courtesy of FORD MOTOR CO.

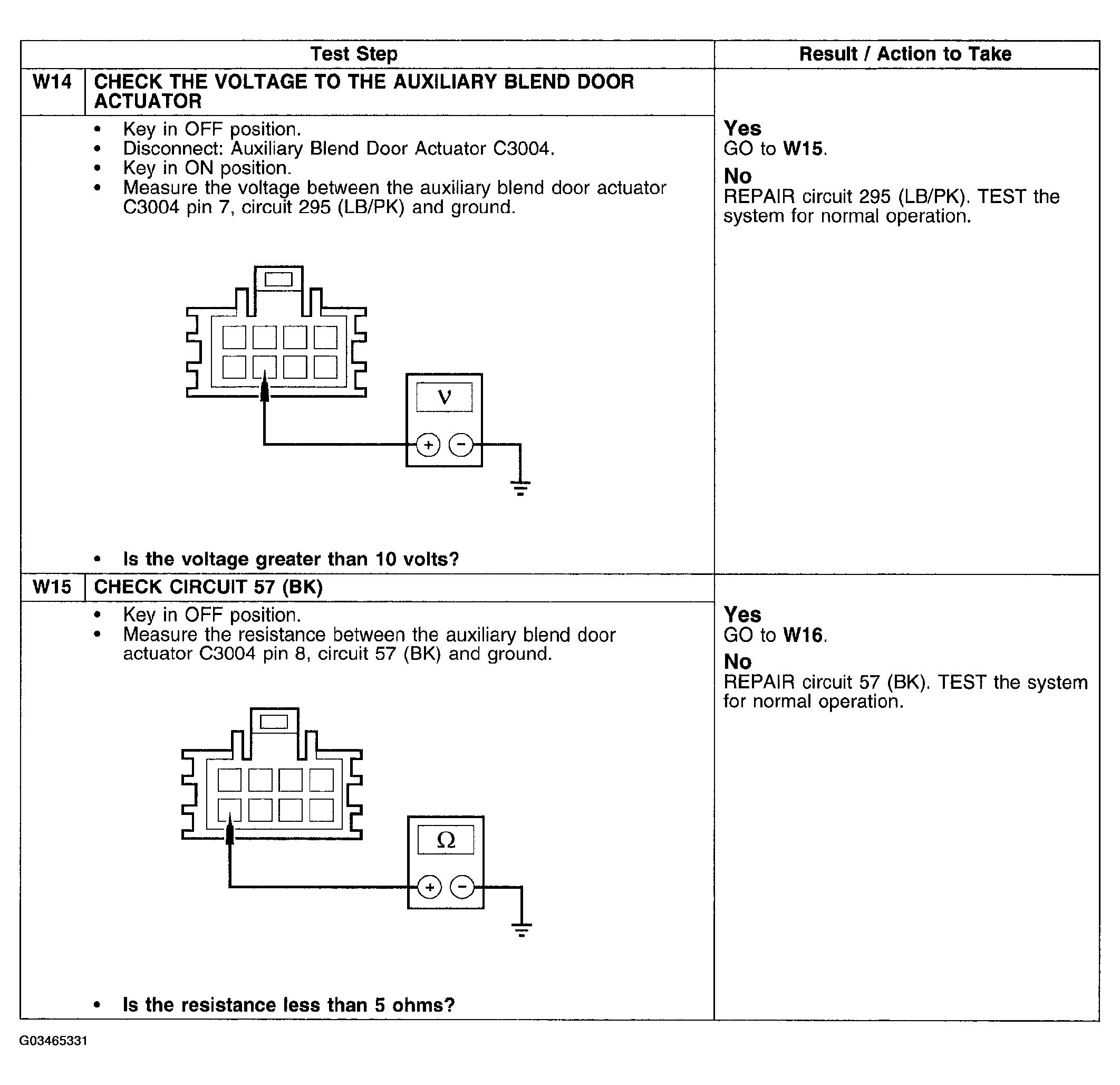

Fig 7: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (W14 To W15)

Courtesy of FORD MOTOR CO.

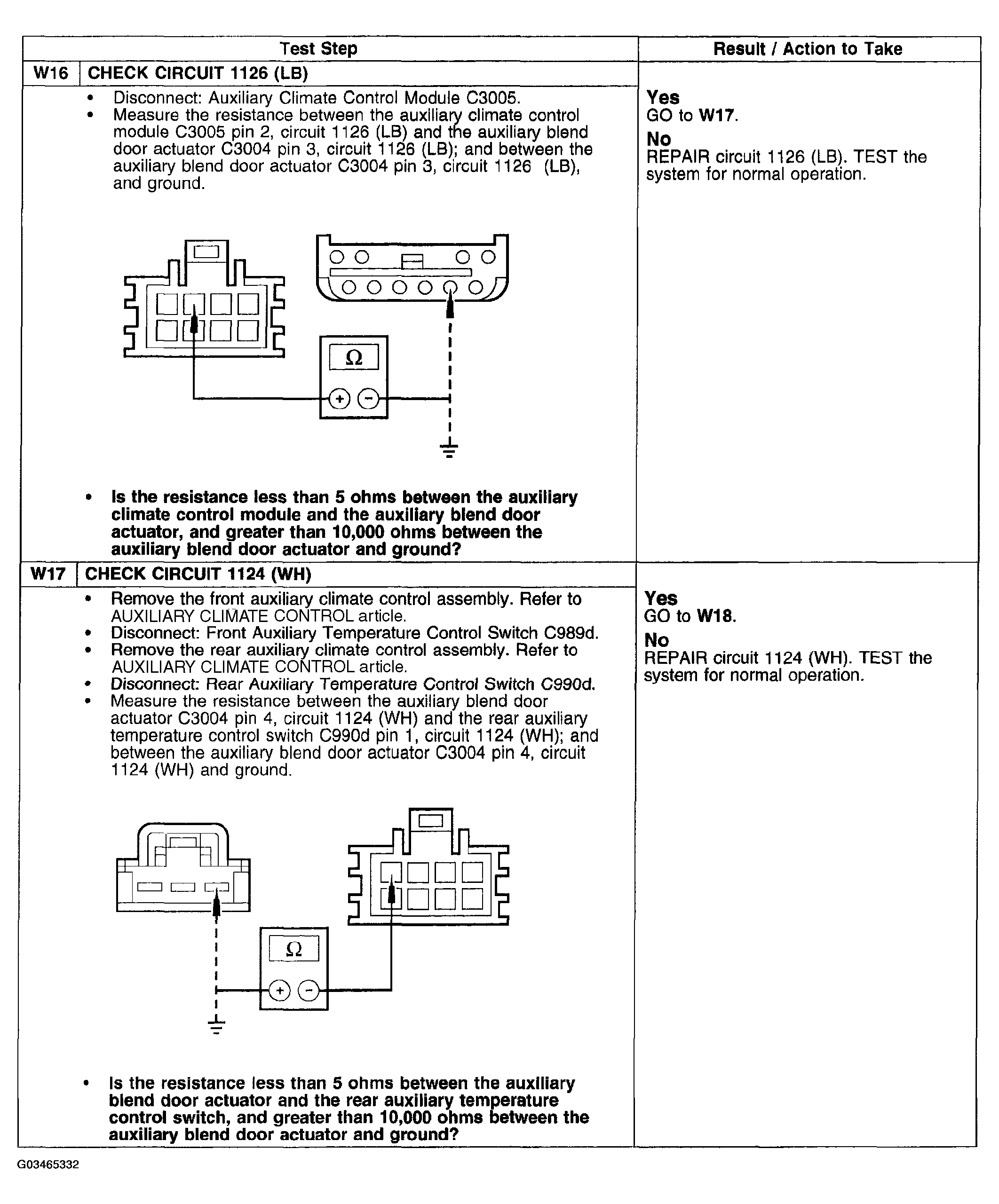

Fig 8: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (W16 To W17)

Courtesy of FORD MOTOR CO.

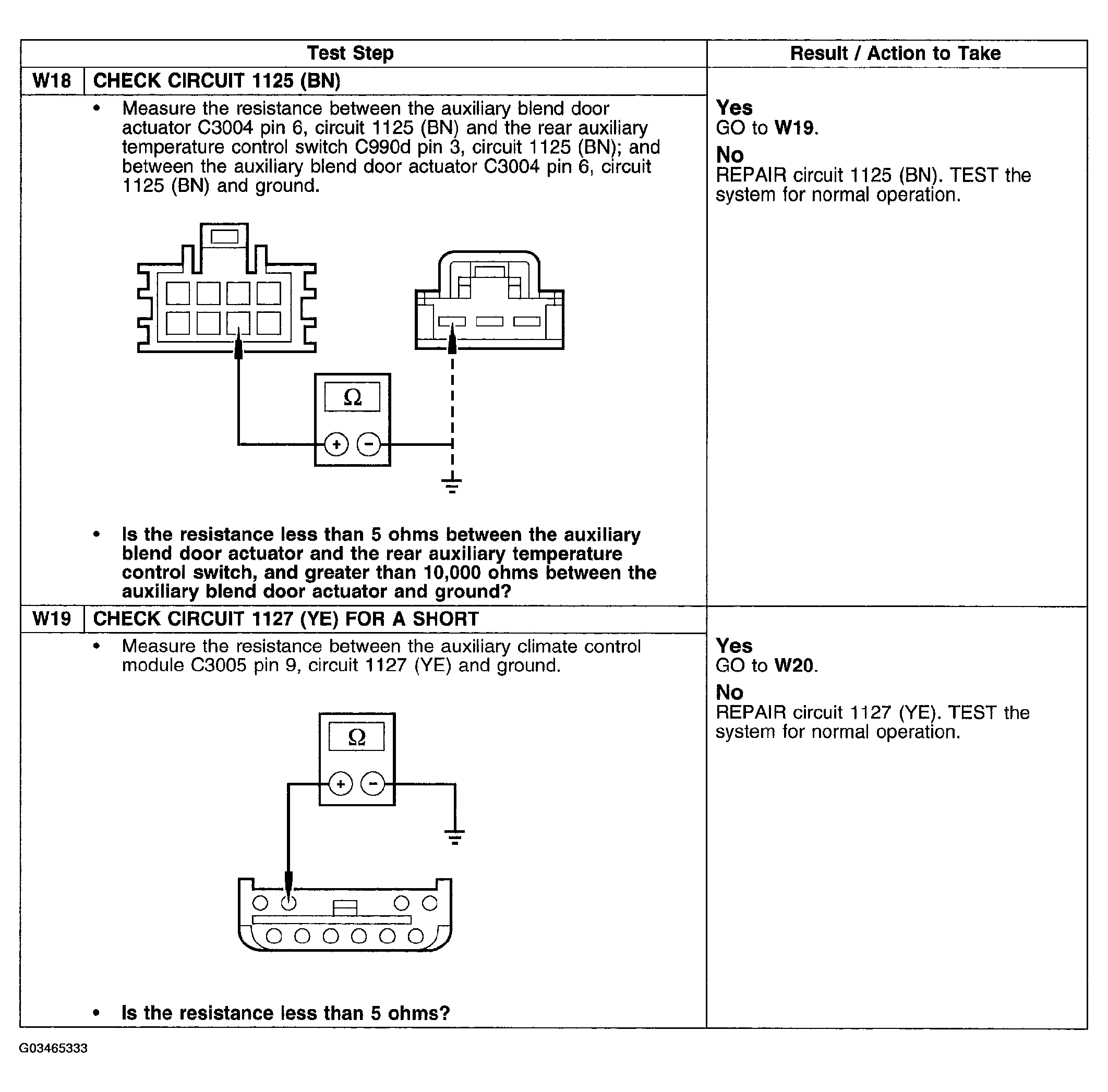

Fig 9: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (W18 To W19)

Courtesy of FORD MOTOR CO.

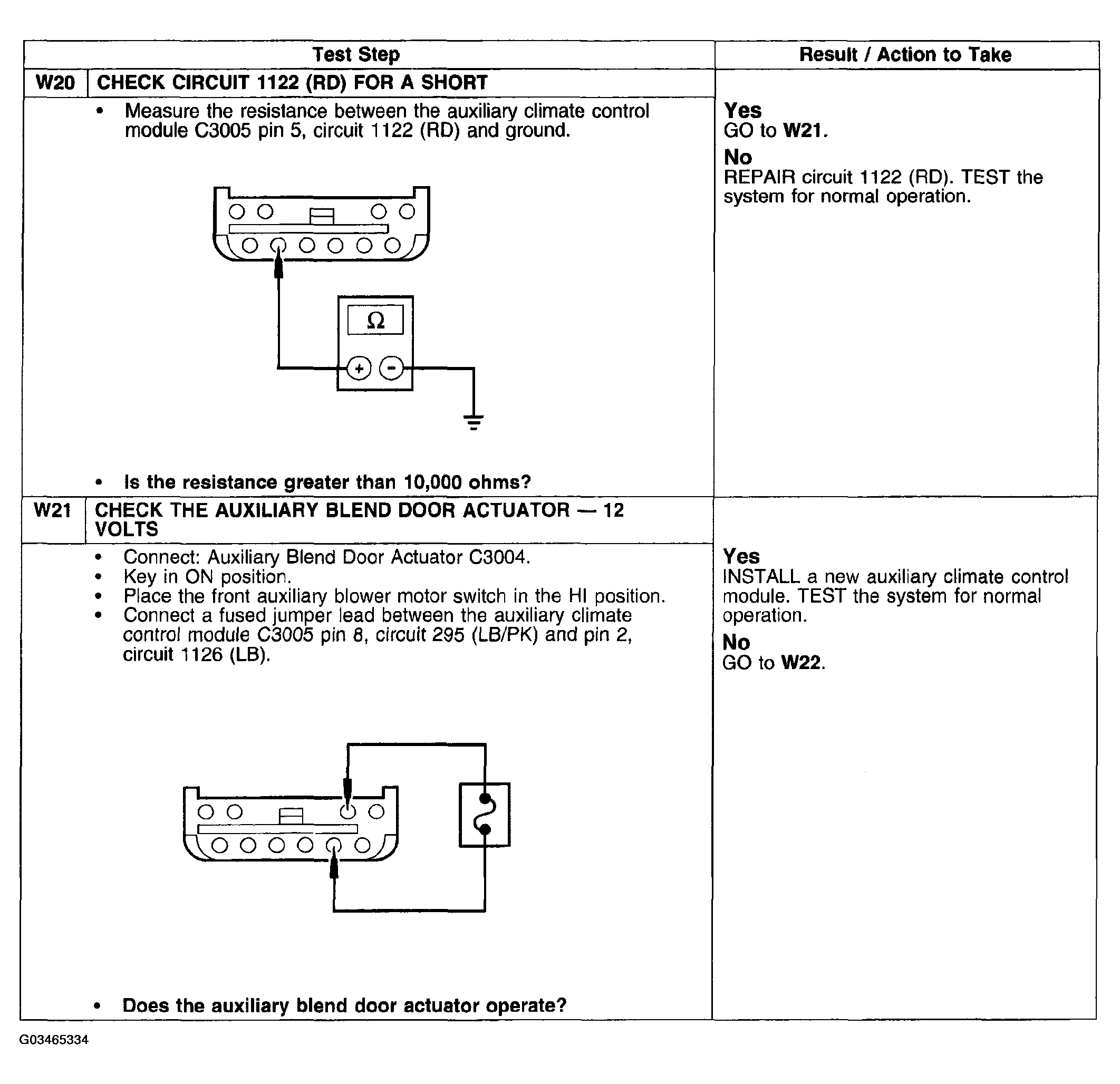

Fig 10: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (W20 To W21)

Courtesy of FORD MOTOR CO.

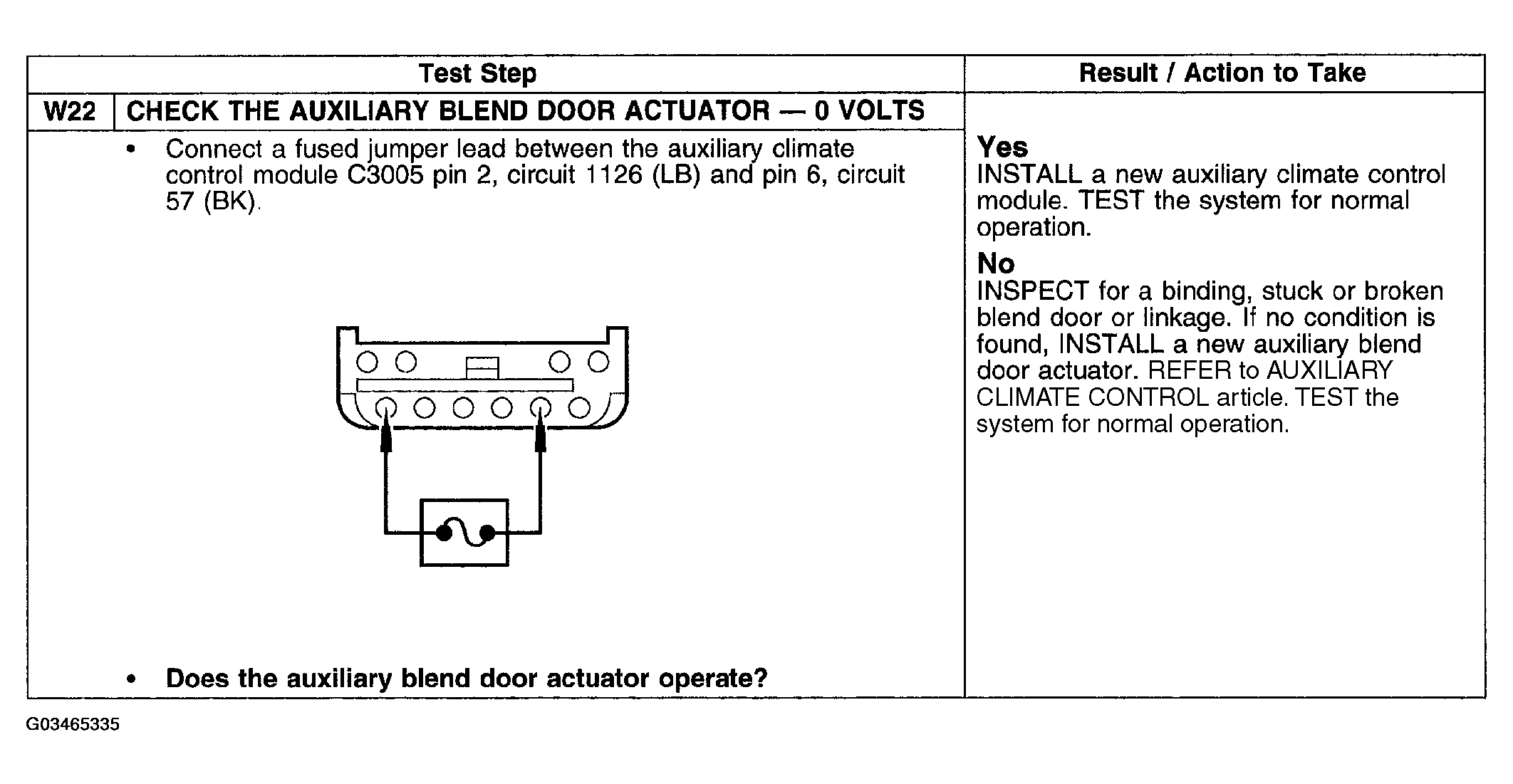

Fig 11: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (W22)

Courtesy of FORD MOTOR CO.
