Pinpoint Test V: The Panel/Floor Control Does Not Operate Using The Front/Rear Auxiliary Climate Controls

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

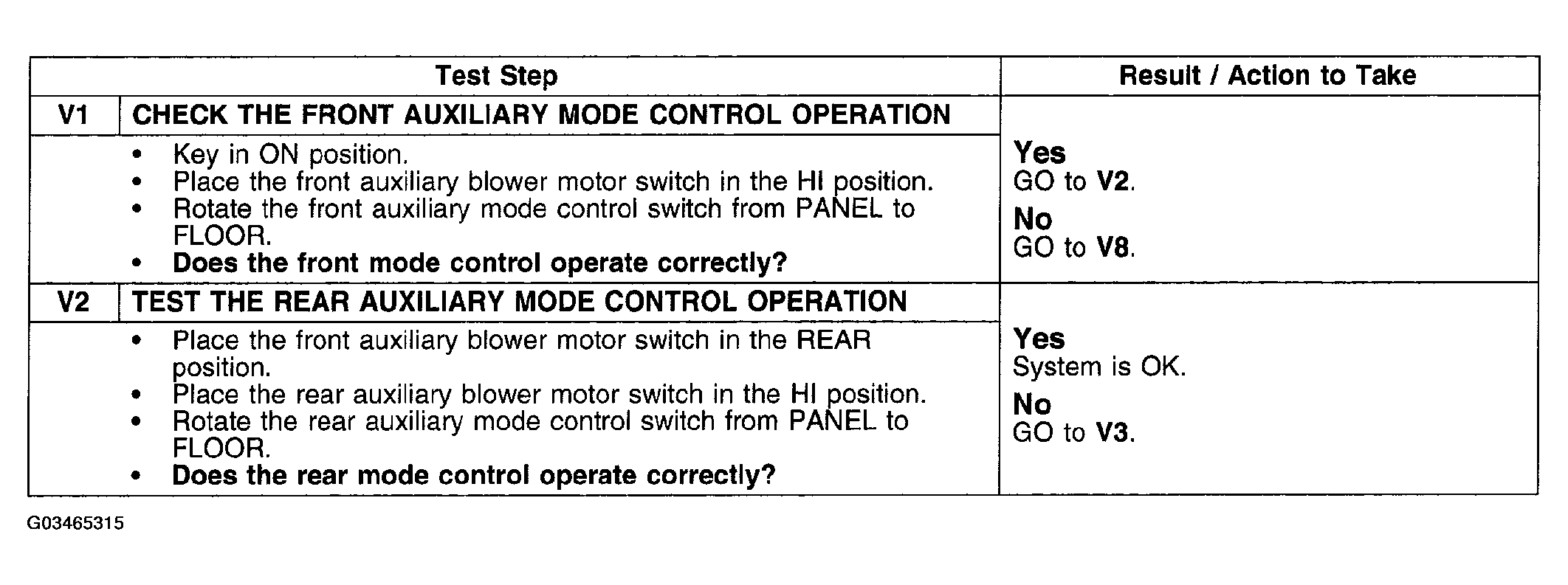

Fig 1: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (V1 To V2)

Courtesy of FORD MOTOR CO.

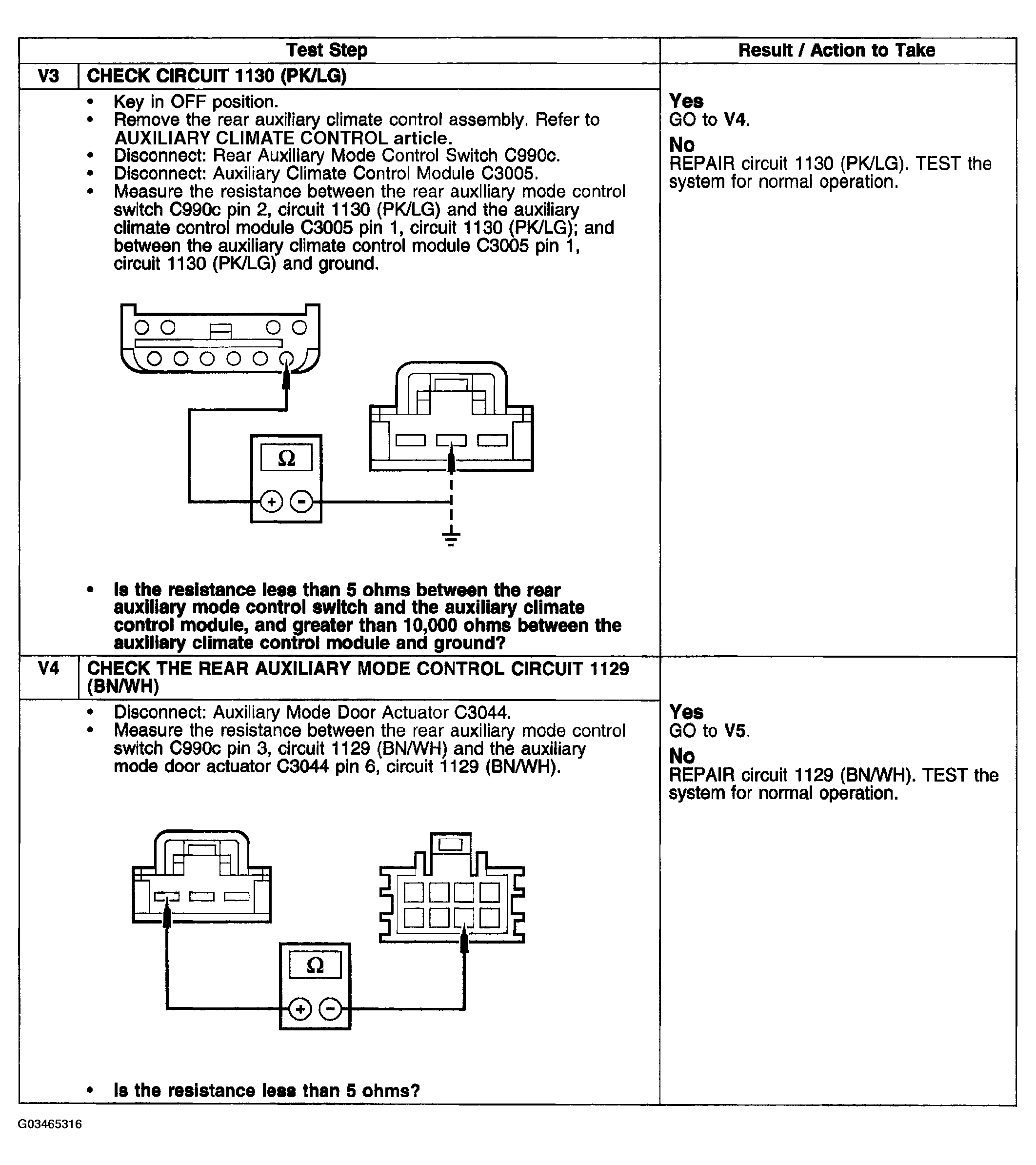

Fig 2: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (V3 To V4)

Courtesy of FORD MOTOR CO.

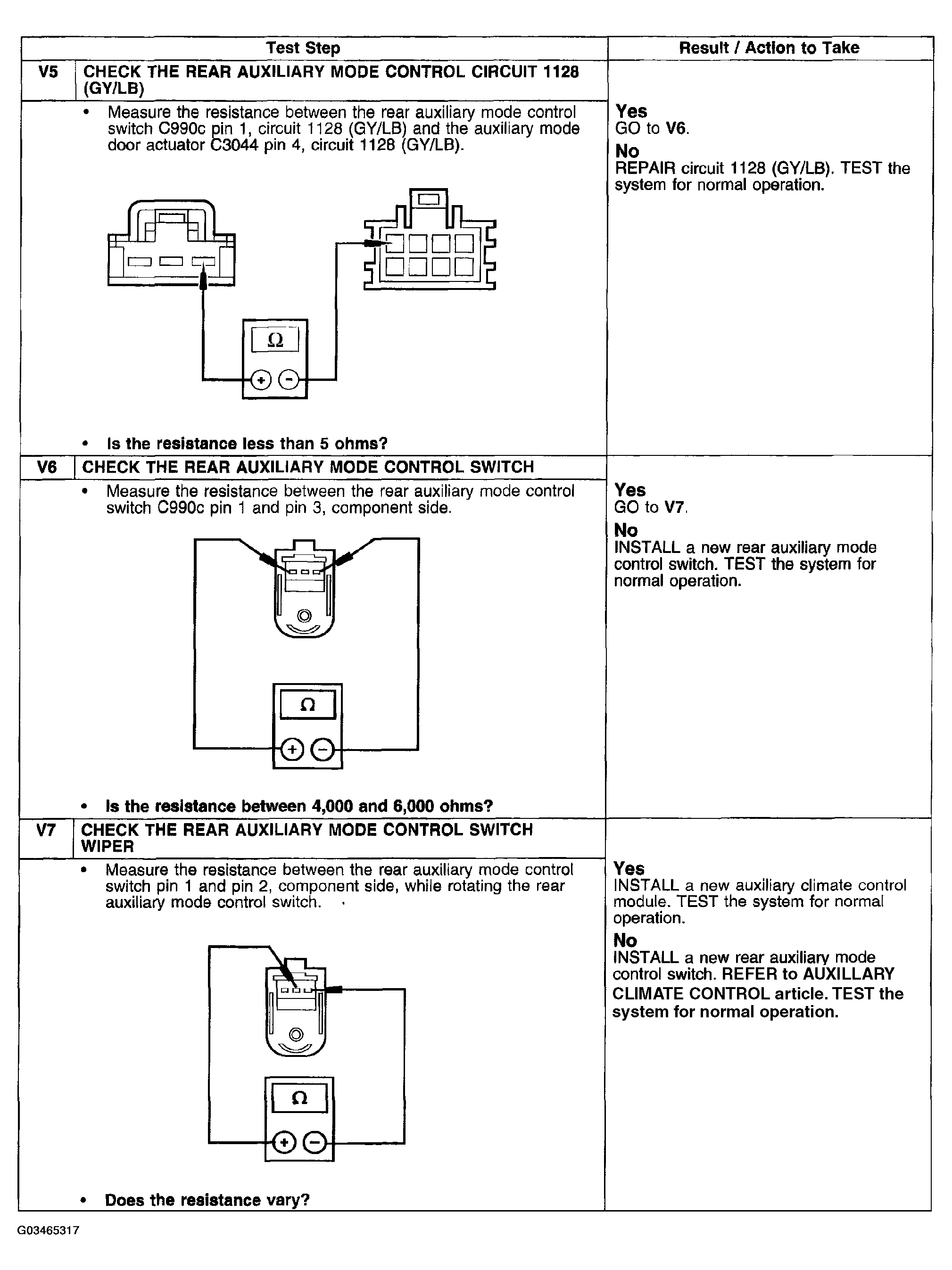

Fig 3: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (V5 To V7)

Courtesy of FORD MOTOR CO.

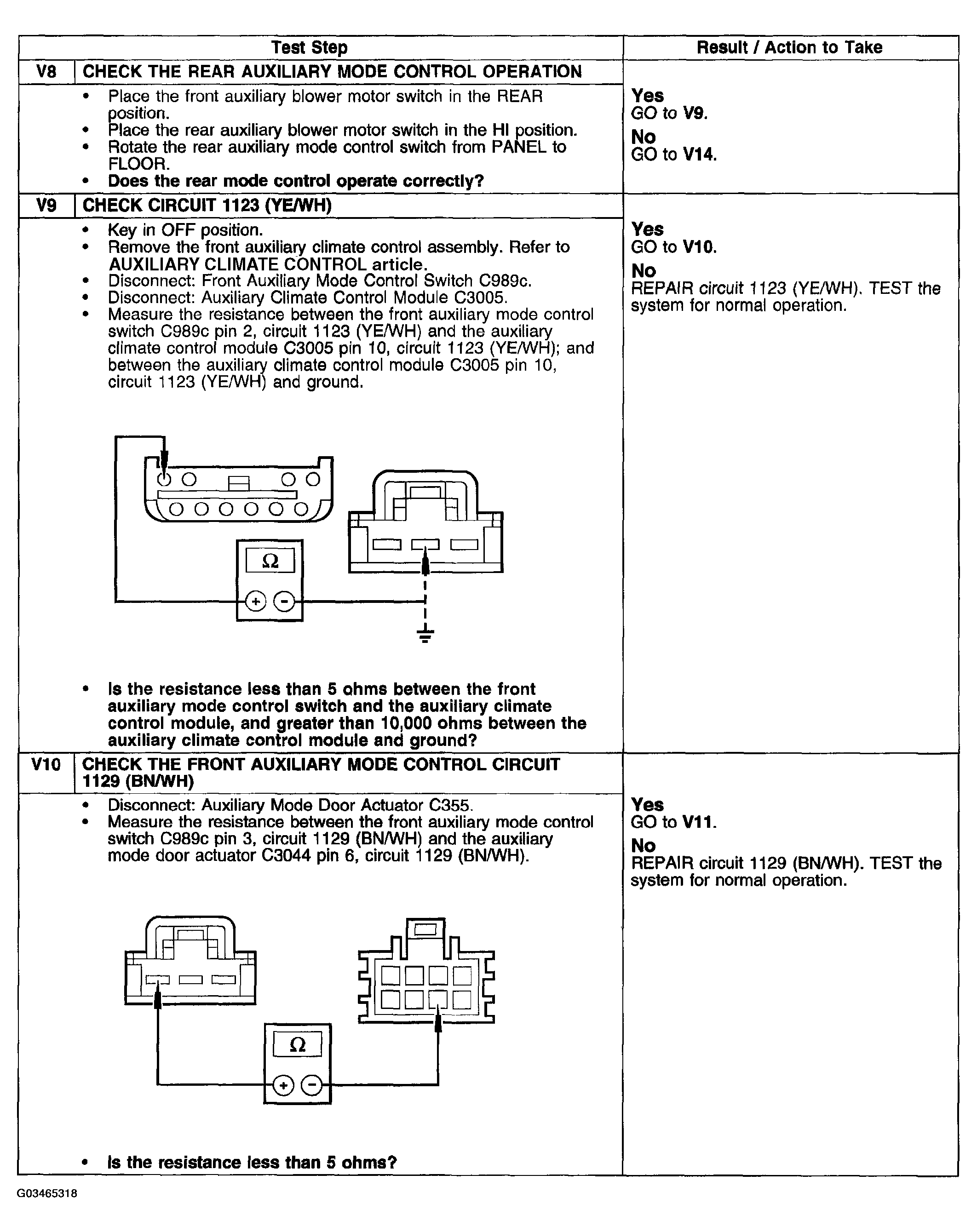

Fig 4: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (V8 To V10)

Courtesy of FORD MOTOR CO.

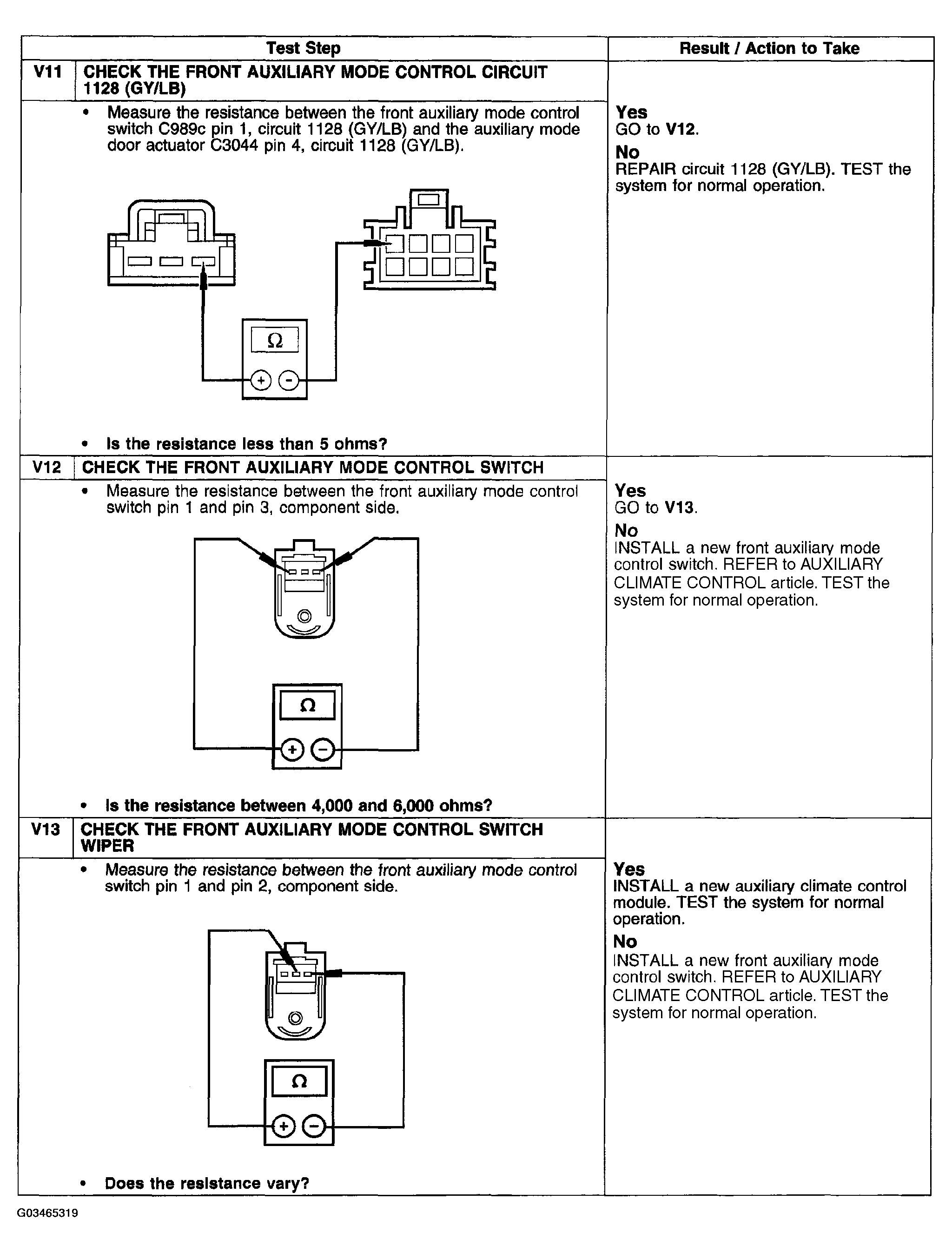

Fig 5: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (V11 To V13)

Courtesy of FORD MOTOR CO.

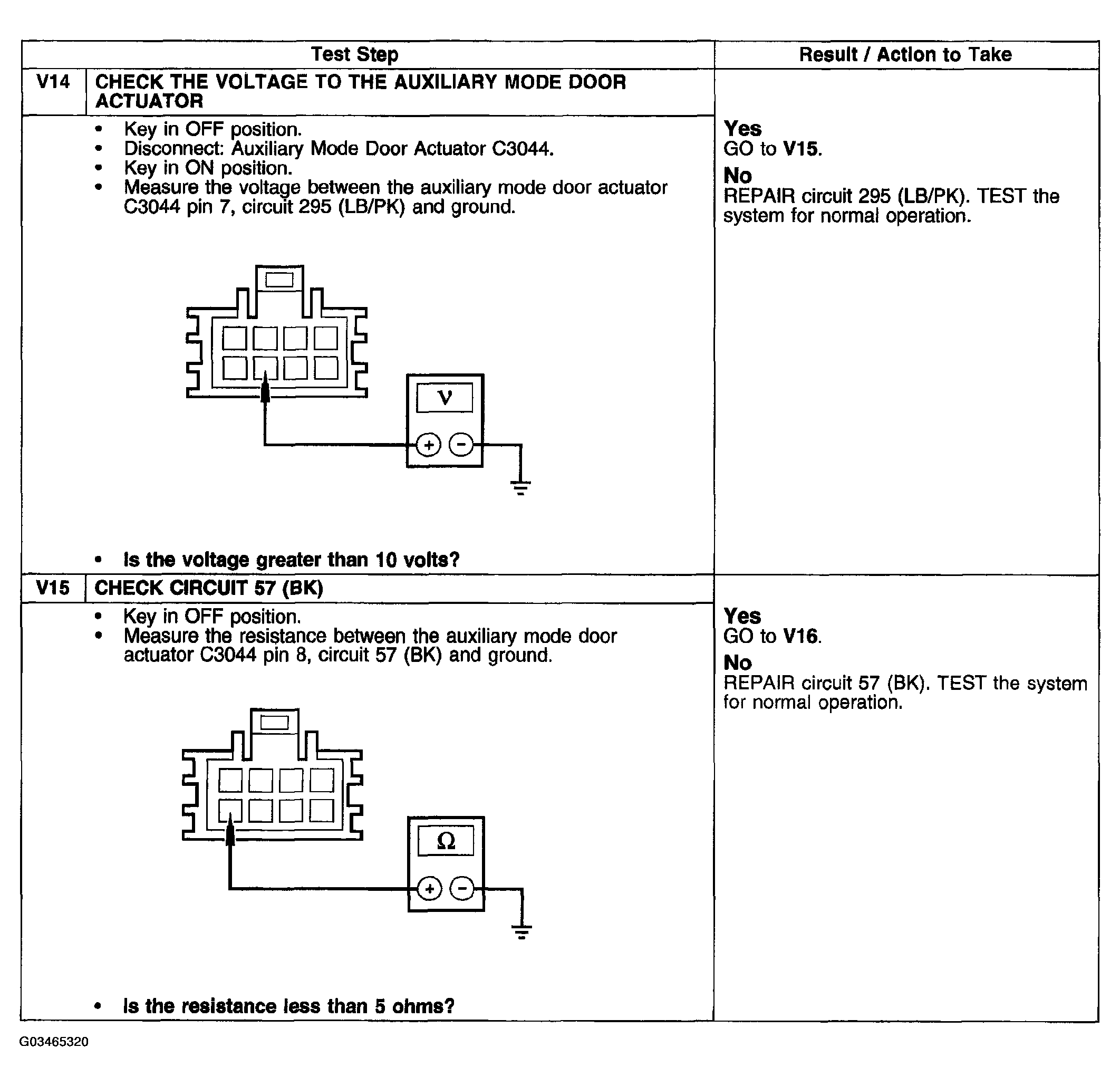

Fig 6: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (V14 To V15)

Courtesy of FORD MOTOR CO.

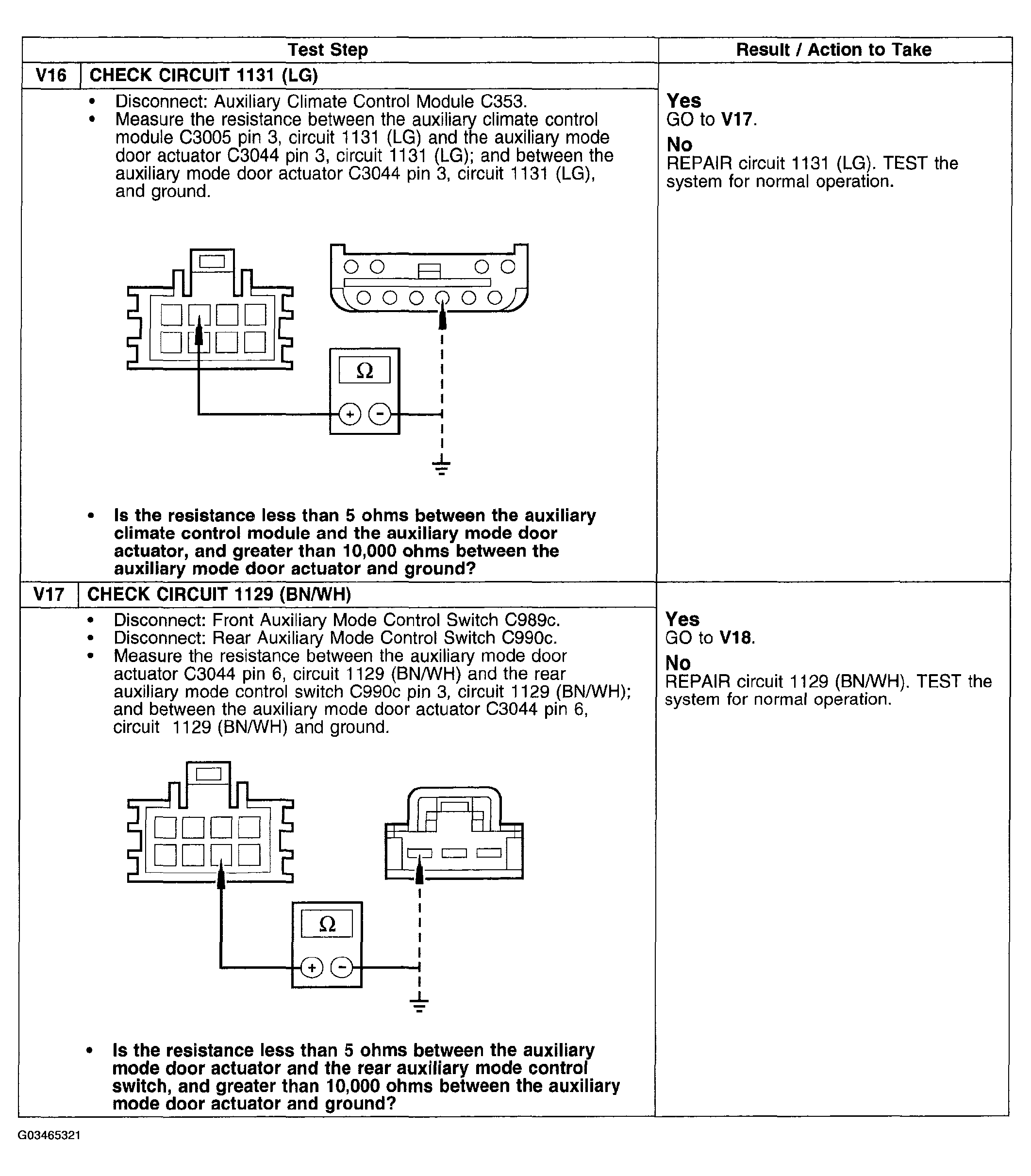

Fig 7: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (V16 To V17)

Courtesy of FORD MOTOR CO.

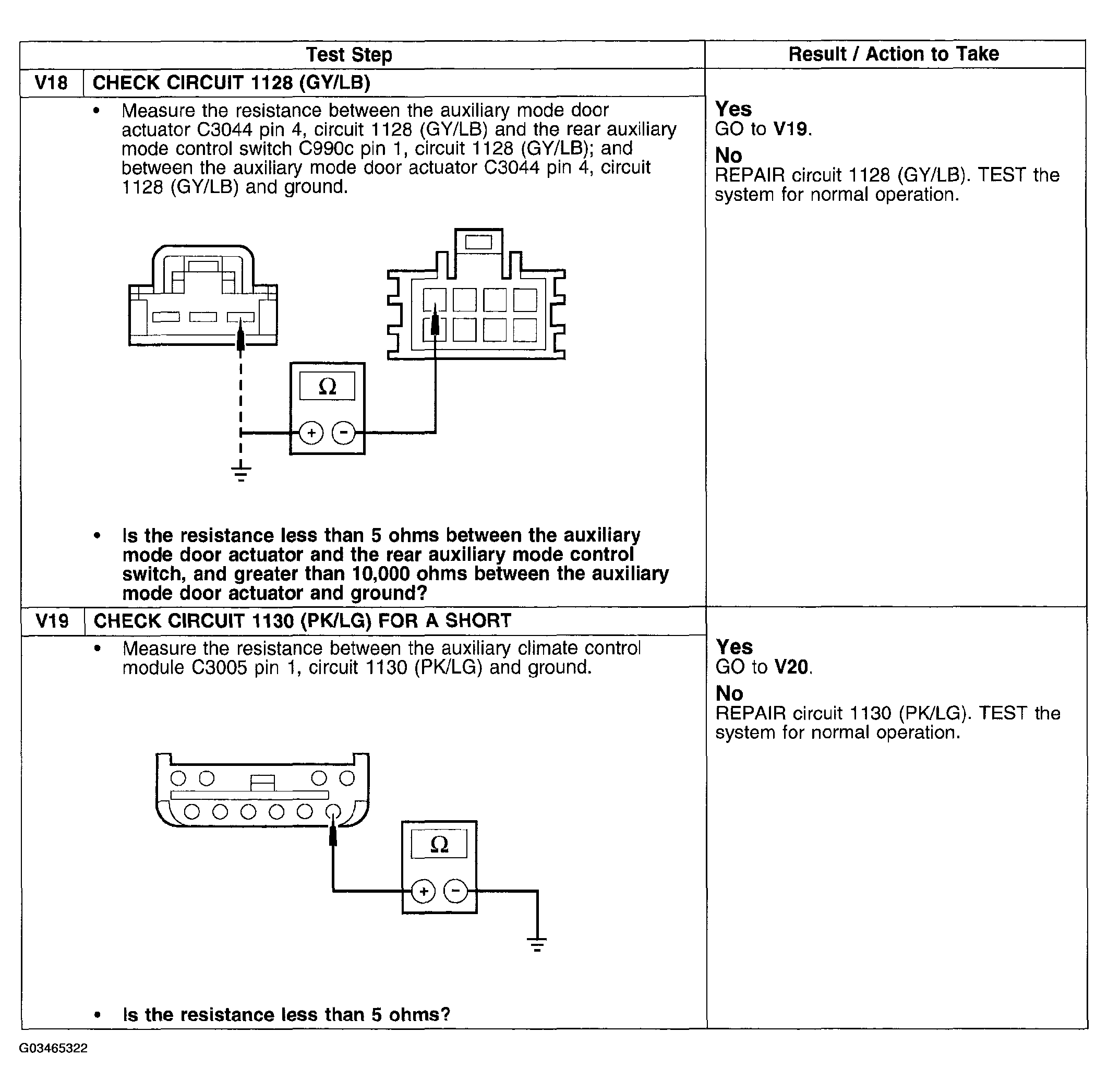

Fig 8: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (V18 To V19)

Courtesy of FORD MOTOR CO.

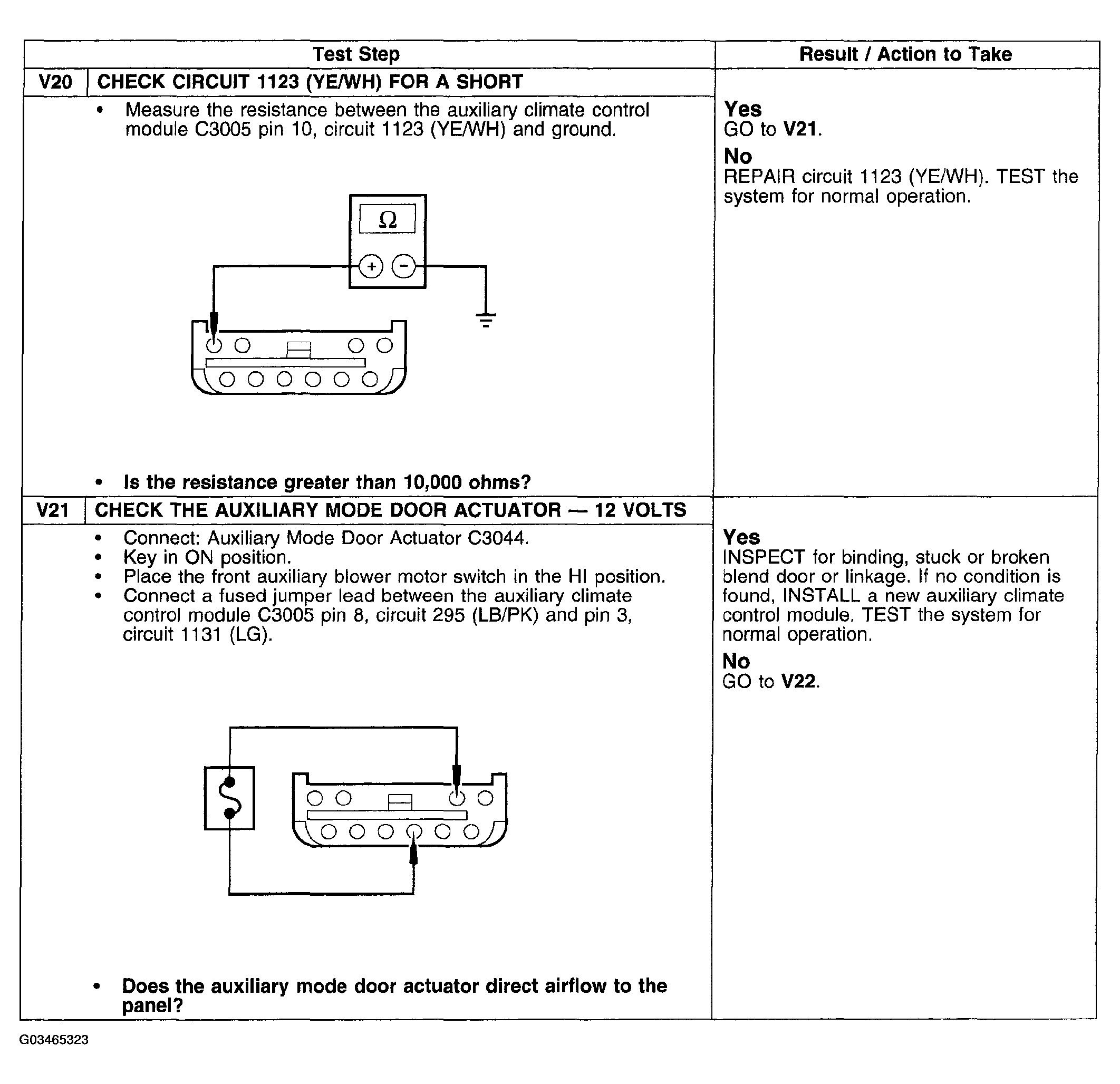

Fig 9: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (V20 To V21)

Courtesy of FORD MOTOR CO.

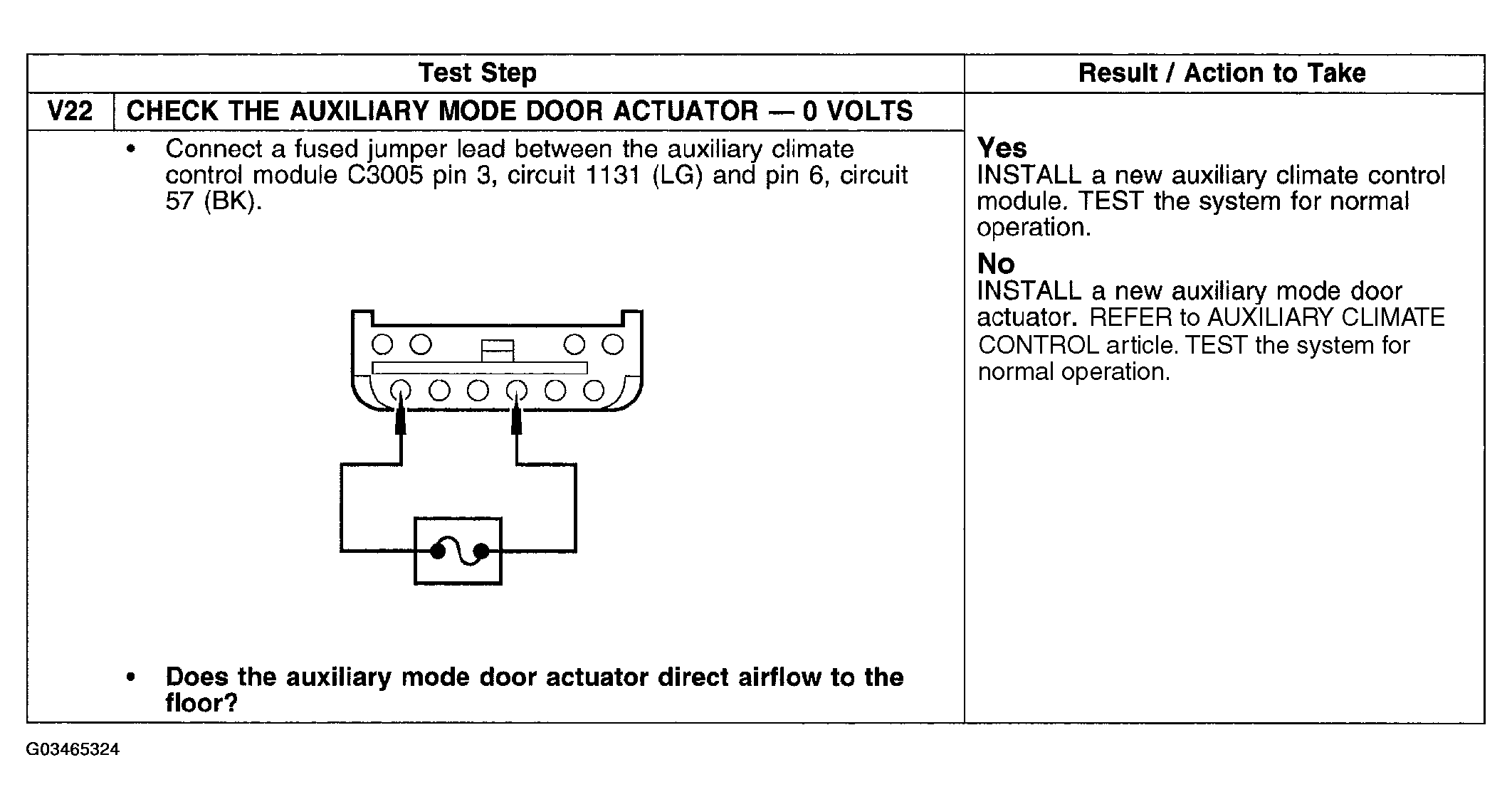

Fig 10: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (V22)

Courtesy of FORD MOTOR CO.
