Pinpoint Test T: The Auxiliary Blower Motor Does Not Operate

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

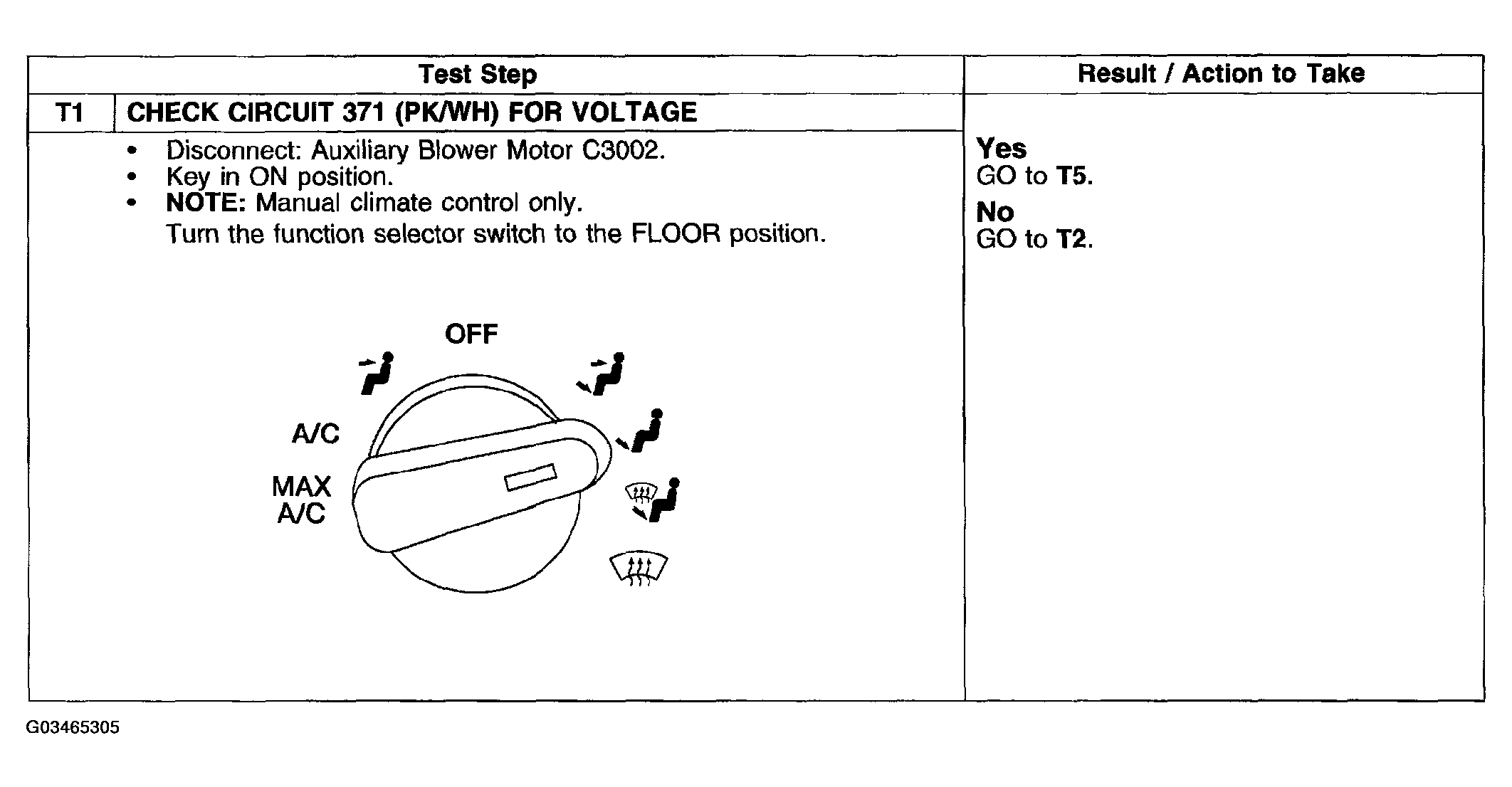

Fig 1: Pinpoint Test T: Auxiliary Blower Motor Does Not Operate (T1)

Courtesy of FORD MOTOR CO.

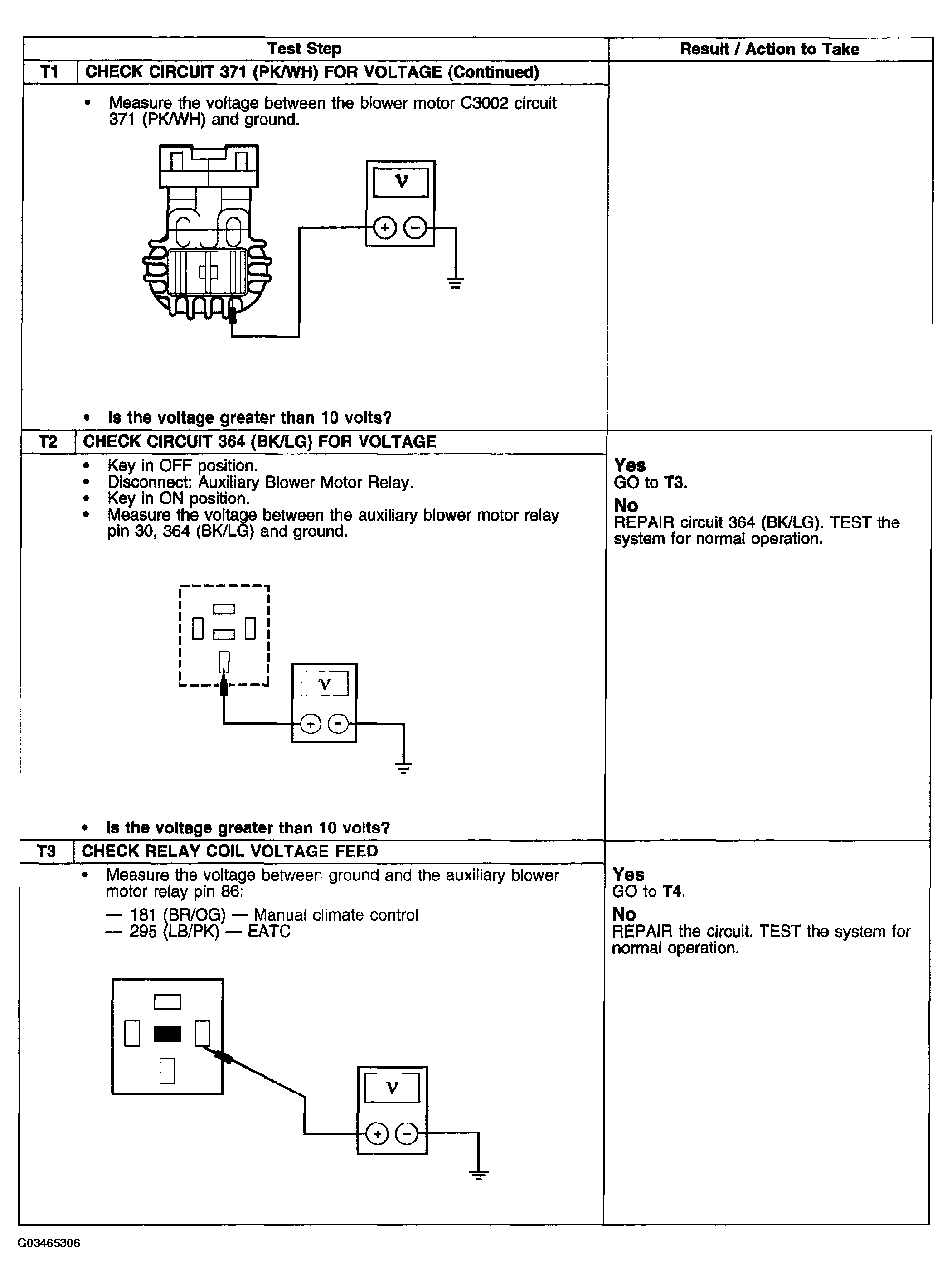

Fig 2: Pinpoint Test T: Auxiliary Blower Motor Does Not Operate (T1 To T3)

Courtesy of FORD MOTOR CO.

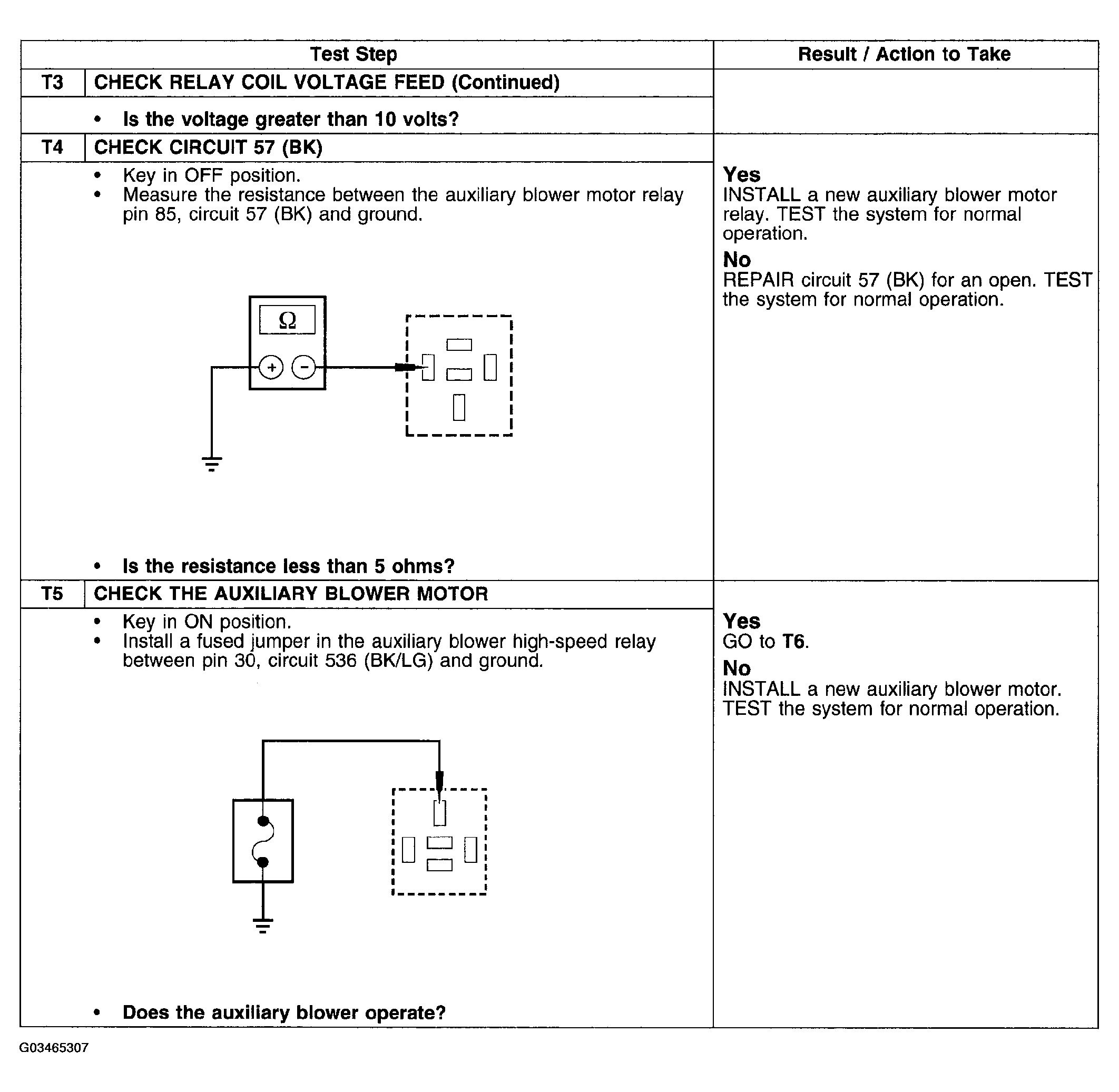

Fig 3: Pinpoint Test T: Auxiliary Blower Motor Does Not Operate (T4 To T5)

Courtesy of FORD MOTOR CO.

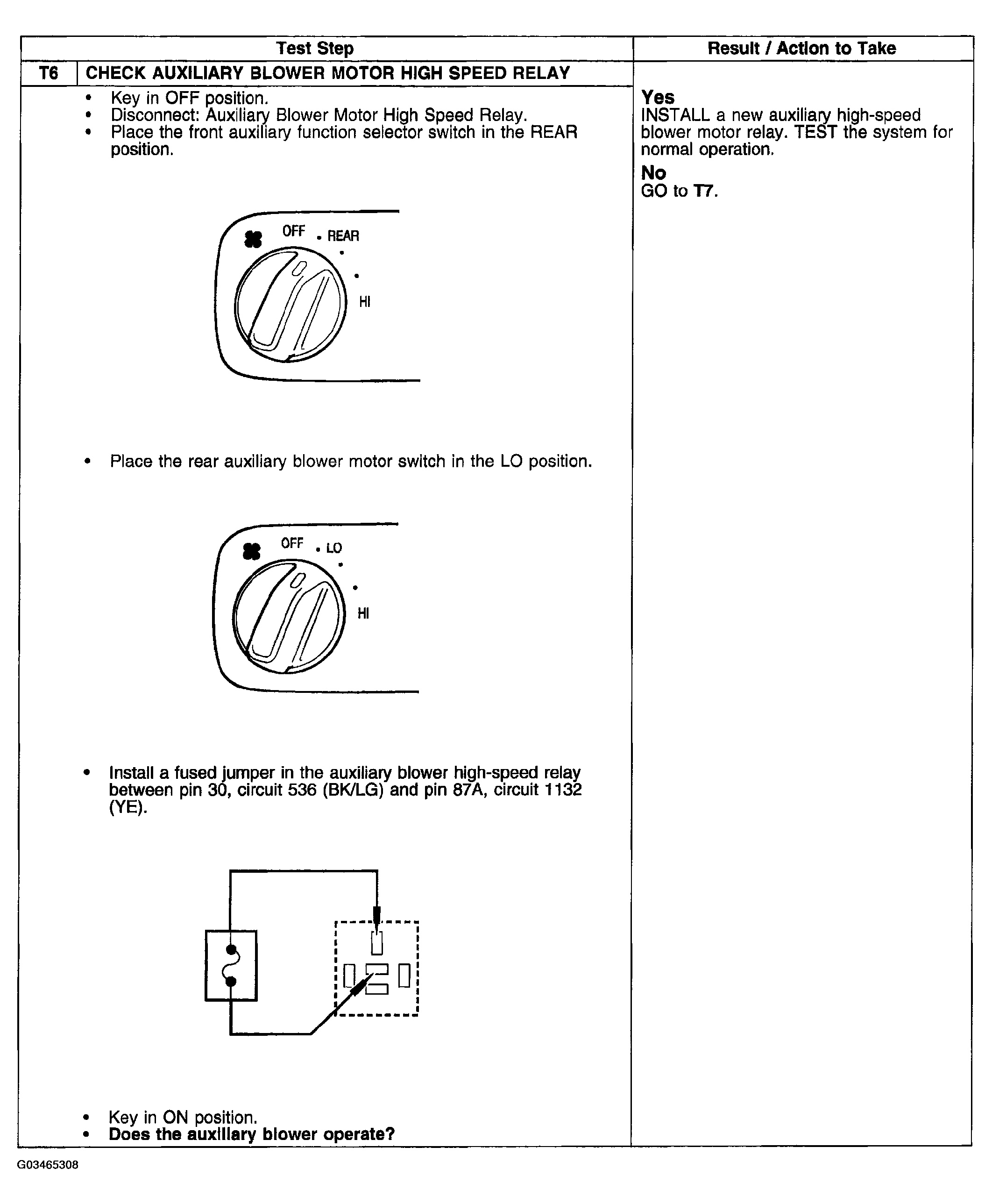

Fig 4: Pinpoint Test T: Auxiliary Blower Motor Does Not Operate (T6)

Courtesy of FORD MOTOR CO.

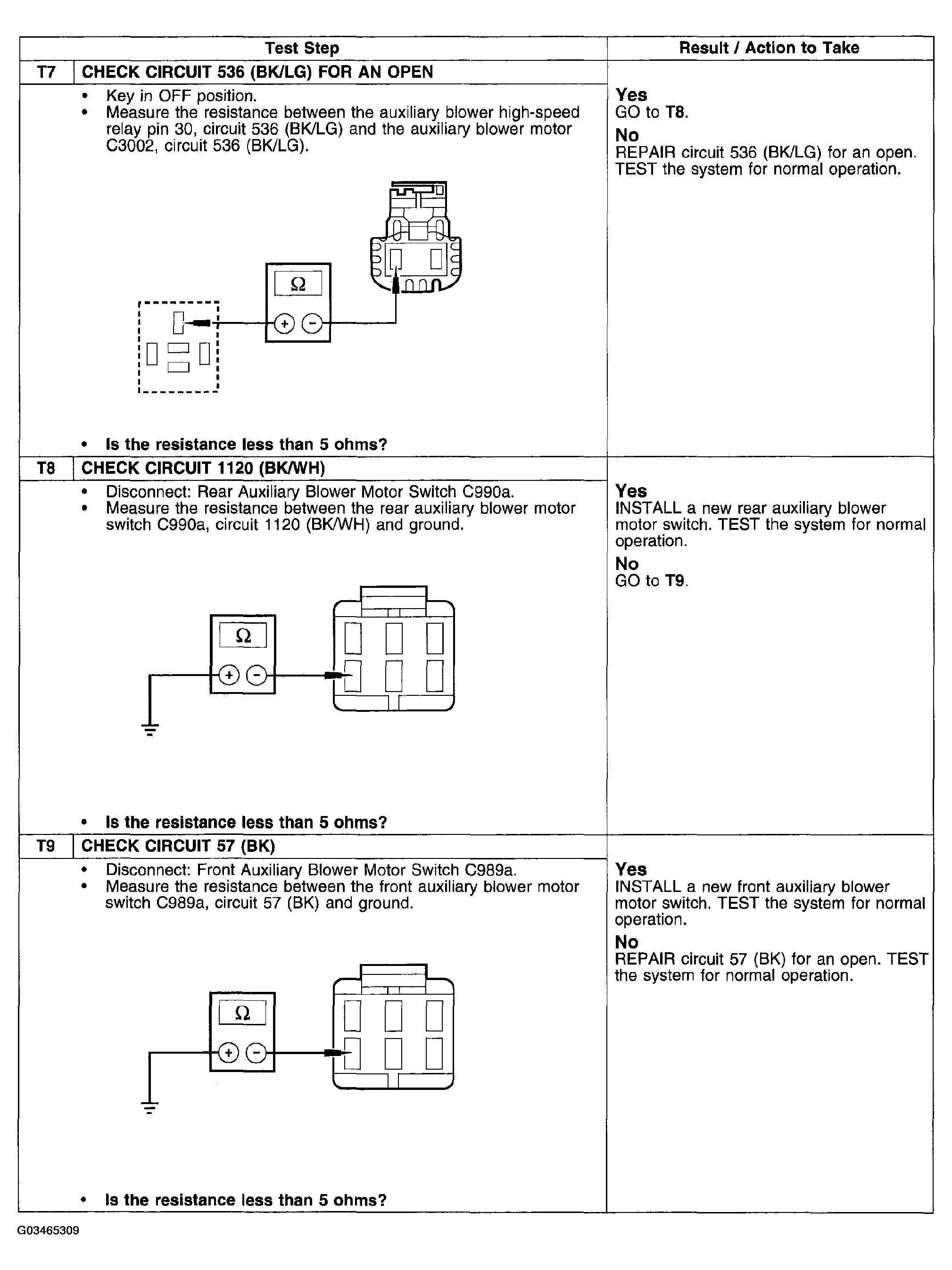

Fig 5: Pinpoint Test T: Auxiliary Blower Motor Does Not Operate (T7 To T9)

Courtesy of FORD MOTOR CO.
