Pinpoint Test O: The Blower Motor Operates Continuously In High Speed - Manual Climate Control

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

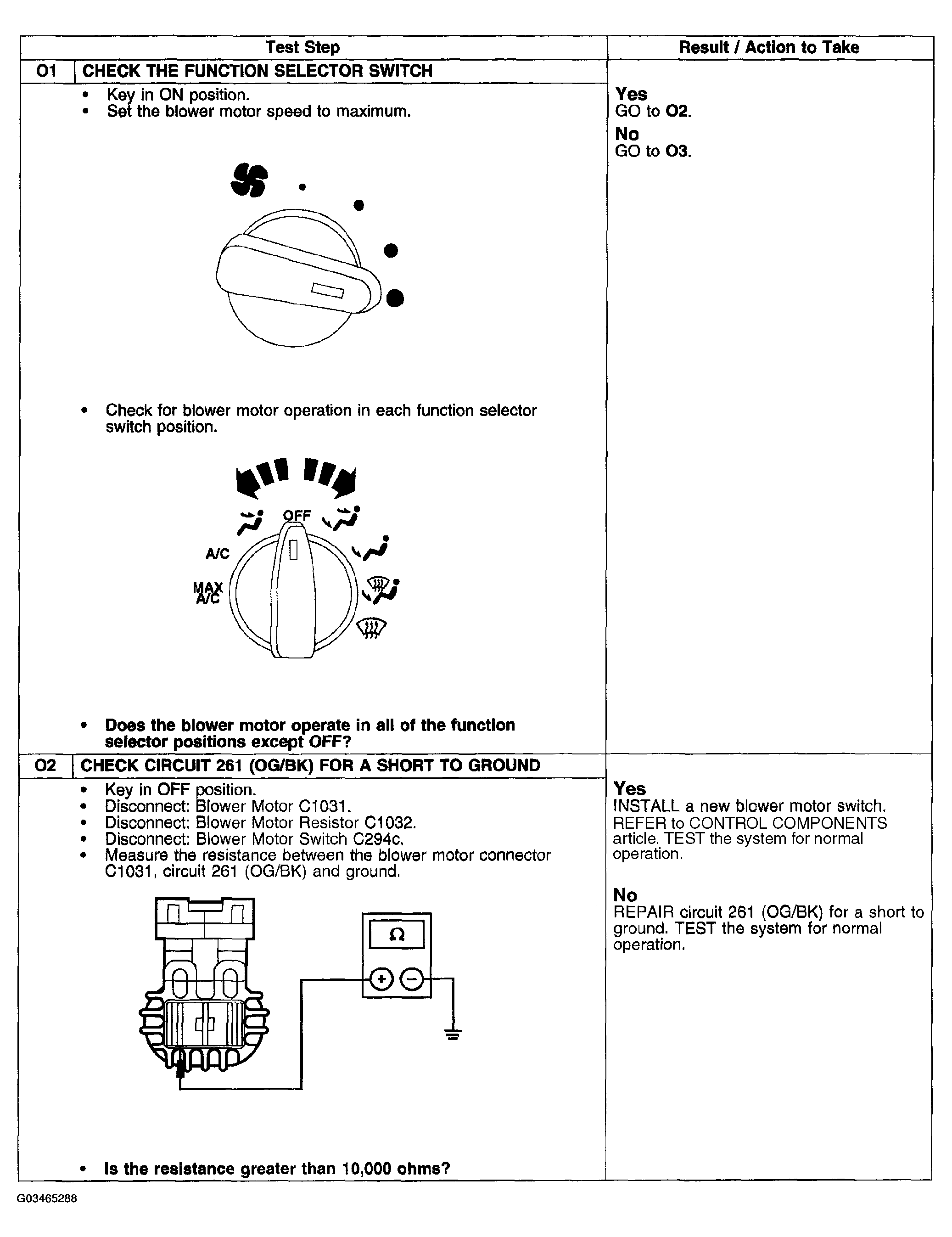

Fig 1: Pinpoint Test O: Blower Motor Operates Continuously In High Speed - Manual Climate Control (O1 To O2)
G03465288Courtesy of FORD MOTOR CO.

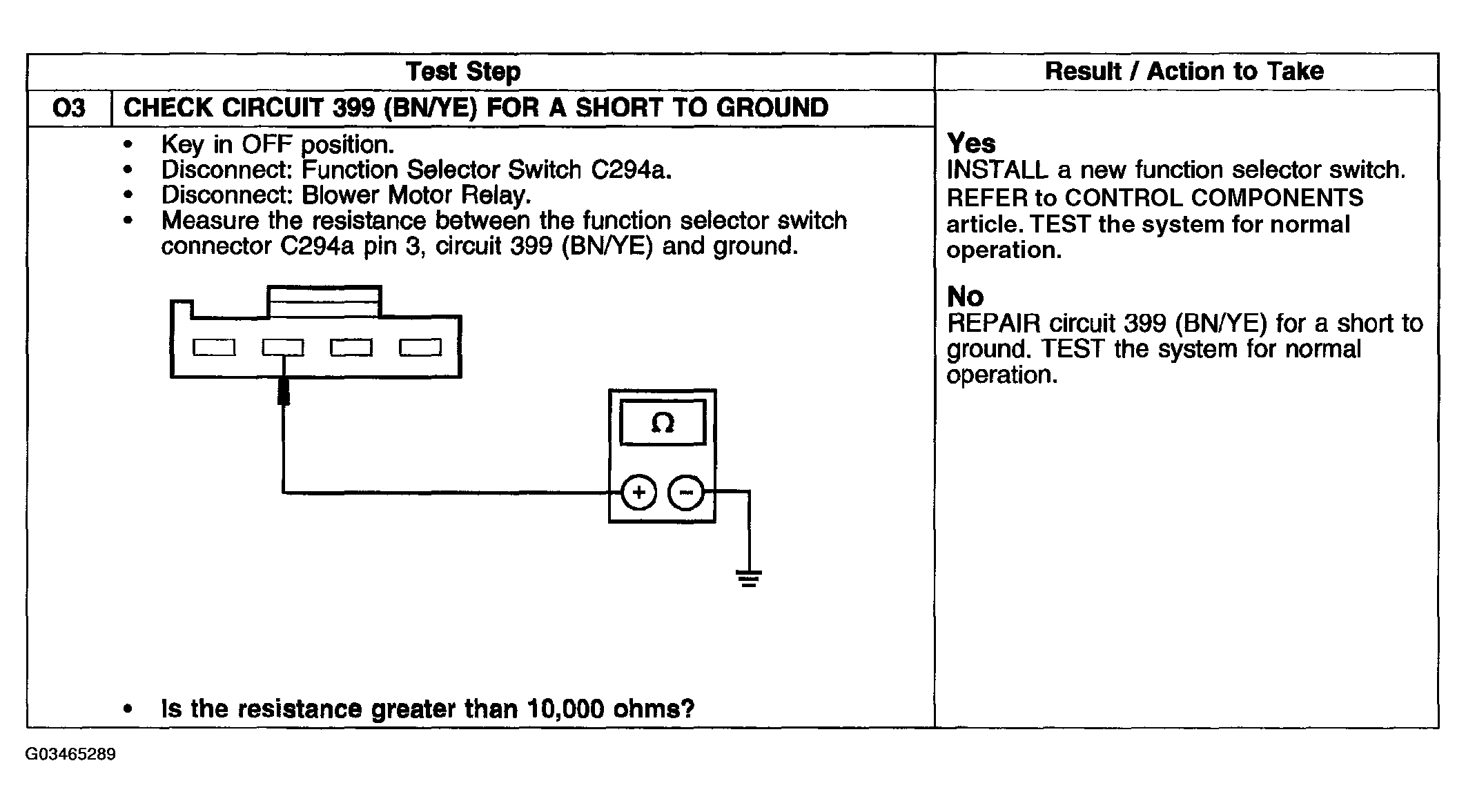

Fig 2: Pinpoint Test O: Blower Motor Operates Continuously In High Speed - Manual Climate Control (O3)
G03465289Courtesy of FORD MOTOR CO.
