Pinpoint Test N: The Blower Motor Is Inoperative - EATC

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

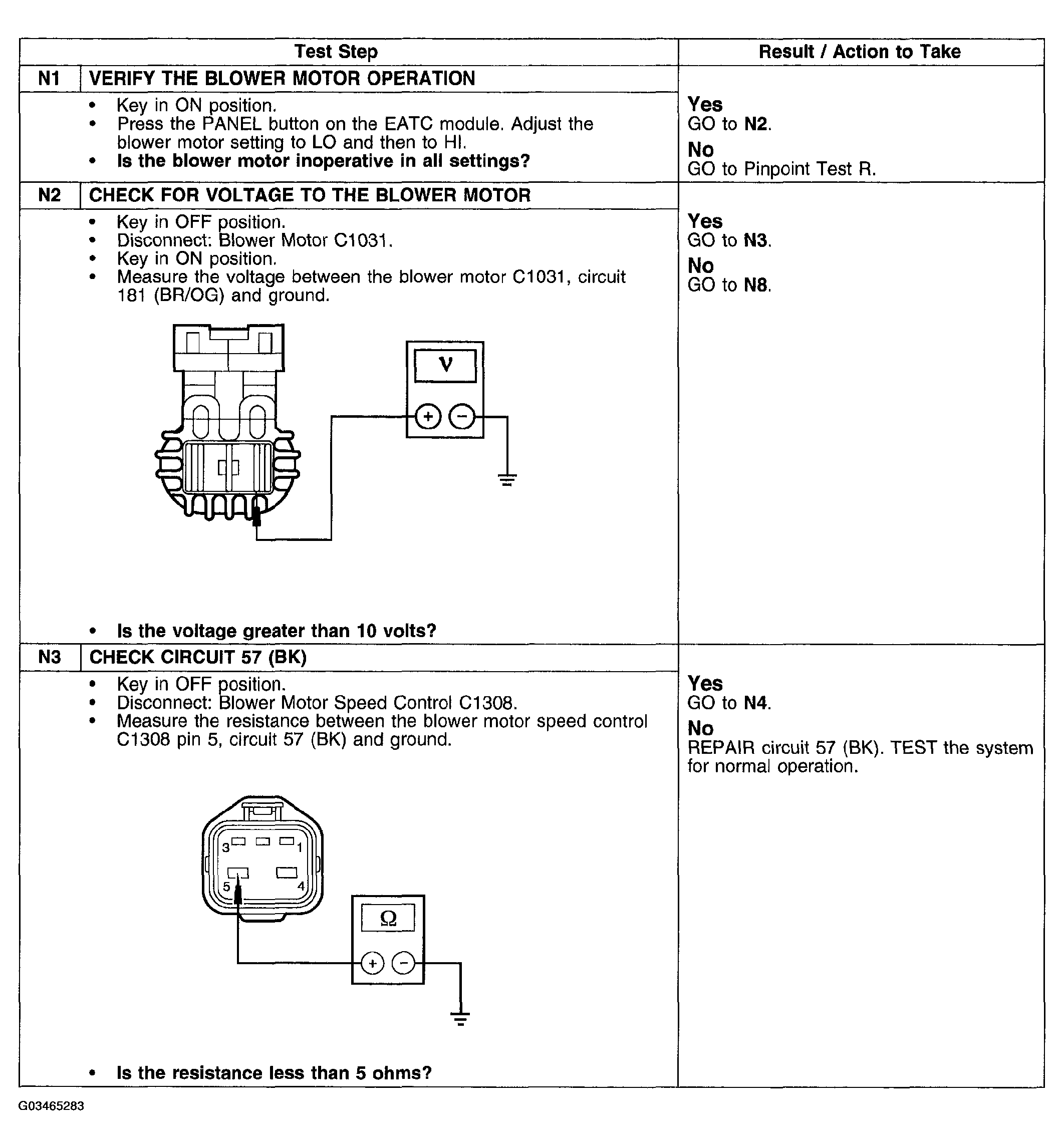

Fig 1: Pinpoint Test N: Blower Motor Is Inoperative - EATC (N1 To N3)

Courtesy of FORD MOTOR CO.

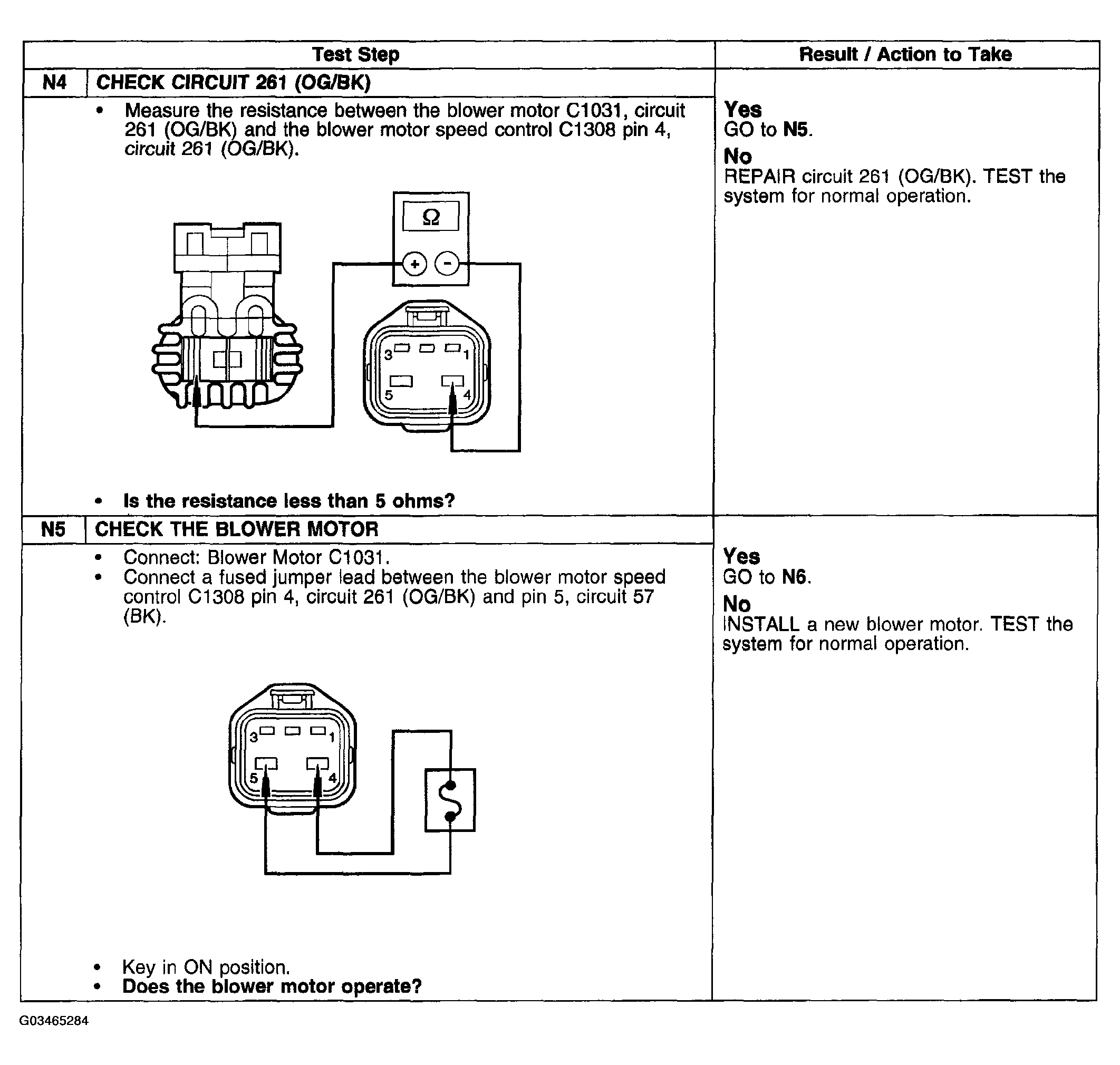

Fig 2: Pinpoint Test N: Blower Motor Is Inoperative - EATC (N4 To N5)

Courtesy of FORD MOTOR CO.

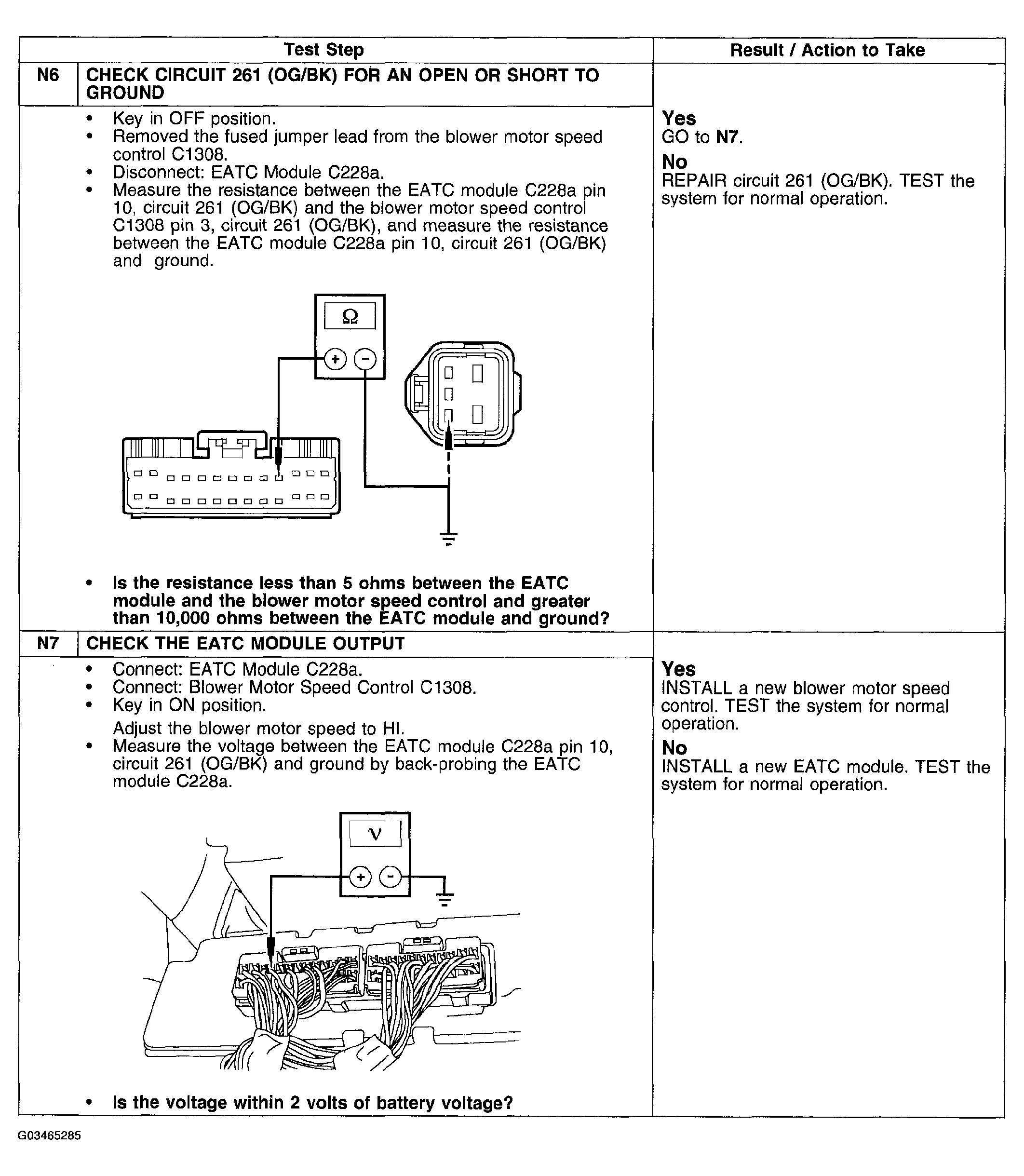

Fig 3: Pinpoint Test N: Blower Motor Is Inoperative - EATC (N6 To N7)

Courtesy of FORD MOTOR CO.

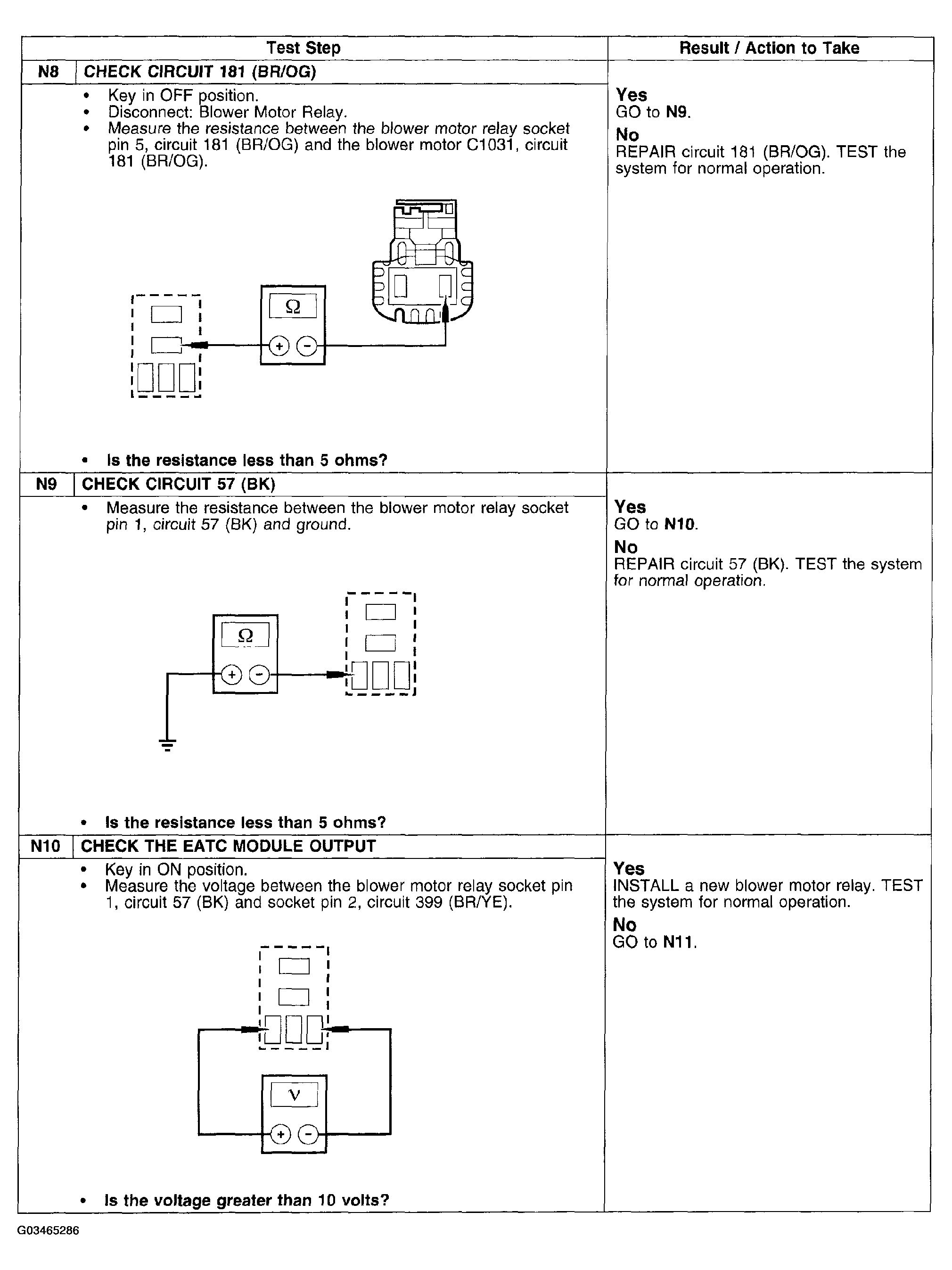

Fig 4: Pinpoint Test N: Blower Motor Is Inoperative - EATC (N8 To N10)

Courtesy of FORD MOTOR CO.

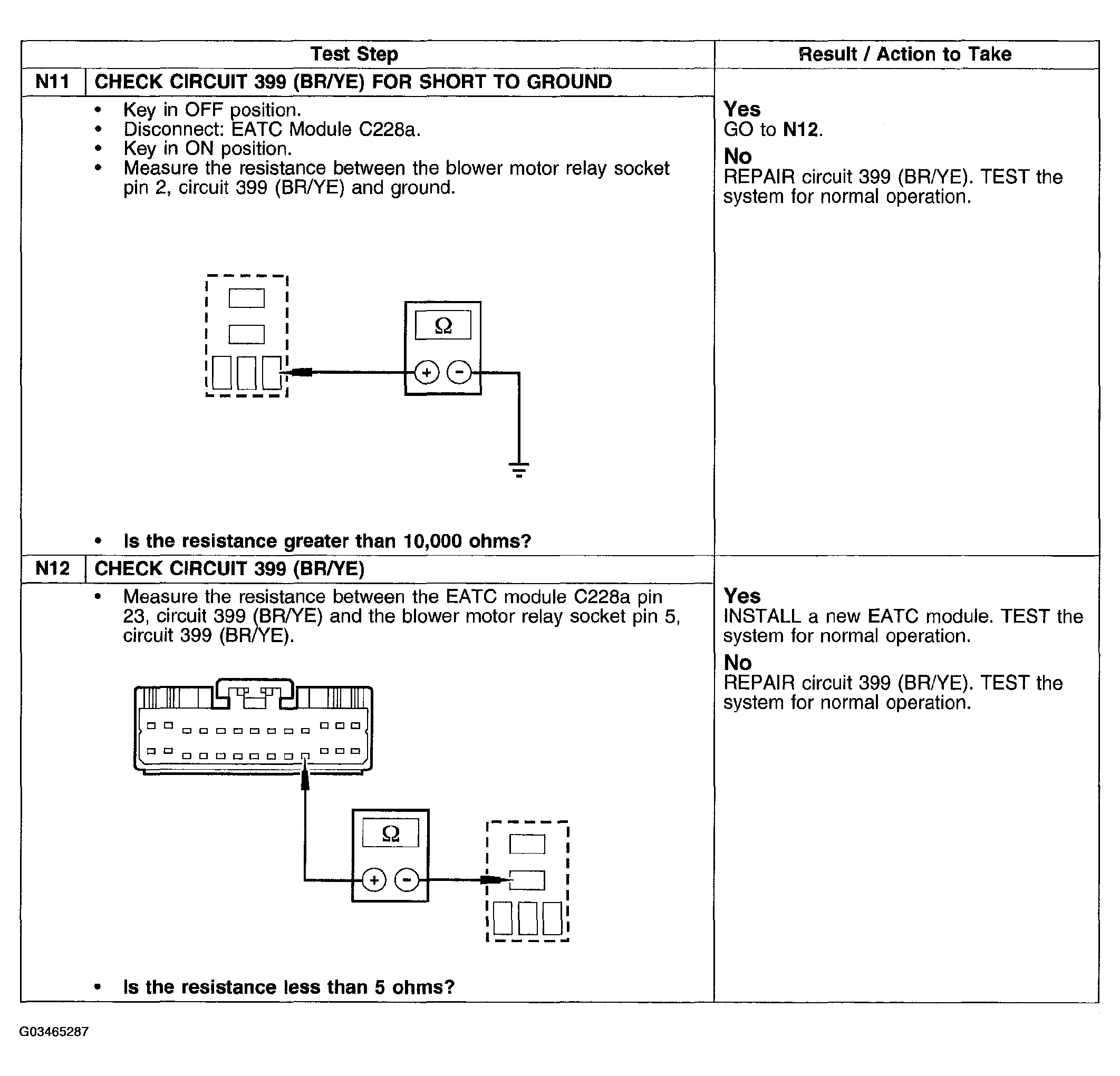

Fig 5: Pinpoint Test N: Blower Motor Is Inoperative - EATC (N11 To N12)

Courtesy of FORD MOTOR CO.
