Pinpoint Test M: The Blower Motor Is Inoperative - Manual Climate Control

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

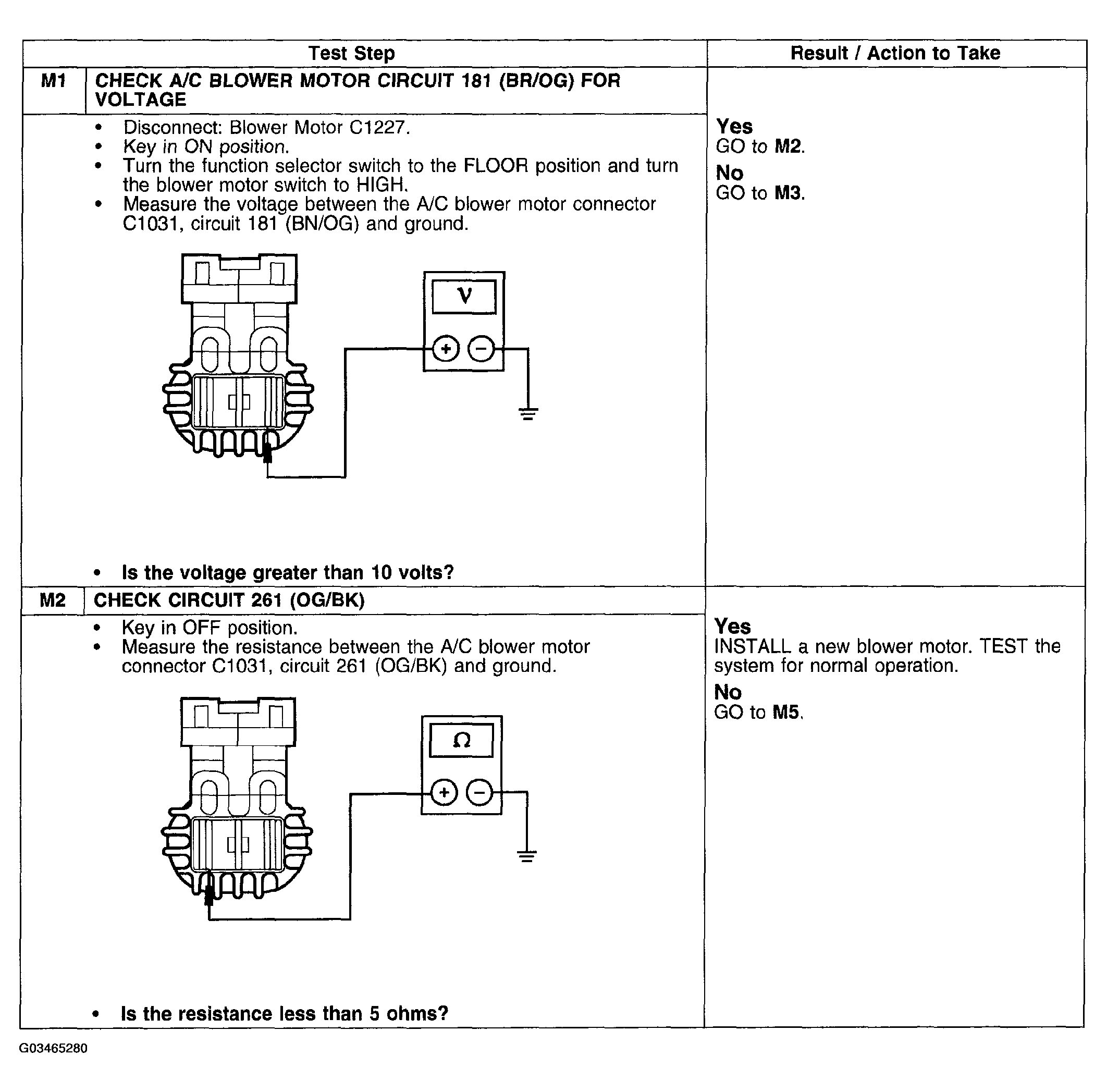

Fig 1: Pinpoint Test M: Blower Motor Is Inoperative - Manual Climate Control (M1 To M2)

Courtesy of FORD MOTOR CO.

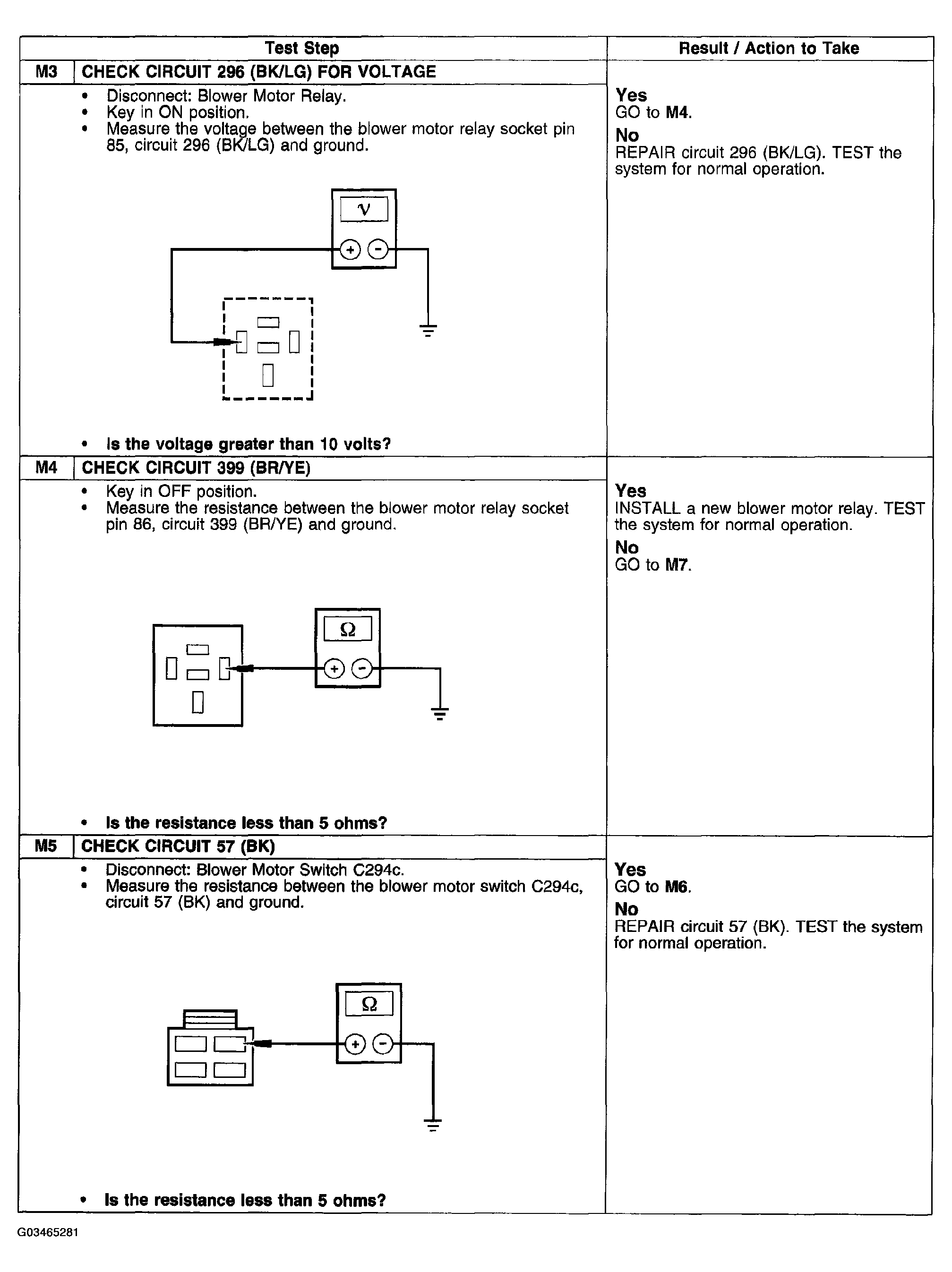

Fig 2: Pinpoint Test M: Blower Motor Is Inoperative - Manual Climate Control (M3 To M5)

Courtesy of FORD MOTOR CO.

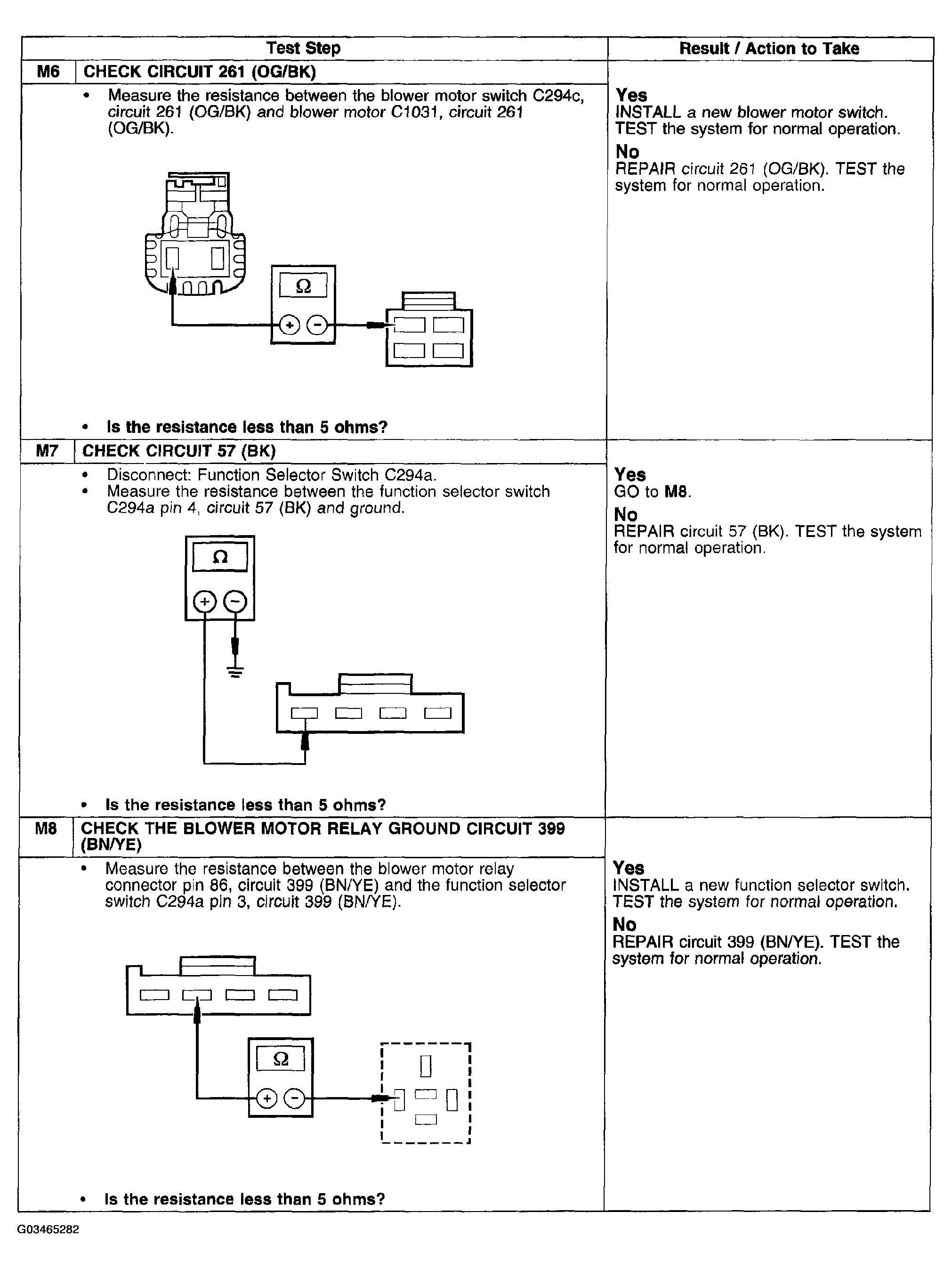

Fig 3: Pinpoint Test M: Blower Motor Is Inoperative - Manual Climate Control (M6 To M8)

Courtesy of FORD MOTOR CO.
