Pinpoint Test K: The A/C Is Always On

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

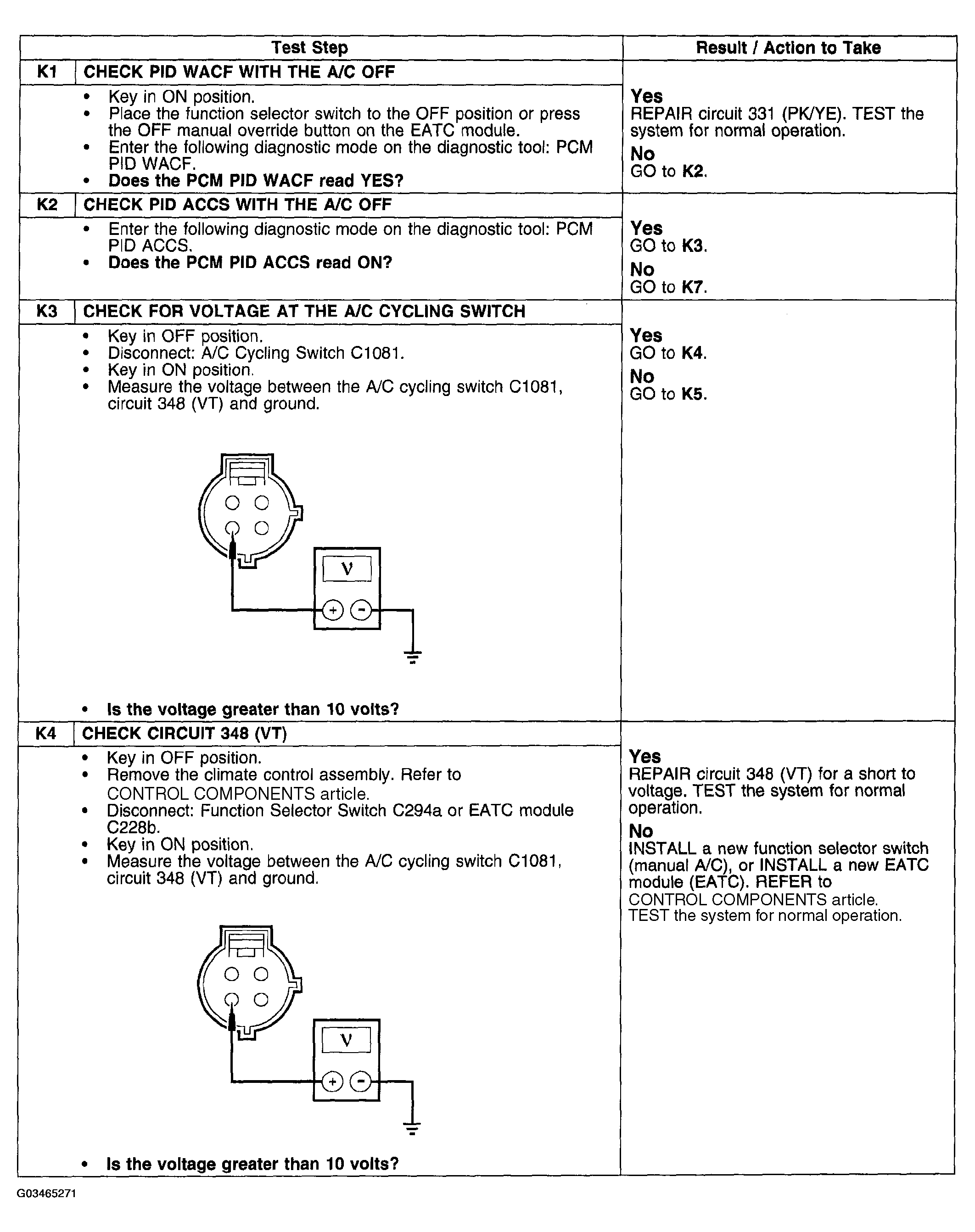

Fig 1: Pinpoint Test K: A/C Is Always On (K1 To K4)
G03465271Courtesy of FORD MOTOR CO.

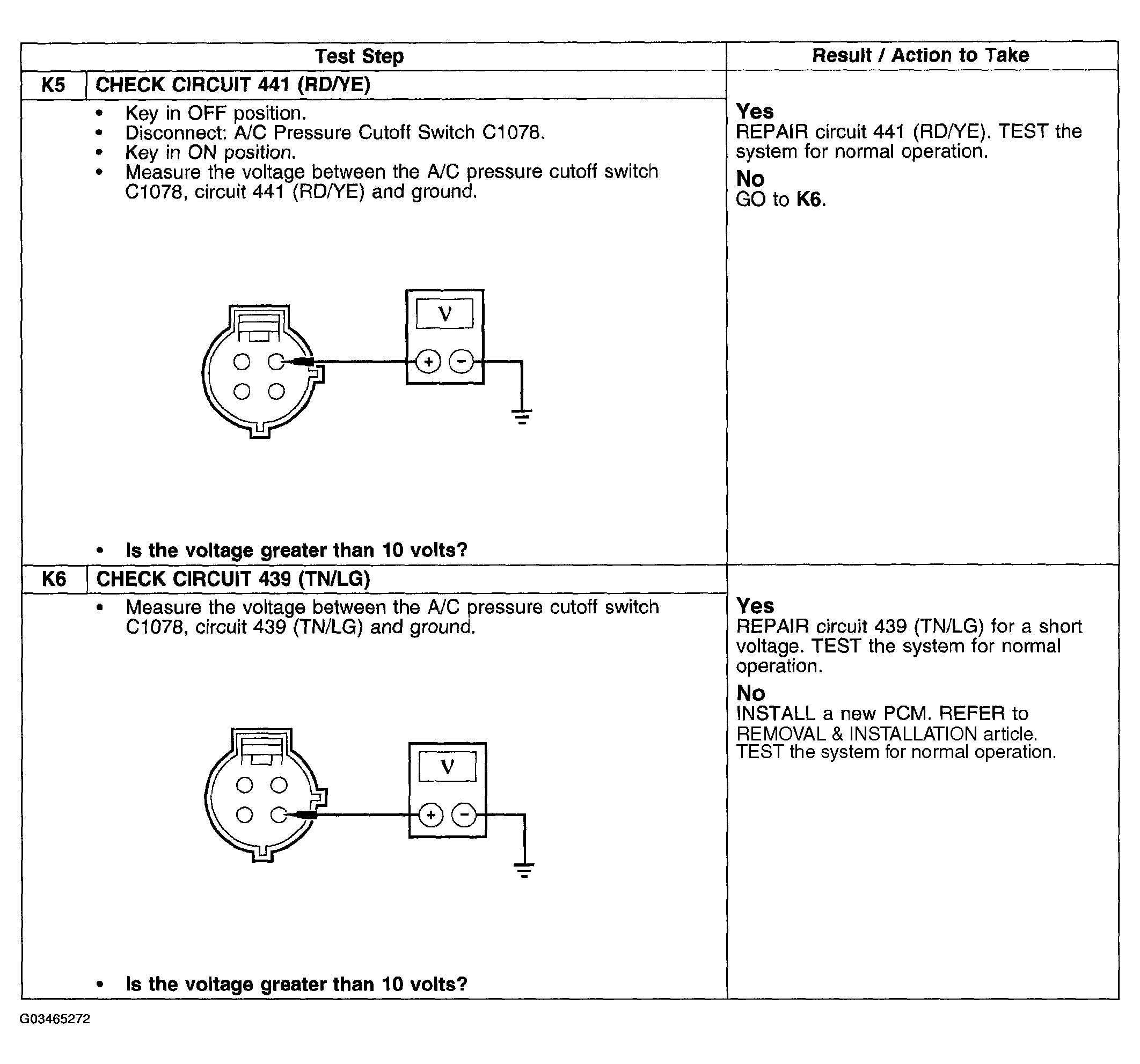

Fig 2: Pinpoint Test K: A/C Is Always On (K5 To K6)
G03465272Courtesy of FORD MOTOR CO.

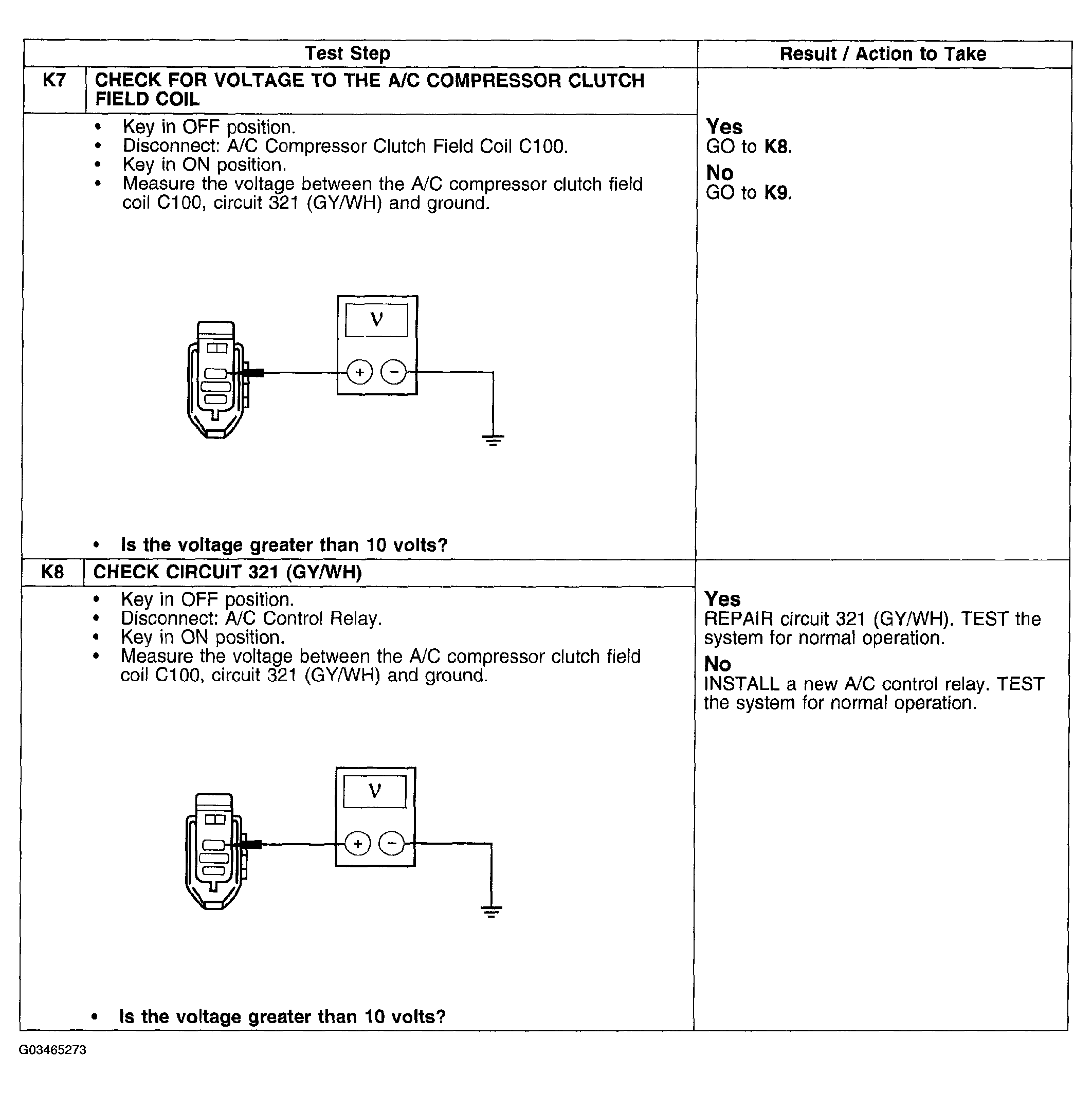

Fig 3: Pinpoint Test K: A/C Is Always On (K7 To K8)
G03465273Courtesy of FORD MOTOR CO.

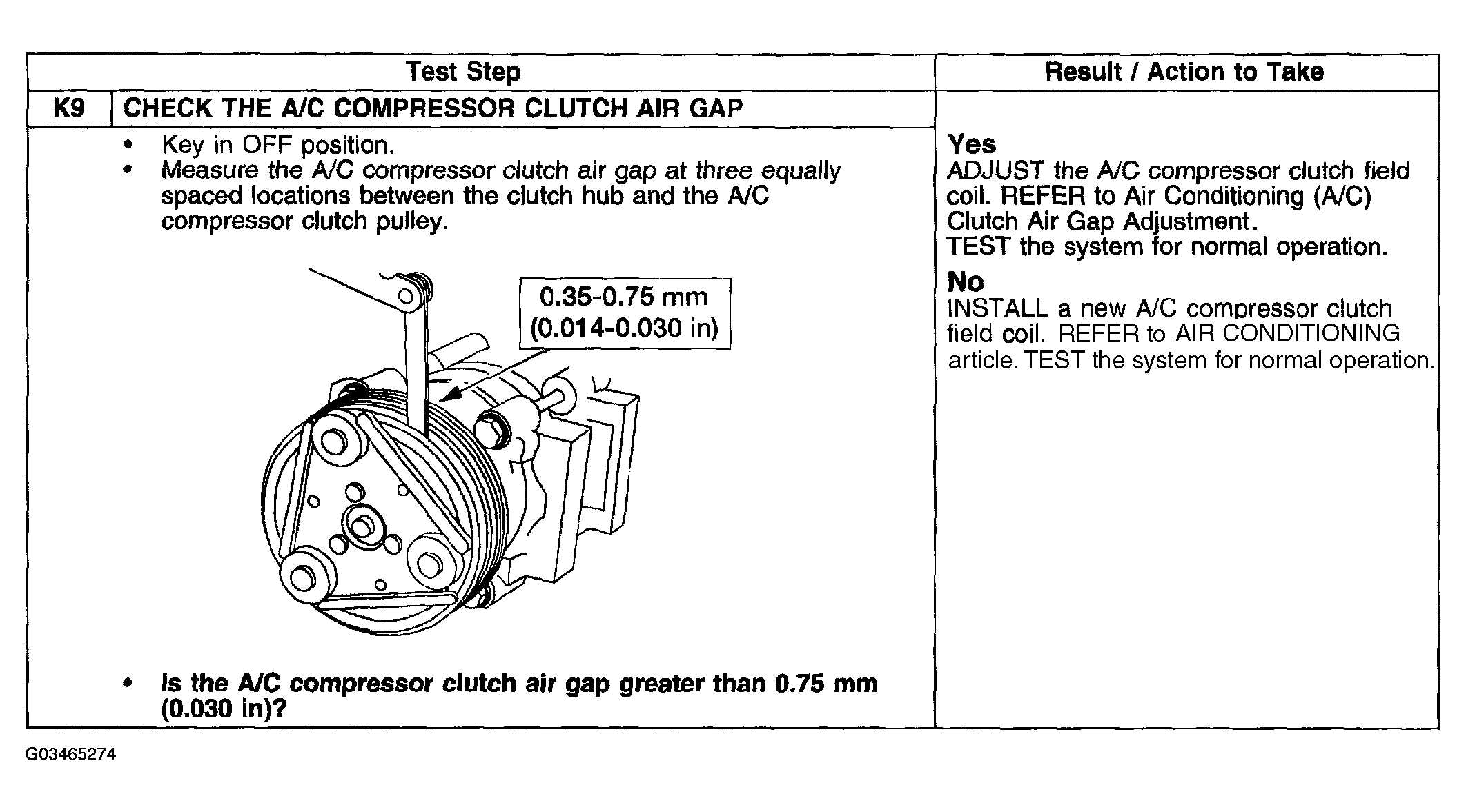

Fig 4: Pinpoint Test K: A/C Is Always On (K9)
G03465274Courtesy of FORD MOTOR CO.
