Pinpoint Test E: No Communication With The Electronic Automatic Temperature Control Module

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

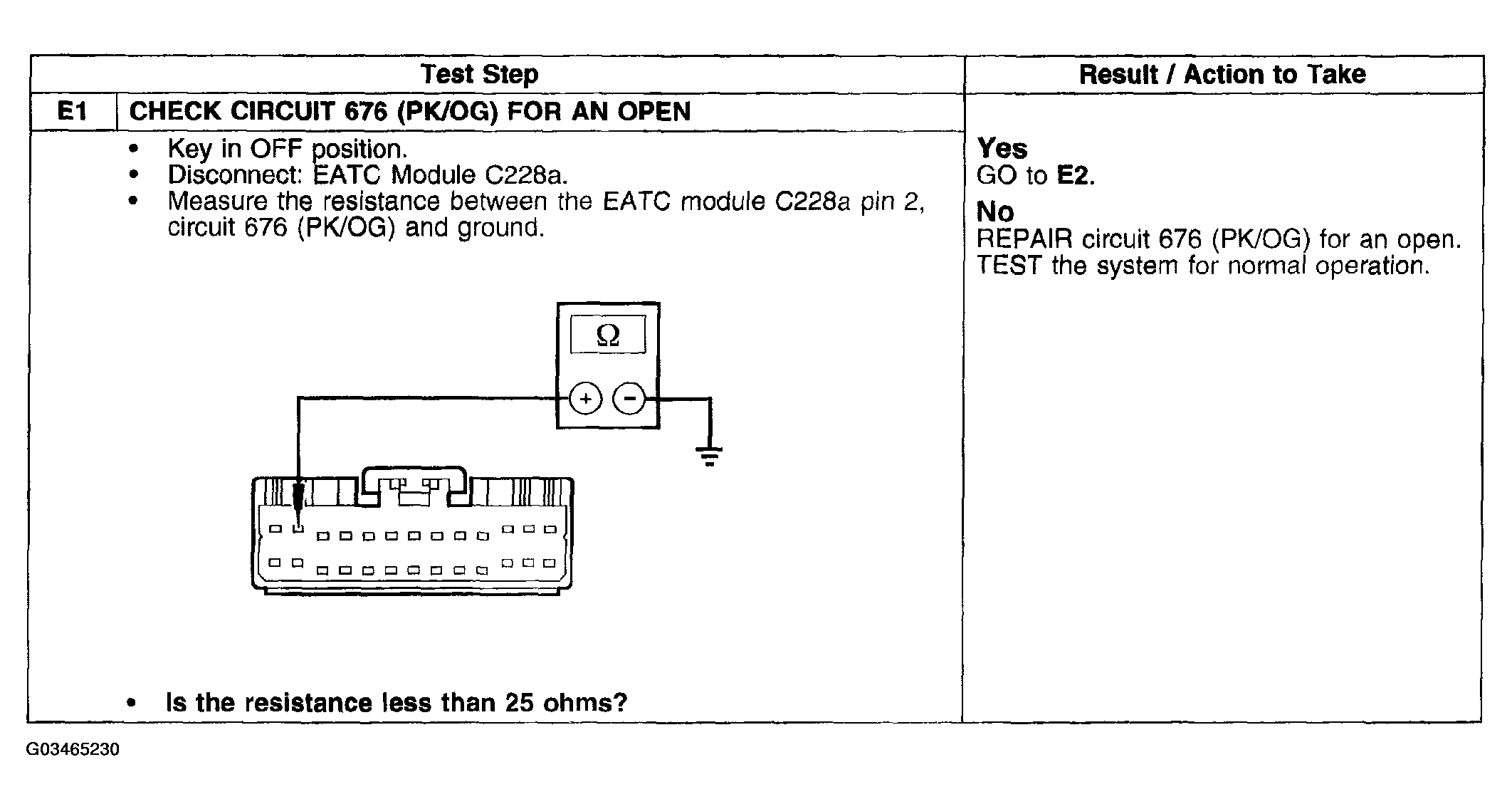

Fig 1: Pinpoint Test E: No Communication With Electronic Automatic Temperature Control Module (E1)

Courtesy of FORD MOTOR CO.

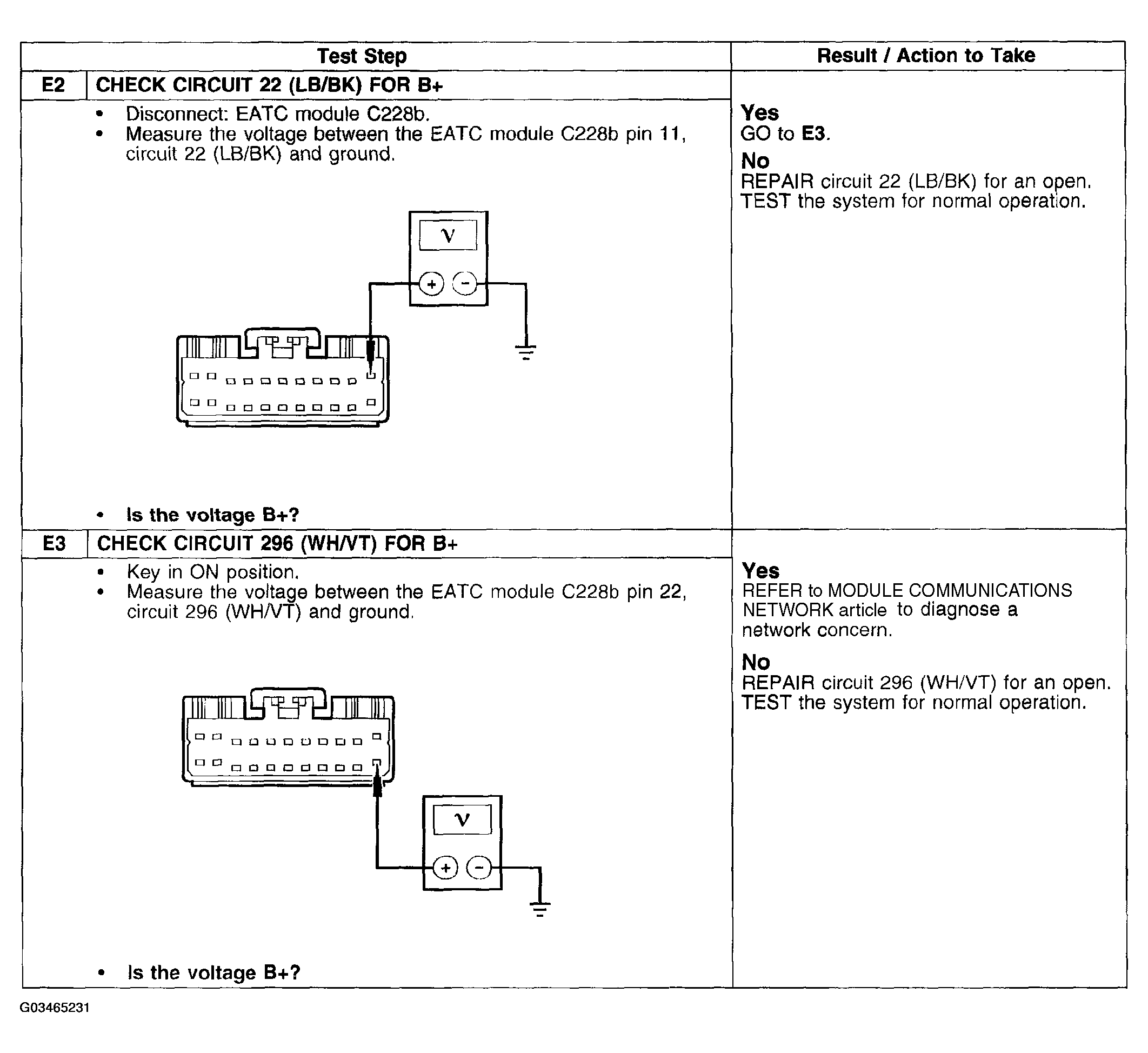

Fig 2: Pinpoint Test E: No Communication With Electronic Automatic Temperature Control Module (E2 To E3)

Courtesy of FORD MOTOR CO.
