Steering System Components - 5.4L and 6.8L Gas Engines with Hydro Boost Brake System (CIII Power Steering Pump)

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

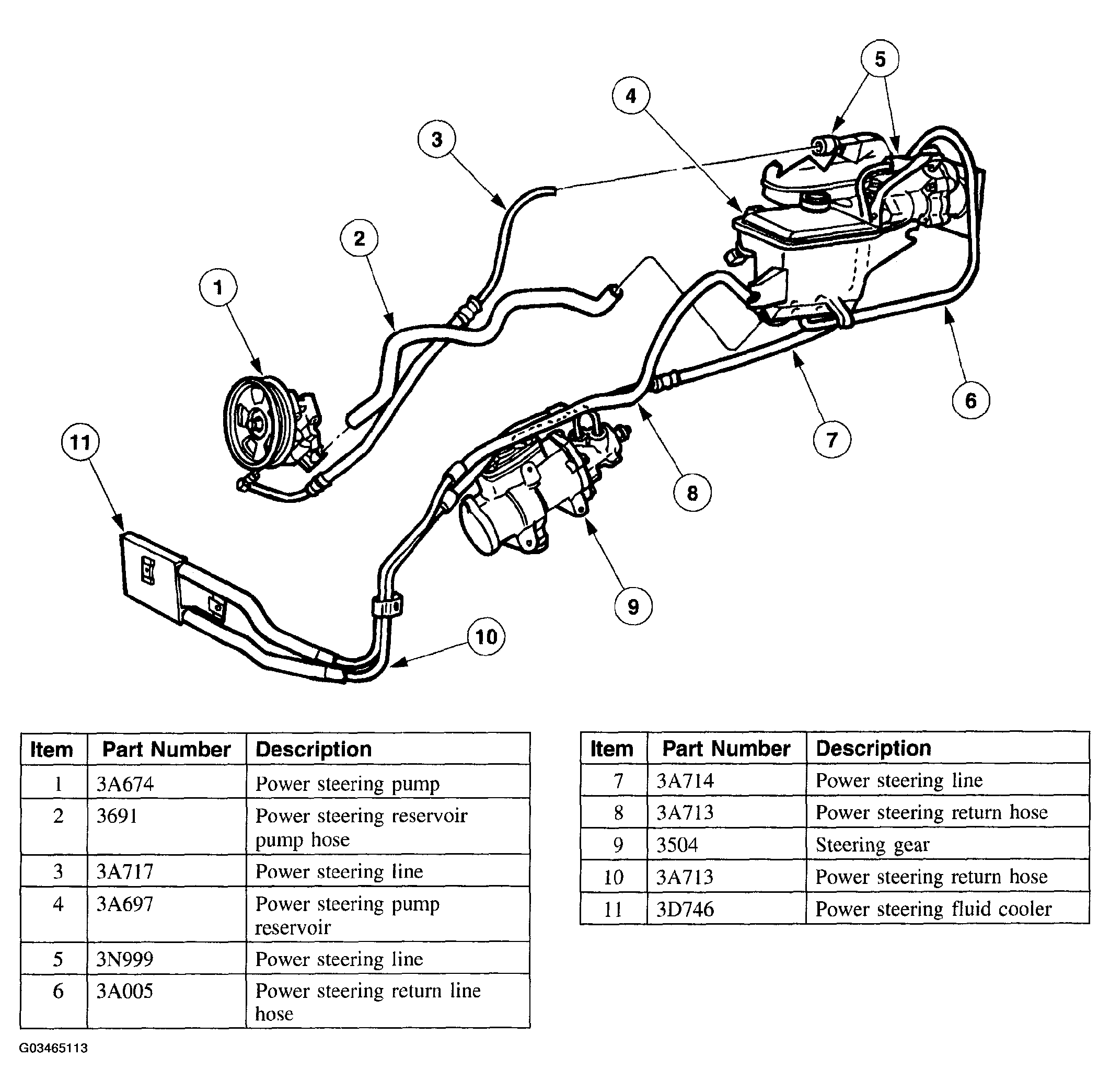

Fig 1: Identifying Steering System Components - 5.4L And 6.8L (Gas Engines With Hydro Boost Brake System)
G03465113Courtesy of FORD MOTOR CO.
