Brake System Bleeding: Manual

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.
CAUTION: Do not allow the brake master cylinder reservoir to run dry during the bleeding operation. Keep the brake master cylinder reservoir filled with the specified brake fluid. Never reuse the brake fluid that has been drained from the hydraulic system.
CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.
NOTE: When any part of the hydraulic system has been disconnected for repair or replacement, air may get into the system and cause spongy brake pedal action. This requires bleeding of the hydraulic system after it has been properly connected. The hydraulic system can be bled manually or with pressure bleeding equipment.
  1. Clean all dirt from and remove the brake master cylinder filler cap and fill the brake master cylinder reservoir with the specified brake fluid.
    Fig 1: Cleaning All Dirt From And Removing Brake Master Cylinder Filler Cap
    G03465104Courtesy of FORD MOTOR CO.
  2. Place a box end wrench on the RH rear bleeder screw. Attach a rubber drain tube to the RH rear bleeder screw and submerge the free end of the tube in a container partially filled with clean brake fluid.

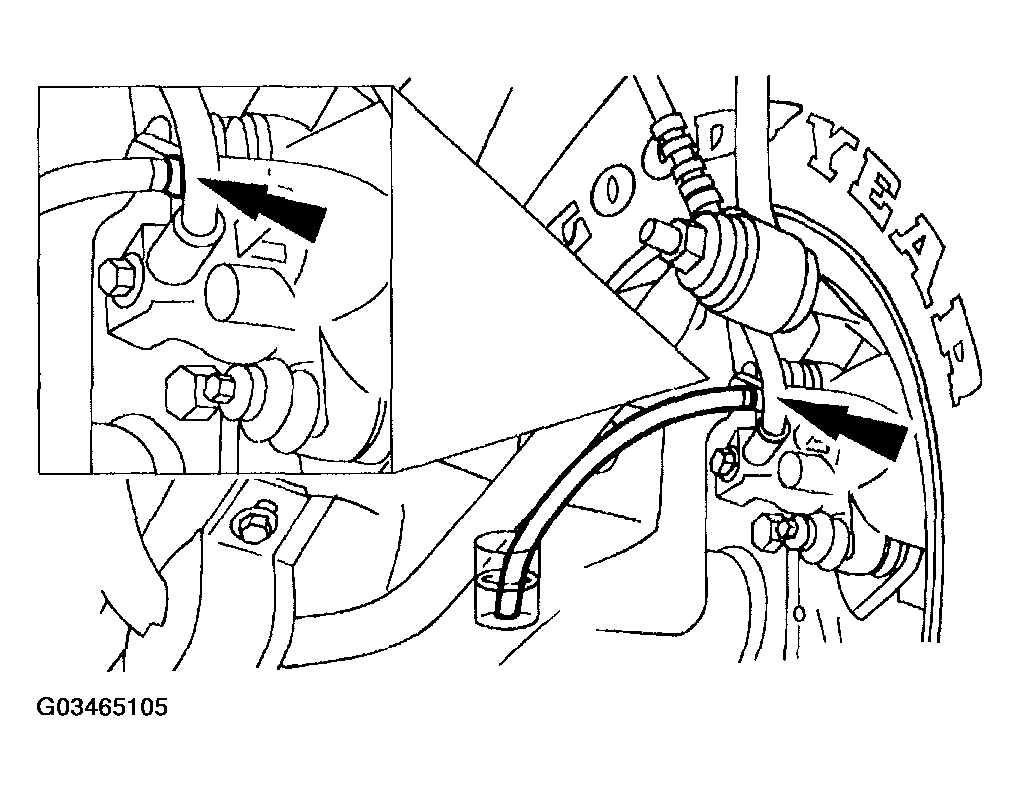

    Fig 2: Attaching Rubber Drain Tube To RH Rear Bleeder Screw
    G03465105Courtesy of FORD MOTOR CO.
  3. Have an assistant pump the brake pedal and then hold firm pressure on the brake pedal.
  4. Loosen the RH rear bleeder screw until a stream of brake fluid comes out. While the assistant maintains pressure on the brake pedal, tighten the RH rear bleeder screw.
    • Repeat until clear, bubble-free fluid comes out.
    • Refill the brake master cylinder reservoir as necessary.
  5. Tighten the RH rear bleeder screw.

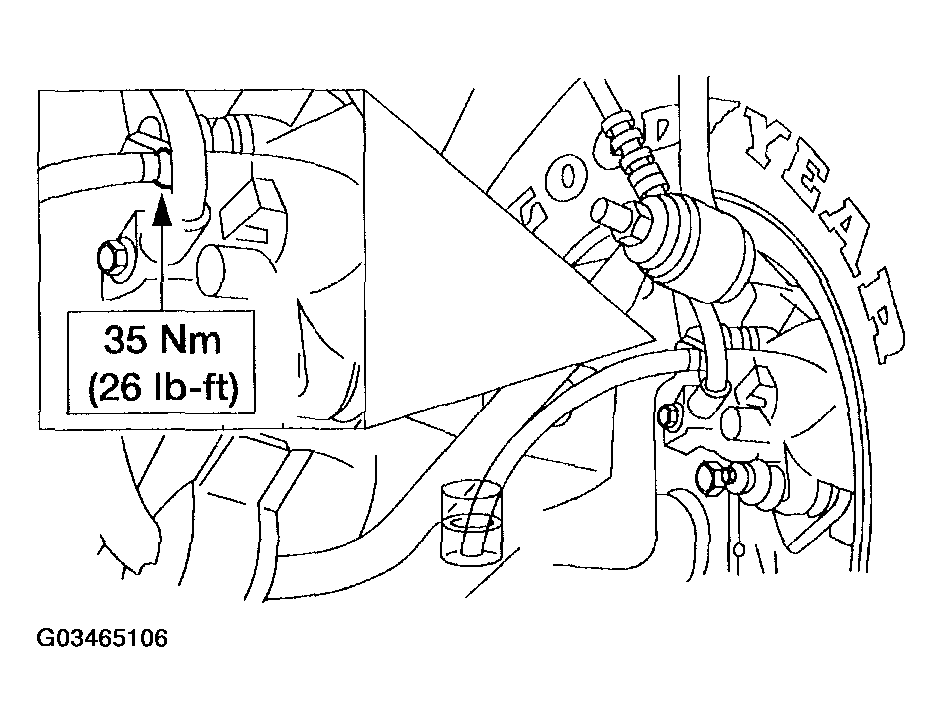

    Fig 3: Tightening RH Rear Bleeder Screw
    G03465106Courtesy of FORD MOTOR CO.
  6. Repeat Steps  2,  3,  4 and  5 for the LH rear bleeder screw.
  7. Place a box end wrench on the RH front disc brake caliper bleeder screw. Attach a rubber drain tube to the RH front disc brake caliper bleeder screw, and submerge the free end of the tube in a container partially filled with clean brake fluid.

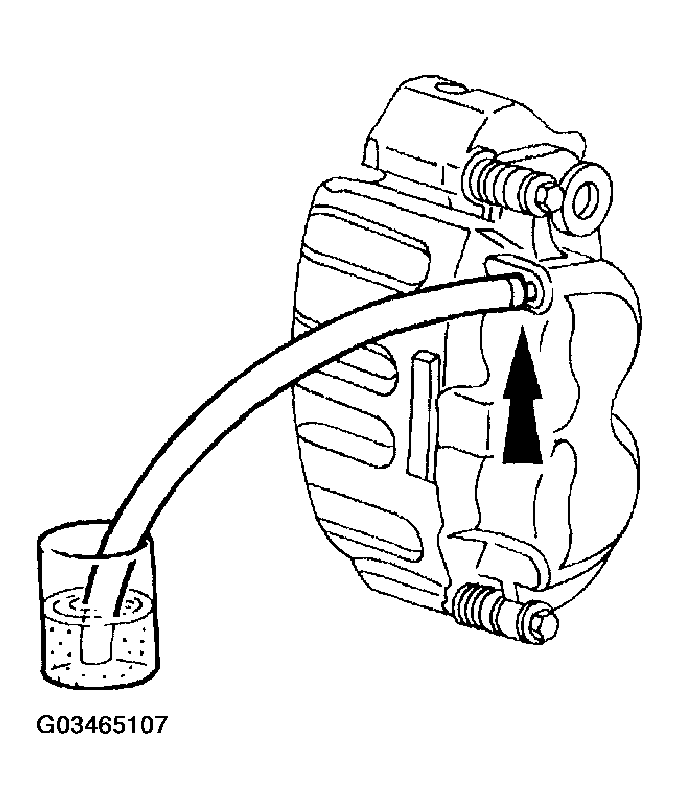

    Fig 4: Attaching Rubber Drain Tube To RH Front Disc Brake Caliper Bleeder Screw
    G03465107Courtesy of FORD MOTOR CO.
  8. Have an assistant pump the brake pedal and then hold firm pressure on the brake pedal.
  9. Loosen the RH front disc brake caliper bleeder screw until a stream of brake fluid comes out. While the assistant maintains pressure on the brake pedal, tighten the RH front disc brake caliper bleeder screw.
    • Repeat until clear, bubble-free fluid comes out.
    • Refill the brake master cylinder reservoir as necessary.
  10. Tighten the RH front disc brake caliper bleeder screw. Refer to SPECIFICATIONS .

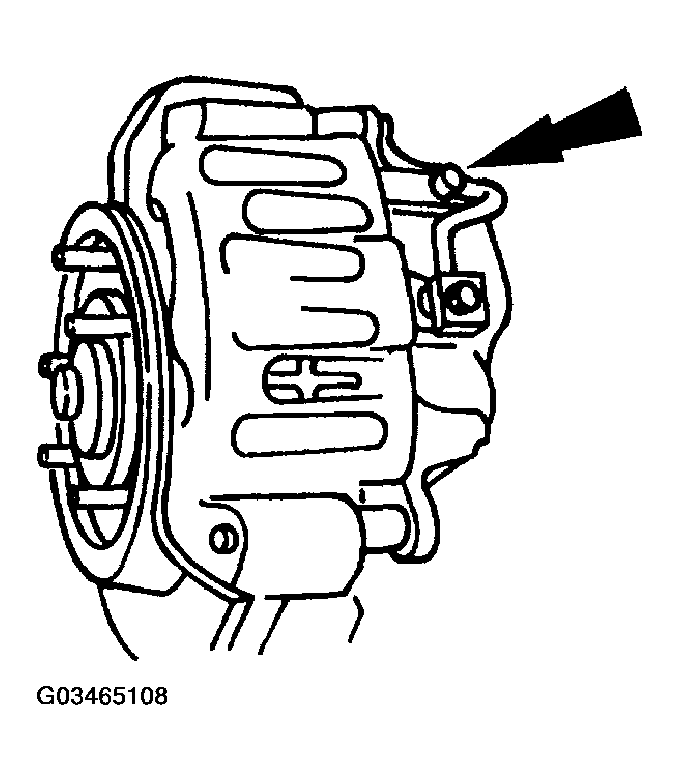

    Fig 5: Tightening RH Front Disc Brake Caliper Bleeder Screw
    G03465108Courtesy of FORD MOTOR CO.
  11. Repeat Steps  7,  8,  9 and  10 for the LH front disc brake caliper bleeder screw.
