Pinpoint Test E: Adjustable Brake Pedal Does Not Move

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

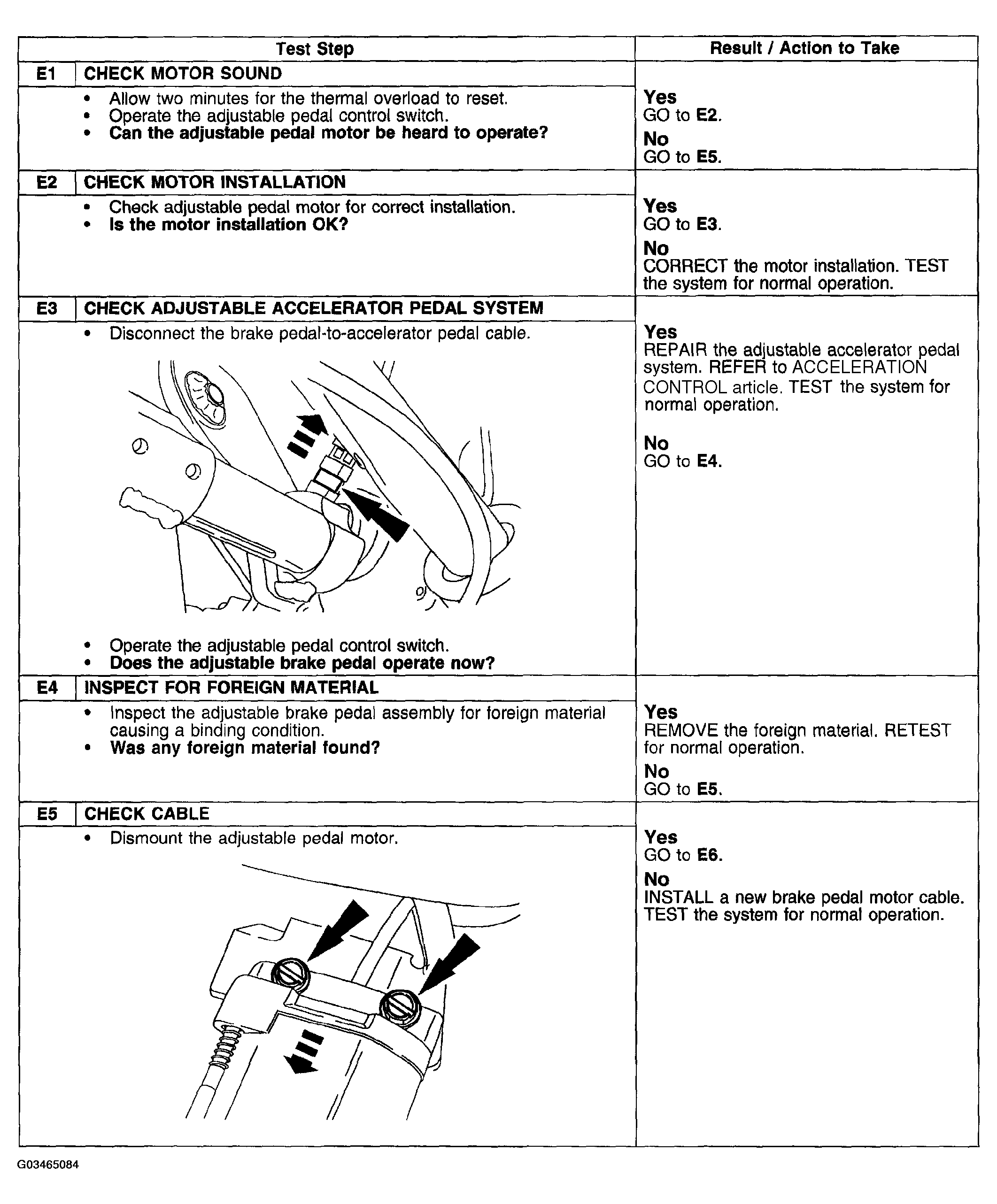

Fig 1: Pinpoint Test E: Adjustable Brake Pedal Does Not Move (E1 To E5)
G03465084Courtesy of FORD MOTOR CO.

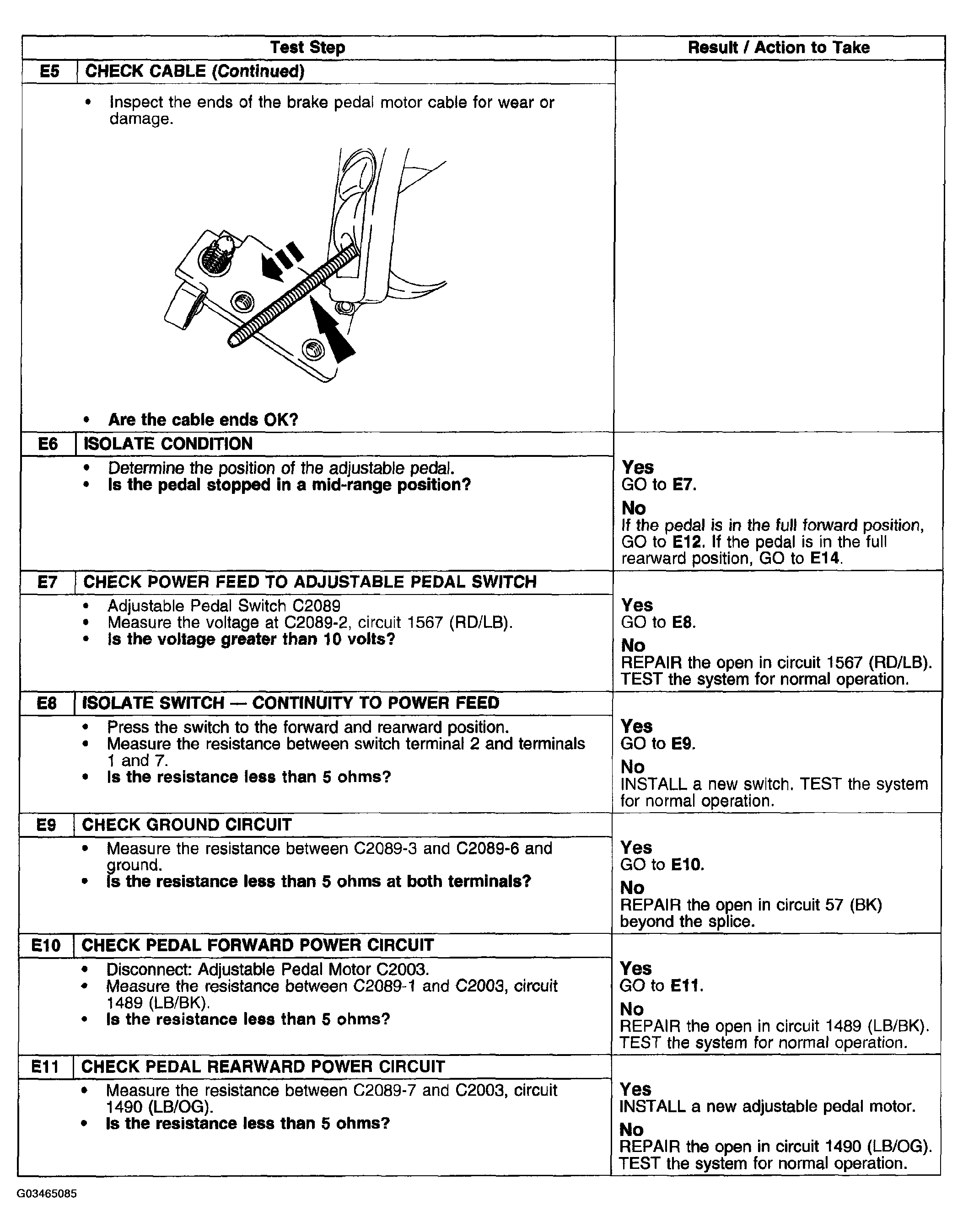

Fig 2: Pinpoint Test E: Adjustable Brake Pedal Does Not Move (E5 To E11)
G03465085Courtesy of FORD MOTOR CO.

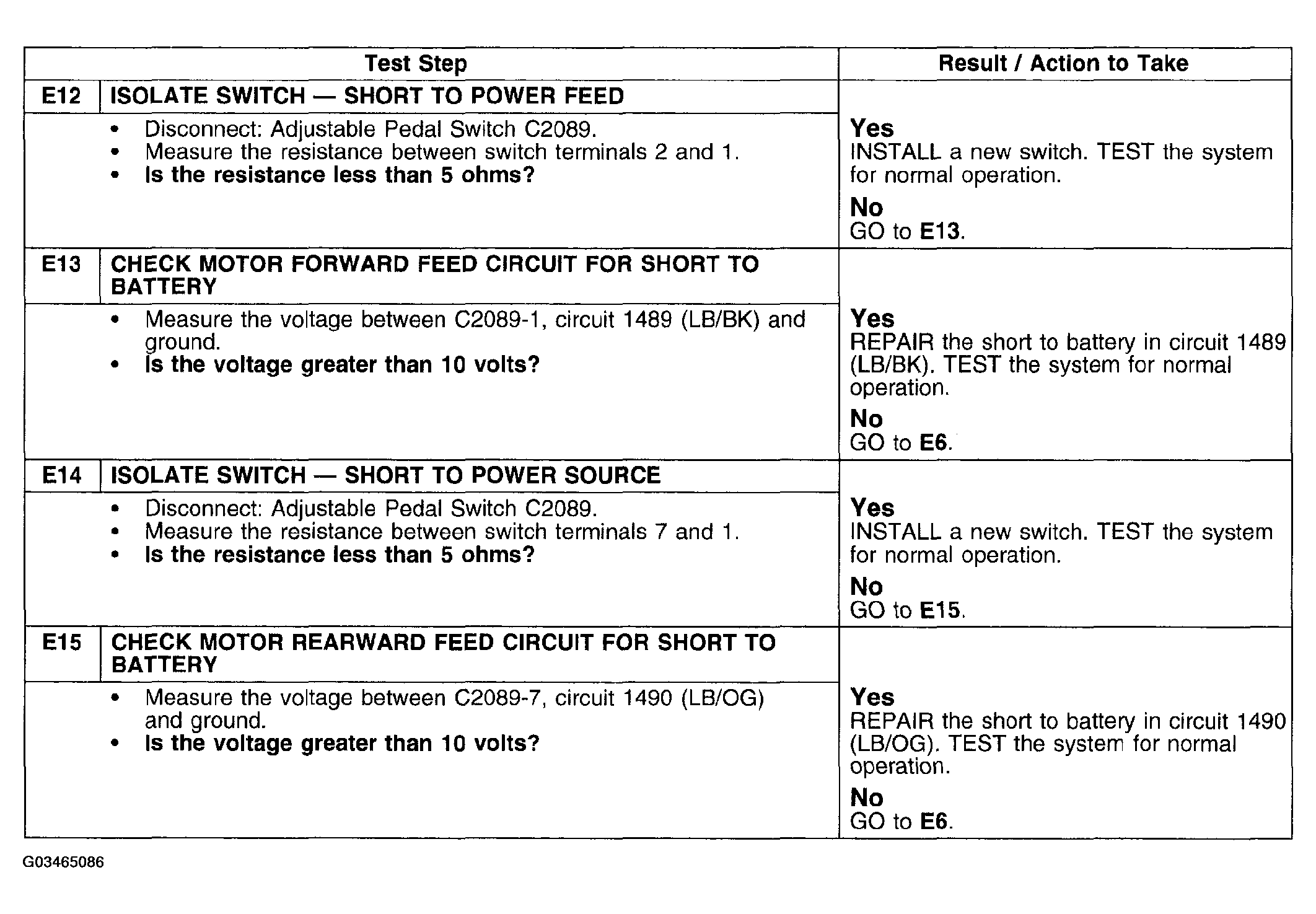

Fig 3: Pinpoint Test E: Adjustable Brake Pedal Does Not Move (E12 To E15)
G03465086Courtesy of FORD MOTOR CO.
