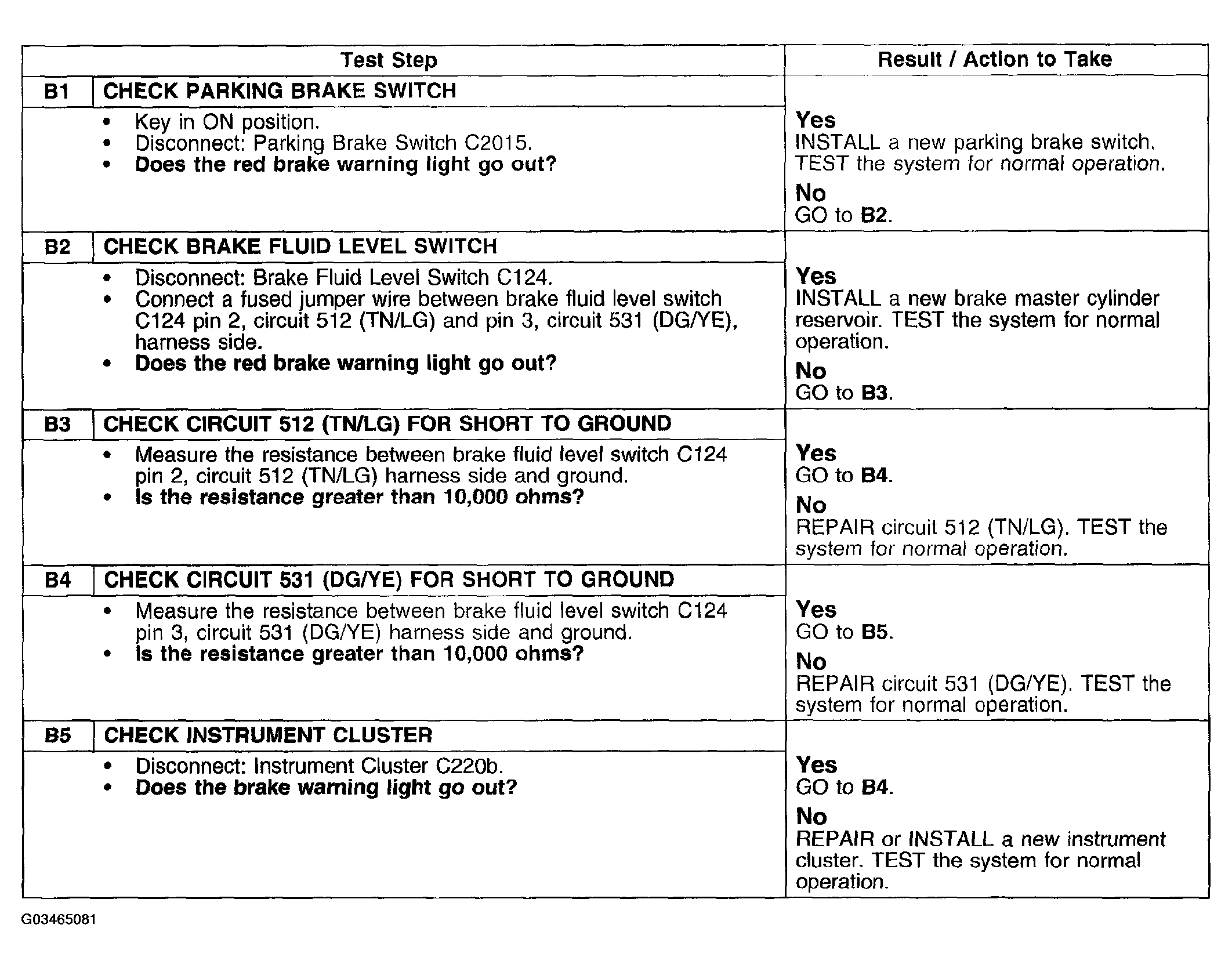

Pinpoint Test B: Red Brake Warning Indicator Always On
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Prior to troubleshooting the vehicle for this concern, verify that the rubber bumper on the parking brake pedal arm contacts the parking brake switch when the pedal is in the fully released position.
