Pinpoint Test A: Brakes Pull Or Drift

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

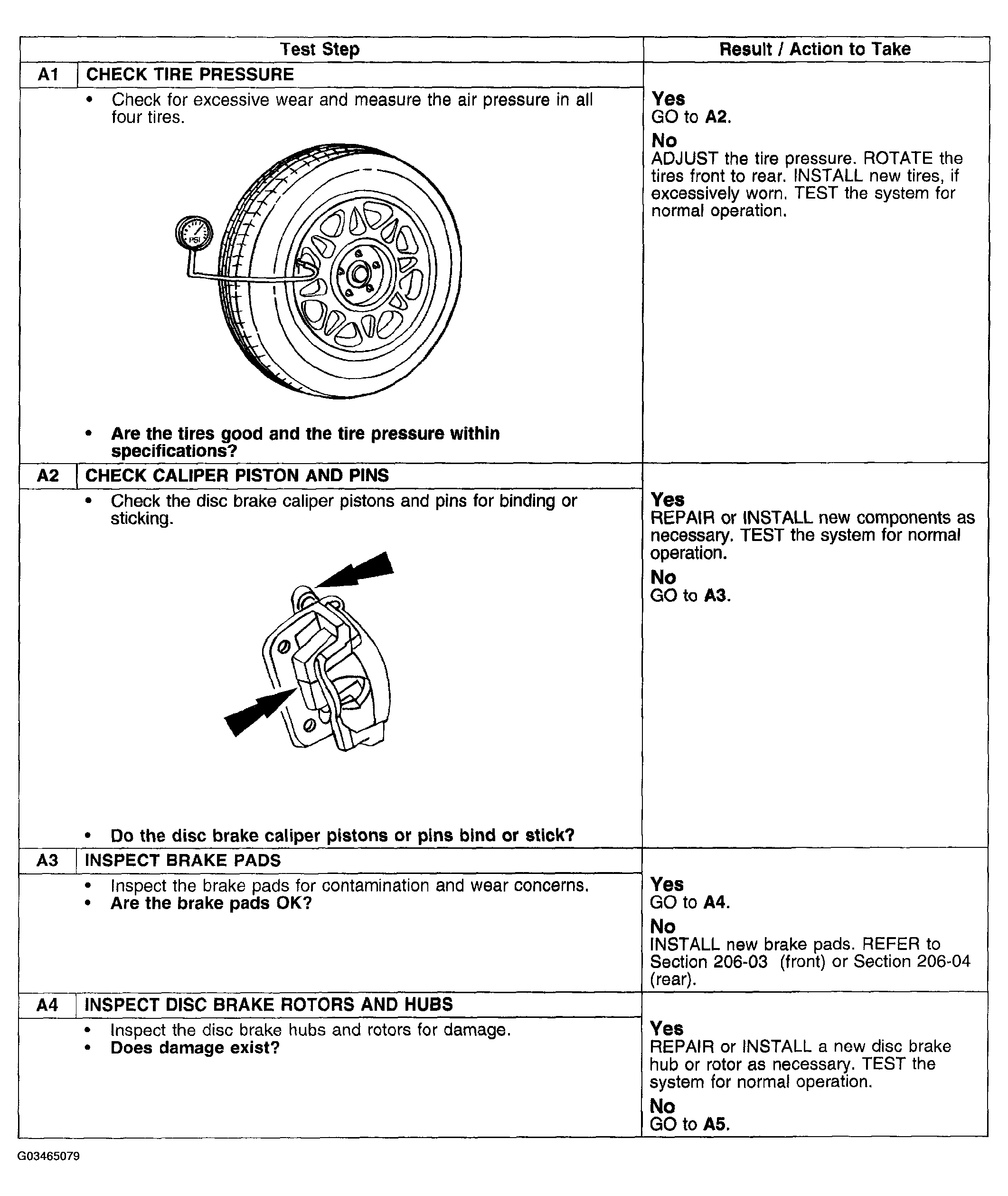

Fig 1: Pinpoint Test A: Brakes Pull Or Drift (A1 To A4)
G03465079Courtesy of FORD MOTOR CO.

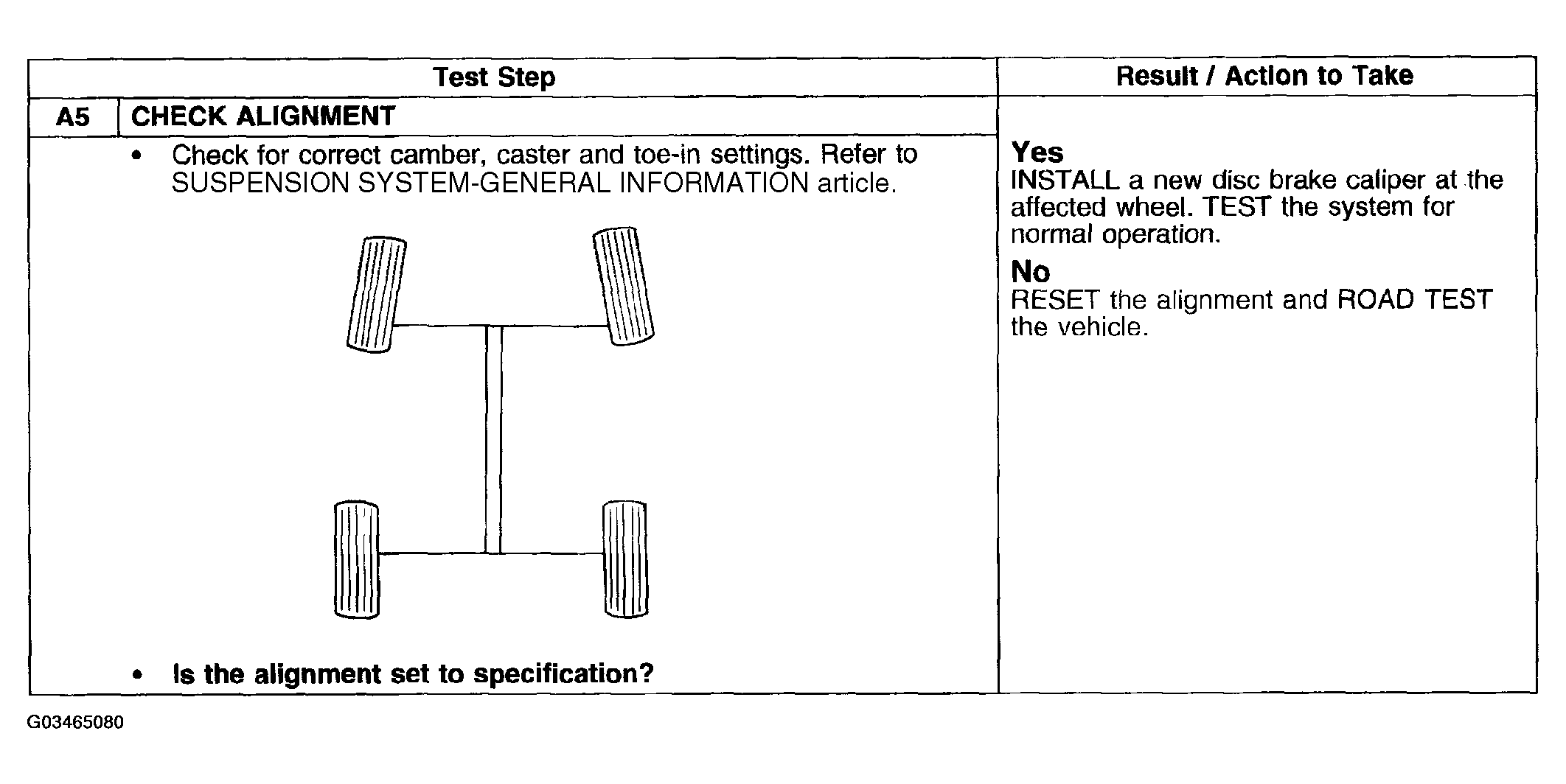

Fig 2: Pinpoint Test A: Brakes Pull Or Drift (A5)
G03465080Courtesy of FORD MOTOR CO.
