PINPOINT TEST I: DTCS B1990 and B1991: PEDAL FORWARD/REARWARD POTENTIOMETER FEEDBACK CIRCUIT SHORT TO BATTERY

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

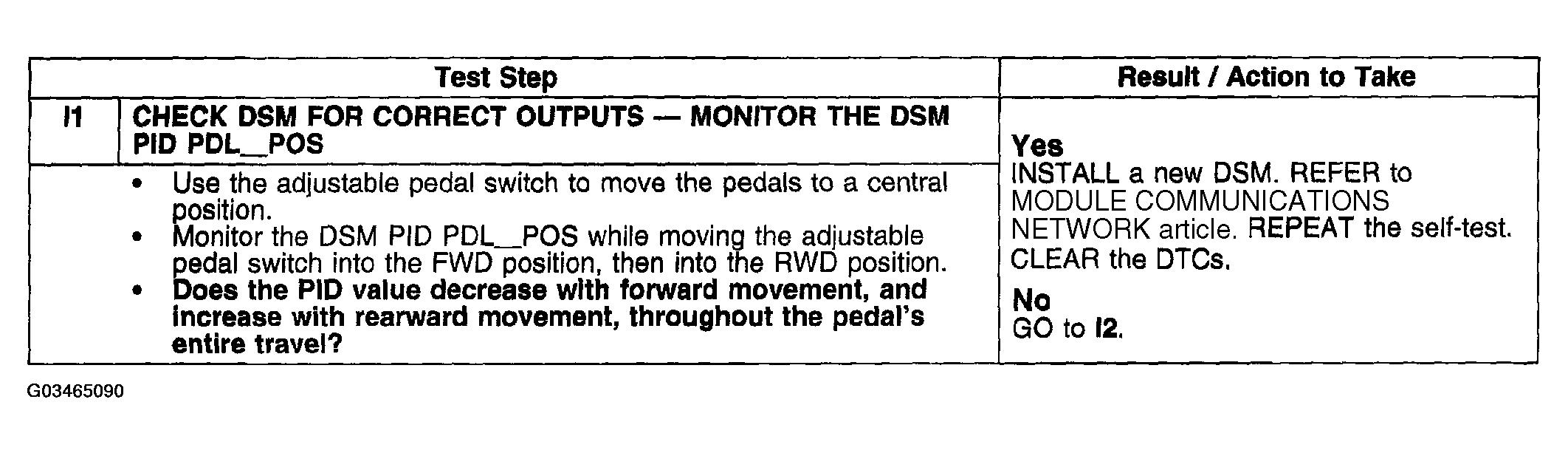

Fig 1: Pinpoint Test I: DTCS B1990 And B1991: Pedal Forward/Rearward Potentiometer Feedback Circuit Short To Battery (I1)
G03465090Courtesy of FORD MOTOR CO.

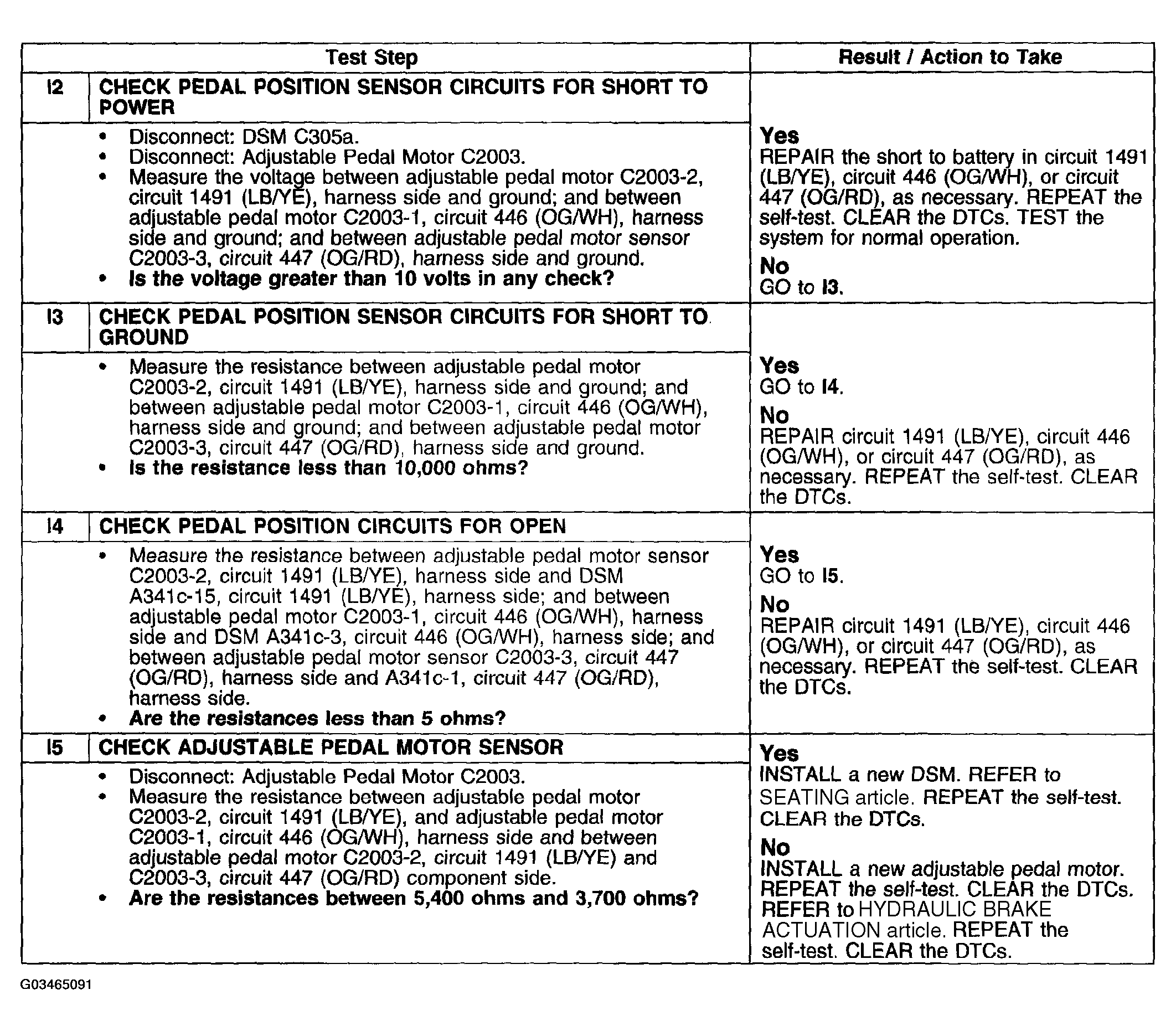

Fig 2: Pinpoint Test I: DTCS B1990 And B1991: Pedal Forward/Rearward Potentiometer Feedback Circuit Short To Battery (I2 To I5)
G03465091Courtesy of FORD MOTOR CO.
