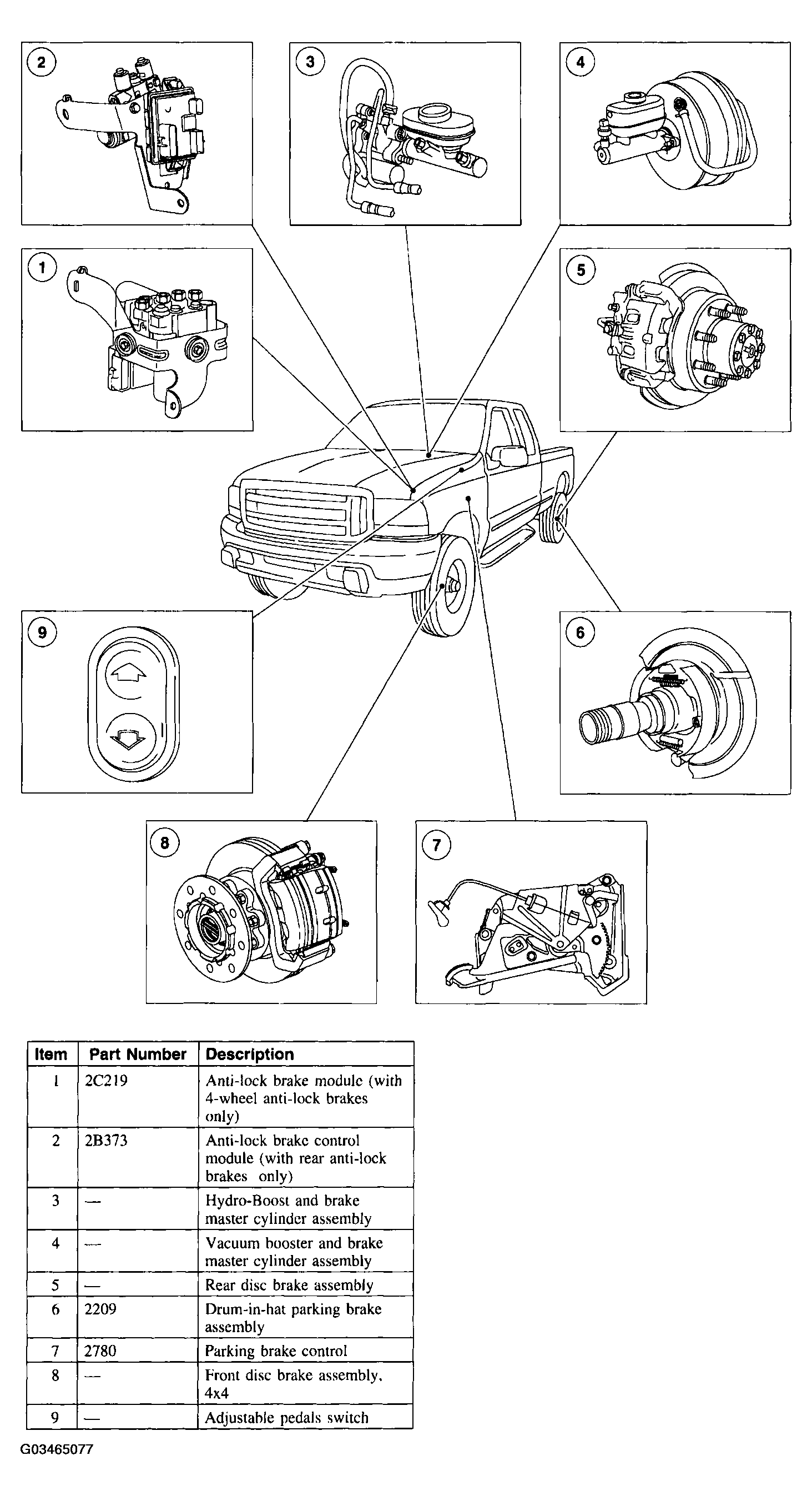

Component Locations
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
The power brake booster (2005) may be the vacuum or the Hydro-Boost type.
The braking system is a front to rear split hydraulic system. Refer to HYDRAULIC BRAKE ACTUATION .
The front wheel brakes utilize a dual piston brake caliper and disc brake system. Refer to DISC - EXCURSION, F250-F550 SUPER DUTY PICKUP .
The rear brakes utilize a dual piston brake caliper and disc brake system. Refer to DISC - EXCURSION, F250-F550 SUPER DUTY PICKUP .
The parking brake system is a mechanical system that activates a shoe-and-drum system within the rear disc brake rotor (2C026). Refer to PARKING BRAKE & ACTUATION .
The anti-lock brake system may be either 3-channel or 4-channel four wheel (4WABS). Refer to ANTI-LOCK CONTROL-4-WHEEL .
