Axle Noise: Knock

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Knock, which can occur on all driving phases, has several causes including damaged teeth or gearset.

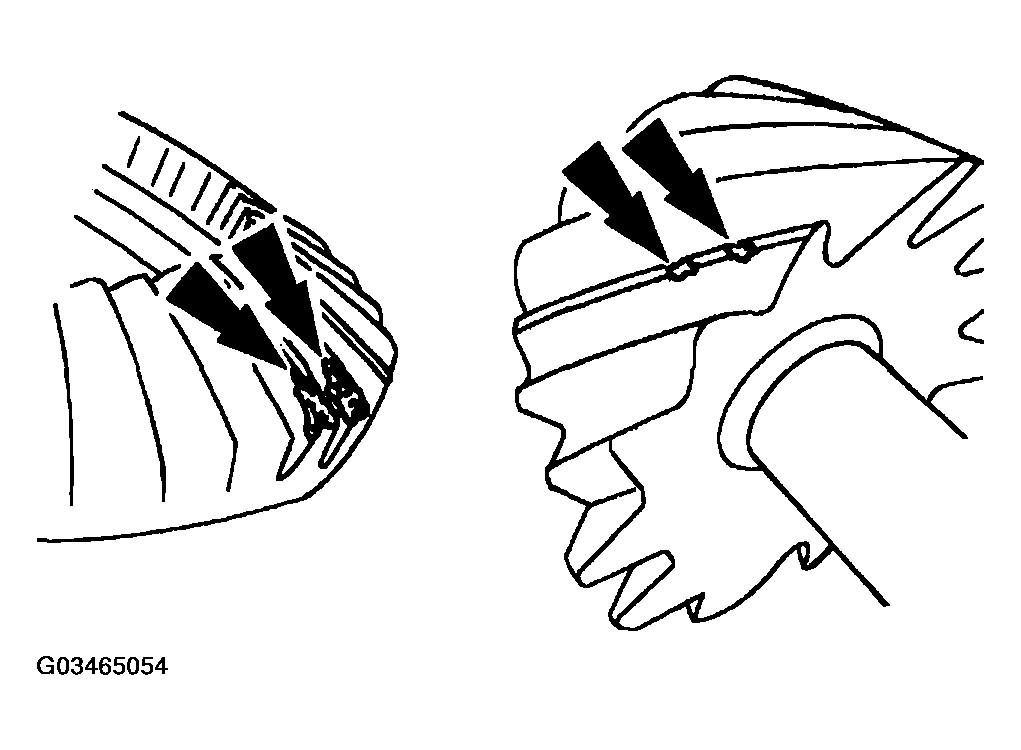

Fig 1: Identifying Knock
G03465054Courtesy of FORD MOTOR CO.

A gear tooth damaged on the drive side is a common cause of the knock. This can usually be corrected by grinding the damaged area.

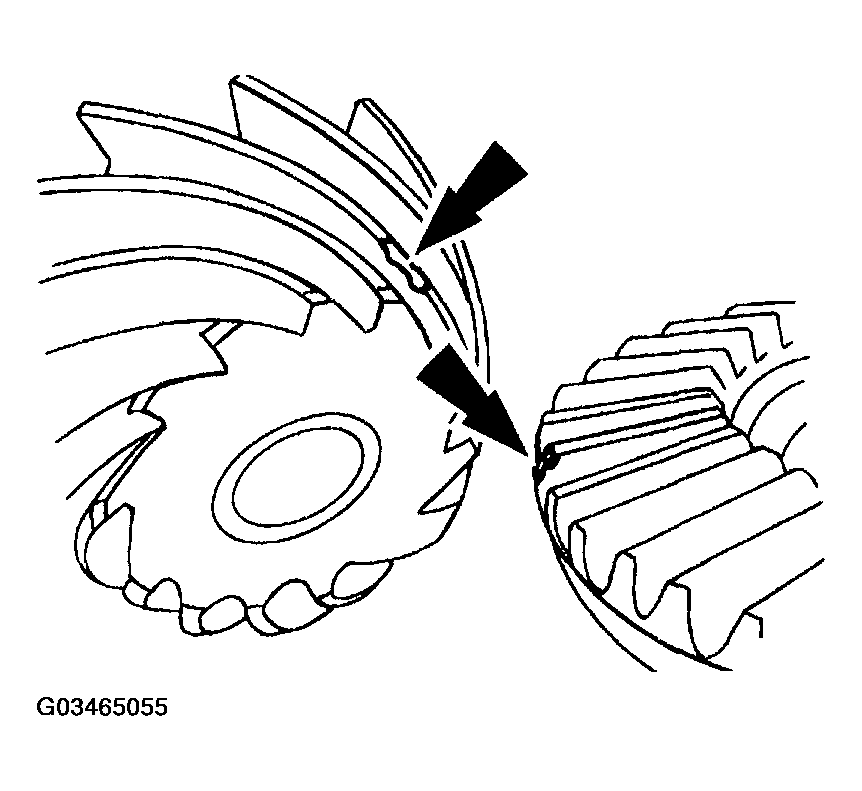

Fig 2: Identifying Gear Tooth Damaged
G03465055Courtesy of FORD MOTOR CO.
